Wiring harness design in CATIA V5 - 3D modeling Week 5 & 6 Challenge

Aim : To route the following harness layout in Electrical workbench and

1. Check the bundle continuity.

2. Add annotation to all connectors.

3. Check for the bundle warning.

4. Generate CAT.part of harness assembly and convert it in .igs format.

PROCESS:-

First we define the gepmetrical point,in both side connector,bundle entry point and matting side.Than standard axis define in matting side

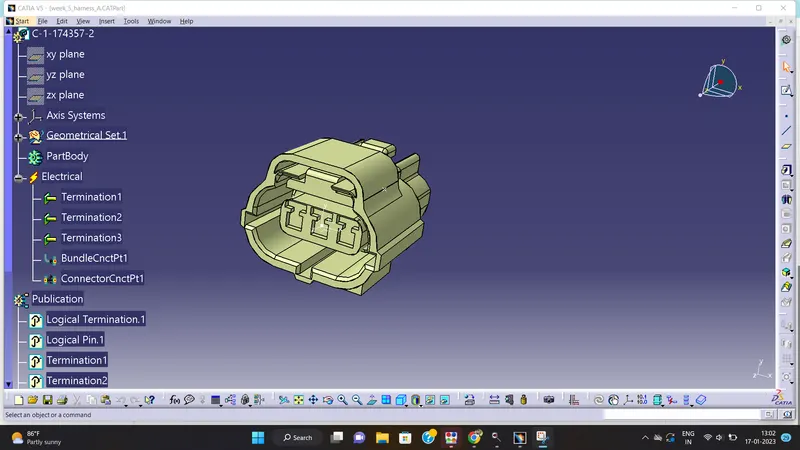

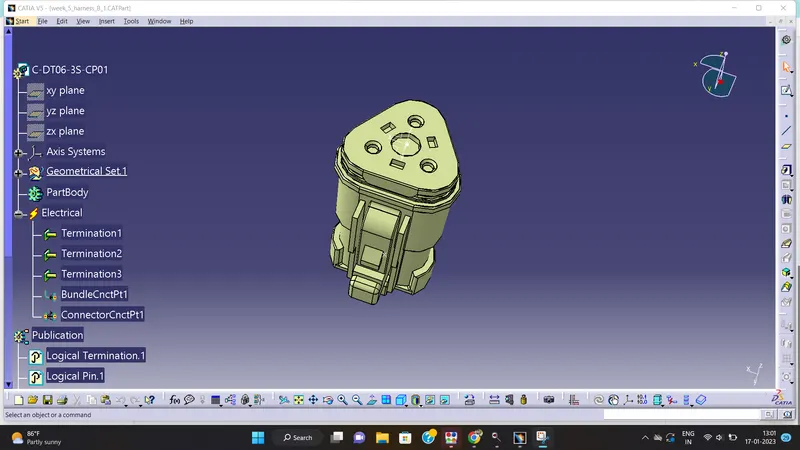

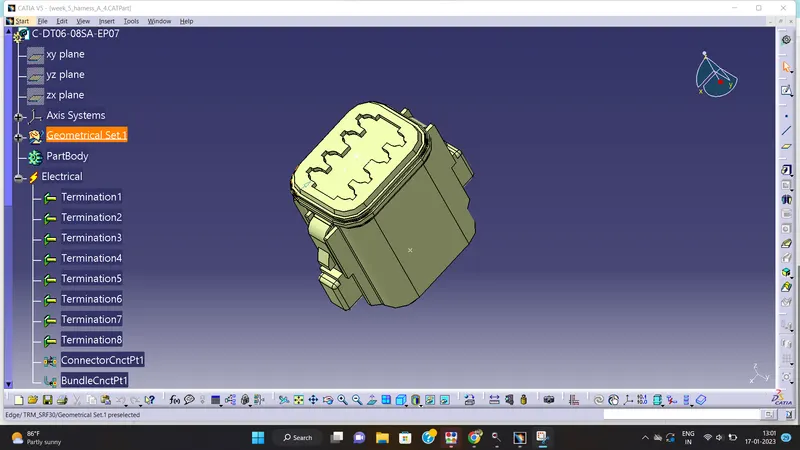

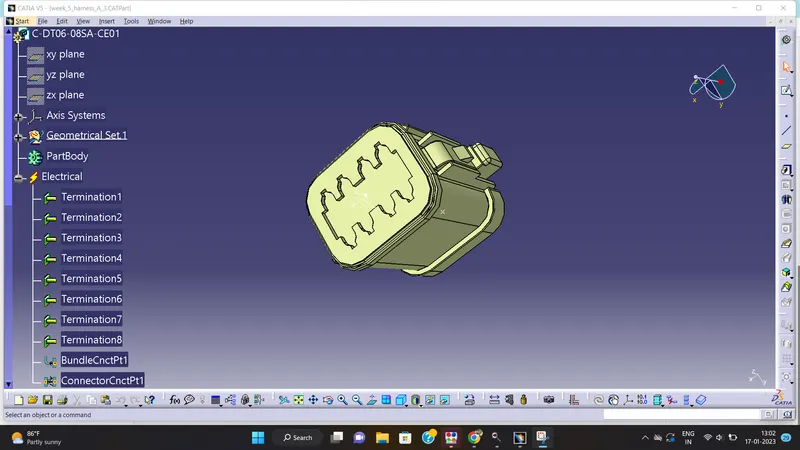

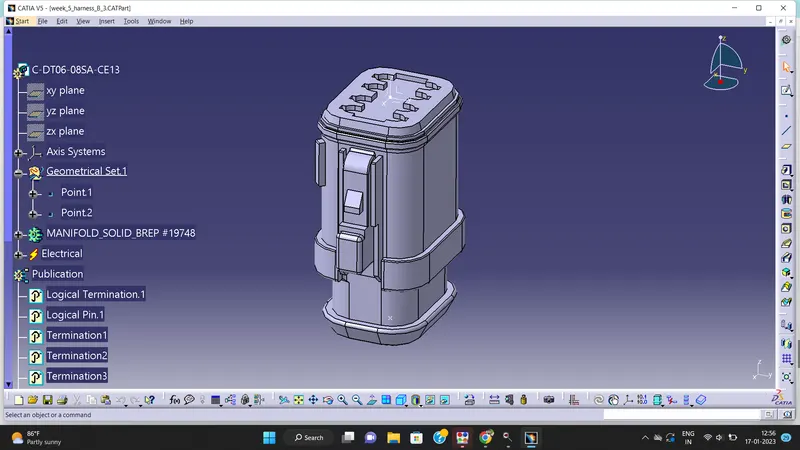

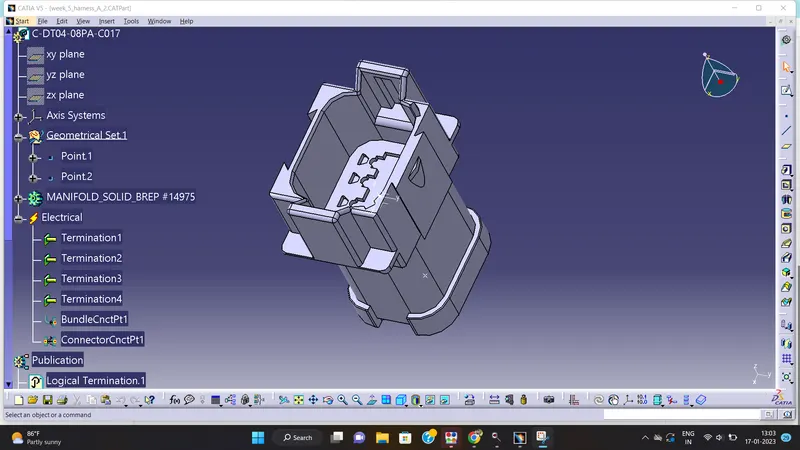

than moving to electric part define and define connector then bundle define and last connector define

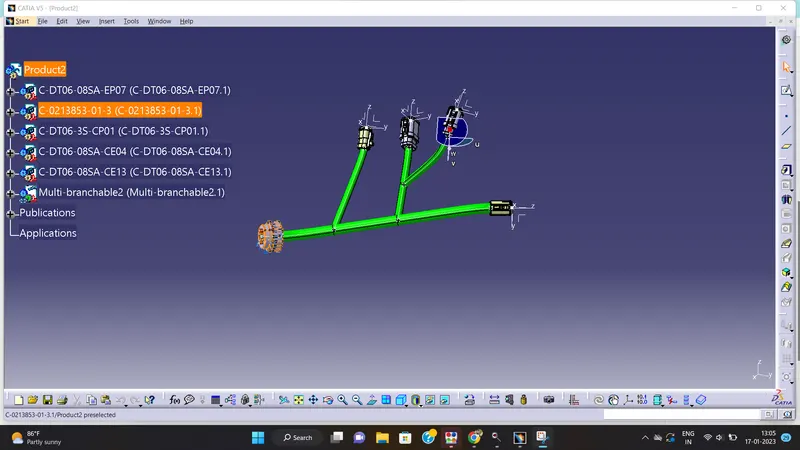

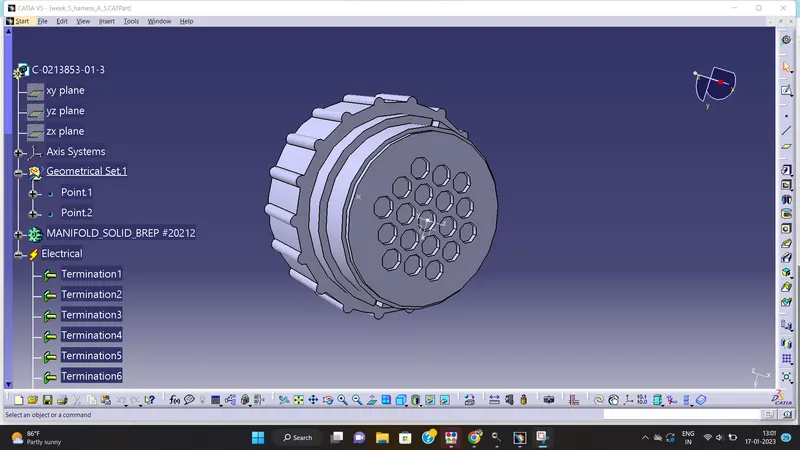

HARNESS-A

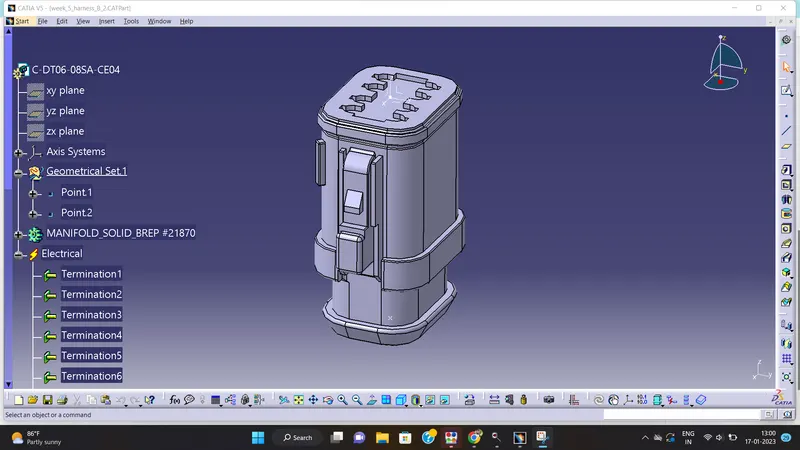

HARNESS-B

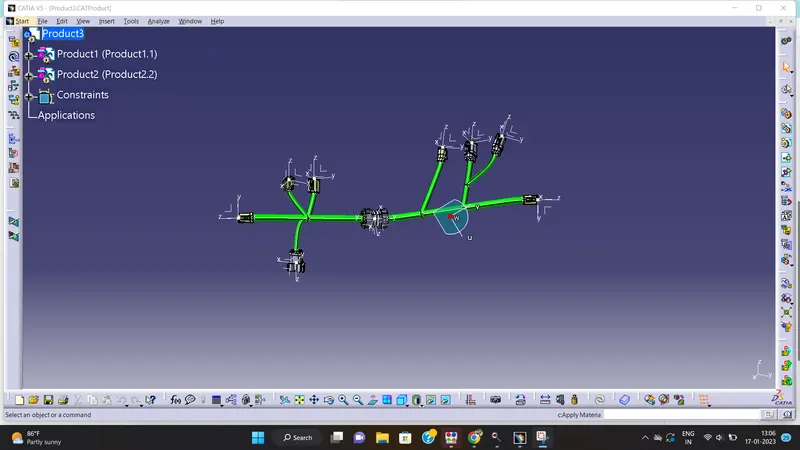

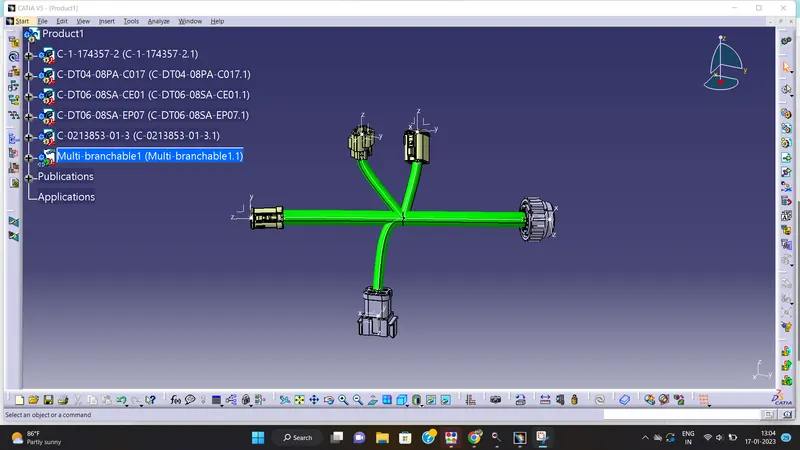

THE JOINING OF BOTH THE HARNESS A AND HARNESS-B

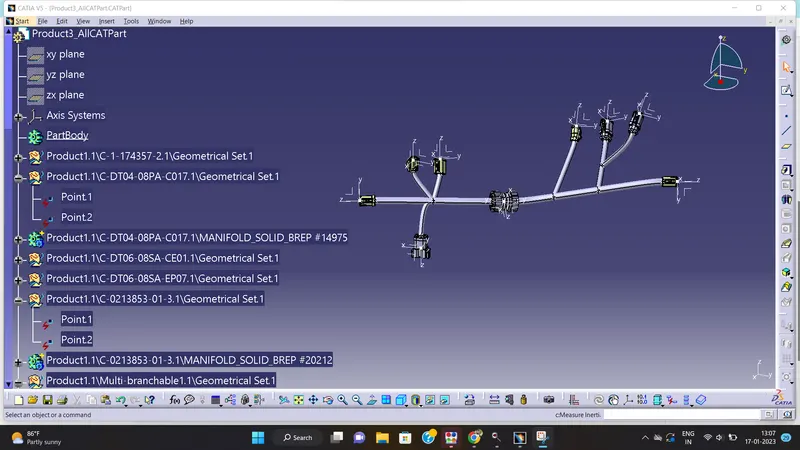

THE CAT_PRODUCT CHANGE TO IGS_PART_PRODUCT
