Wiring harness design in CATIA V5 - 3D modeling Week 4 Challenge

Downloaded all the given connector 3D data from www.te.com

• DT06-4S
• DT06-6S
• DT06-2S
• DT06-08SA

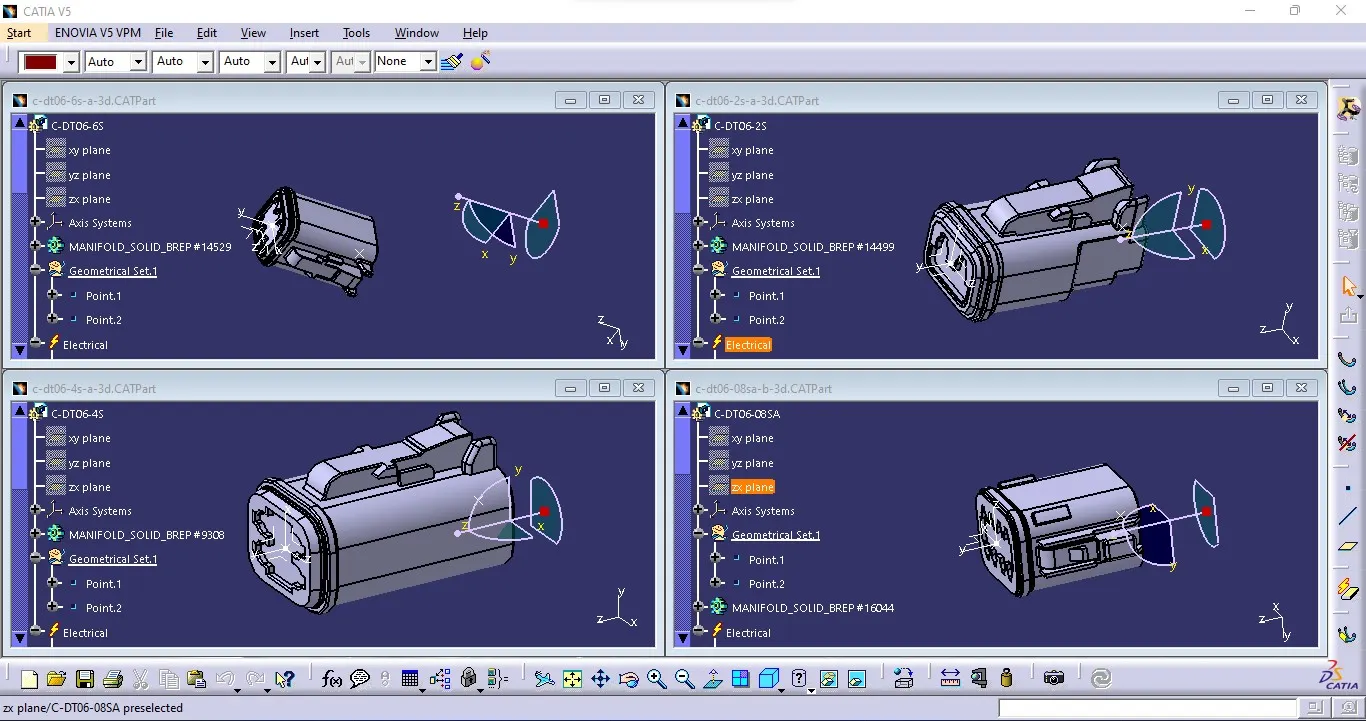

Process to define connector as an electricla part -

1. Make connector connection point

2. Make bundle connection point

3. Make Axis system at the connector connection point

4. Define all the connector as electrical components

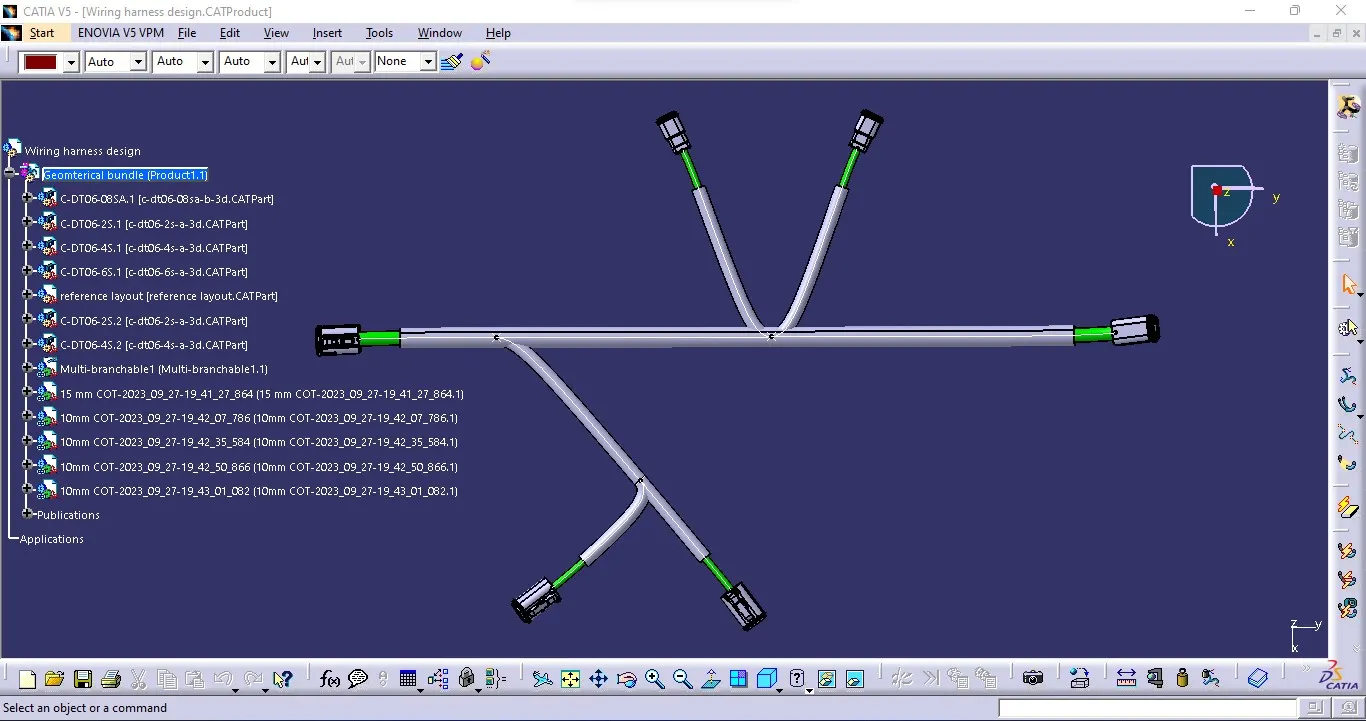

Arranged all connector as per the layout and then cerated the multibranches for the connectors with 10 and 5 mm wire diameter. and then apply protective coverinf to all connector by taking 30 mm end extrimity at the connector end.

Zip file containing all the part and product file is attached.
