Wiring harness design in CATIA V5 - 3D modeling Week 4 Challenge
Wiring harness design in CATIA V5 - 3D modeling Week 4 Challenge
Aim:

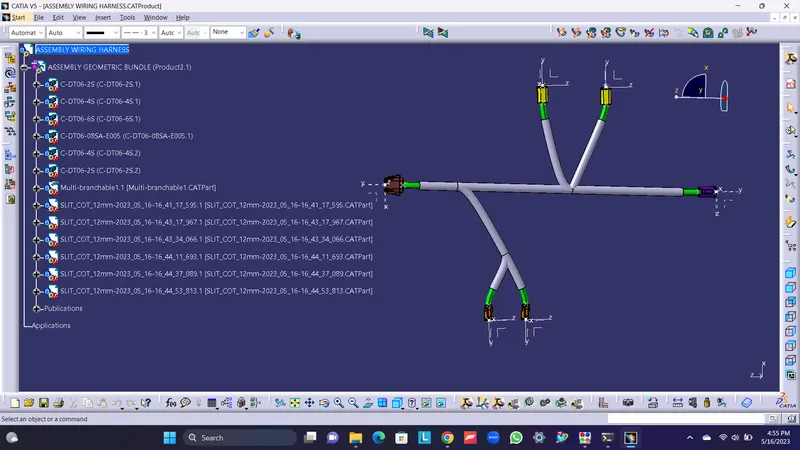

1) To Route the following harness layout in the Electrical workbench.
2) Add protective covering on all branches connected to DT06-2S & DT06-4S connectors. Given: CAD data of the following Connectors:
- DT06-4S
- DT06-6S
- DT06-2S
- DT06-08SA
Connectors Layout Design.
1. Download connector 3D data from www.te.com
- DT06-4S
- DT06-6S
- DT06-2S
- DT06-08SA
2. Convecting the Mechanical part into the Electrical part for that I had followed the following steps.

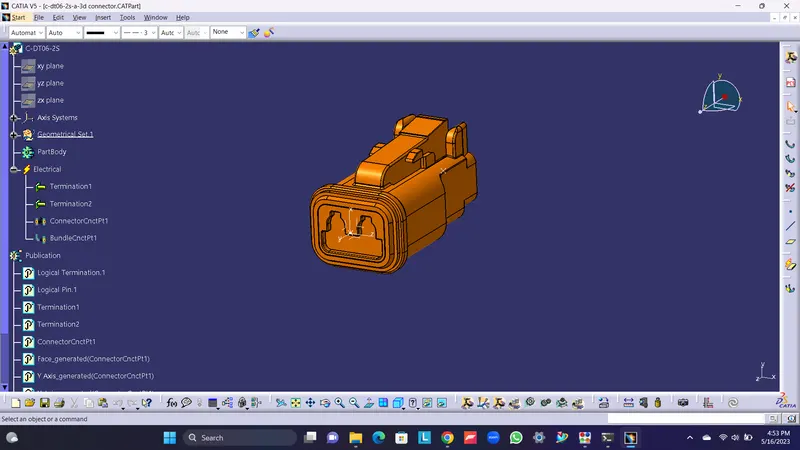

DT06-2S:

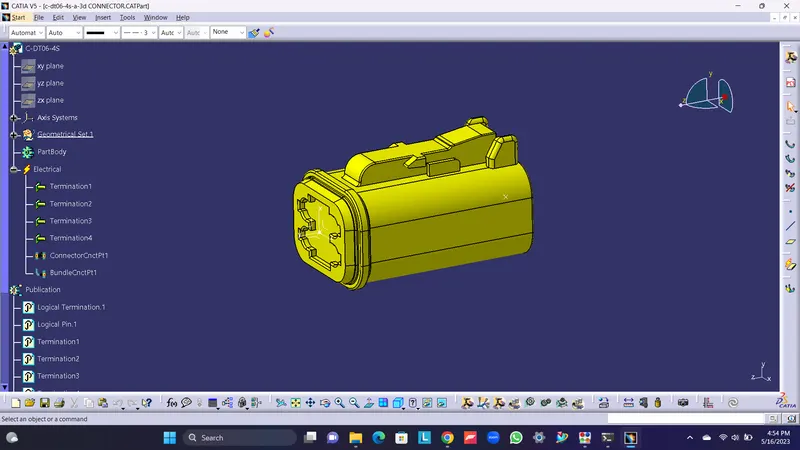

DT06-4S:

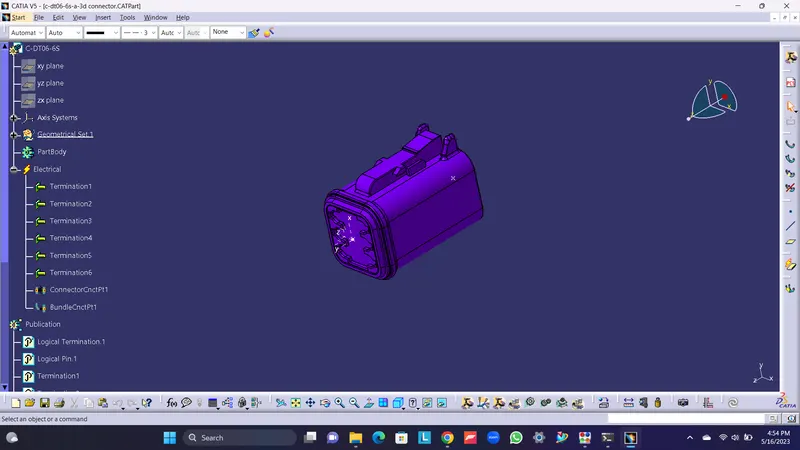

DT06-6S:

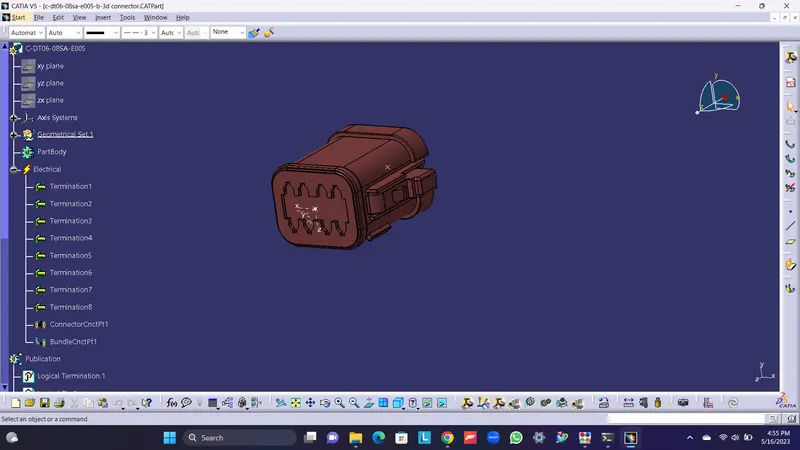

DT06-08SA E005:

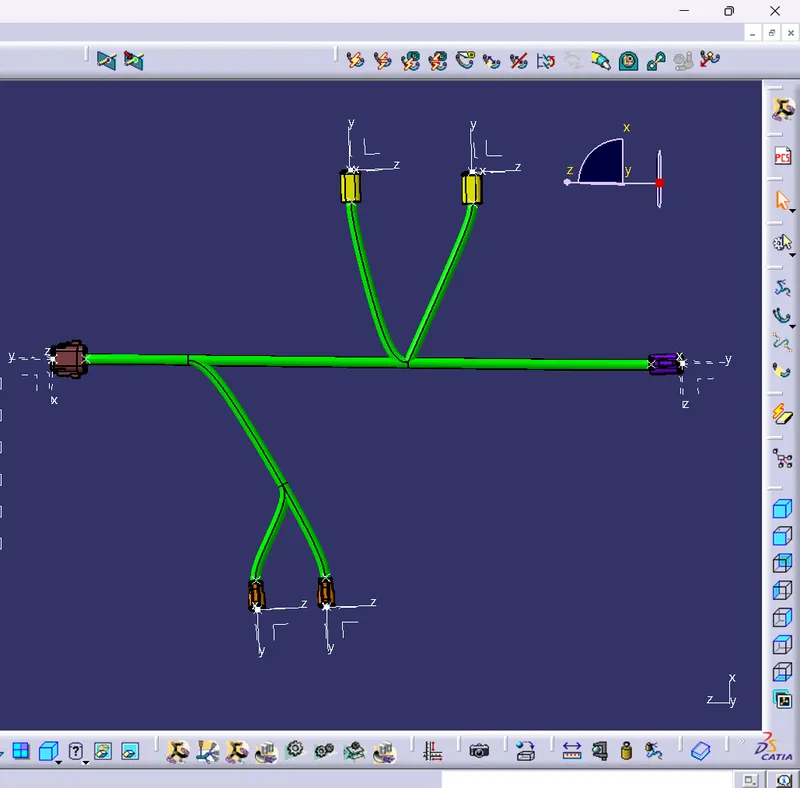

Creating Multi-Branching to the connectors:
Creating a protective covering:
