Wiring harness design in CATIA V5 - 3D modeling Week 4 Challenge
Aim:
1) To Route the following harness layout in the Electrical workbench.
2) Add protective covering on all branches connected to DT06-2S & DT06-4S connectors.
Given:
CAD data of the following Connectors:
- DT06-4S
- DT06-6S
- DT06-2S
- DT06-08SA
Steps
- Download connector 3D data from te.com

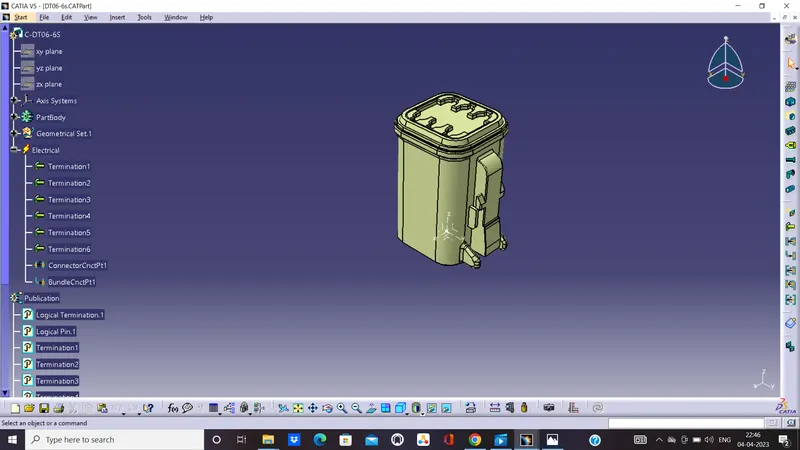

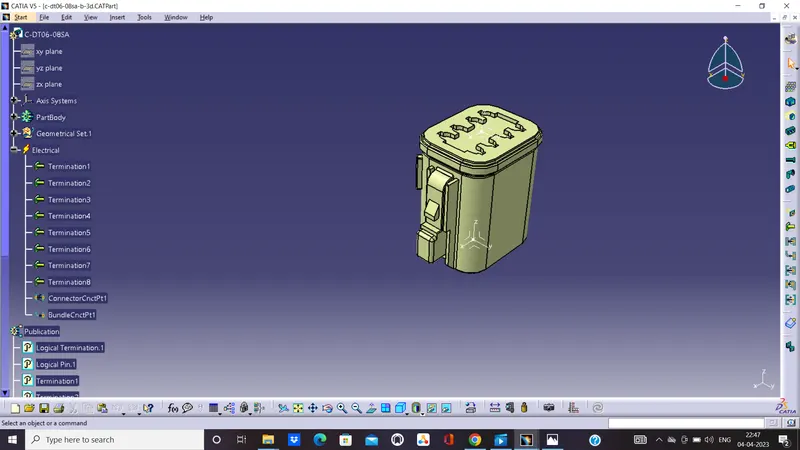

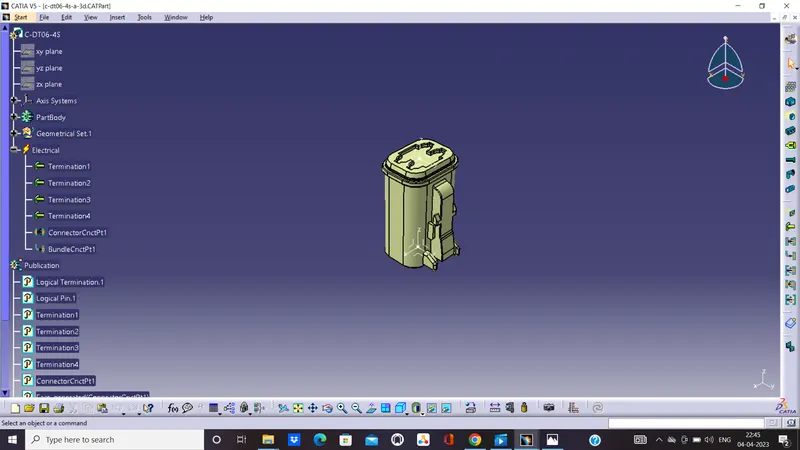

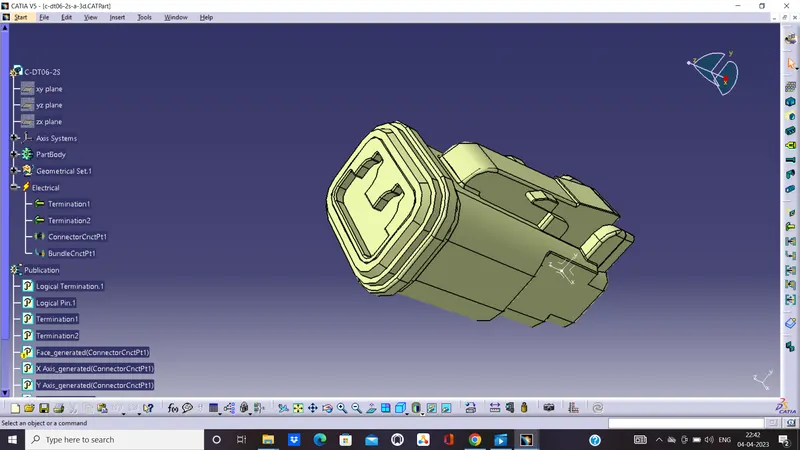

- Converting the Mechanical part into the Electrical part
- Arranging the Connectors by following the Layout
- Creating Multi-Branching to the connectors
- Creating a protective covering
- DTO6-2S
- DT06-4S
- DT06-6S
- DT06-08SA

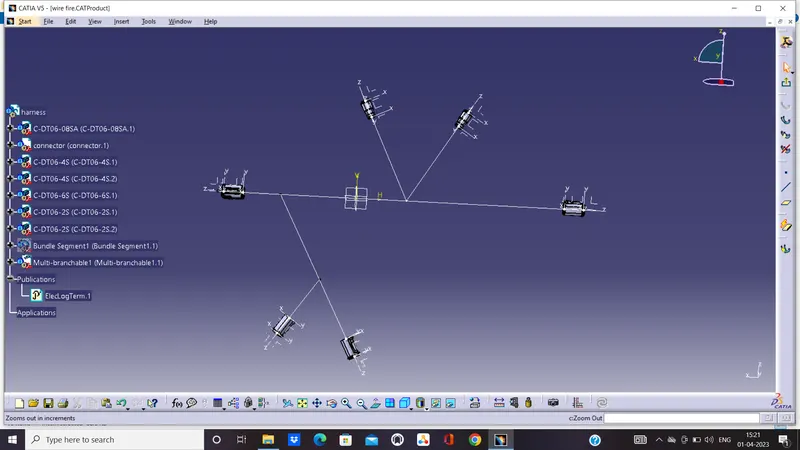

- Arrangements of the Connectors as per the Layout

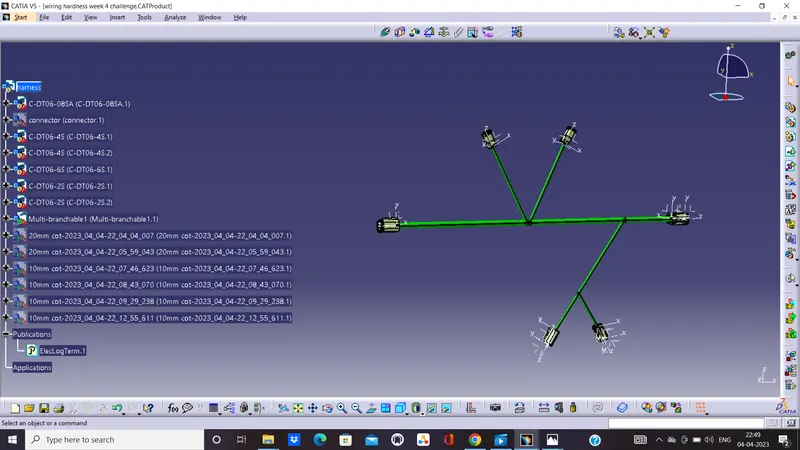

- Creating Multi-Branching to the connectors

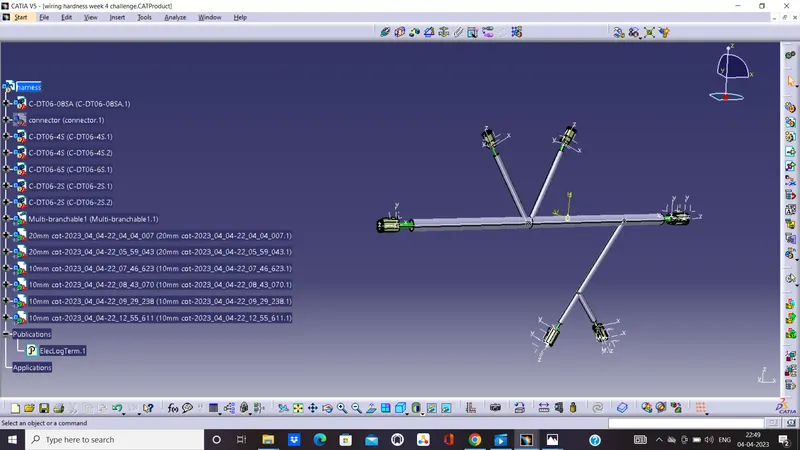

- Creating a protective covering
