Wiring harness design in CATIA V5 - 3D modeling Week 4 Challenge
Wiring harness design in CATIA V5 - 3D modeling Week 4 Challenge
OBJECTIVE:
Q1. Route the following harness layout in Electrical workbench. Make assumption for harness bundle diameters. Use Following connectors as shown in layout diagram.
Add protective covering on all branches connected to DT06-2S & DT06-4S connectors. Keep end extremity at 30mm (from connectors end)
Download connector 3D data from www.te.com
- DT06-4S
- DT06-6S
- DT06-2S
- DT06-08SA
SOLUTIONS:-

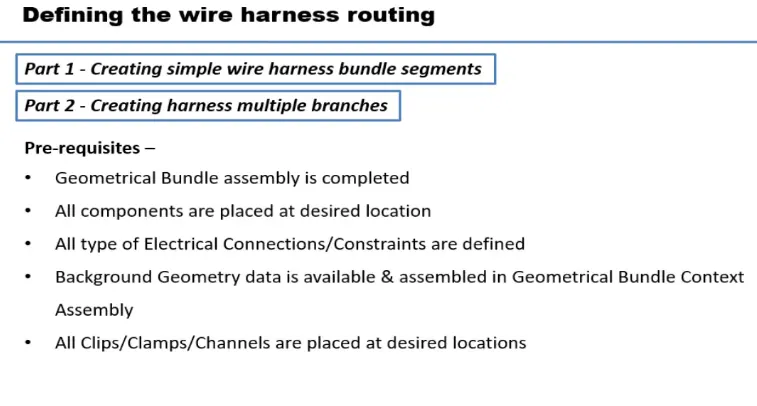

DEFINIG ELECTRIC PARAMETER FLOW CHART
STEPS:
FIRST DEFINE THE PART AS THE CONNECTOR. AND DEFINE THE CONNECTOR CONNECTION POINT AND THE BUNDLE CONNECTION POINT FOR ALL THE CONNECTOR.
AFTER THAT STORE ALL THEM IN THE CATALOUGE. AND THAT IS DONE BY THE COMMAND STORE DEVICE .
CREATION OF WIRING HARNESS:

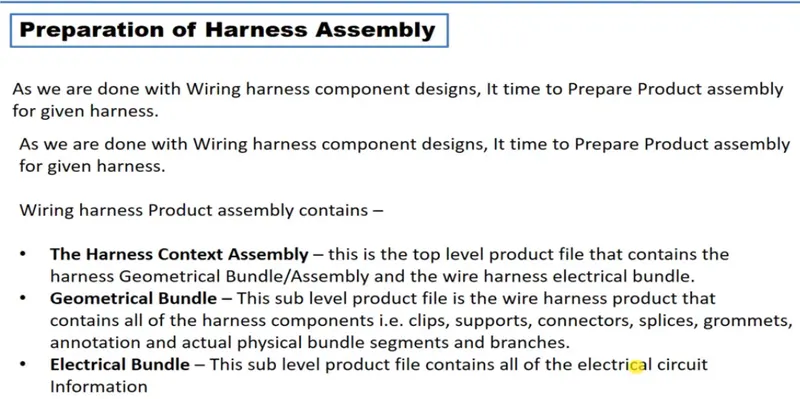

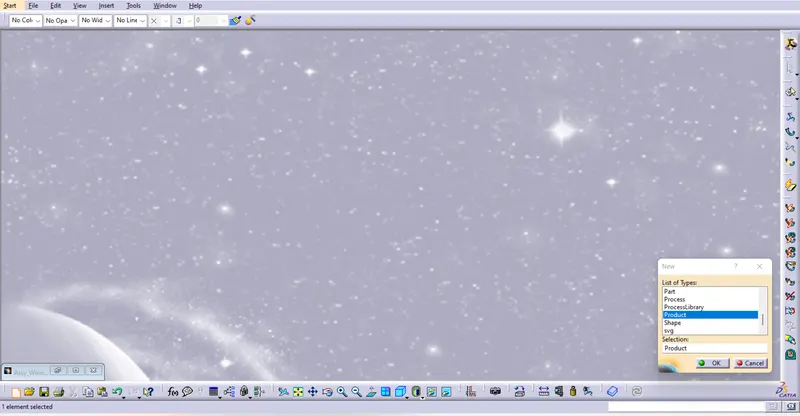

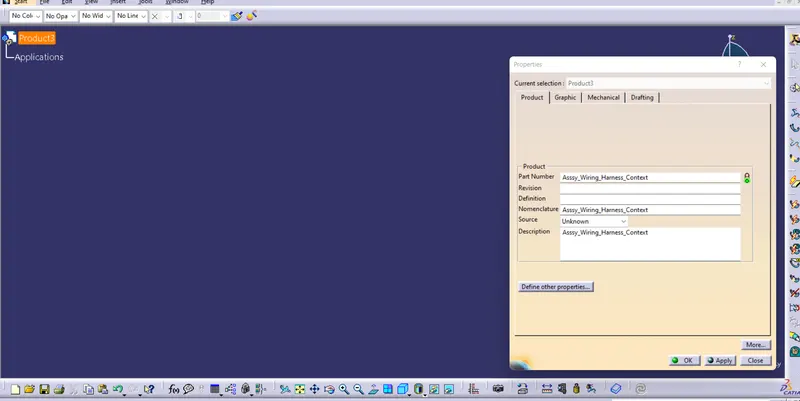

1. GO TO FILE, CHOSE NEW, AND THEN SELECT THE PRODUCT.
AFTER THAT CHANGE THE NAME IF YOU WANT,HERE I CHANGED IT .

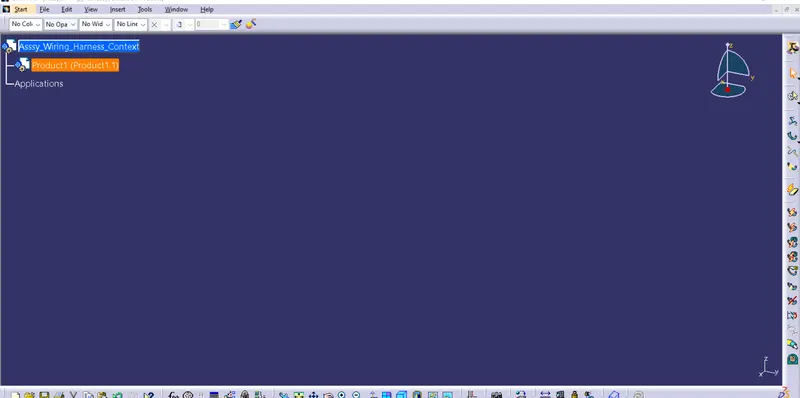

AFTER THAT I HAVE ADDED NEW PRODUCT.

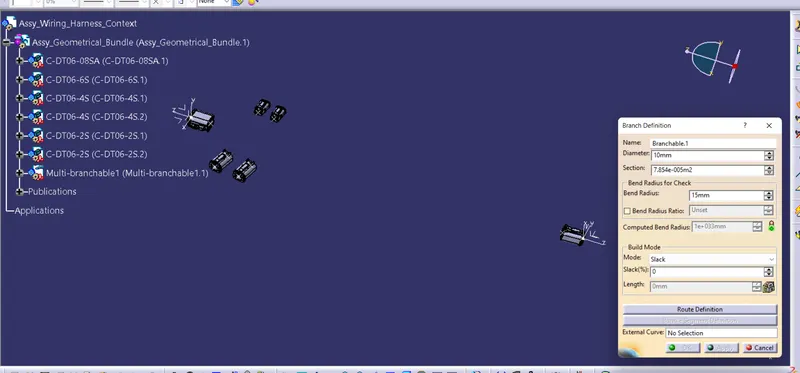

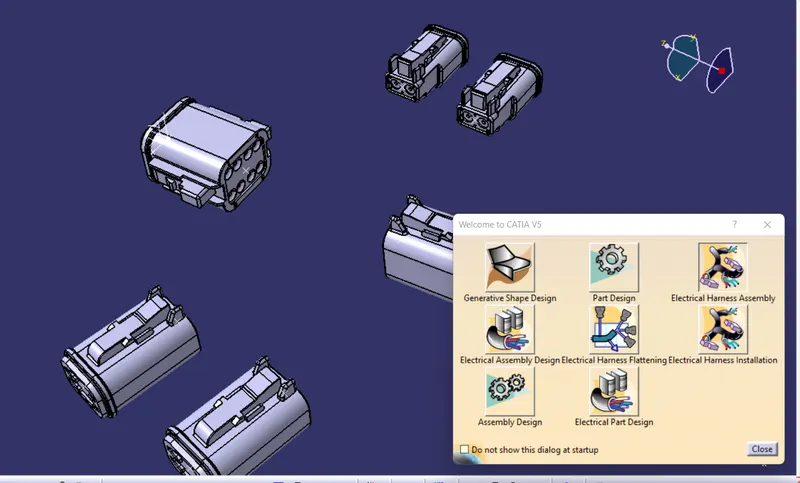

ADDED ALL THE CONNECTORS IN IT ONE BY ONE. AS SHOWN BELOW.
ADJUST THE CONNECTOR ACORDING TO THE DISTANCE , WHERE WE HAVE TO PUT THE CONNECTOR WITH THE HELP OF MANY COMMANDS LIKE SNAP, MOVE,TRANSLATION ROTATION.ALSO WITH THE HELP OF COMPASS.

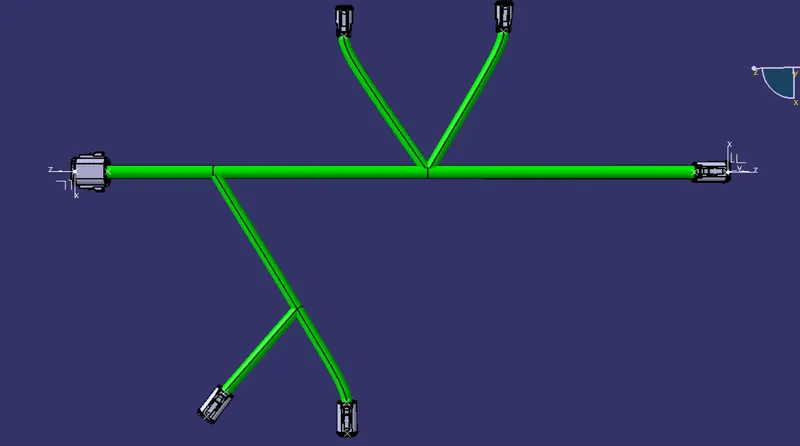

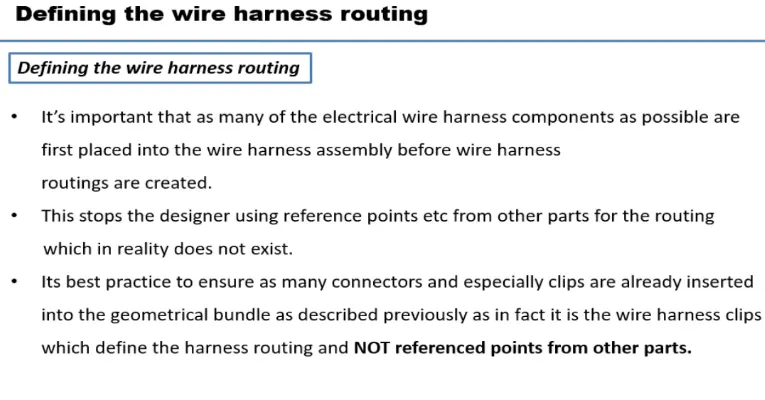

THEN GO TO THE BRANCH DEFINATION COMMAND AND MADE THE BRANCH.
AFTER ADDING BRANCH POINT AND GIVE THE ROUTE TO THE BRANH.

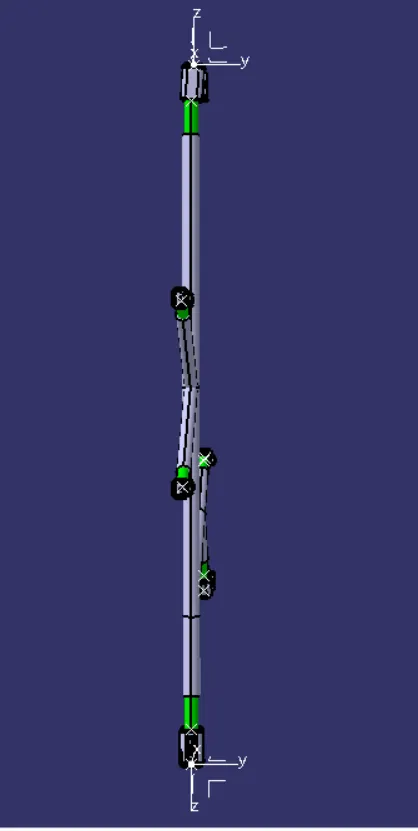

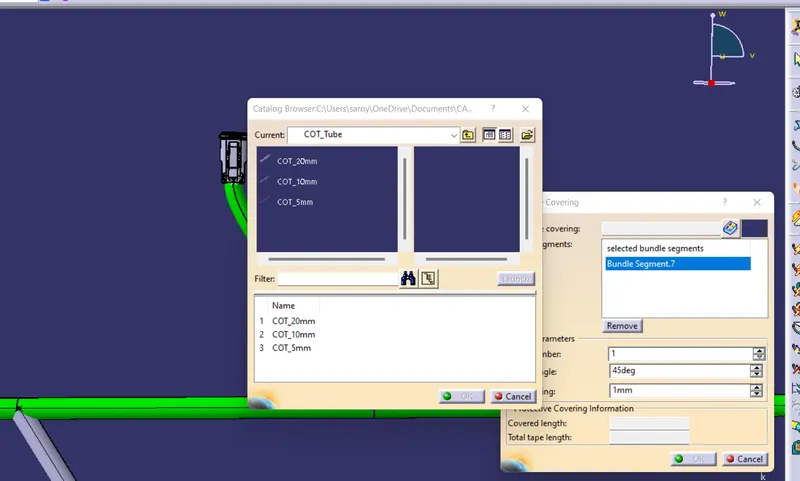

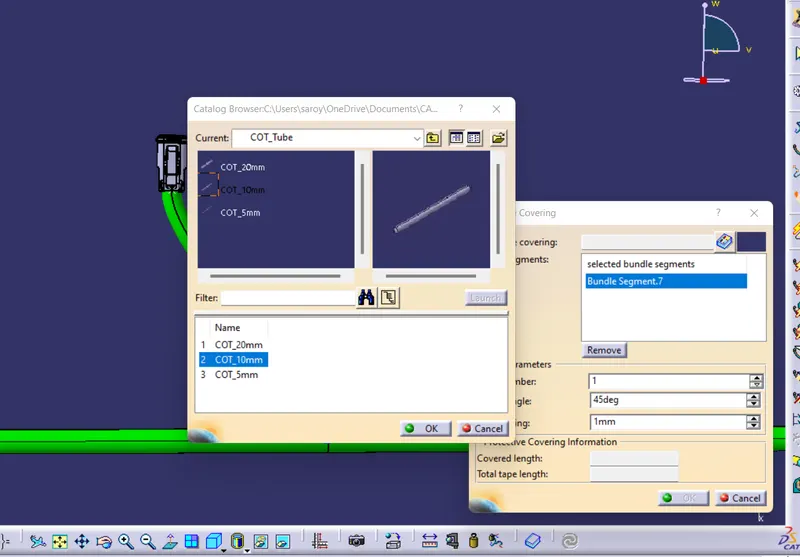

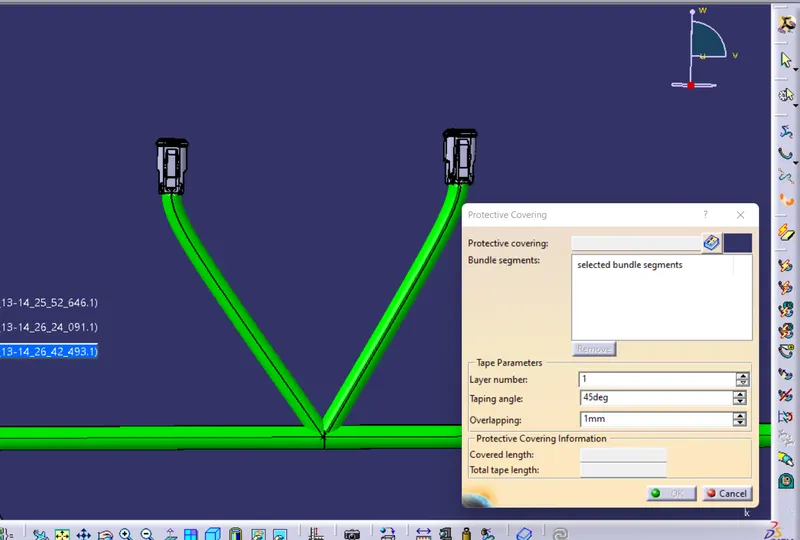

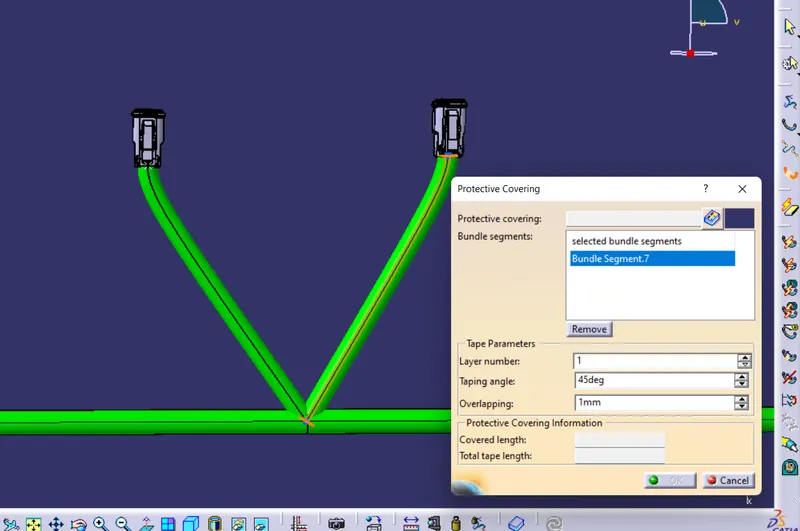

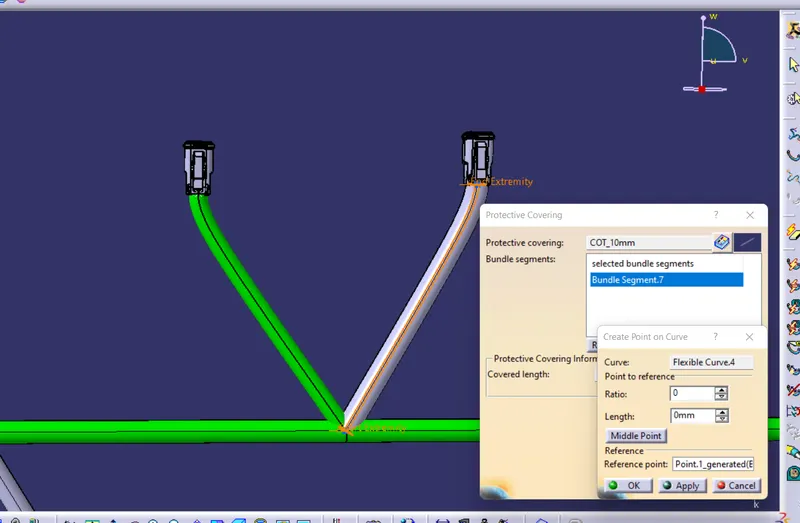

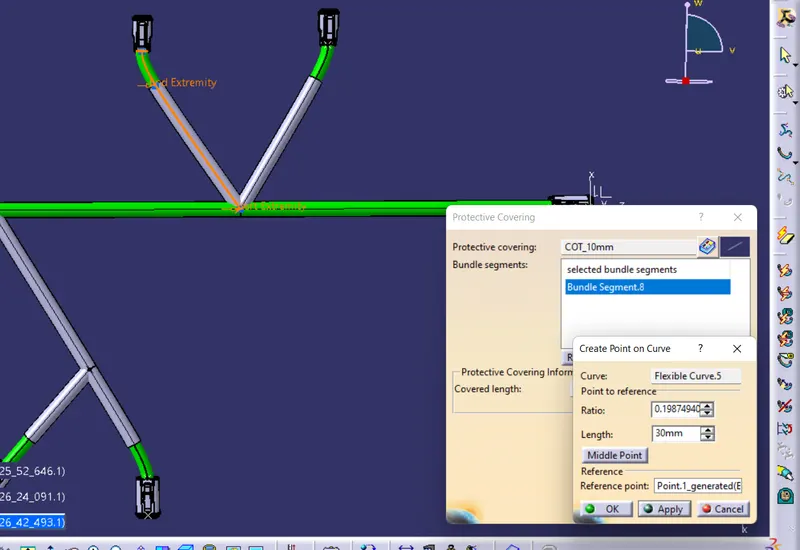

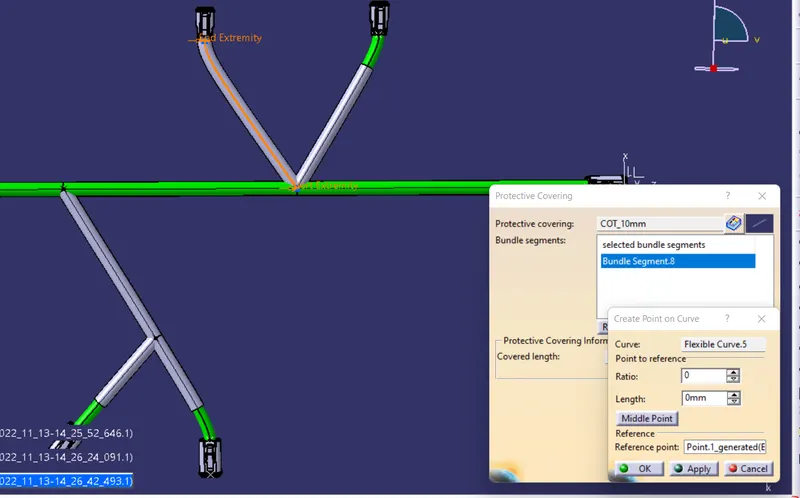

AFTER THAT I HAVE GIVE THE PROTECTIVE COVERING WITH THE HELP OF THE CATALOUGE OF THE COT TUBES. AND GIVE THE PROTECTIVE COVERING TO ALL THE BRANCH.

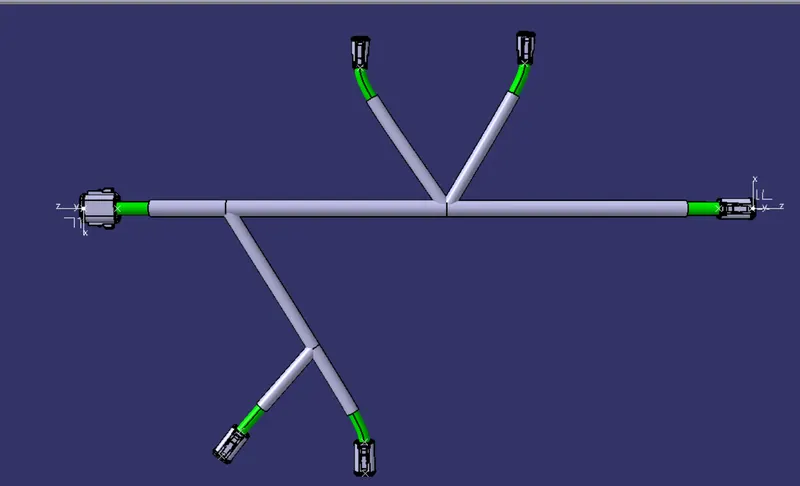

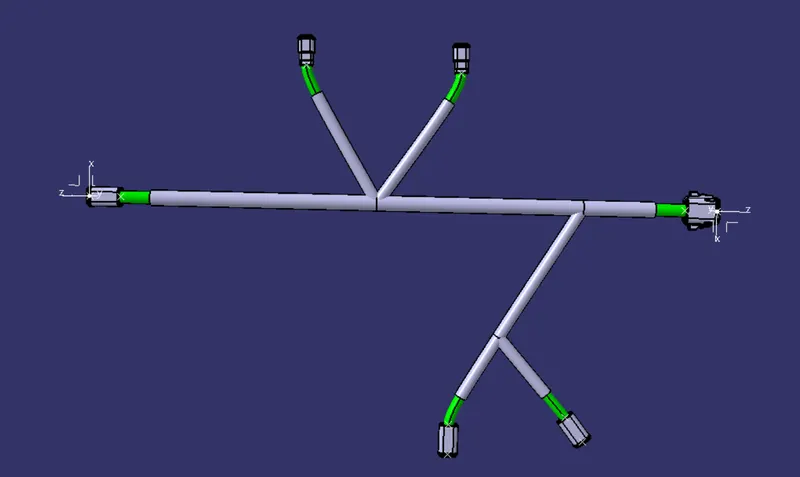

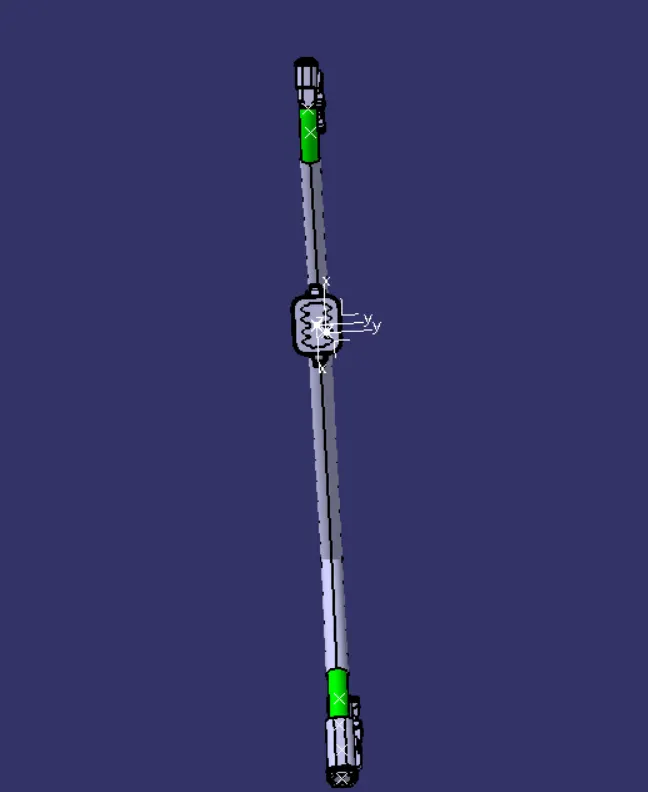

AND GIVE THE EXTREMITIES TO THE END POINTS. AS SHOWN BELOW.

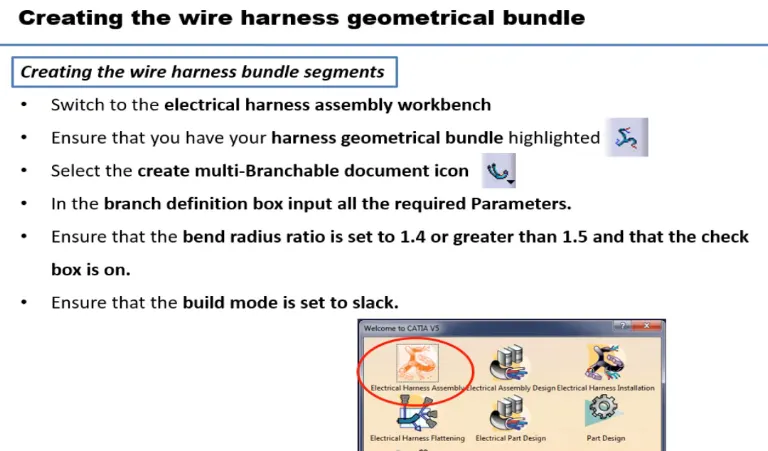

CLICK ON BRANCH DEFINATION
