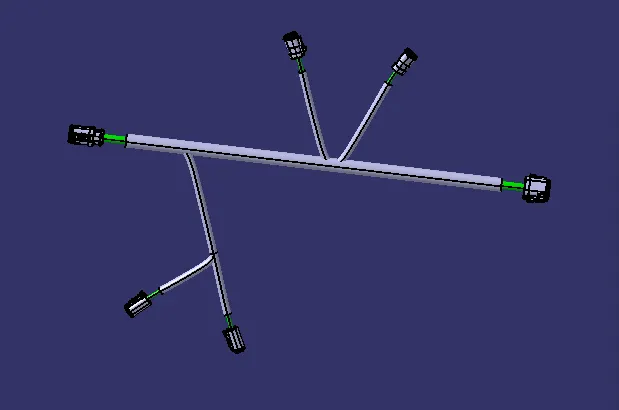

Wiring harness design in CATIA V5 - 3D modeling Week 4 Challenge

Catalogue:

catalogue is the storage area which we can stor the defined component to reuse again same we need. it can store all the type of connectors and even carogated tube we can store and reuse again.

Electrically define:

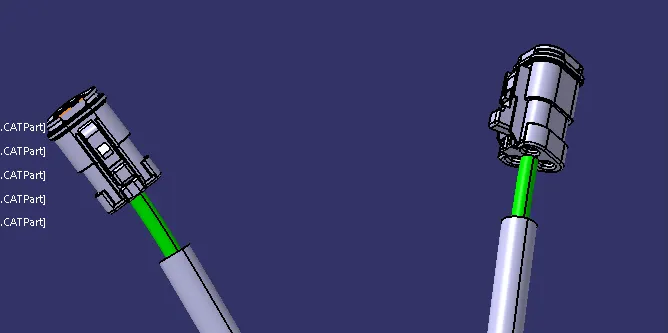

the required connectors are need to be defined by electrically by declaring the point and axis system for the desired conductor to prepare it to work as electricall equipment. declare it to the connector connection point and axis system for connector connection.

from the point declared assume it to the bunddle entry connection point

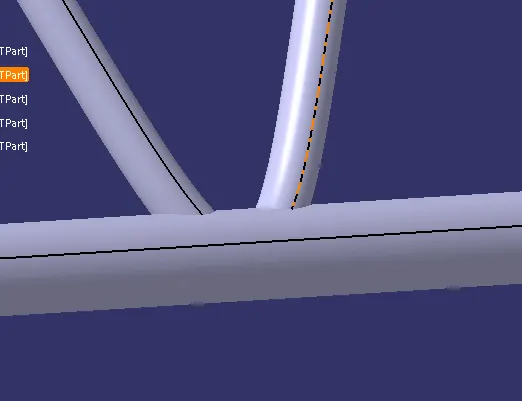

corrogated tube:

it is the external layer to prevent the wiring surface it may produce according to the diameter of the tube.
