Wiring harness design in CATIA V5 - 3D modeling Week 4 Challenge
- All the connectors were electrically defined.
- Then they were stored in the catalog.

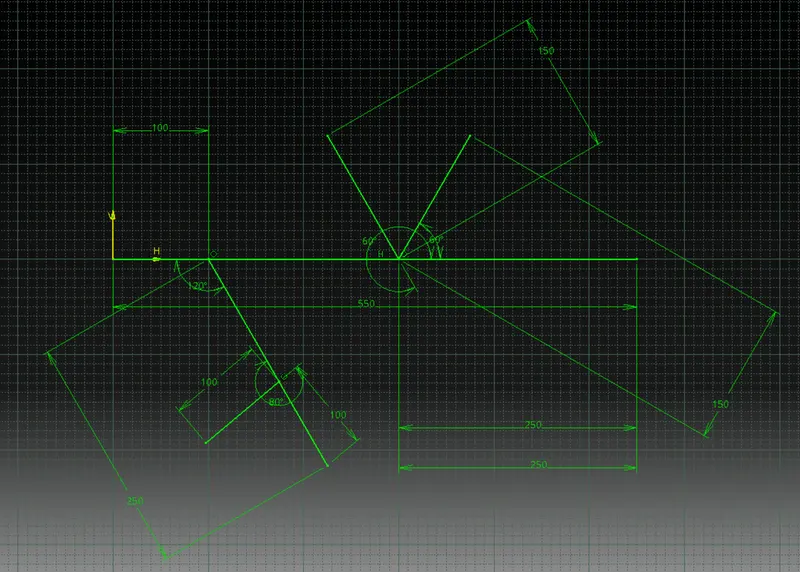

- The following 2d geometry was created for the positioning of the connectors:
- Now in the mechanical assembly, the connectors were placed in the required positions with reference to the geometry created.

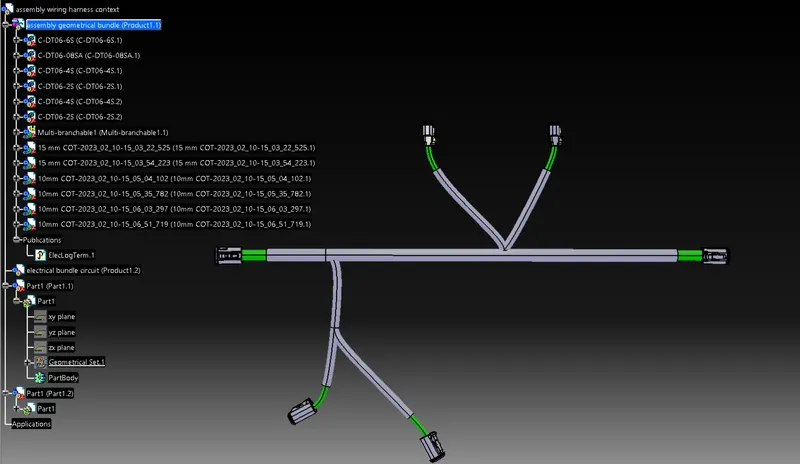

- The assembly was then converted to electrical assembly using the geometrical bundle command.
- Using the multi-branchable document command, the main routing was done with a bundle diameter of 12 mm and other appropriate parameters.
- Then placing the branch point using the add branch point command, the branches were made using multi-branchable document command with a diameter of 8 mm.

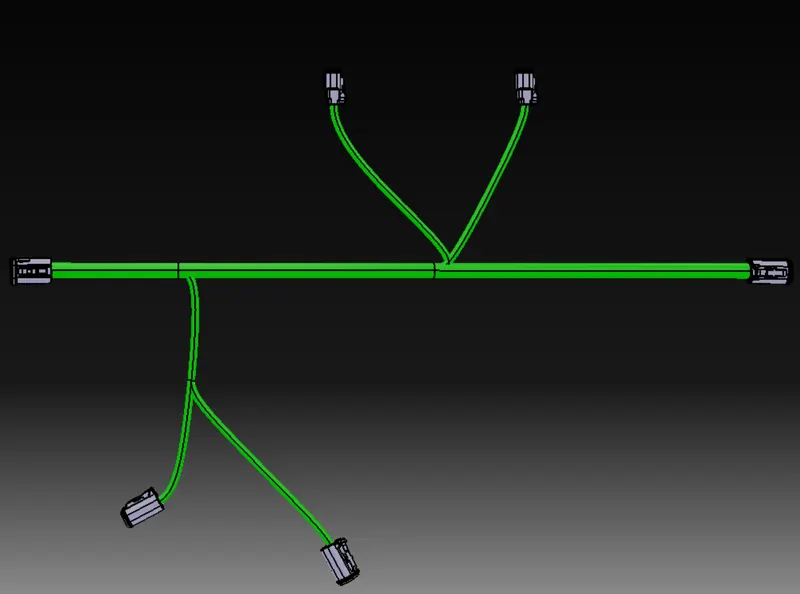

- Then cot tubes were added from the catalog with appropriate diameters and keeping extremities of 30 mm from the connector end.
