Wiring harness design in CATIA V5 - 3D modeling Week 4 Challenge
Wiring Harness Design - WEEK 4:
-
AIM:
- To route the following harness layout in Electrical workbench.
- To make assumption for harness bundle diameters.
- To use following connectors as shown in layout diagram.
- To add protective covering on all branches connected to DT06-2S & DT06-4S connectors and to keep end extremity at 30mm (from connectors end).
- - -
Wire Routing:
- - -
Wire Routing Assembly:
- - -

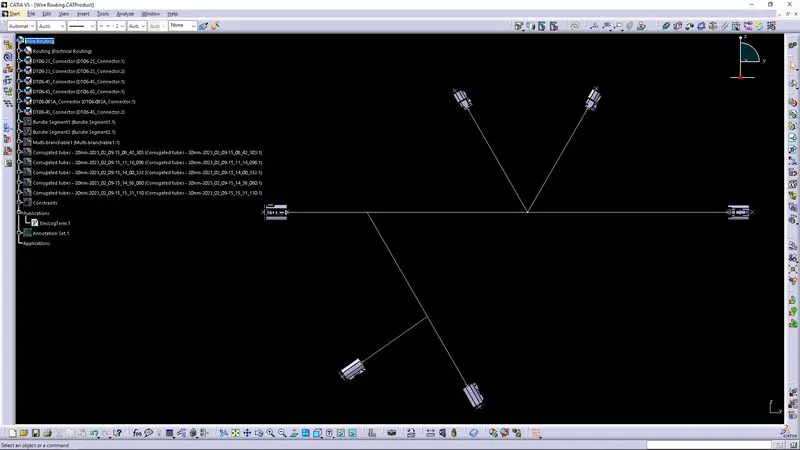

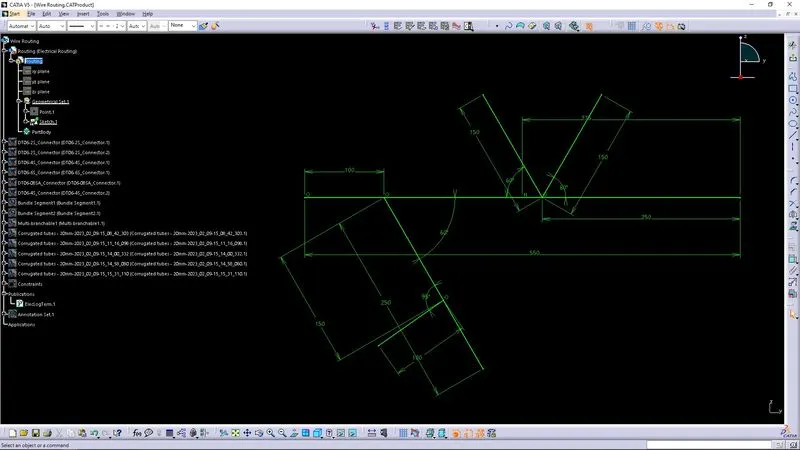

Wire Routing Sketch:
- - -
Connector Placement:
- - -

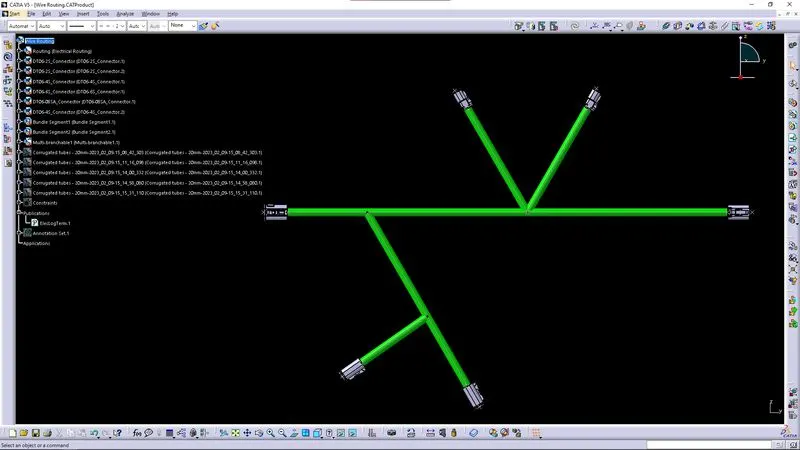

Bundle Segment Definition:
- - -

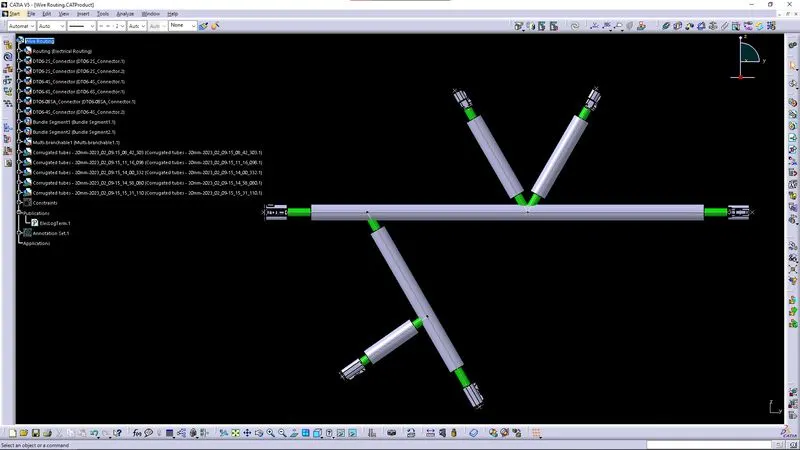

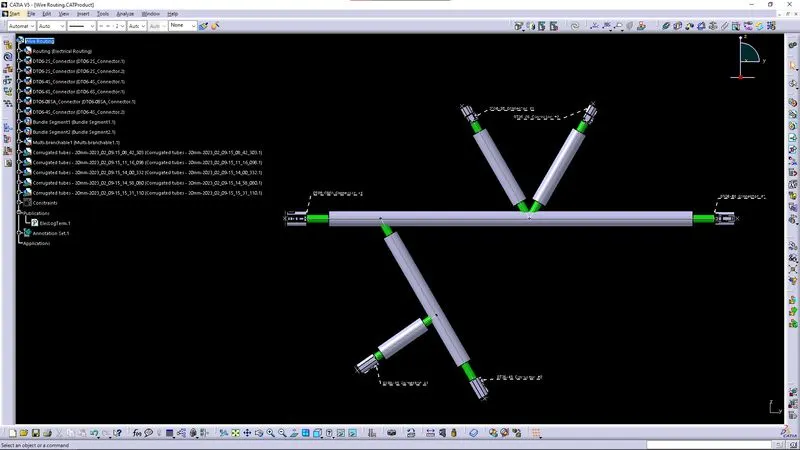

Corrugated Tubes (20mm):
- - -
Connectors Used:

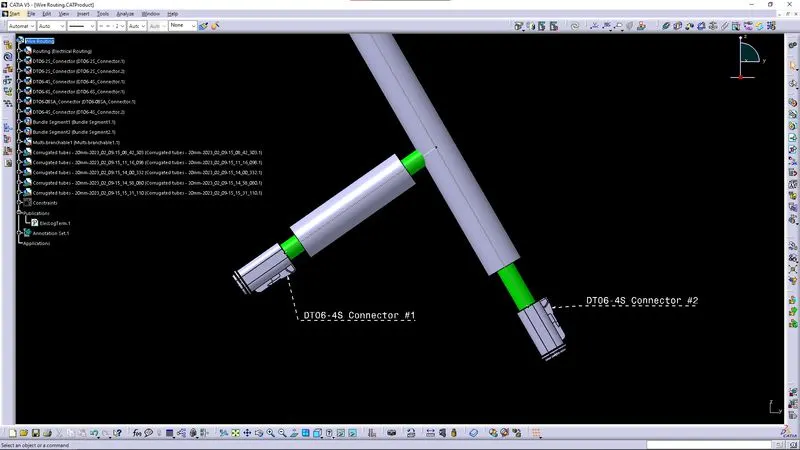

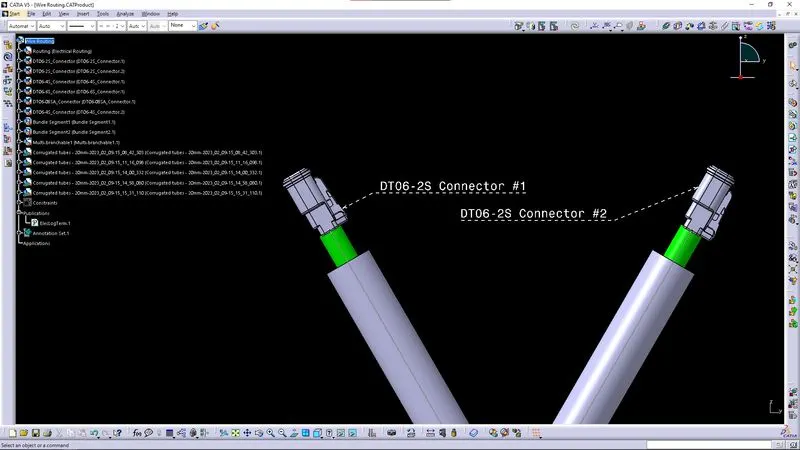

1. DT06-2S
2. DT06-4S

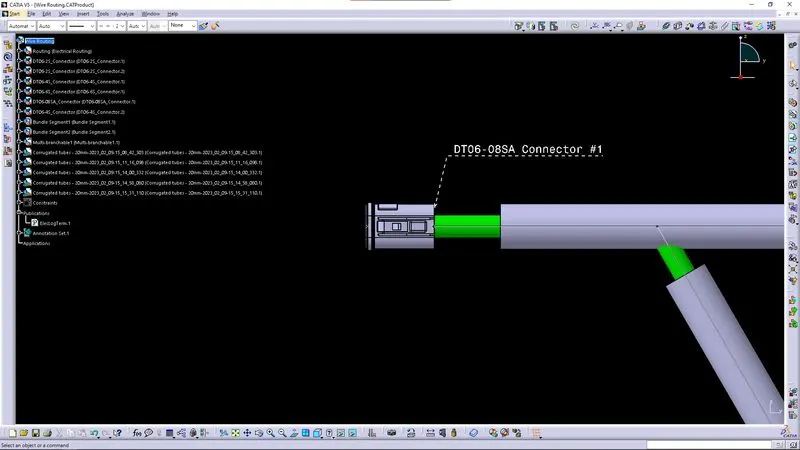

3. DT06-08SA

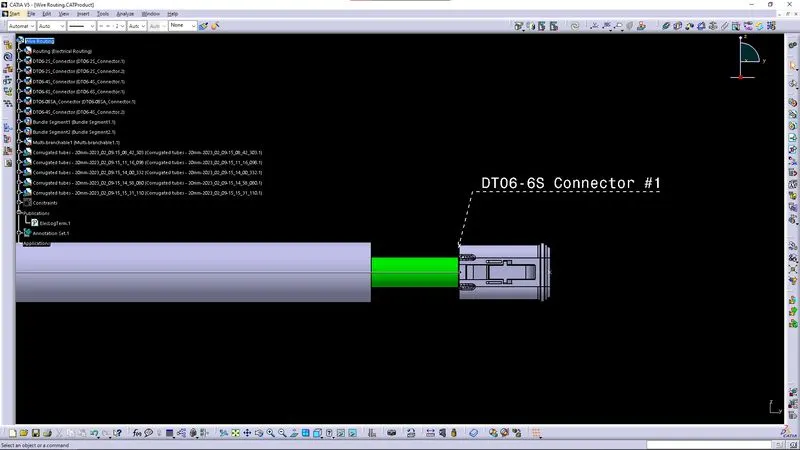

4. DT06-6S
- - -
