Wiring harness design in CATIA V5 - 3D modeling Week 4 Challenge

Q1. Route the following harness layout in Electrical workbench. Make assumption for harness bundle diameters. Use Following connectors as shown in layout diagram.

Add protective covering on all branches connected to DT06-2S & DT06-4S connectors. Keep end extremity at 30mm (from connectors end)

Download connector 3D data from www.te.com

DT06-4S

DT06-6S

DT06-2S

DT06-08SA

Ans:

The following procedure is used to define a connector:

1. Create/download Connector 3D
2. Create required parameters
3. Define part as connector
4. Define bundle connection point
5. Define connector connection point
6. Define cavity connection point

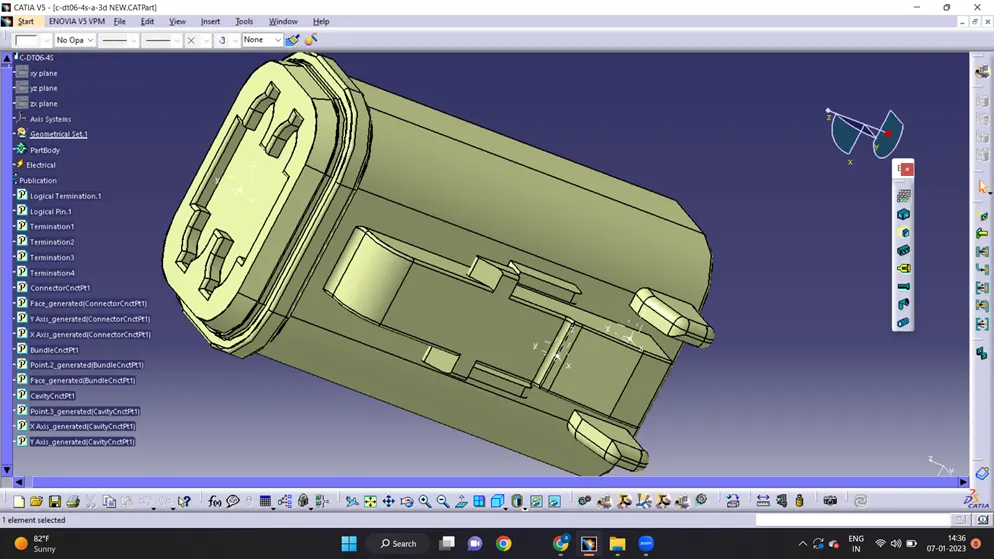

DT06-4S

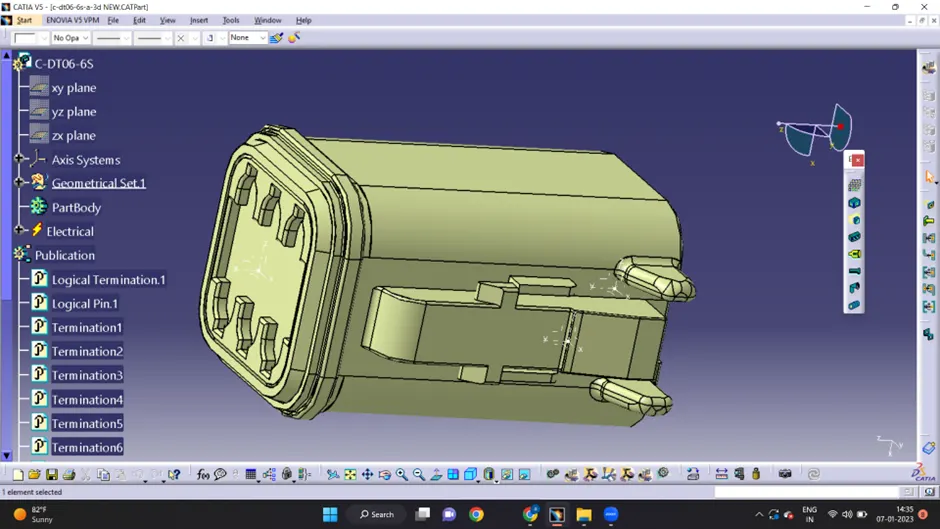

DT06-6S

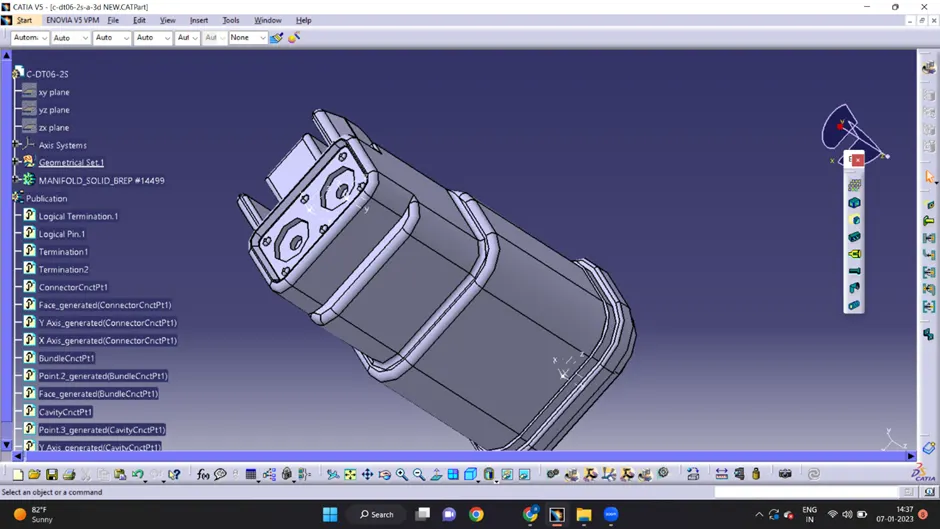

DT06-2S

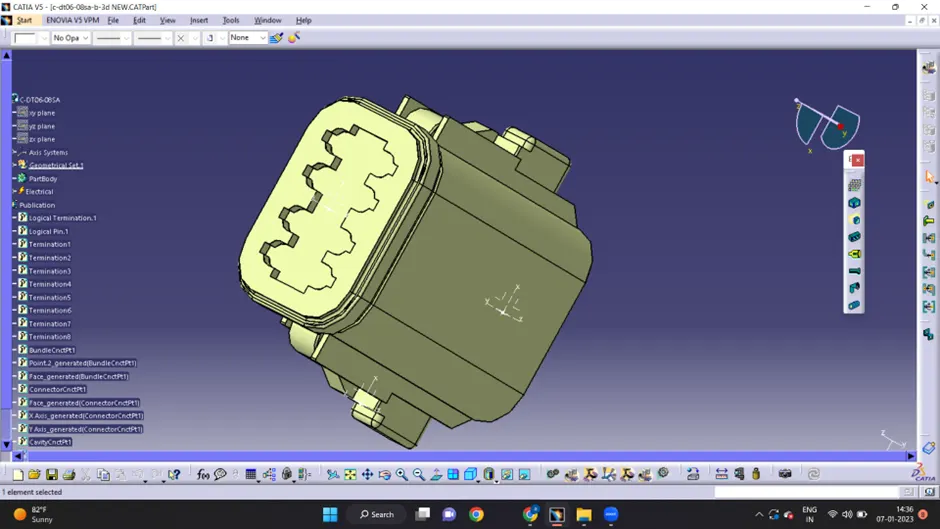

DT06-08SA

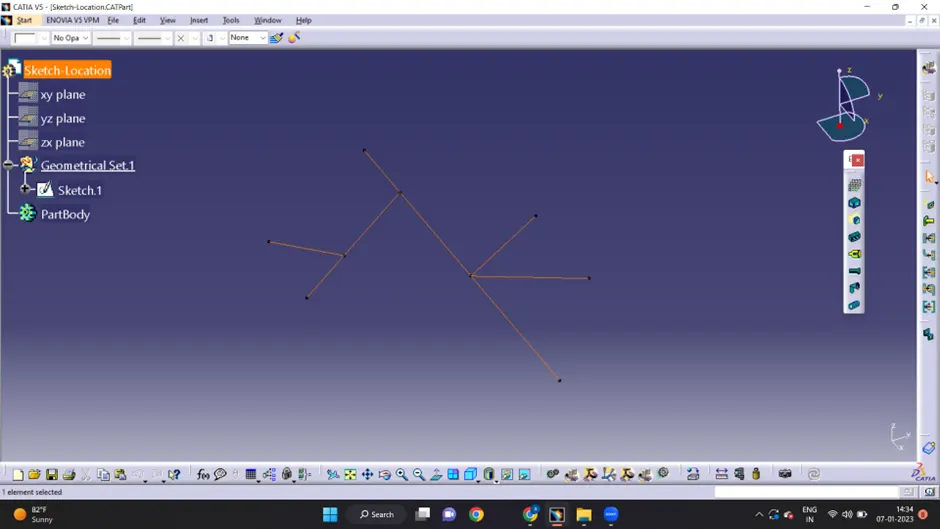

After that arrange all the connectors by using the following layout

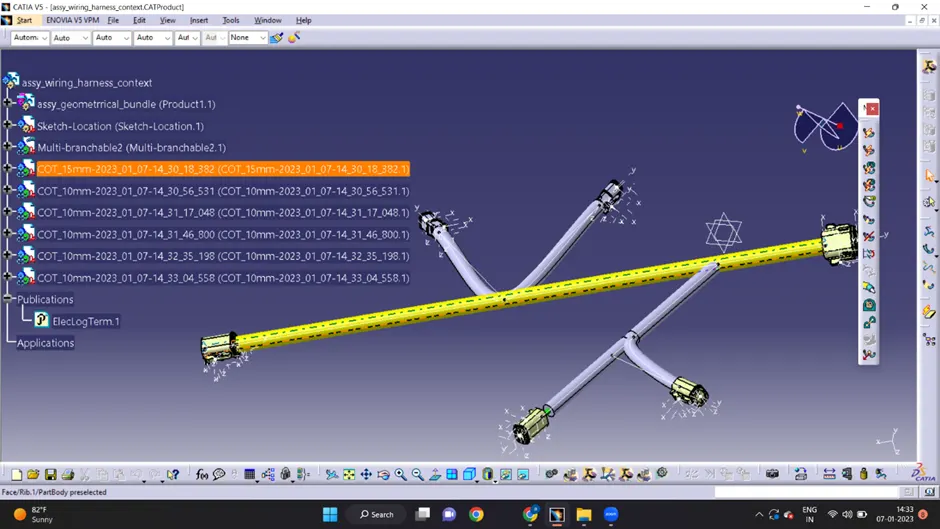

Creating Multi-Branching to the connectors and also provide protective covering
