Wiring harness design in CATIA V5 - 3D modeling Week 4 Challenge

All the connectors have been downloaded and then saved as catpart and then defined electrically as connectors with connector connection points and bundle connection points.

Created a new product and changed its name and added a new product into it as a geomentric bundle and defined electrically by using geomentric bundle command.

added all the connectors from my connectors catalogue.

algned all of them by using snap, manipulation command in mechanical assembly.

by using multibranchable document provided bundle connection to all connectors.

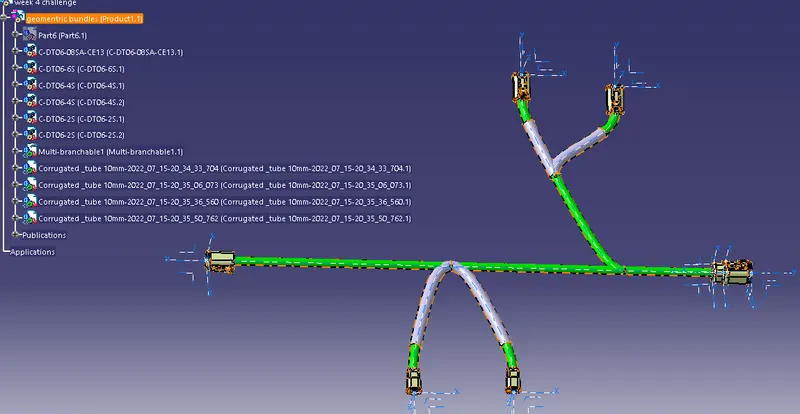

and added corrogatted tubes to bundles by using protective covering command.

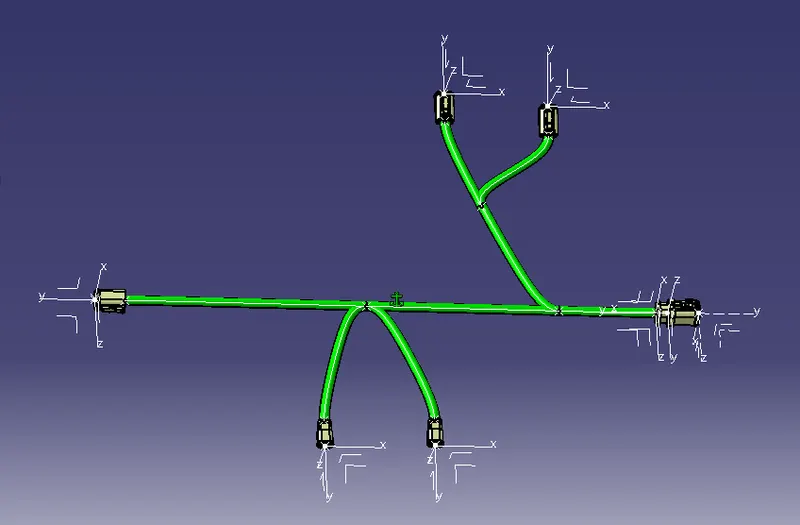

attached image for refrerence.
