Project 1
- Downloaded all the CAD data needed and converted and saved into Cat part.
- Defined all the connectors and supporting parts ans channels electrically by defining connector connection points, Bundle connection points.
- Created a new product and added Engine assembly and new geomentric bundle assembly into it.
- arranged and manipulated all the connectors at proper position by using Snap and smart move command.

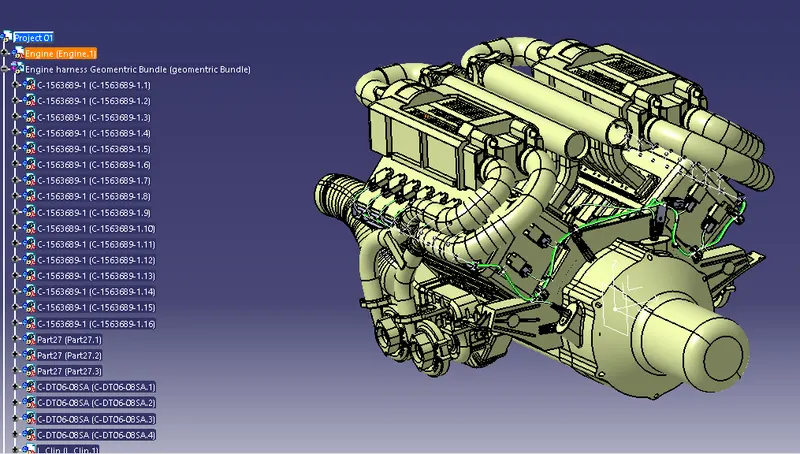

- started routing the bundles and completed it.

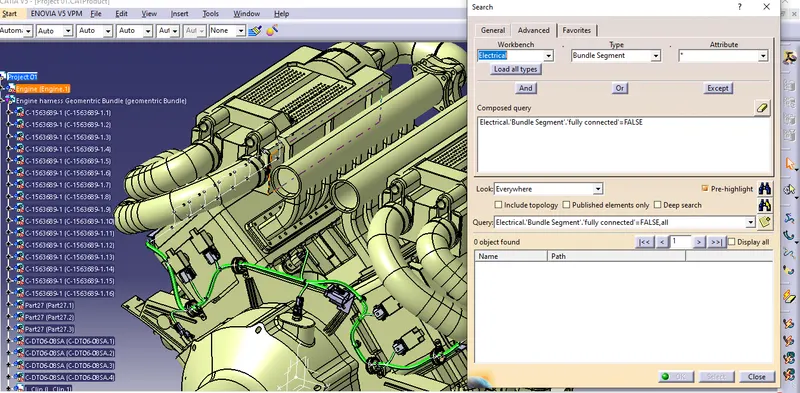

- and checked for bundle connectivity.
- all of the bundles have been connected.
- created a new product for flattening.

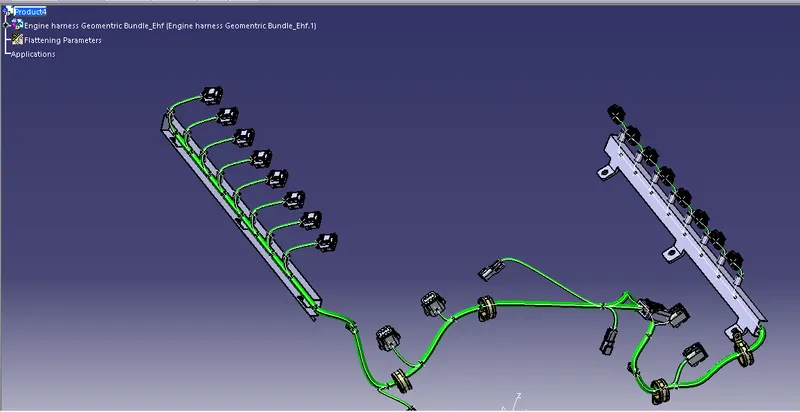

- Extracted the engine harness geomentric bundle into it and straightened it.
- Arranged all the straightened bundles.
- created a new drawing file and imported the view into it and dimensioned the wiring harness lengths.
- Kindly find the attached file for the reference.
