Wiring harness design in CATIA V5 - 3D modeling Week 2 Challlenge

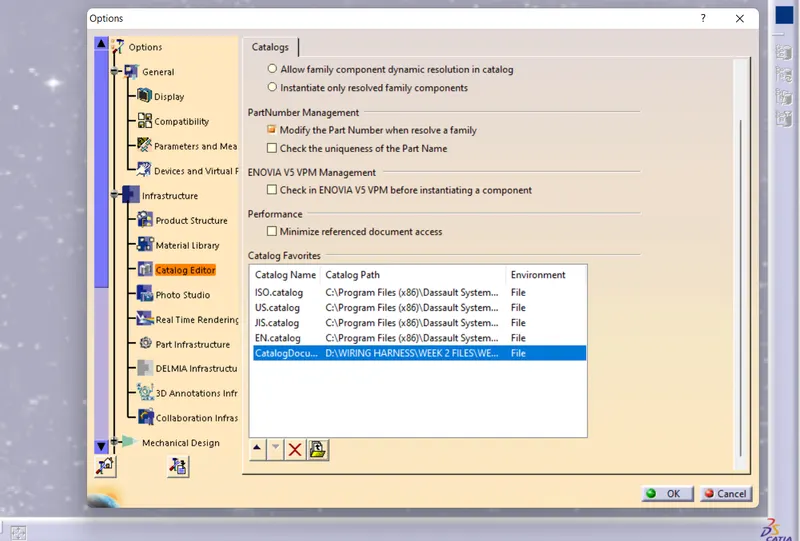

CATALOGUE NEWLY ADDED;

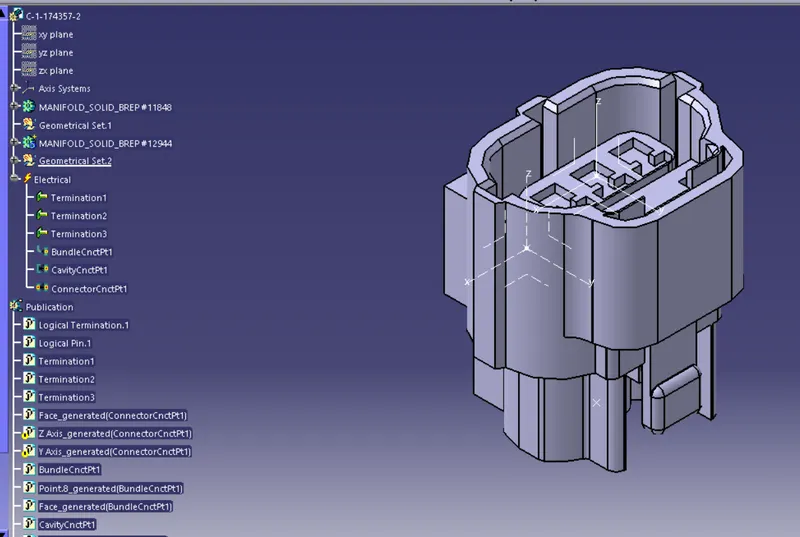

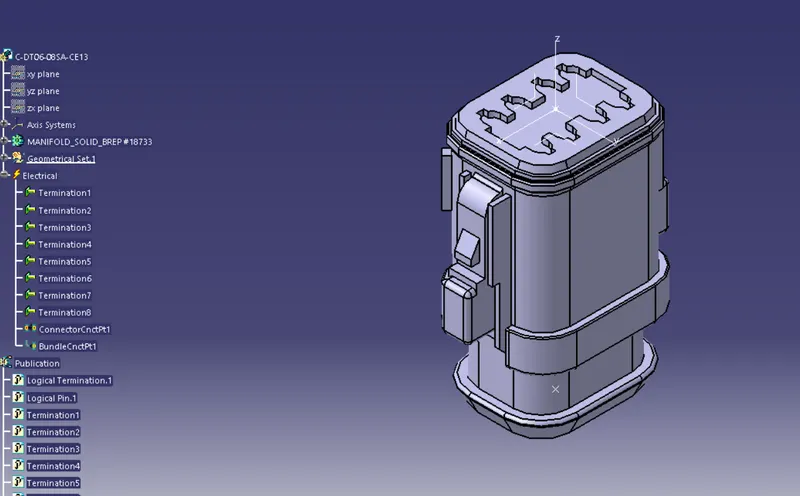

DEFINE A PARTS AS MECHANICAL PART INTO ELECTRICAL PART;

open a part design work bench

1.Create a new geometrical set to create for bundle connection on bundle entry point

2.After that other side of connector to create a point for the connector connection point and create the axis system to make a connector connection entry.

Next move to electrical part design work bench

3.In that there is a command call define connector to define the connector as electrical part

4.After that bundle connection and connector connection as per the required side of connectors
