Wiring harness design in CATIA V5 - 3D modeling Week 2 Challlenge

CONNECTOR CONNECTION POINT

THE CONNECTOR IS FIRST UPLOADED IN THE PART DESIGN WORKBENCH

WE DEFINE THE POINTS FOR CONNECTOR CONNECTION AND BUNDLE CONNECTION.

• THE AXIS SYSTEMS ARE PLACED ON THE CONNECTOR CONNECTION AND CAVITY CONNECTION POINTS

• THE ORIENTATION OF THE AXIS SYSTEM IS NOT SPECIFIC, WE JUST NEED TO FOLLOW A SIMILAR ORIENTATION FOR ALL

THE PARTS.

HERE THE Y-AXIS IS IN THE DIRECTION OF THE CONNECTION, X-AXIS ALONG WITH THE CLIP MOUNTING AND Z-AXIS ALONG BOTTOM TO TOP.

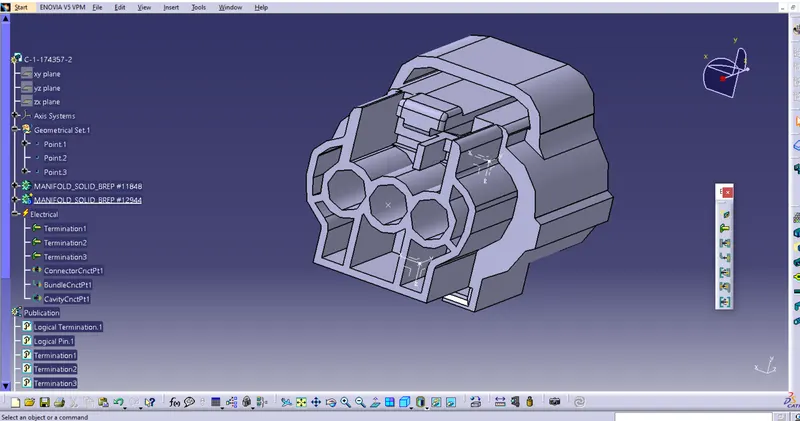

BUNDLE CONNECTION POINT

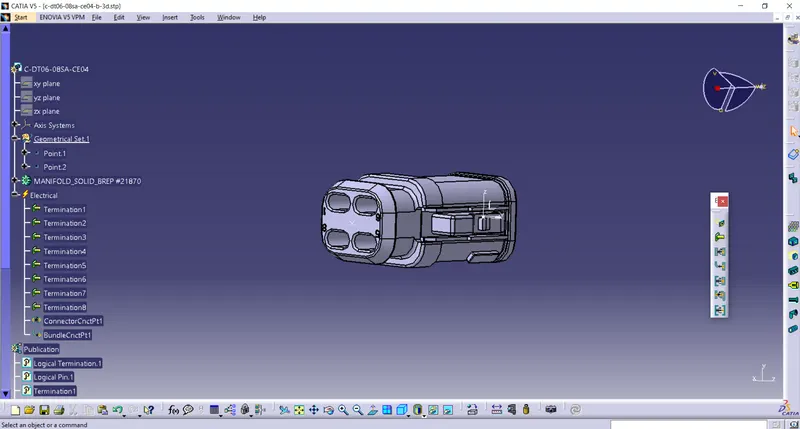

NOW WE DEFINE THIS PART AS AN ELECTRICAL ELEMENT/CONNECTOR, WITH THE NUMBER OF TERMINALS.

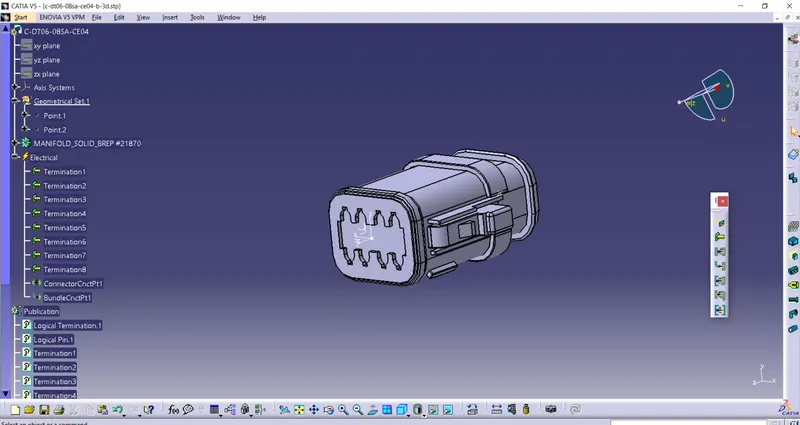

• CONNECTOR CONNECTION AND BUNDLE CONNECTION IS DEFINED IN THE ELECTRICAL PART DESIGN WORKBENCH.

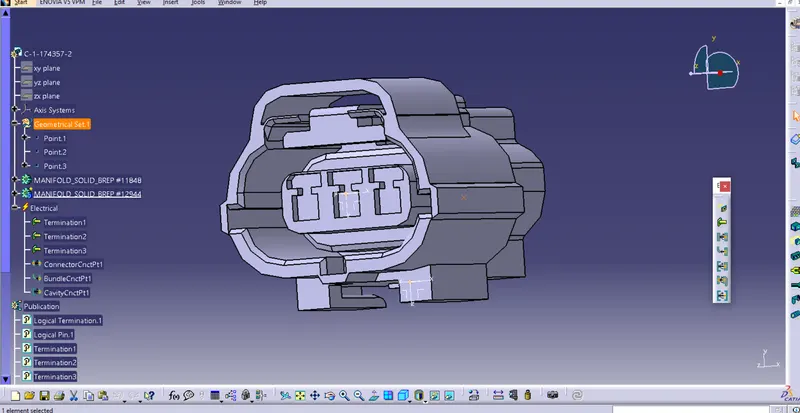

2) THE SAME PROCESS WAS FOLLOWED FOR THE SECOND CONNECTOR. HERE WE NEED TO INCLUDE THE CONNECTOR

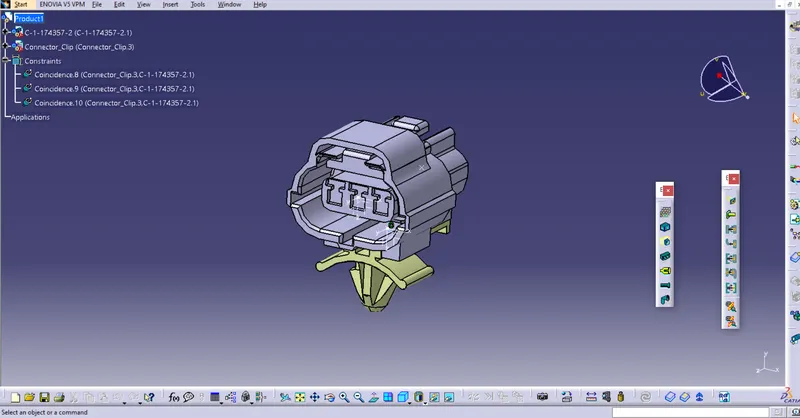

CAVITY CONNECTION POINT. THIS IS DONE TO FIX THE CLIP ON TO THE CONNECTOR.

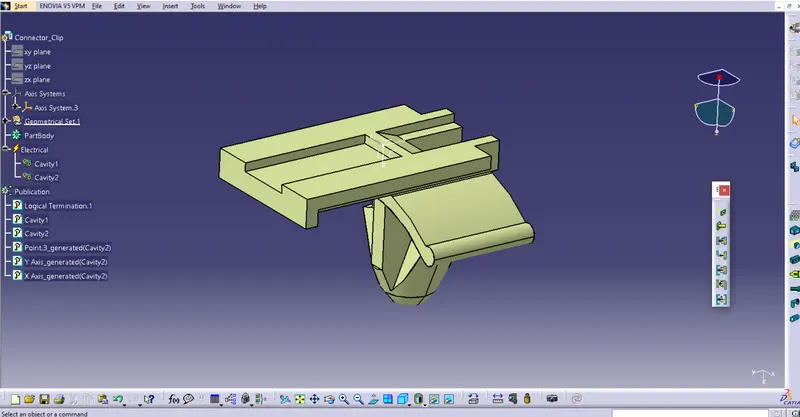

THE CLIP HAS TO BE DEFINED AS A CAVITY IN THE ELECTRICAL PART DESIGN WORKBENCH.
