Wiring harness design in CATIA V5 - 3D modeling Week 2 Challenge

•
•
• • DEFINIG ELECTRIC PARAMETER FLOW CHART
  •
  •
  • CONNECTOR DEFINATIONS IN CATIA V5

  • 1. Deutsch DT06 – 08SA

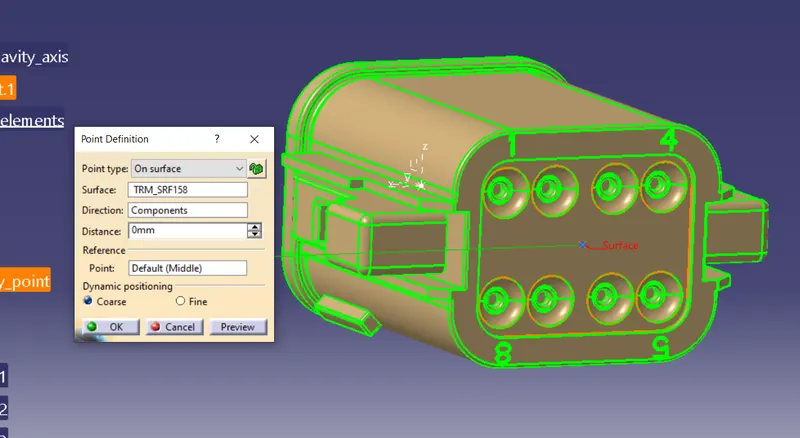

    • Connector connection point

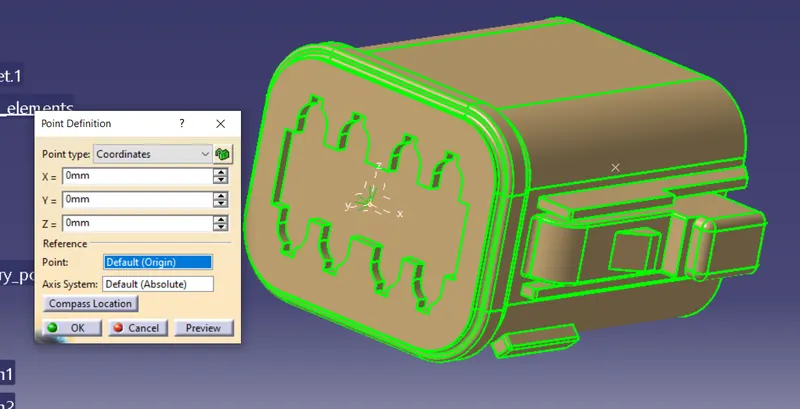

                Create midpoint on the contact face which will be normal to wire bunddle insertion.

  •

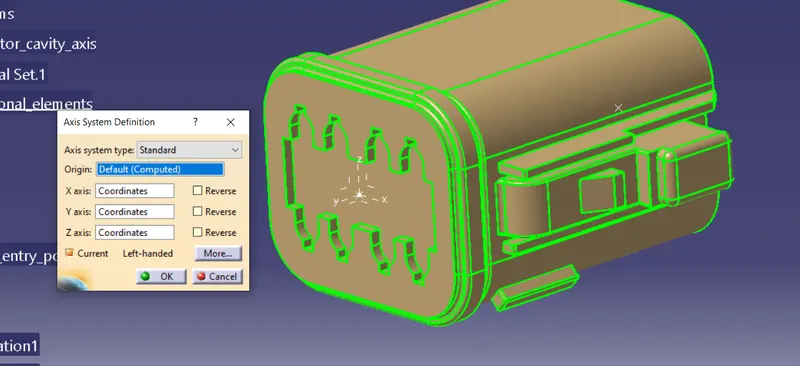

• Create Axis System with respect to the point which we have created and defining the axis direction as shown below,
•

• Switch to 'Electric Part Design'

Define the part as connector in catia, give no. of termination as 8 because we have 8 entry points for wire.

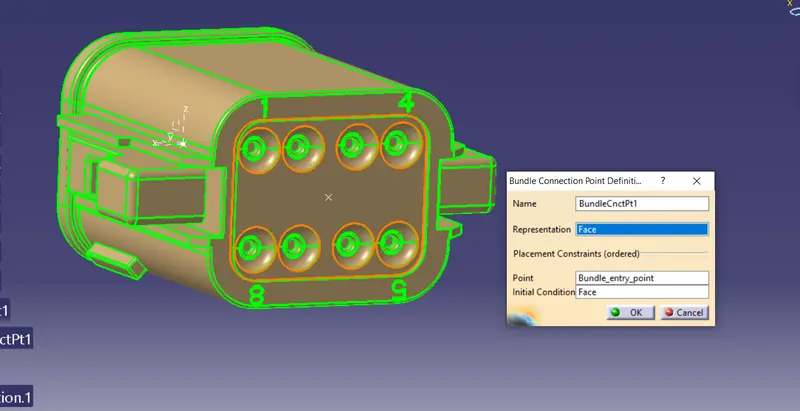

• Define Bundle connection point
•

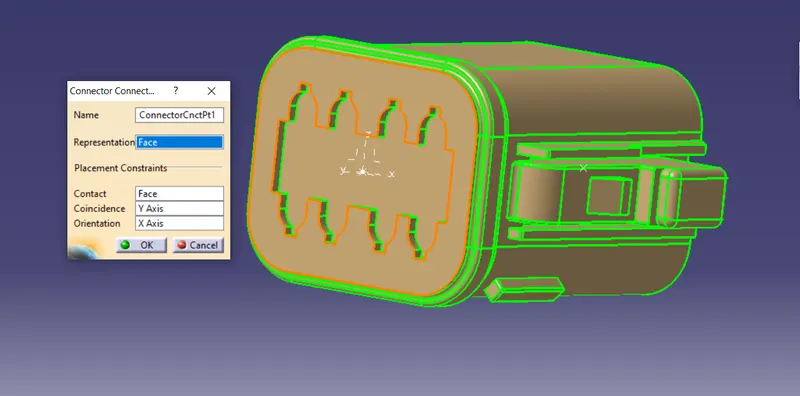

• Define connector connection point

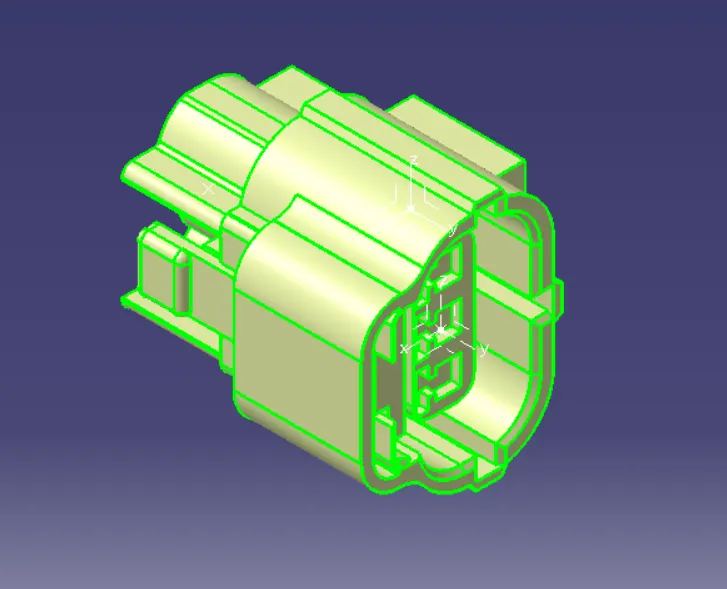

2.Tyco 174357-2 :

• Create midpoint
• create Connector connection point
• create Connector connection axis system
• create cavity connection point
• create cavity connection axis system
• Switch to Electric part design and define part as connector
• Define Connector connection point and cavity connection point
•

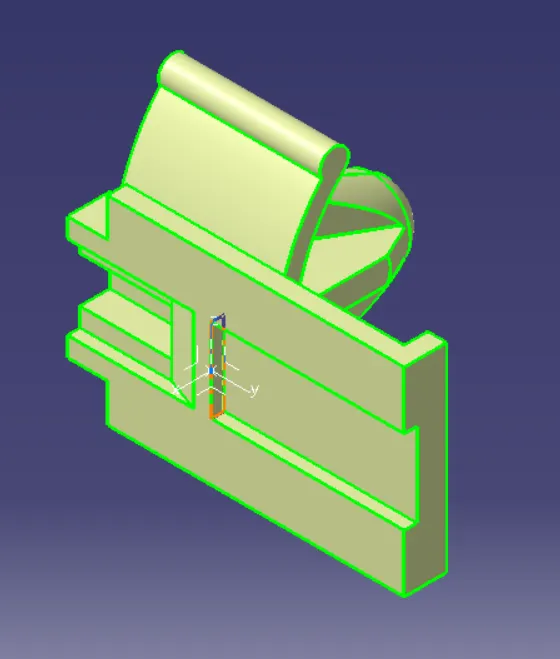

• 3. Tyco 85229-1 :

  • Create midpoint
  • create cavity connection point
  • create cavity connection axis system and orientation should be same as in connector
  • Switch to Electric part design and define part as Mounting Equipment
  • Define cavity connection point
  •

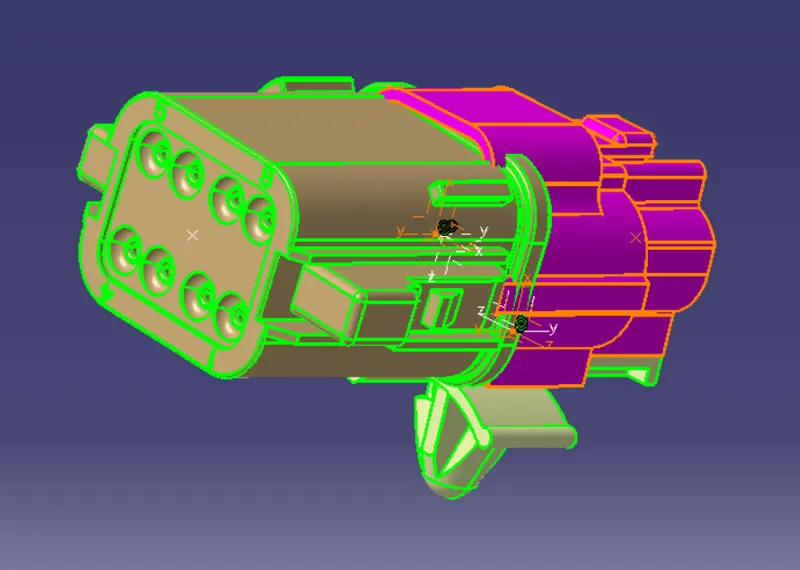

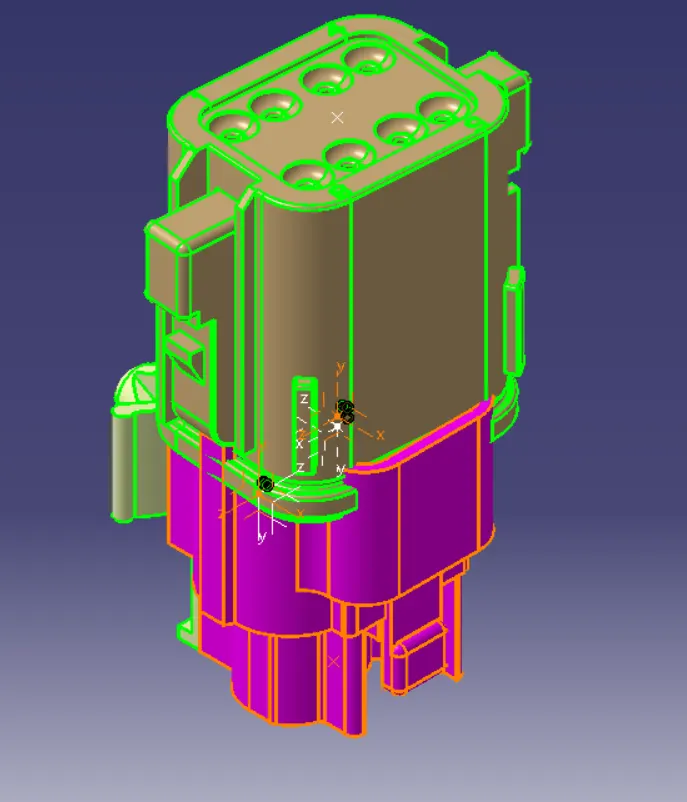

  • Elctric Assembly Design:

    • Import Connector and cavity / mounting clip.
    • Select Defing Eelectric connection
    • select cavity and then connector.
  •
