Wiring harness design in CATIA V5 - 3D modeling Week 2 Challenge

STEPS TO DEFINE PART AS ELECTRICAL PART :-

THE PART IS FIRST UPLOADED IN THE PART DESIGN WORKBENCH. THEN DEFINE THE POINTS FOR CONNECTOR CONNECTION AND BUNDLE CONNECTION. THE AXIS SYSTEMS ARE PLACED ON THE CONNECTOR CONNECTION AND CAVITY CONNECTION POINTS. THE ORIENTATION OF THE AXIS SYSTEM IS NOT SPECIFIC, WE JUST NEED TO FOLLOW A SIMILAR ORIENTATION FOR ALL THE PARTS. HERE I AM TAKING THE Y-AXIS IS IN THE DIRECTION OF THE CONNECTION, X-AXIS ALONG WITH THE CLIP MOUNTING AND Z-AXIS ALONG RIGHT OR LEFT.

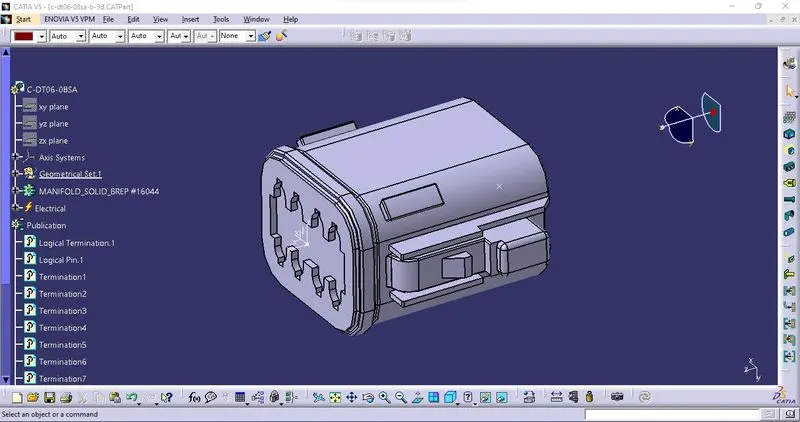

NOW WE DEFINE THIS PART AS AN ELECTRICAL ELEMENT/CONNECTOR, WITH THE NUMBER OF TERMINALS. CONNECTOR CONNECTION AND BUNDLE CONNECTION IS DEFINED IN THE ELECTRICAL PART DESIGN WORKBENCH.

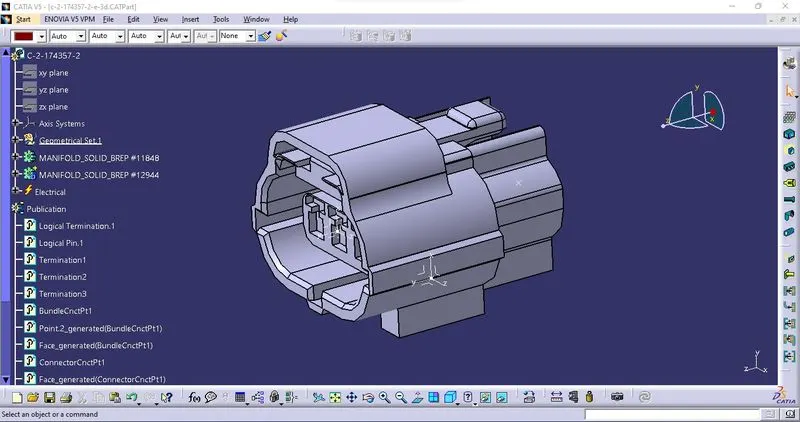

THE SAME PROCESS WAS FOLLOWED FOR THE SECOND CONNECTOR. HERE WE NEED TO INCLUDE THE CONNECTOR-CAVITY CONNECTION POINT. THIS IS DONE TO FIX THE CLIP ON TO THE CONNECTOR.

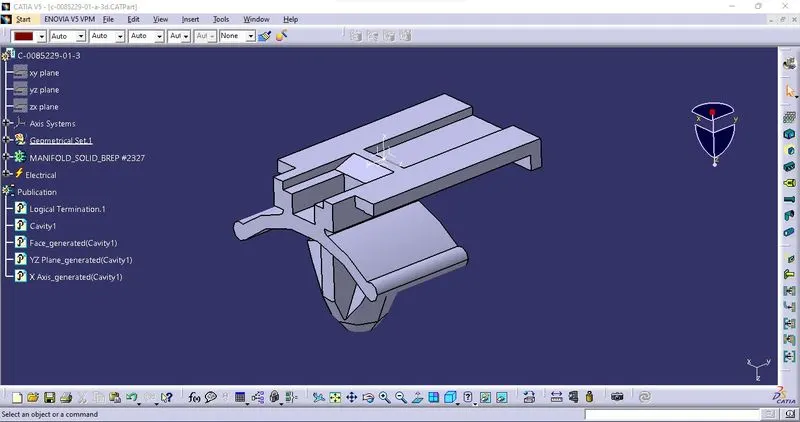

THE CLIP HAS TO BE DEFINED AS A CAVITY IN THE ELECTRICAL PART DESIGN WORKBENCH.

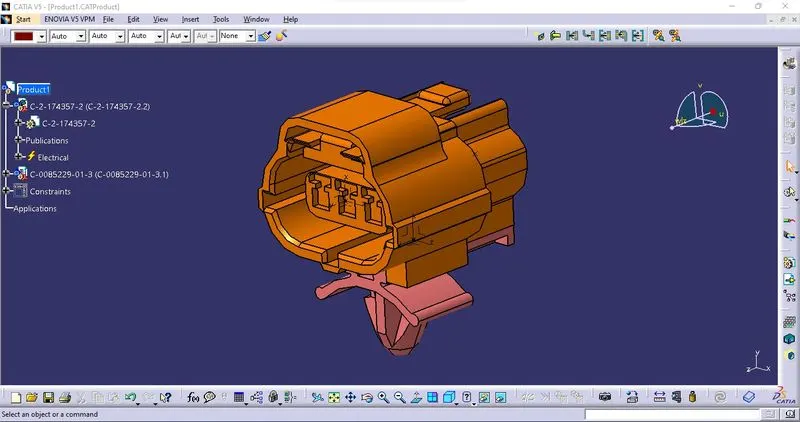

CLIP AND CONNECTOR ASSEMBLY

PART AND ASSEMBLY ZIP FILES ARE ATTACHED.
