Wiring harness design in CATIA V5 - 3D modeling Week 2 Challenge

• FEMALE CONNECTOR-

It is generally a receptacle that receives & hold the male connector.sometimes the terms plug & socket or jack are used particularly in referance to electrical connector.

• MALE CONNECTOR-


Male connector have a sries of prongs or "pins" that originate from a small base or adaptor

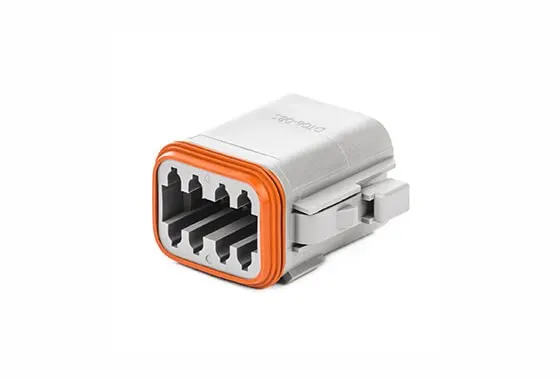

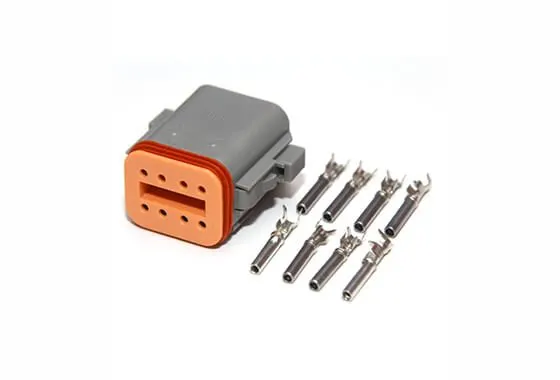

1). Female connector-(DT06-08SA)

TE Internal discription: PLG,8P,GRY,N,A.

Housing type- Housing for female terminals.

Mating pin diameter- 1.59 mm.

It is a deutsch DT series 8 way female receptacle connector DT06-08SA with W8S. its operating temperature range is varies between the -40℃～120℃ & wire gauge range is varies between the 14-20AWG.

Application

it is used for harsh environment applications,like,trucks,buses,off highway,construction,agriculture,mining emergency vehicle,forestry,recreational marine & motorcycle.

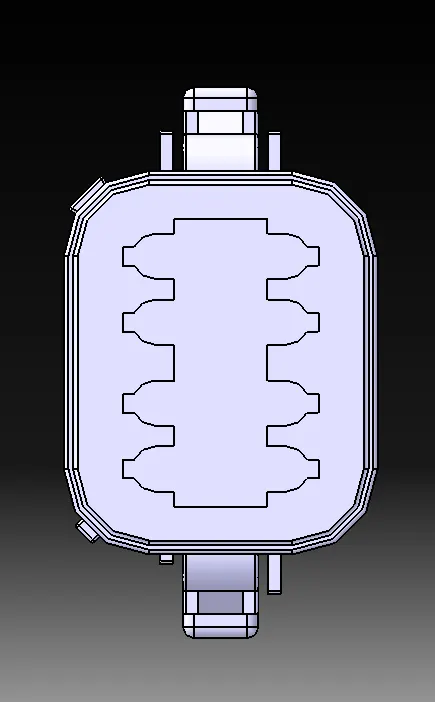

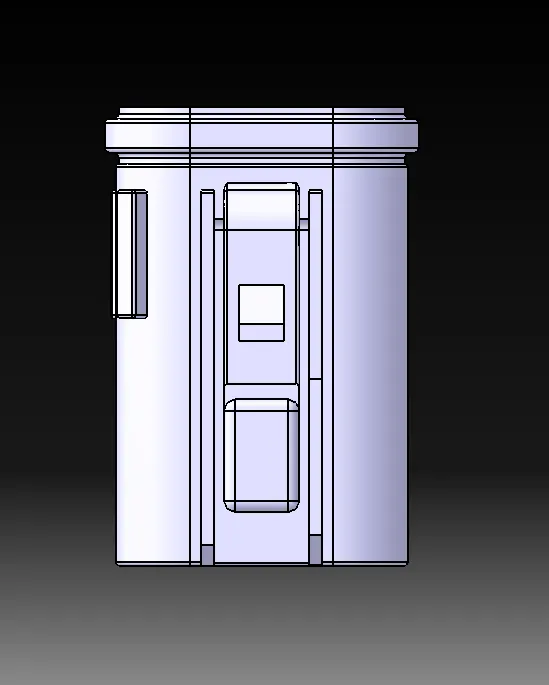

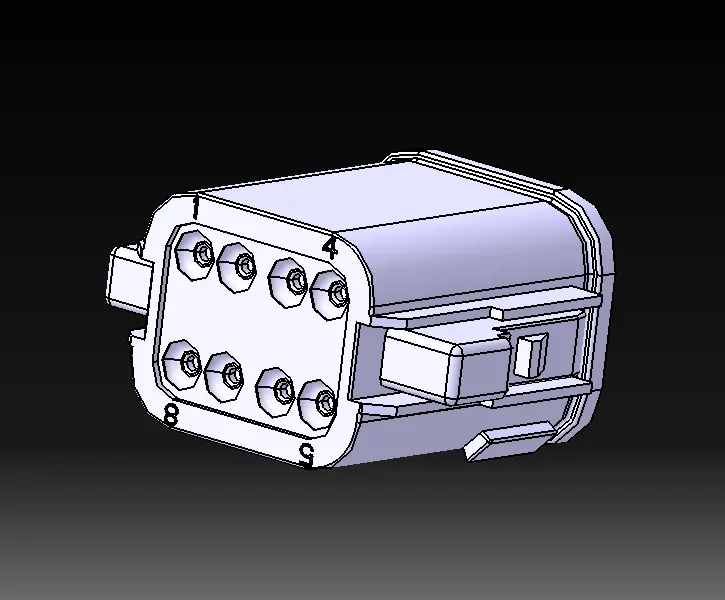

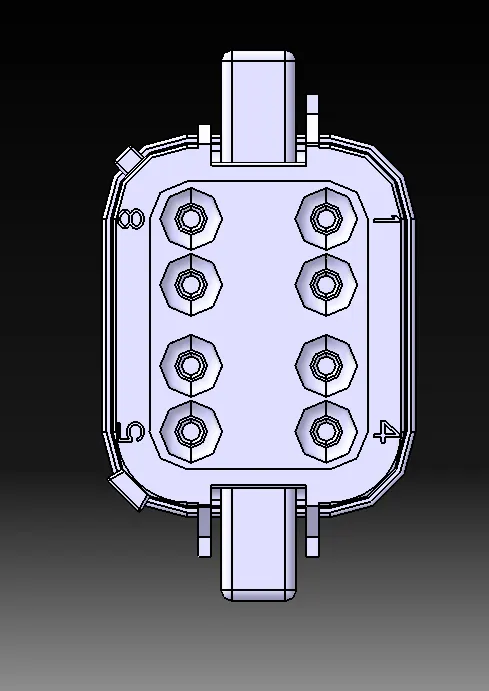

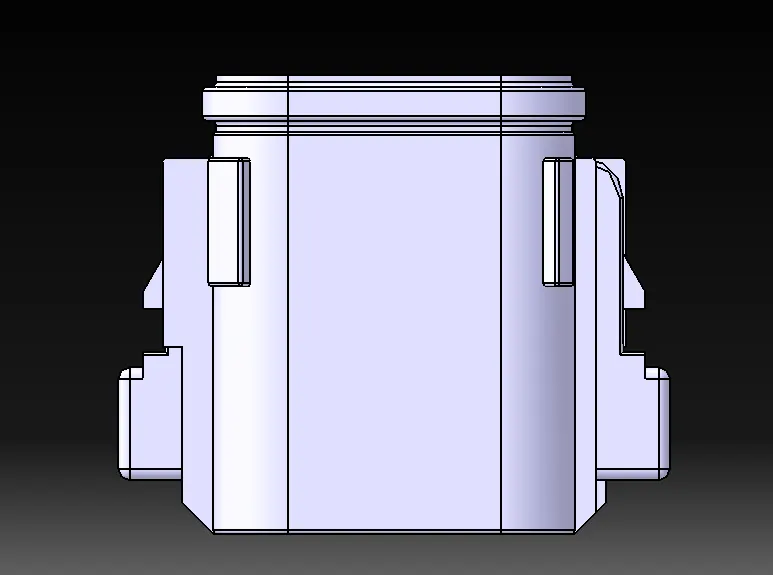

TOP VIEW BOTTOM VIEW SIDE VIEW FRONT VIEW ISOMETRIC

The mating connector for this female connector is : DT04-08PA-P021, DT04-08PA-L012, DT04-08PA-E008, DT04-08PA-LE11, DT04-08PA-E003, DT04-08PA, DT04-08PA-E005, DT04-08PA-P027, DT04- 08PA-P028, DT04-08PA-E004, DT04-08PA-C017, DT04-08PA-EP04, DT04-08PA-LE14, DT04-08PA-P004, DT15-08PA, DT13-08PA, DT15-08PA-G003.

2). Female connector(2-174357-2)- OR Econoseal (J 070) connector system.

Housing type- Housing for female terminals.

TE Internal Description: 070 EJ-2(2) PLUG ASSY 3P SIR.

It is a 3 way single circuit application & having a housing feature include a 4.8 mm pitch & its operating temprature varies between the -30℃～105℃.

A range of Econoseal J 070 series waterproof receptacle and plug style automotive wire connector housings. The wire seals for these automotive connector housings can be loaded at the same time as the contacts are crimped and cavity plugs can be used to plug up unused cavities. The design of these receptacle and plug style wire connector housings allows mis-mating to be prevented thus avoiding contact damage. These Econoseal J 070 series automotive housings also have a plate inserted to detect the half-mating of contacts and a double lock feature.

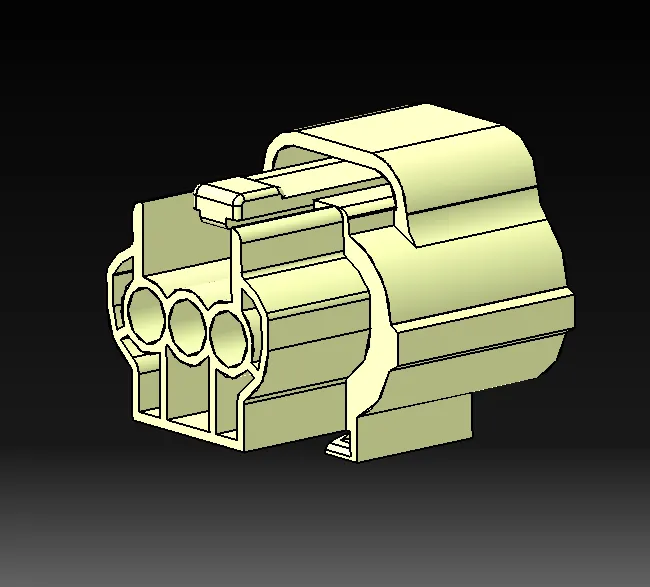

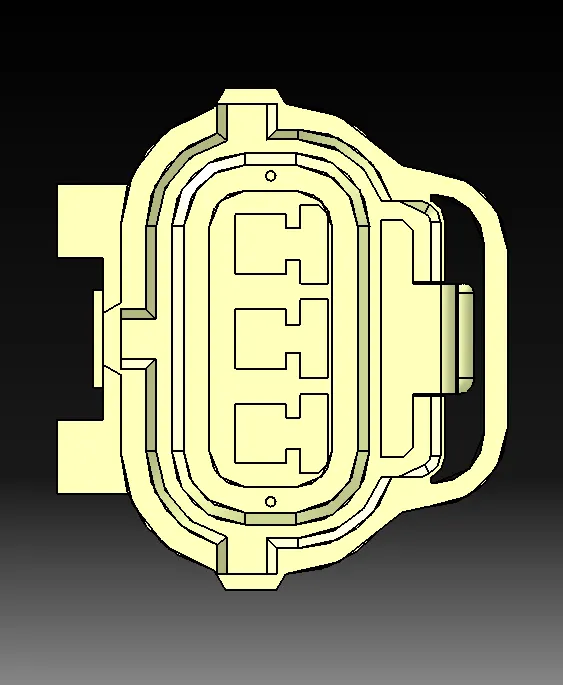

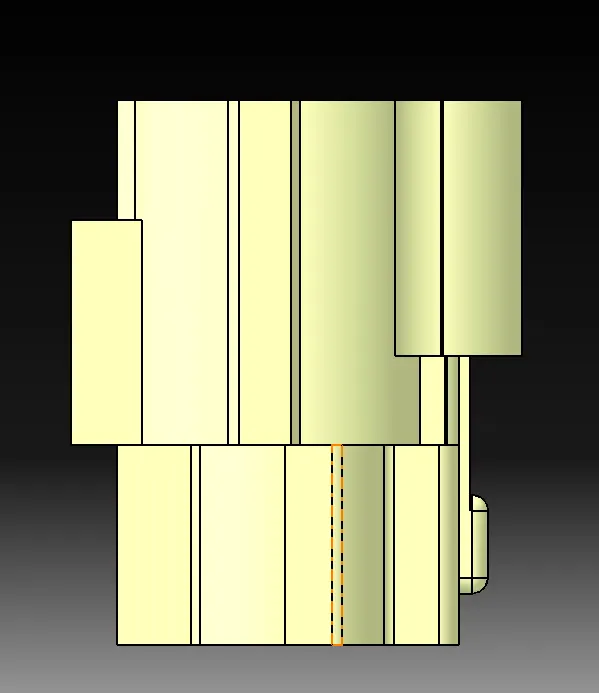

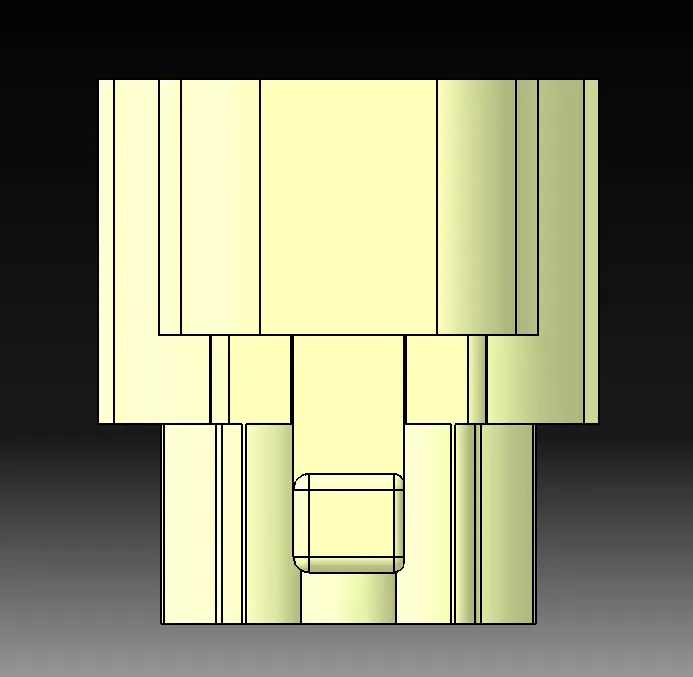

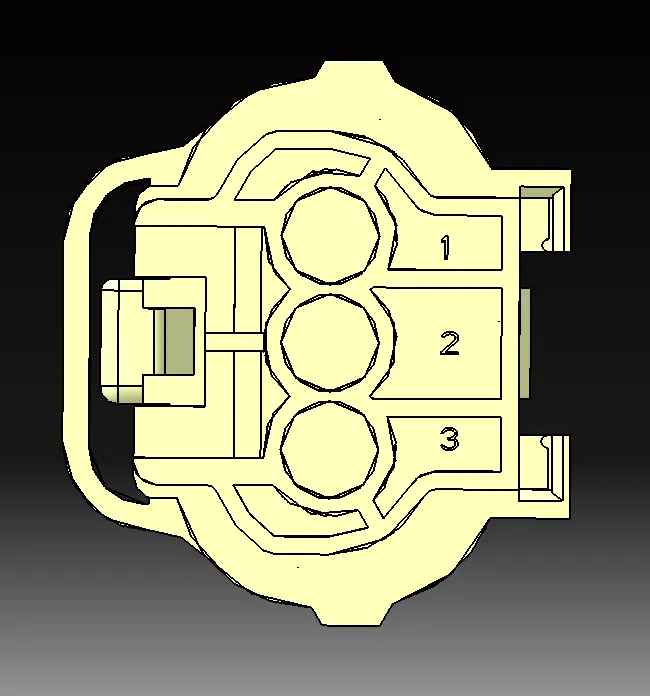

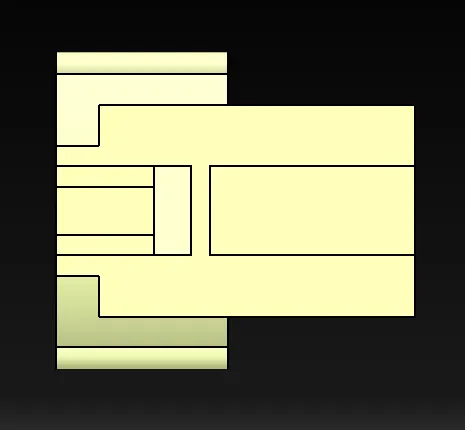

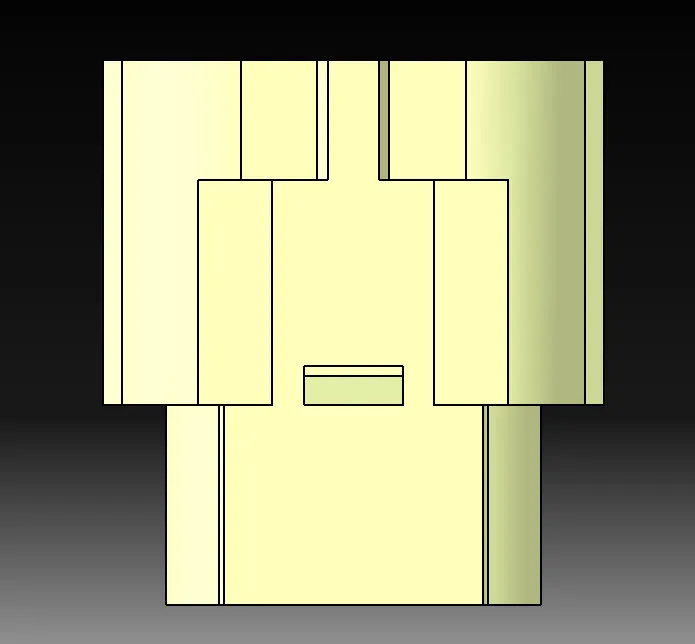

TOP VIEW BOTTOM VIEW FRONT VIEW BACK VIEW SIDE VIEW ISOMETRIC

Applications
Typically, this product is used in the wiring of sensors in the interior of motor hoods and used in the connections to electrical control systems under unreliable and extreme climate conditions.
All connectors are designed to be used with thin walled non-irradiated PVC cables.
Though designed initially for automotive applications, Econoseal III can be used in any industry where a reliable sealed connector is needed.

3). Automotive connector accessories OR Mounting clip OR Econoseal series J (85229) -

It is a catagory of connector or connector accessories.

TE Internal Description: CLIP HSG FOR 070 (EJ MK-II)

The Operating temperature of this mounting clip is varies between the -40℃～120℃.

`

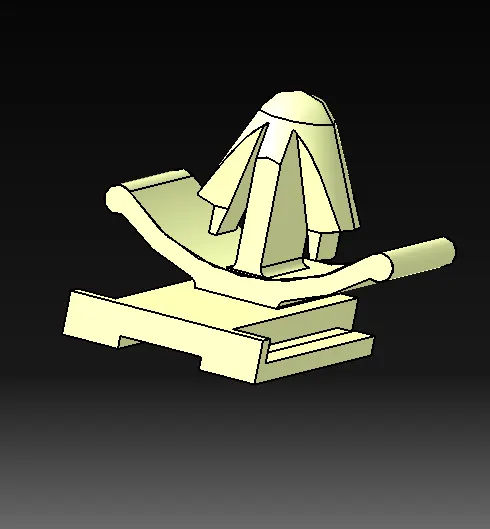

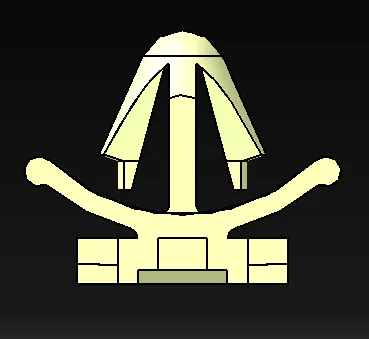

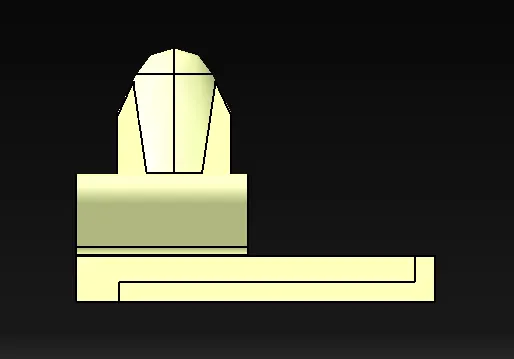

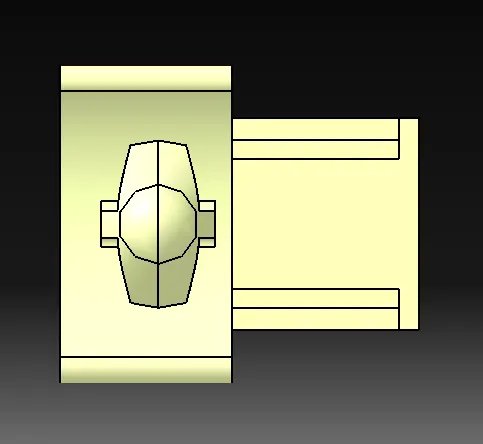

FRONT VIEW SIDE VIEW TOP VIEW BOTTOM VIEW ISOMETRIC VIEW
