Wiring harness design in CATIA V5 - 3D modeling Week 2 Challenge

AIM

Define Electrical Connector using Electrical Part design Workbench and also define all the necessary properties to Connectors & Clip from the given data.

INTRODUCTION

Wiring Harness -

Connectors -

Let's Define the given data into electrical connector -

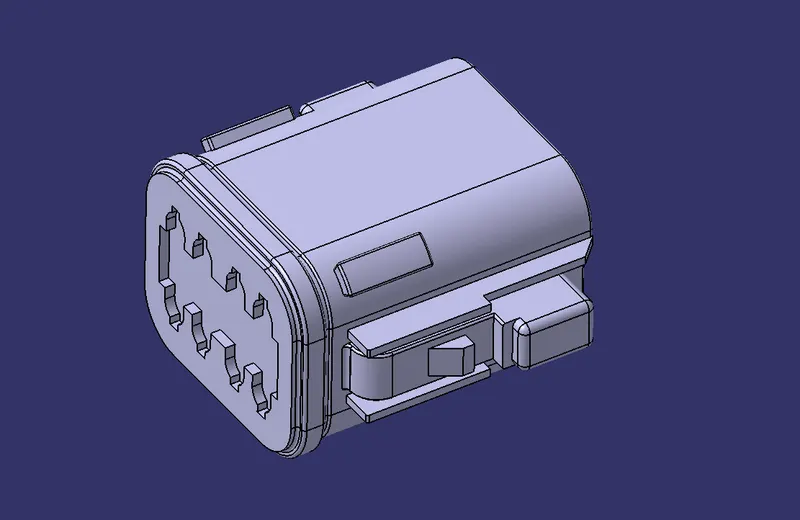

1. Deutsch DT06 – 08SA ( https://www.te.com/usa-en/product-DT06-08SA.html)

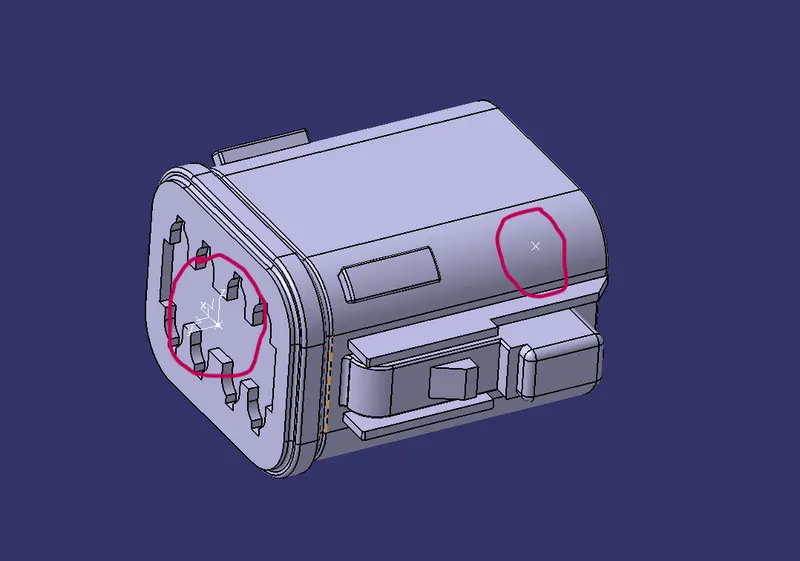

Before define it into electrical coonector first create required points and axis system -

Then go to the electrical workbench and define it into electrical component and also define all the necessary properties.

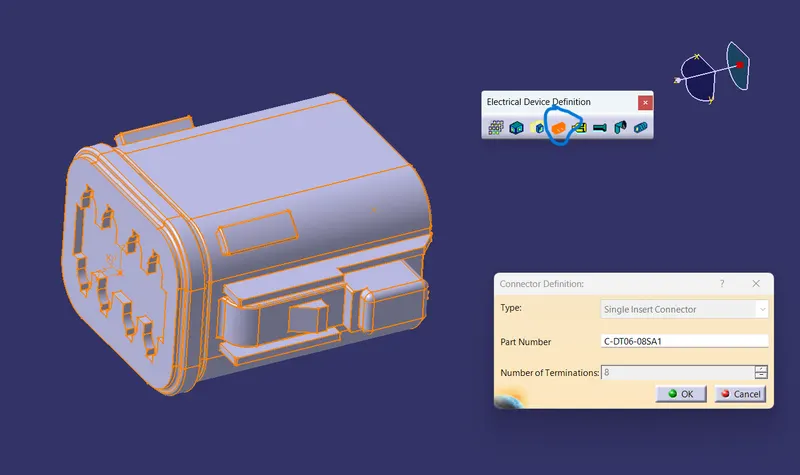

Define as Electrical Connector -

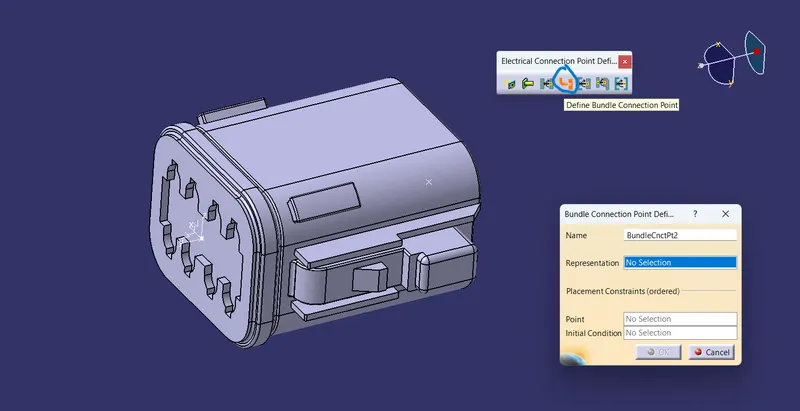

Define Bundle Point -

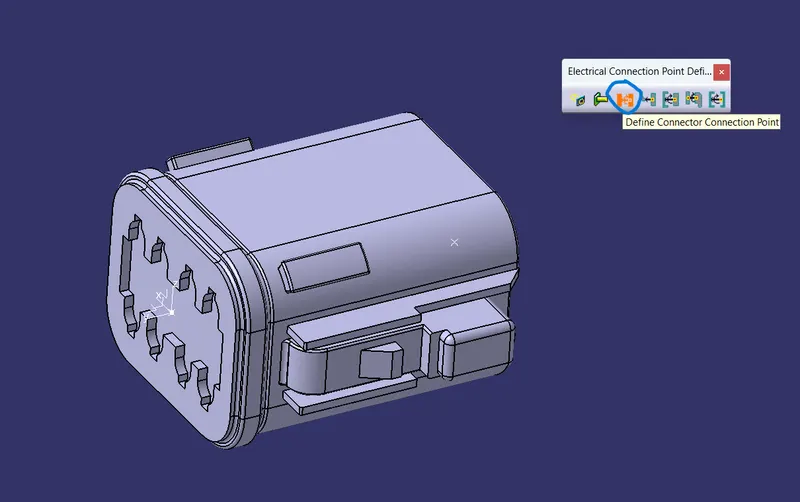

Define Connector Connection Point -

Do Same for the all Components -

2. Tyco 174357-2 (https://www.te.com/usa-en/product-2-174357-2.html?source=header-match)

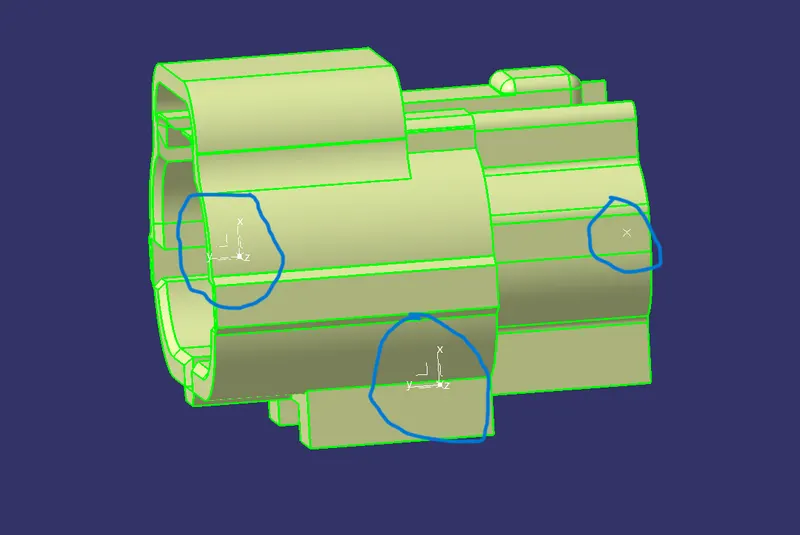

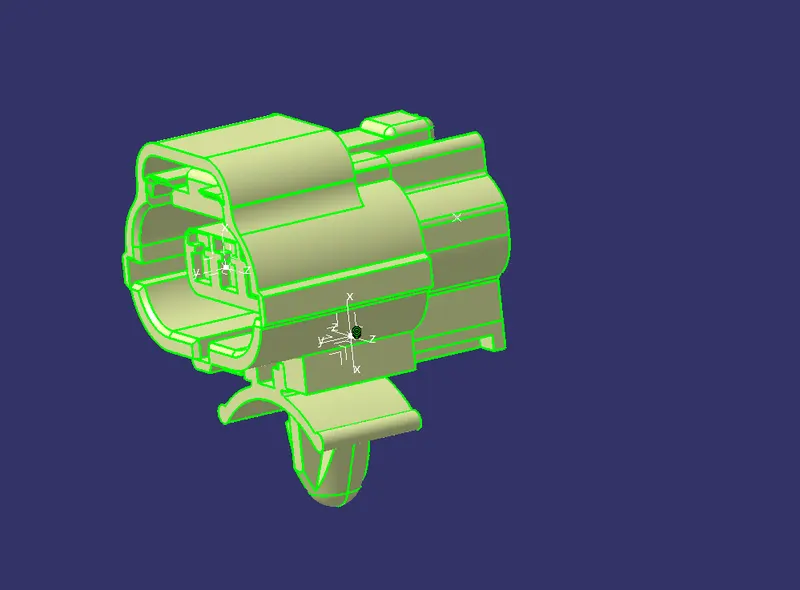

• Create midpoint
• create Connector connection point
• create Connector connection axis system
• create cavity connection point
• create cavity connection axis system
• Switch to Electric part design and define part as connector
• Define Connector connection point and cavity connection point

3. Tyco 85229-1 – (https://www.te.com/usa-en/product-85229-1.html?q=85229&source=header)

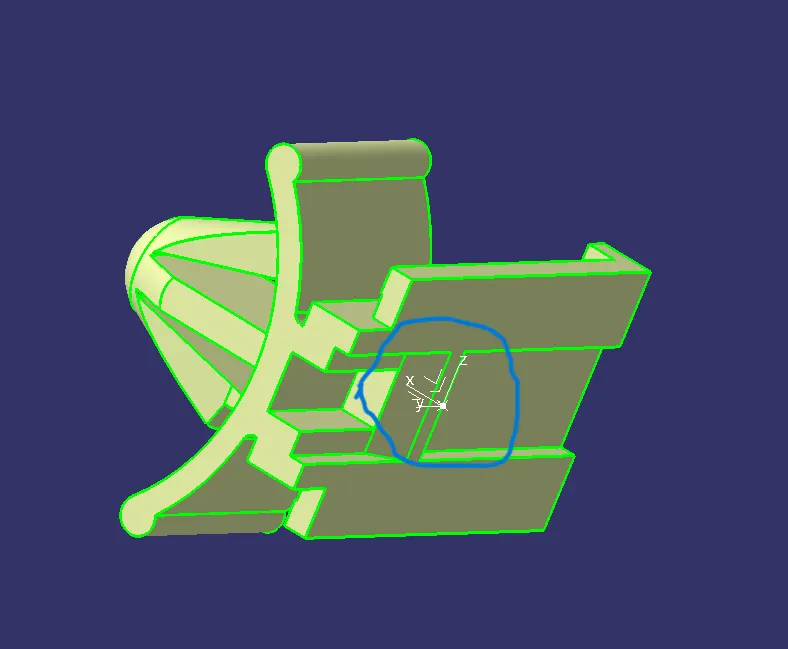

• Create midpoint
• create cavity connection point
• create cavity connection axis system and orientation should be same as in connector
• Switch to Electric part design and define part as Mounting Equipment
• Define cavity connection point

Elctric Assembly Design:

• Import Connector and cavity / mounting clip.
• Select Defing Eelectric connection
• select cavity and then connector.
