Wiring harness design in CATIA V5 - 3D modeling Week 2 Challenge

Aim - To download the given connectors & Connector clip cad data & define it as Electrical Connector using Electrical Part design Workbench and to define all the necessary properties to Connectors & Clip.

1)Deutsch DT06 – 08SA

Connector connection point:

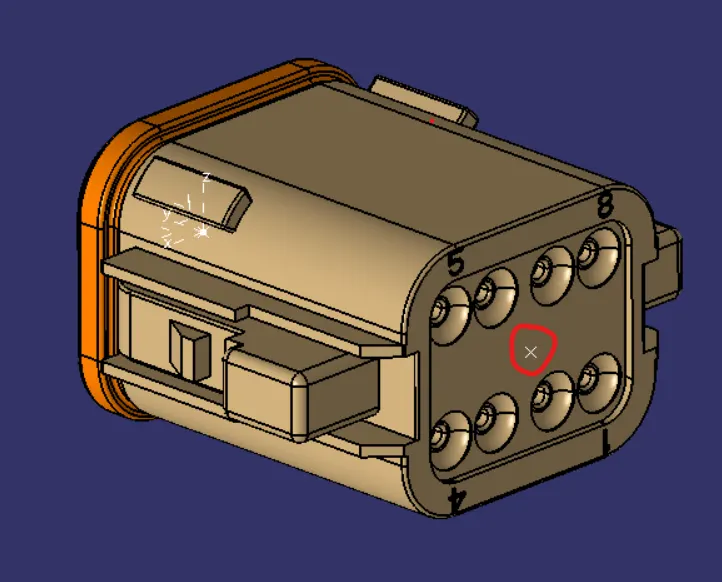

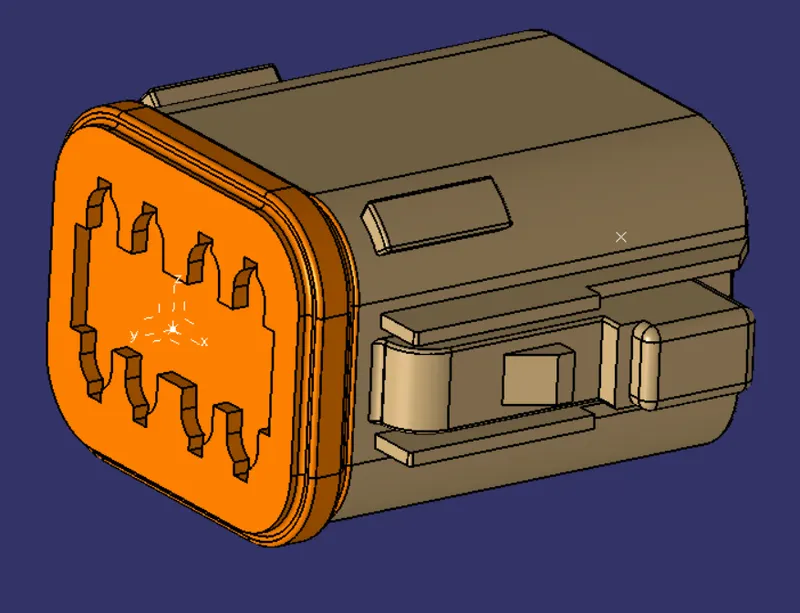

• Create midpoint on the contact face which will be normal to wire bunddle insertion.
• Craete Axis System with respect to the point which we have created and defining the axis direction.
• Create Connector connection point

Bundle connection point:

• Define Bundle connection point
• Define the part as connector in catia, give no. of termination as 8 because we have 8 entry points for wire.

2)Tyco 174357-2

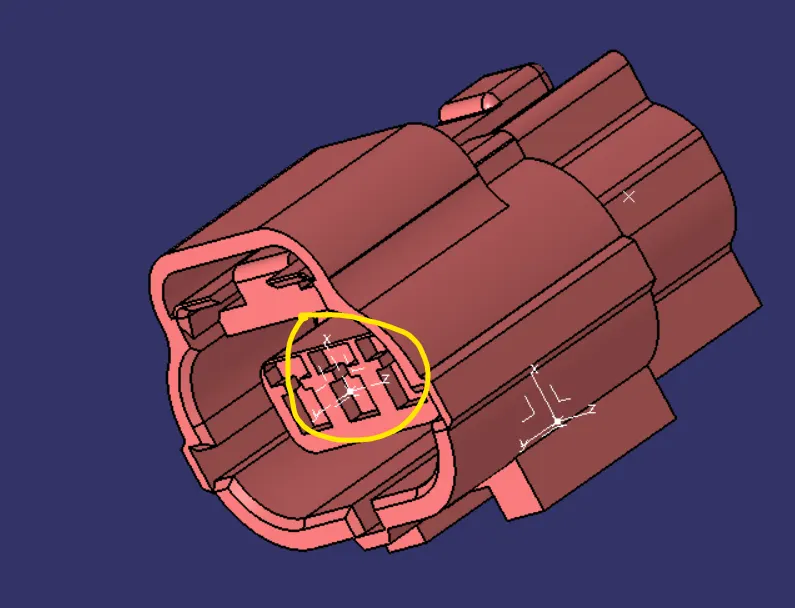

• Create Connector connection point
• Create Connector connection axis system

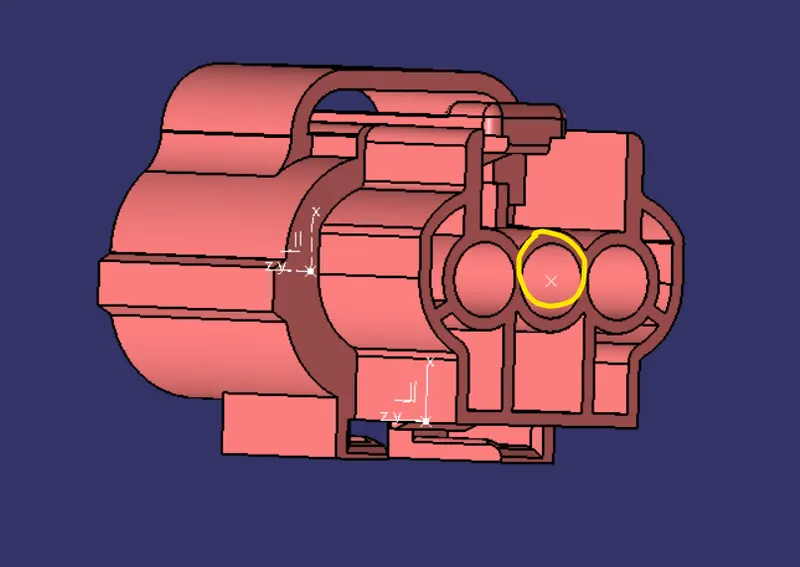

• Create cavity connection point.
• Create cavity connection axis system.

• Define Bundle connection point
• Define the part as connector in catia, give no. of termination as 3 because we have 3 entry points for wire.

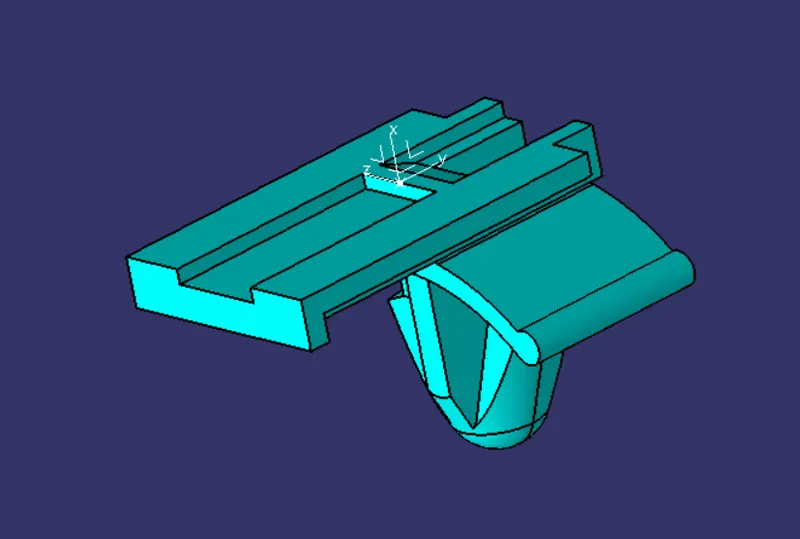

3)Tyco 85229-1 :

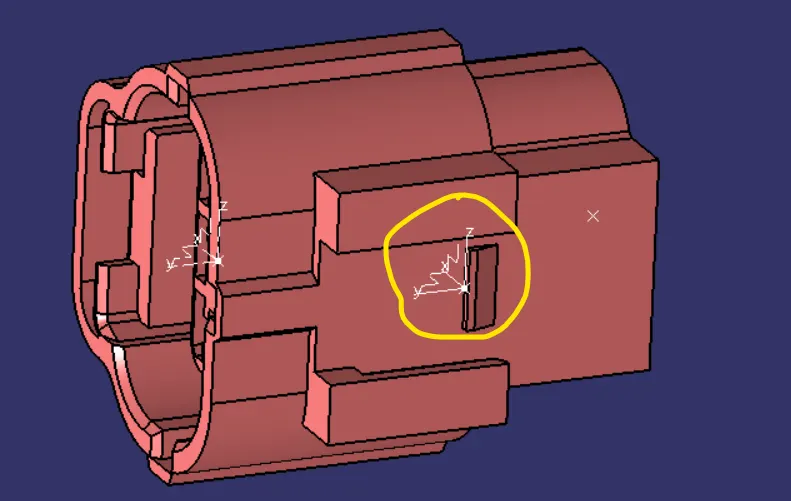

• Create midpoint.
• Create cavity connection axis system and orientation should be same as in connector
• Switch to Electric part design and define part as Mounting Equipment
• Define as cavity.

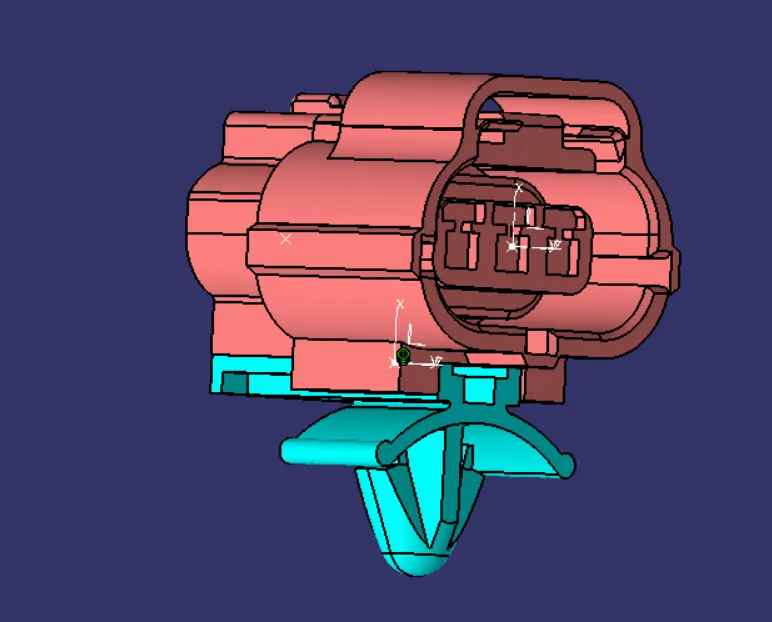

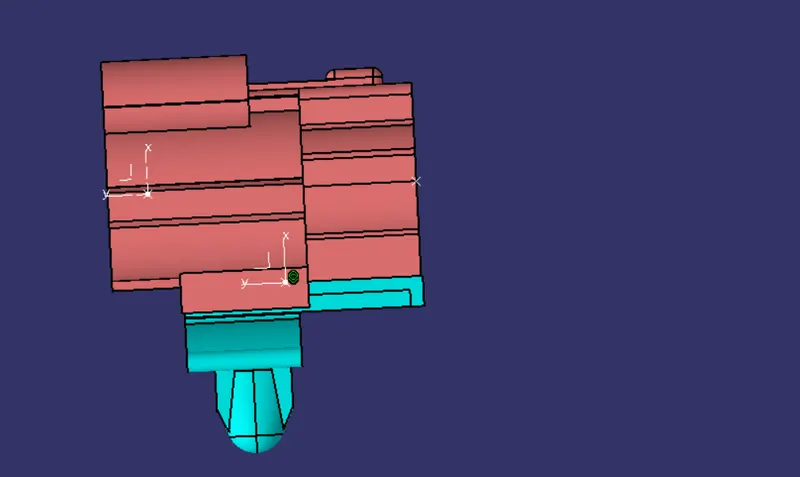

Elctric Assembly Design

• Import Connector and cavity/mounting clip.
• Select Defing Eelectric connection.
• select cavity and then connector.

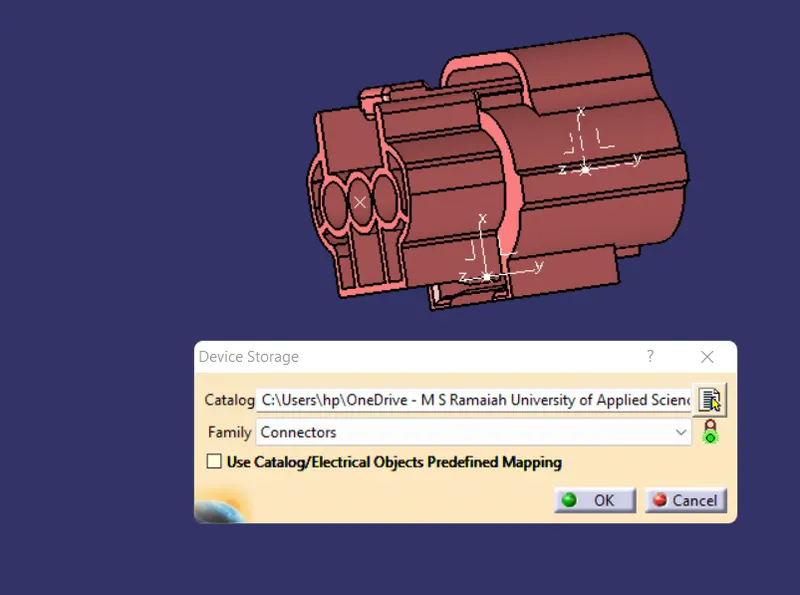

 Creating a catalogue for All the components
