Wiring harness design in CATIA V5 - 3D modeling Week 2 Challenge

AIM:

Download following connectors & Connector clip cad data from given link & define it as Electrical Connector using Electrical Part design Workbench. Define all the necessary properties to Connectors & Clip.

Deutsch DT06 – 08SA ( https://www.te.com/usa-en/product-DT06-08SA.html)

Tyco 174357-2 (https://www.te.com/usa-en/product-2-174357-2.html?source=header-match)

Tyco 85229-1 (https://www.te.com/usa-en/product-85229-1.html?q=85229&source=header

CONNECTORS DEFINATION IN CATIA V5 :-

• THE CONNECTOR IS FIRST UPLOADED IN THE PART DESIGN WORKBENCH.

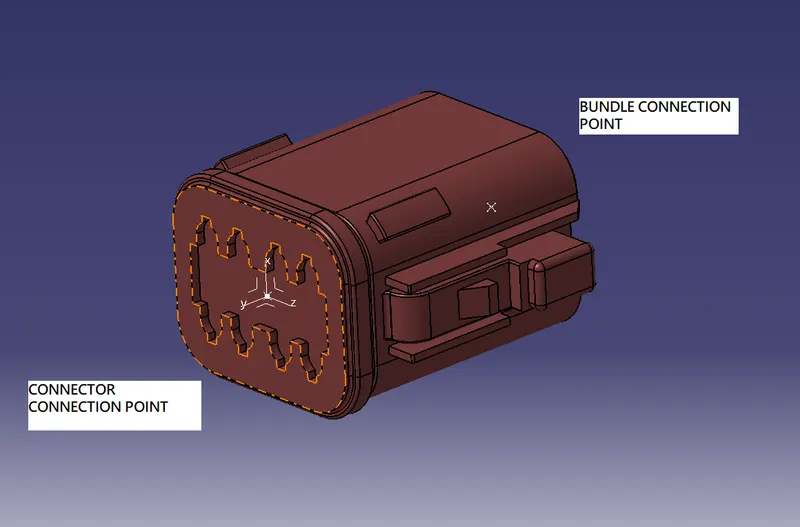

• THEN I DEFINE THE POINTS FOR CONNECTOR CONNECTION AND BUNDLE CONNECTION .
• THE AXIS SYSTEMS ARE PLACED ON THE CONNECTOR CONNECTION POINTS.
• THE ORIENTATION OF THE AXIS SYSTEM IS NOT SPECIFIC, WE JUST NEED TO FOLLOW A SIMILAR ORIENTATION FOR ALL THE PARTS.
• HERE THE Y-AXIS IS IN THE DIRECTION OF THE CONNECTION, Z-AXIS ALONG WITH THE CLIP MOUNTING AND X-AXIS ALONG BOTTOM TO TOP.

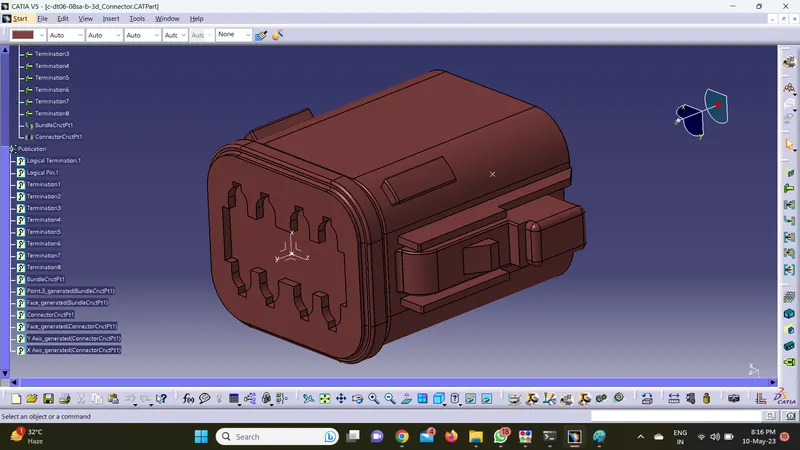

• NOW WE DEFINE THIS PART AS AN ELECTRICAL ELEMENT/CONNECTOR, WITH THE NUMBER OF TERMINALS.
• CONNECTOR CONNECTION AND BUNDLE CONNECTION IS DEFINED IN THE ELECTRICAL PART DESIGN WORKBENCH.

CONNECTOR - 1

CONNECTOR 2 :-

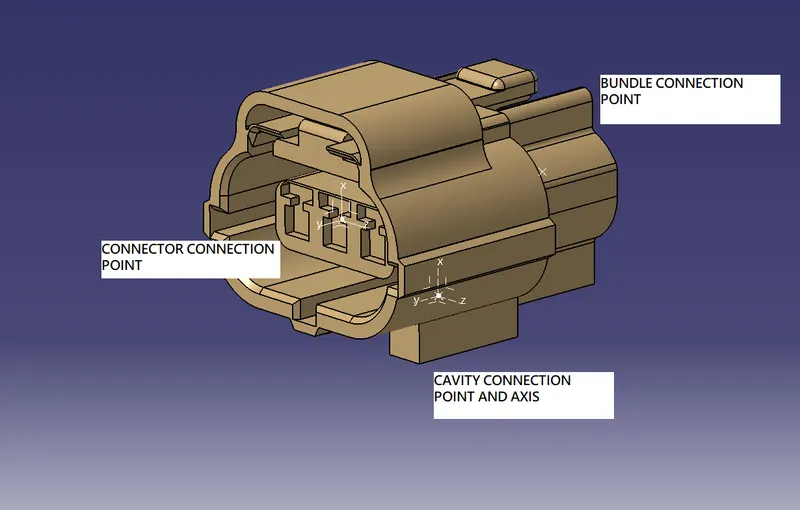

THE SAME PROCESS WAS FOLLOWED FOR THE SECOND CONNECTOR. HERE WE NEED TO INCLUDE THE CONNECTOR-CAVITY CONNECTION POINT. THIS IS DONE TO FIX THE MOUNTING CLIP ON TO THE CONNECTOR.

NOTE - THE SAME AXIS SYSTEM ORIENTATION MUST BE PROVIDED ON THE MATING PART TO MATCH IT PROPERLY.

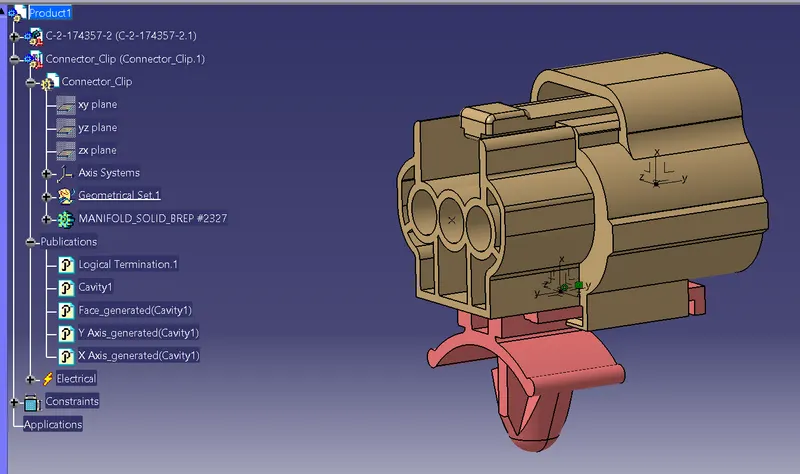

3. CONNECTING_CLIP :

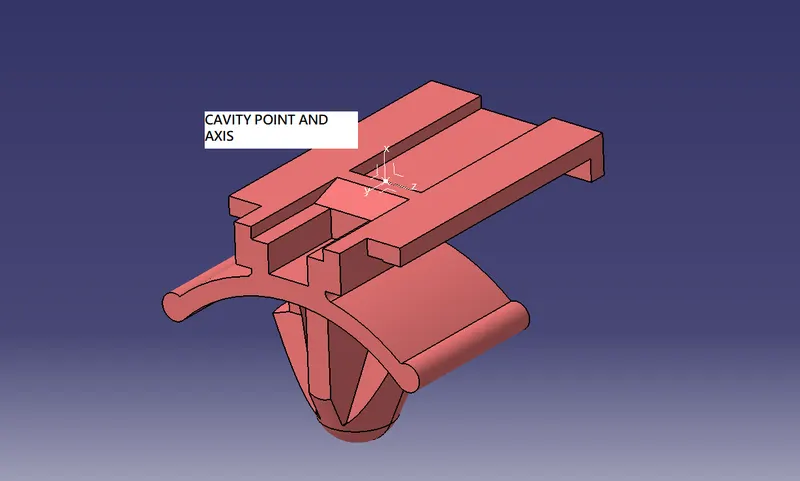

I DEFINED IT AS AN MOUNTING EQUIPMENT AND MENTION THE POINT AND THEN AXIS ORIENTATION AS MENTIONED IN THE CONNECTOR 2.

AND FINALLY WE ASSEMBLED THE CONNECTOR AND MOUNTING_CLIP BY COMMAND CONNECTING ELECTRICAL DEVICES IN ELECTRICAL ASSEMBLY WORKBENCH.
