Wiring harness design in CATIA V5 - 3D modeling Week 2 Challenge
Solution
Objectives
To define the following connections and connector clip CAD parts as an electrical connector using the Electrical Part Design Workbench, get the data from the provided link. Create Connectors and Clips with all the required properties defined.
- Deutsch DT06 – 08SA
Define Point and Axis for Connector Connection Point

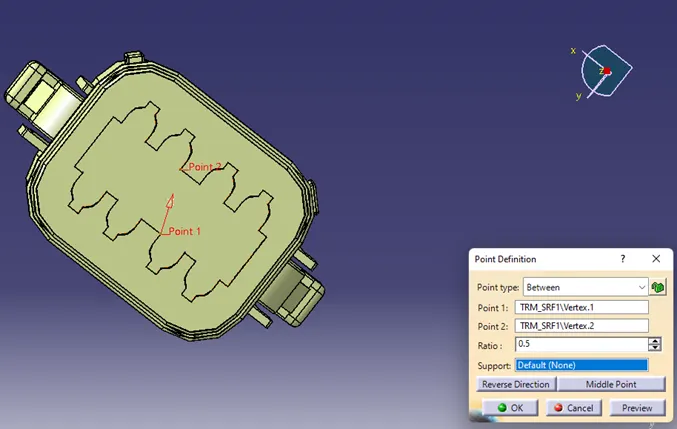

Create a midpoint on the contact face that will be used for regular wire bundle insertion in the workbench for the component.

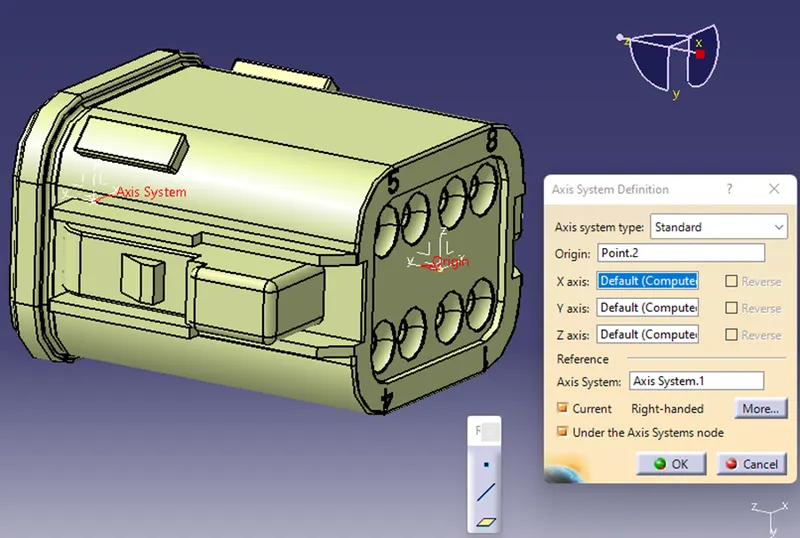

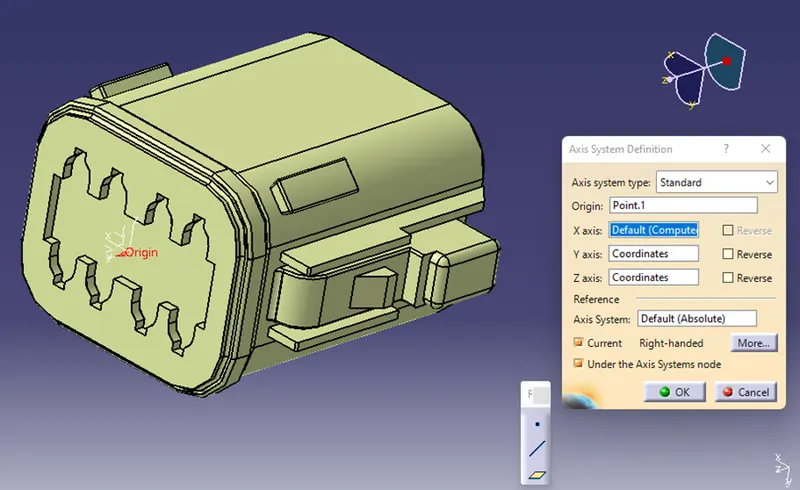

Create an axis system referencing the newly generated point and specifying the axis direction as shown below.

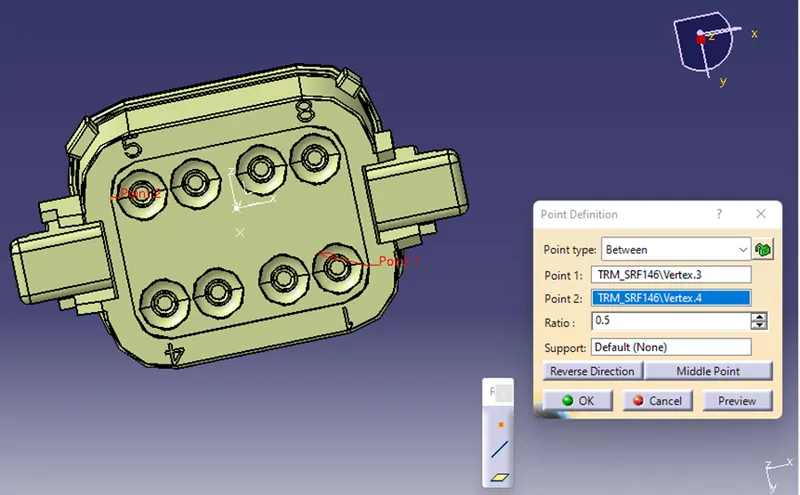

Define Point and Axis for Bundle Connection Point
Point
Axis
Switch to the ‘Electric Part Design’ workbench

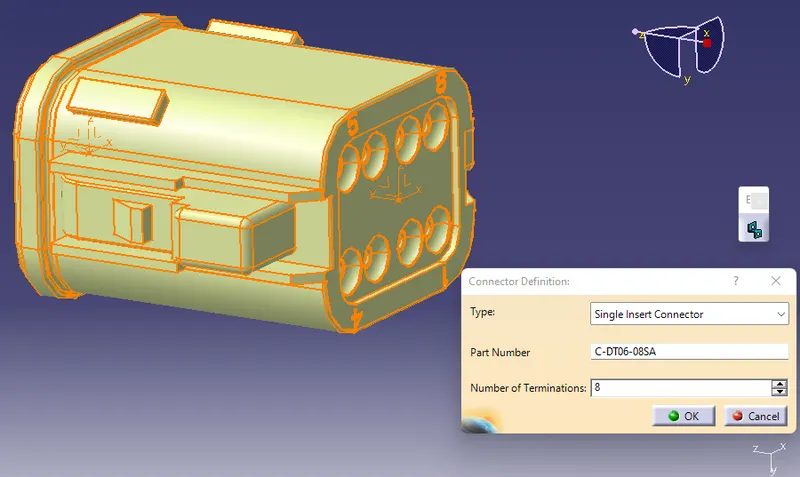

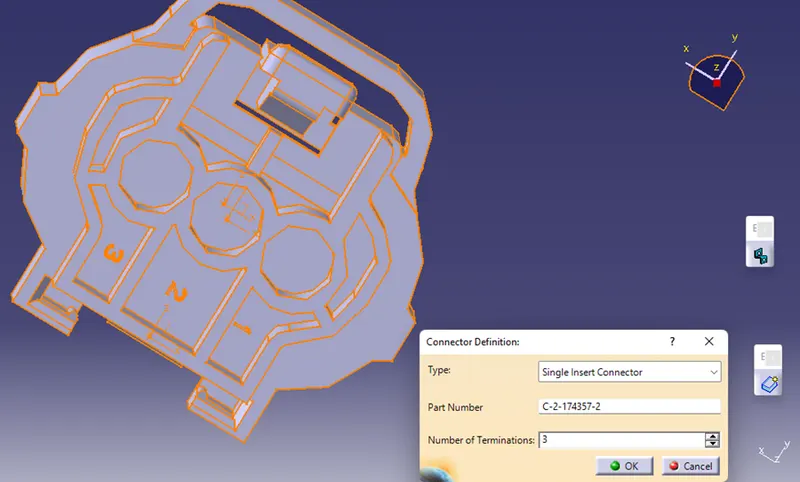

In CATIA V5, define the component as a connector and enter an 8 for the number of terminations because there are 8 wire entry points.

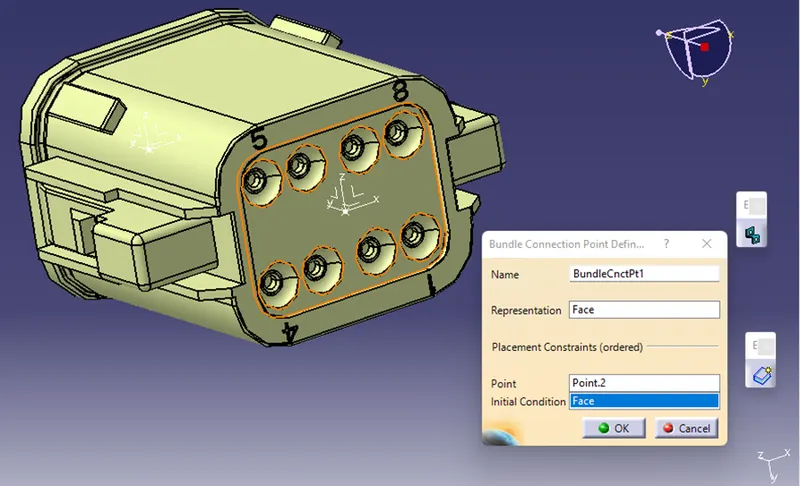

Define Bundle Connection Point

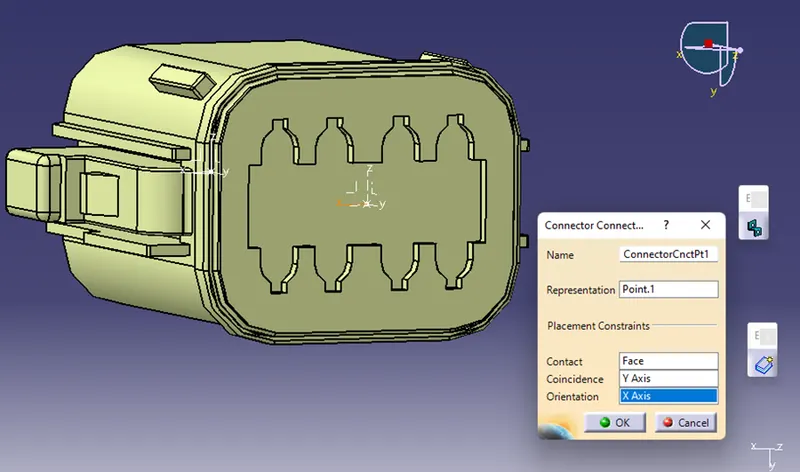

Define Connector Connection Point
2) Tyco 174357-2
Define Point and Axis for Connector Connection Point

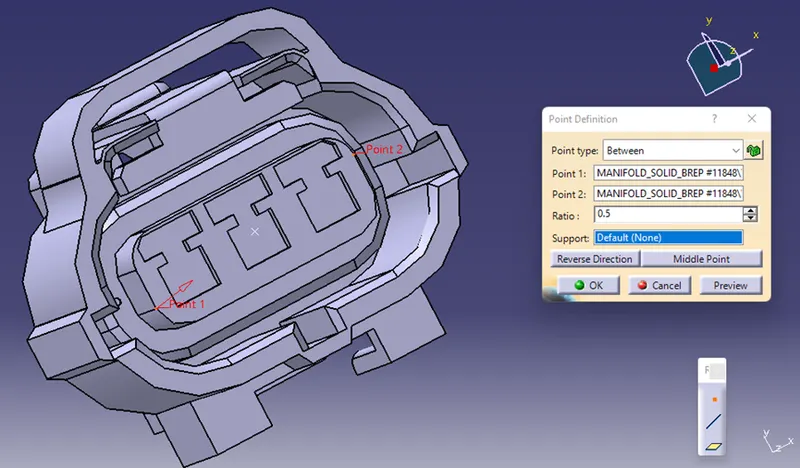

Create a midpoint on the contact face that will be used for regular wire bundle insertion in the workbench for the component.

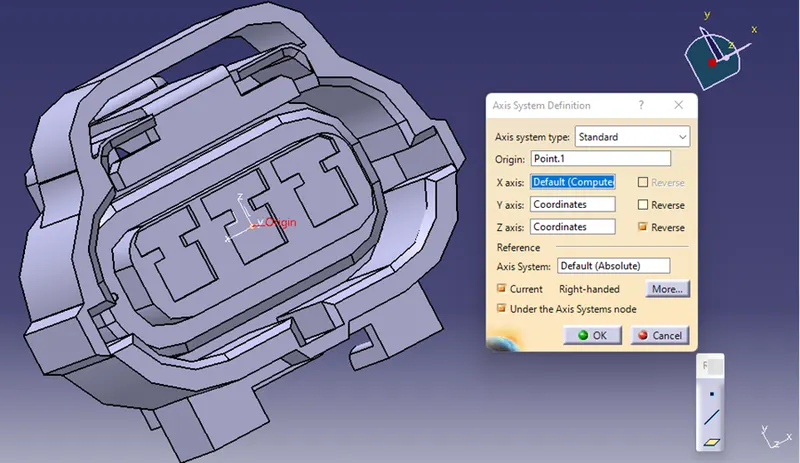

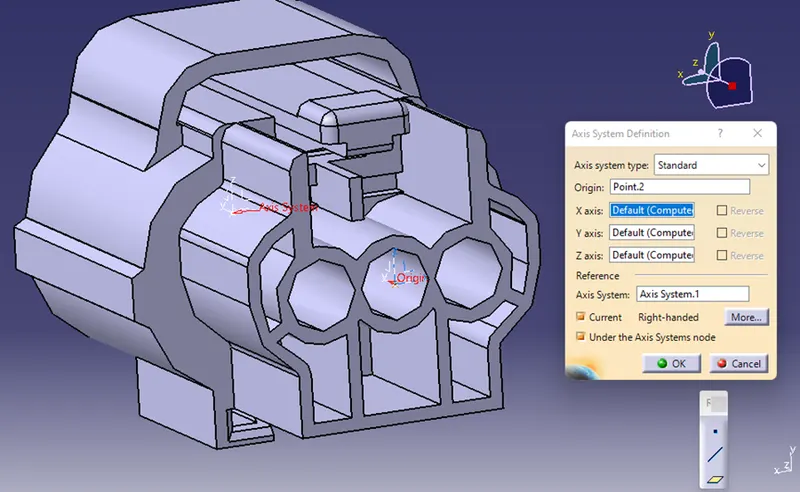

Create an axis system referencing the newly generated point and specifying the axis direction as shown below.
Define Point and Axis for Bundle Connection Point

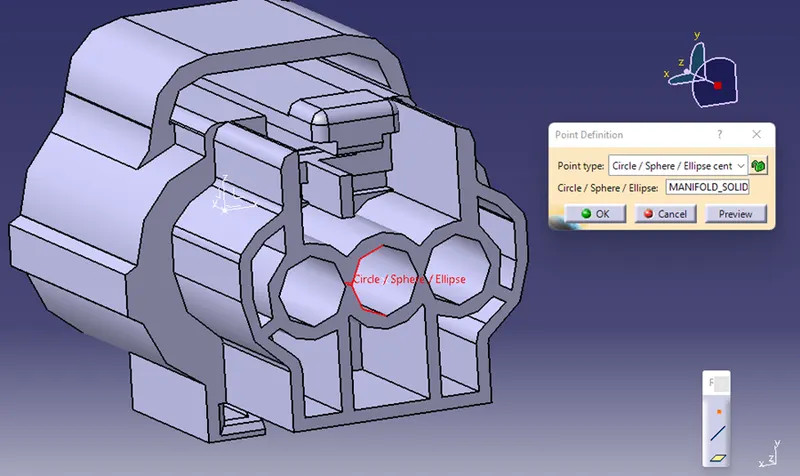

Point
Axis
Make a connecting point in the cavity

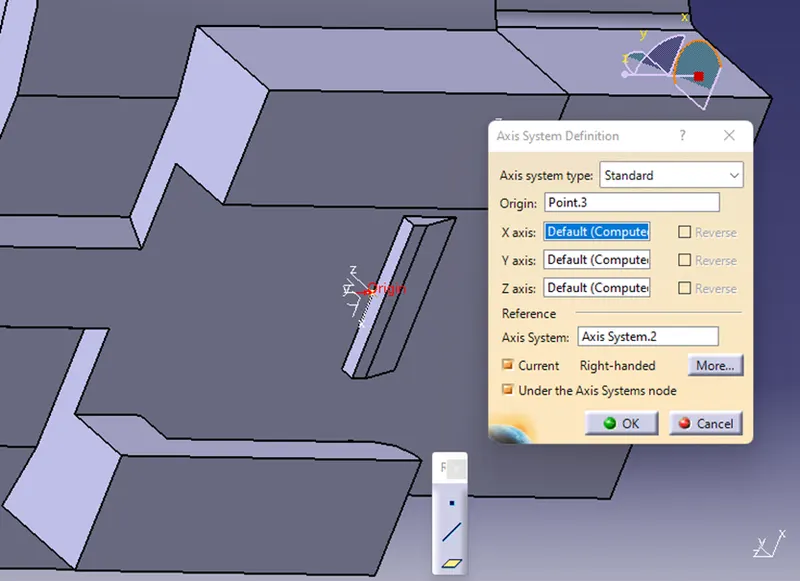

Establish a cavity connection axis system
Switch to ‘Electric Part Design’ workbench
In CATIA V5, define the component as a connector and enter an 8 for the number of terminations because there are 8 wire entry points.

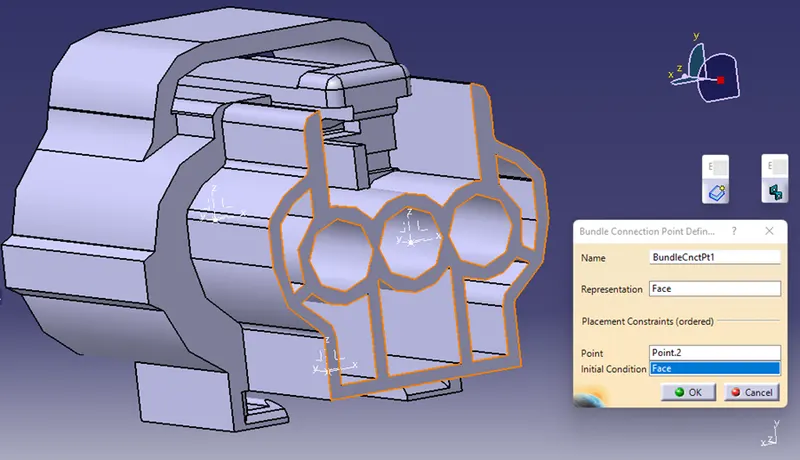

Define Bundle Connection Point

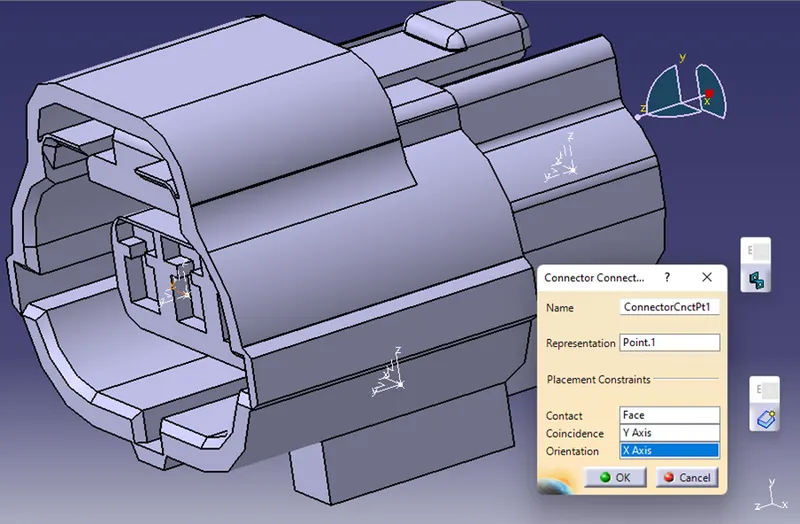

Define Connector Connection Point
Define Cavity Connection Point
3) Tyco 85229-1

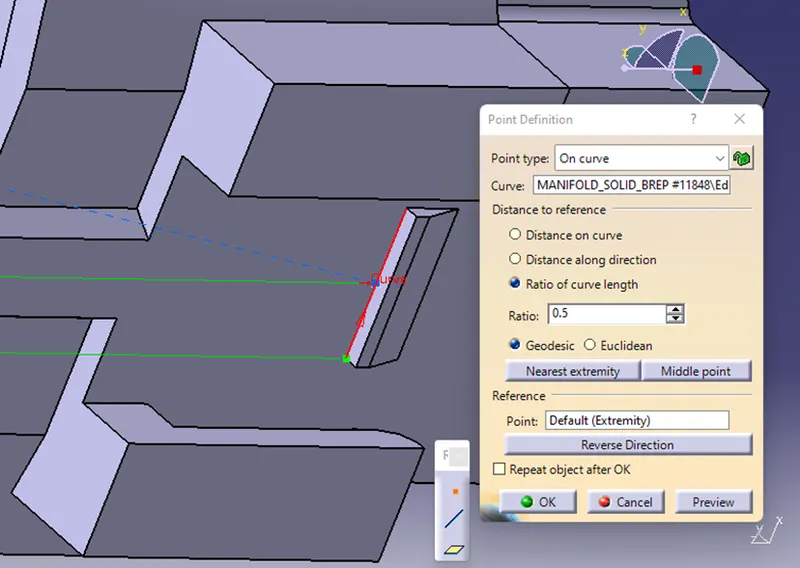

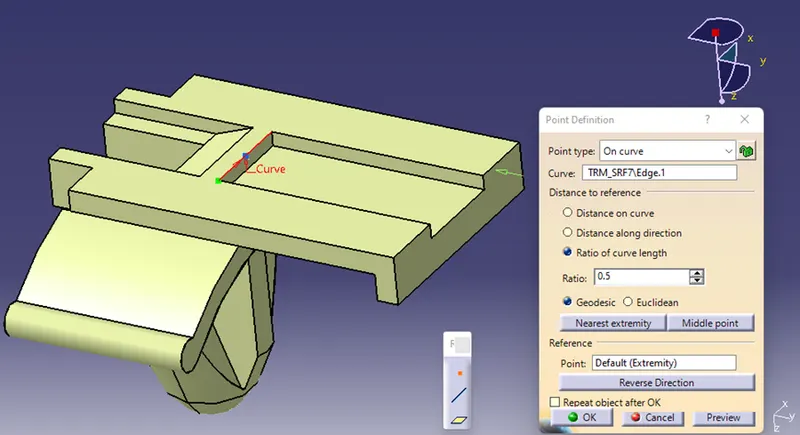

Create a Midpoint

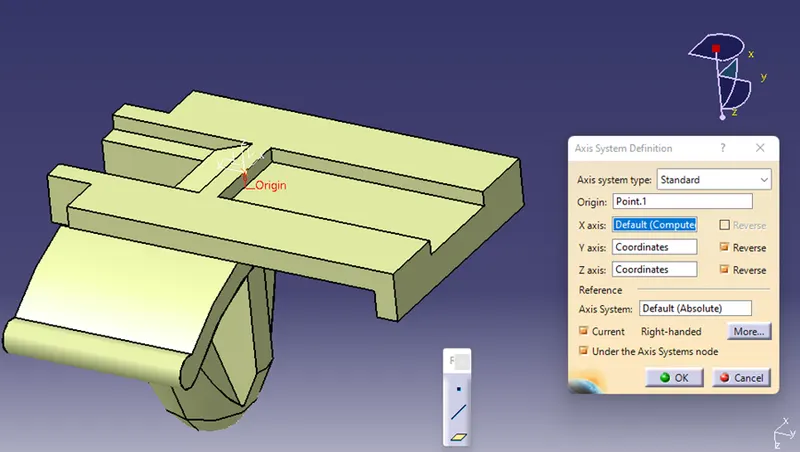

Create an Axis System

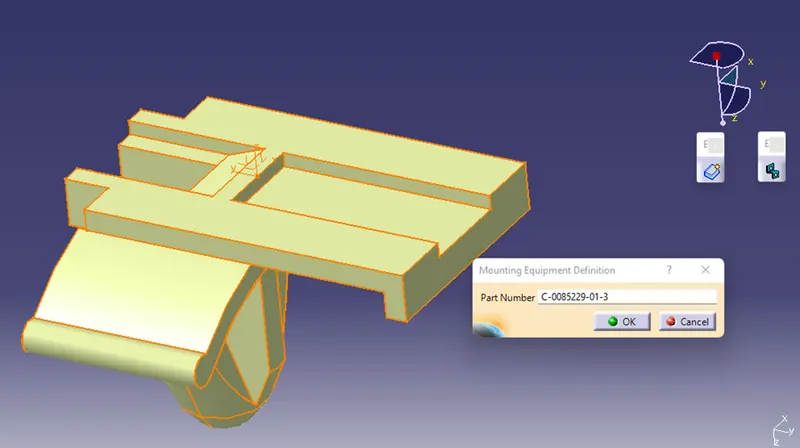

Switch to 'Electric Part Design' Workbench and Define the Part as a Mounting Equipment

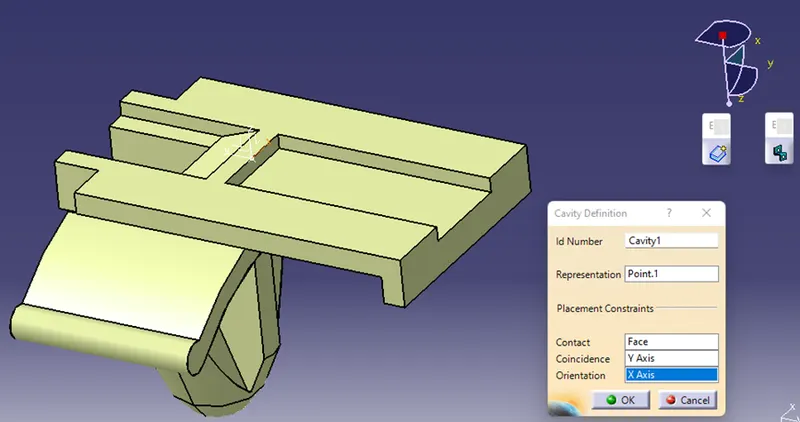

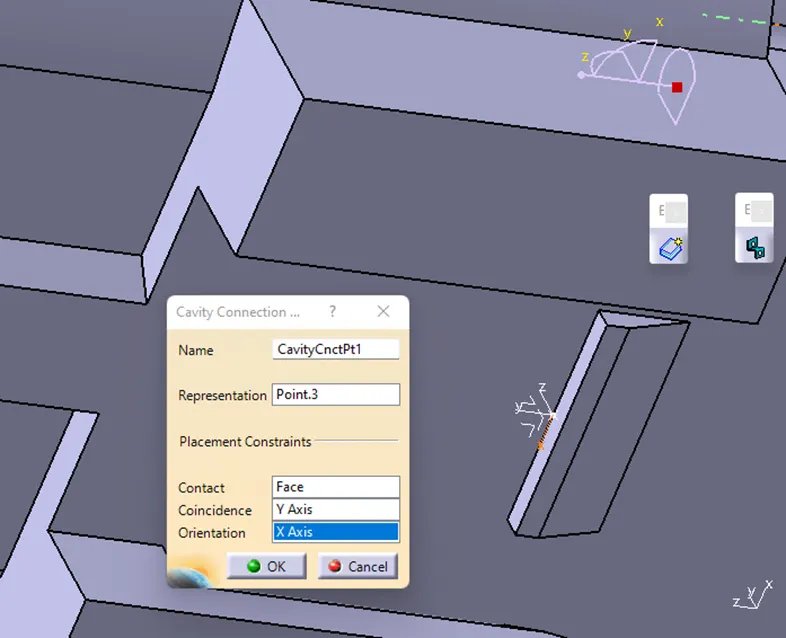

Define the Cavity Connection Point
Switch to ‘Electric Assembly Design’ Workbench

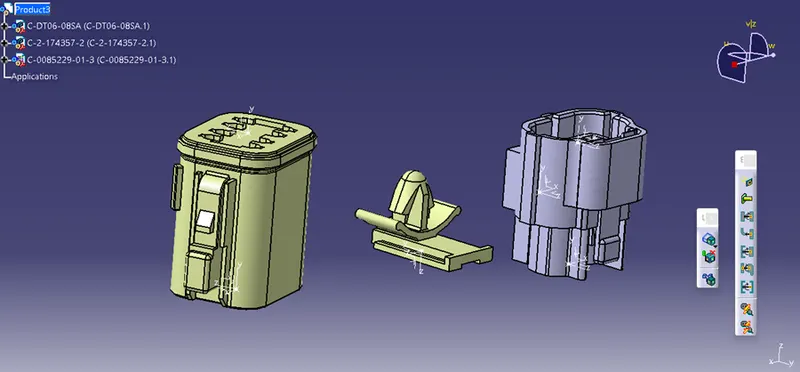

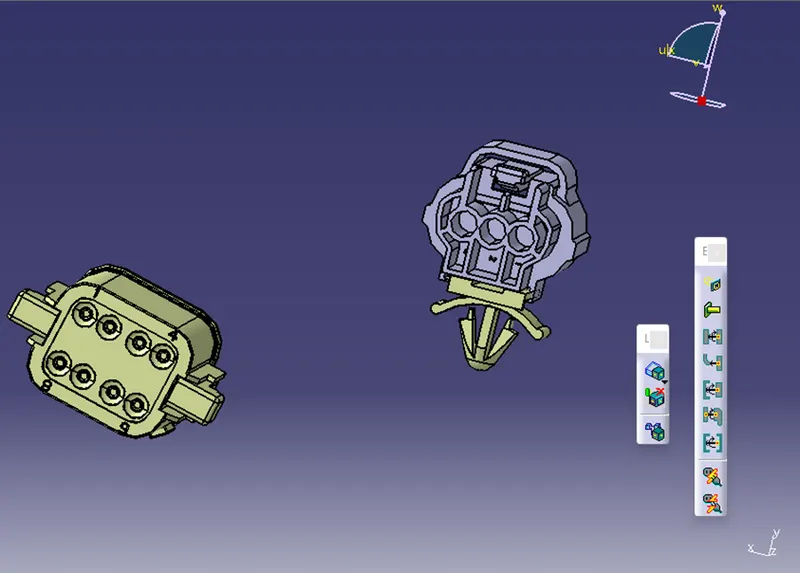

Copy and Paste all the Three Electrically Defined Parts in that Workbench

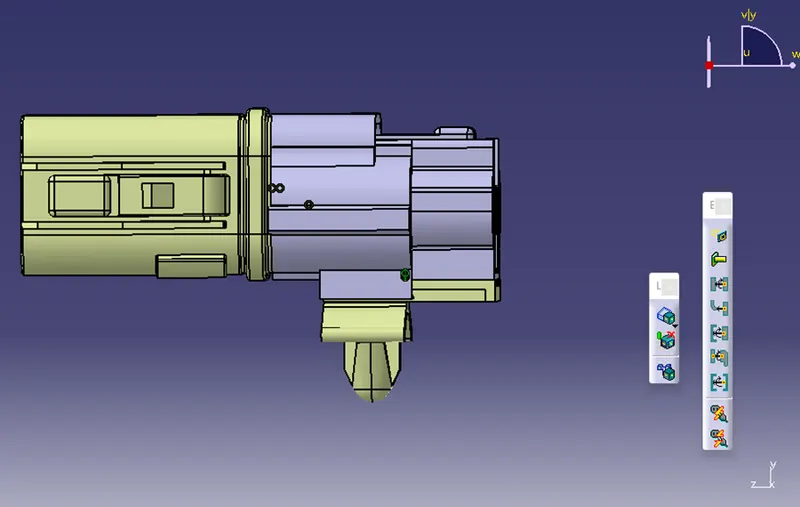

Connect the Mounting Clip and the Tyco 174357-2 Connector by Using ‘Connect Electrical Devices’ at the Pre-Defined Cavity Connection Point
Connect the Two Connectors Electrically through the Connector Connection Point
