Wiring harness design in CATIA V5 - 3D modeling Week 2 Challenge

Objective: To define given Connectors as Electrical Connectors and Create a Catalogue using given connectors in Catia v5.

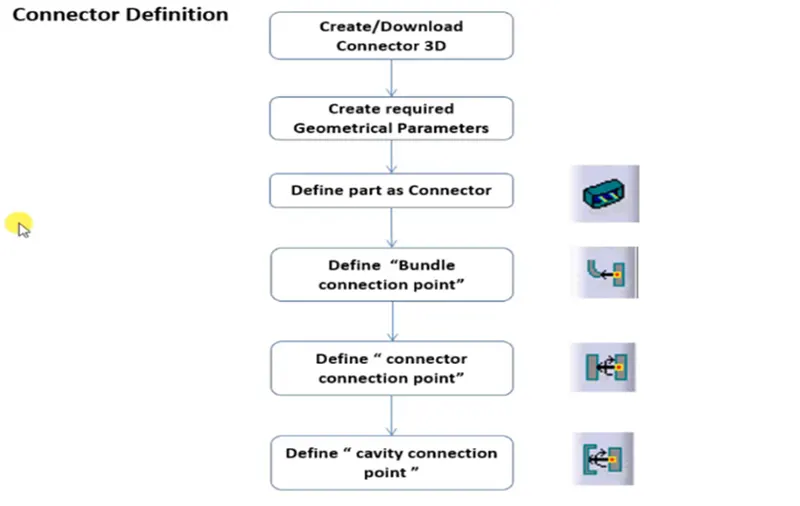

Definition Of Electrical Connectors:

Following parameters are required to define for any connector.

Geometry Parameters: points and axis.

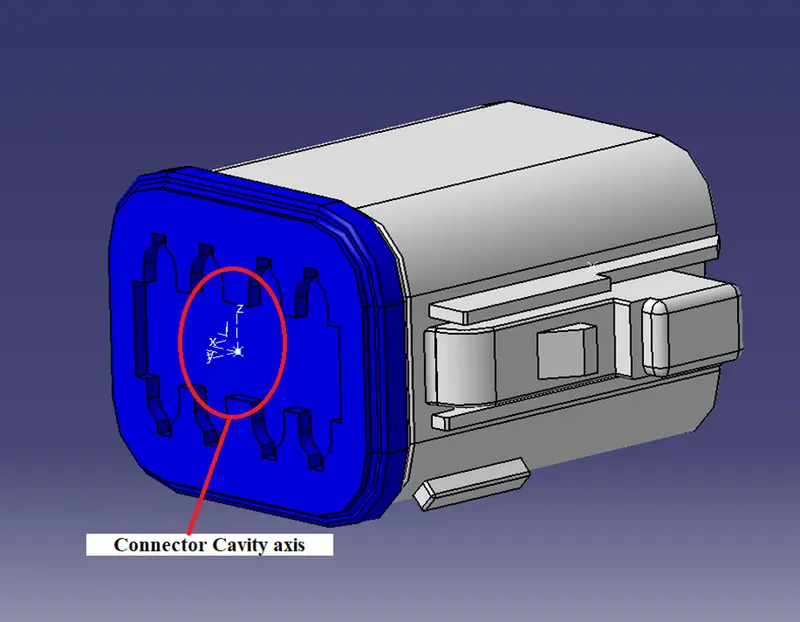

Connector connection points: This point is used for the connection of one connector to another connector.

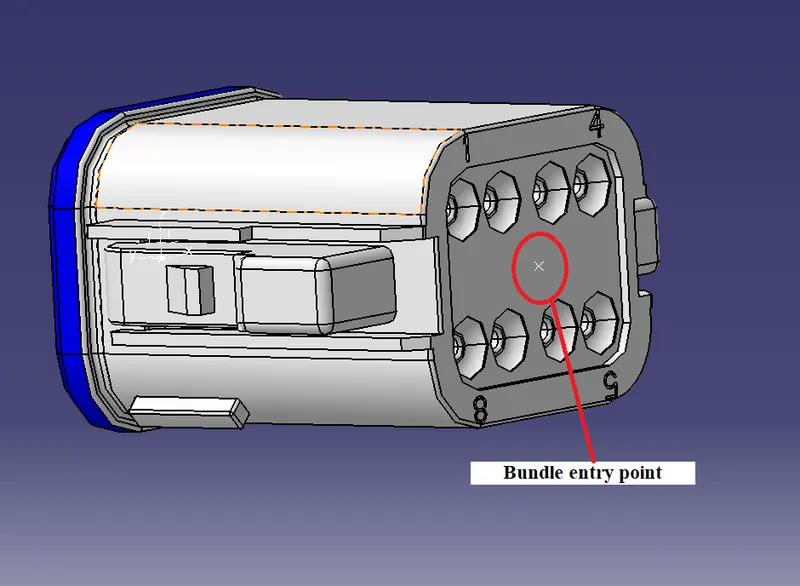

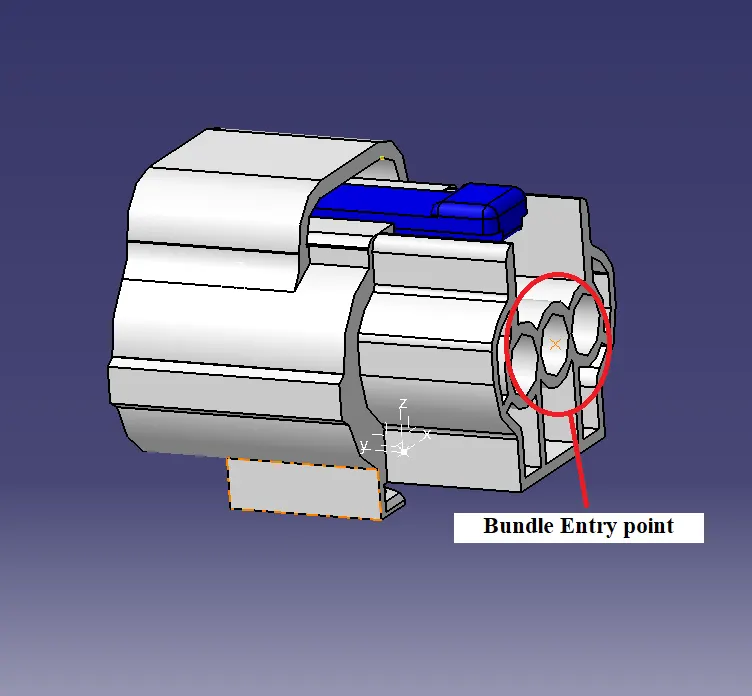

Harness Bundle entry point: The point defines where the harness bundle segment point will be end when routed to the electrical connection.

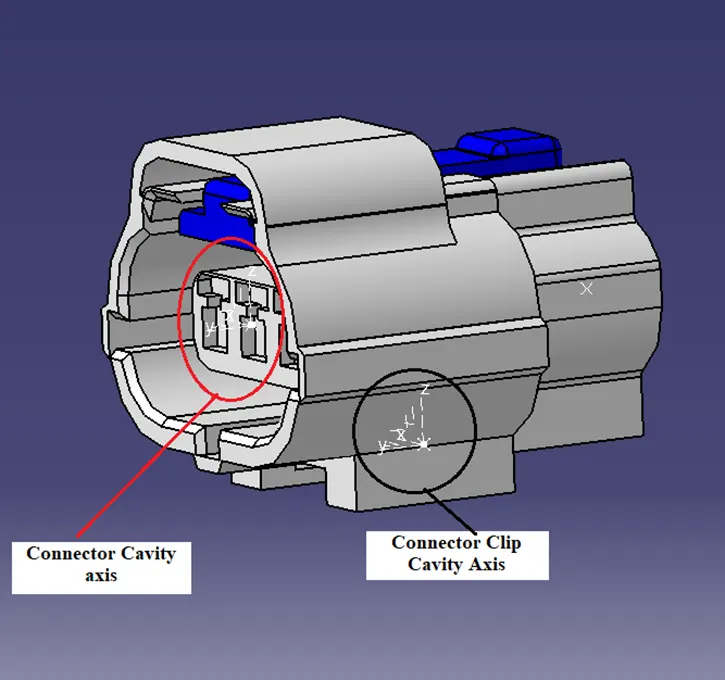

Cavity connection point (Optional): This point is used to define the connection of a connector to a connection clip. This is only applicable to the connectors which have mounting feature for a connector clip.

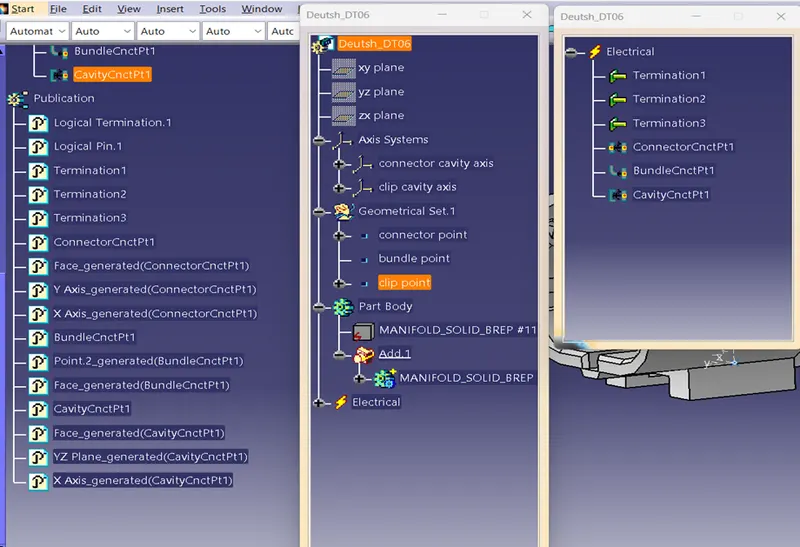

(Deutsch DT06 – 08SA) Single Connector With 3 Terminations:

Tree Structure:

(Tyco 174357-2) Single Connector with 8 terminations:

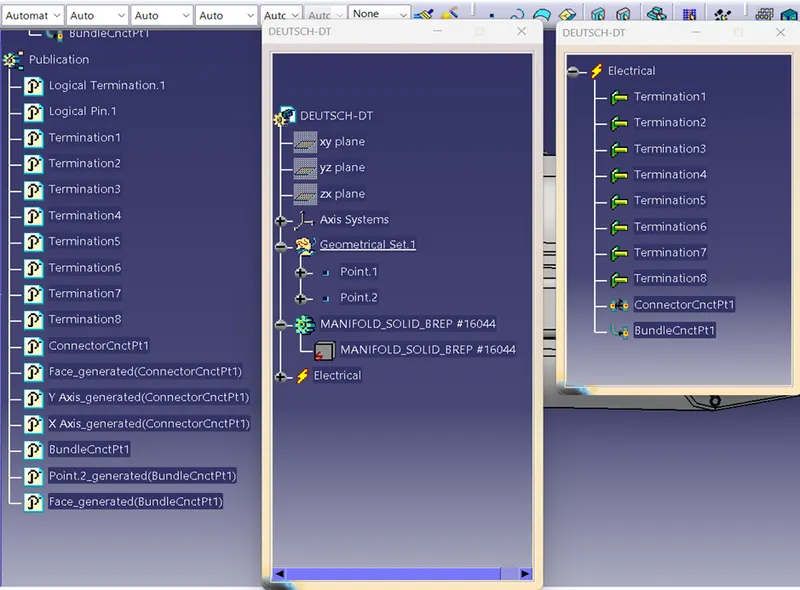

Tree Structure:

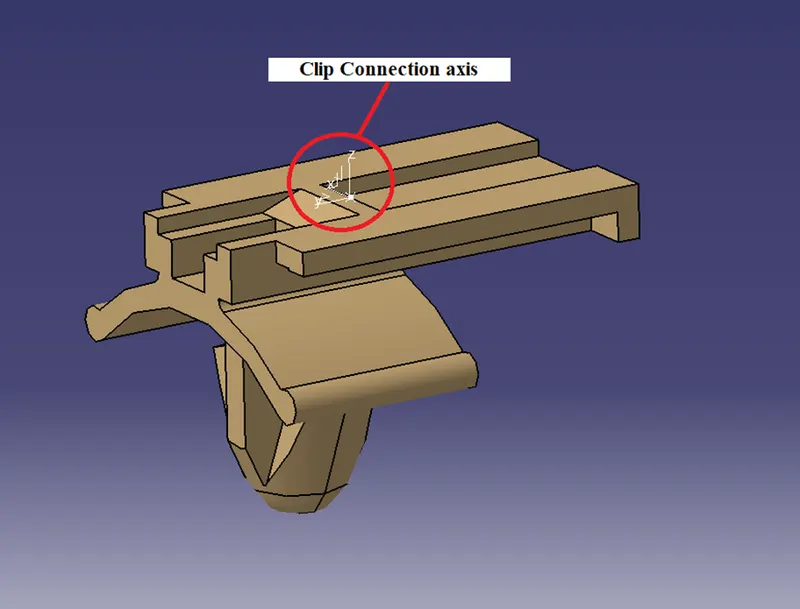

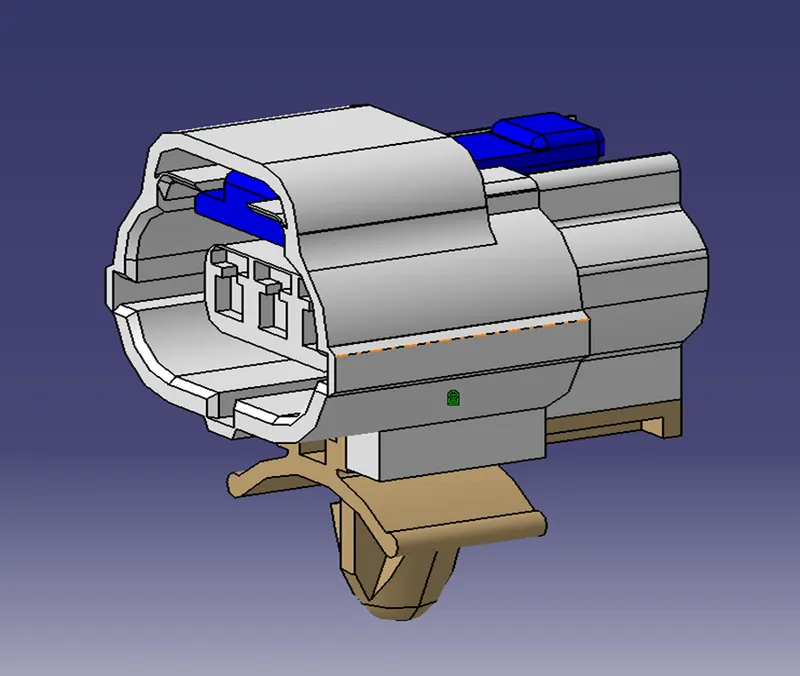

(Tyco 85229-1) Connector clip:

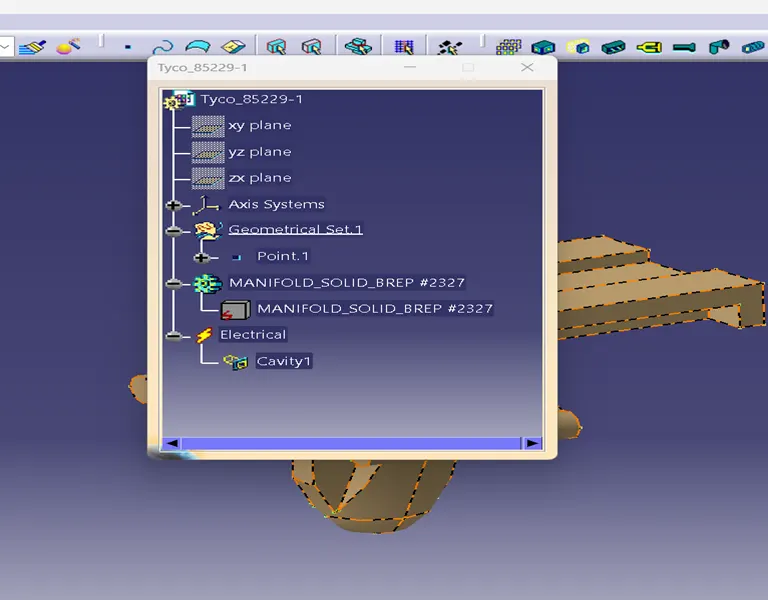

Tree Structure:

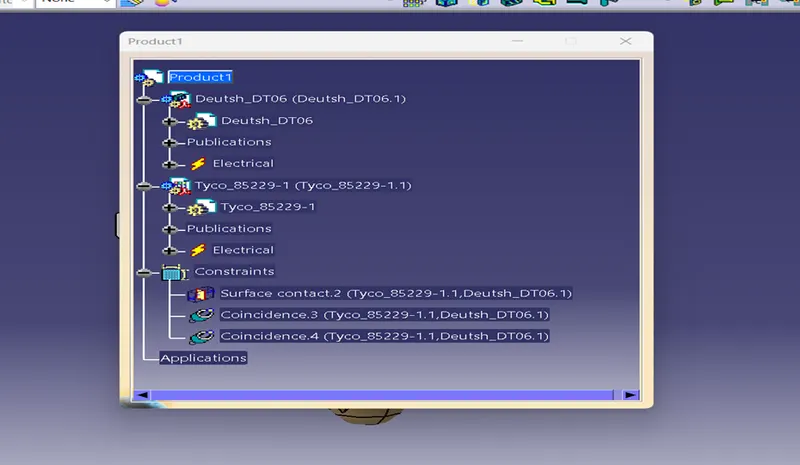

Assembly of Connector and Connector clip:

Tree structure:

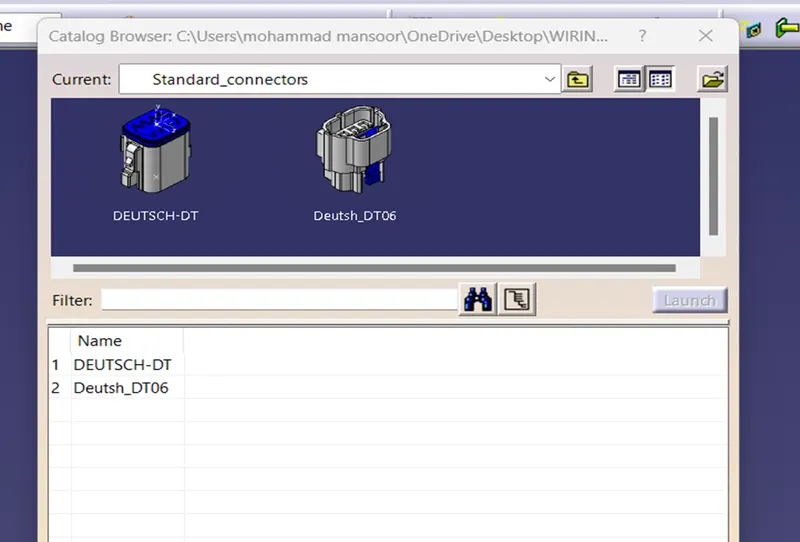

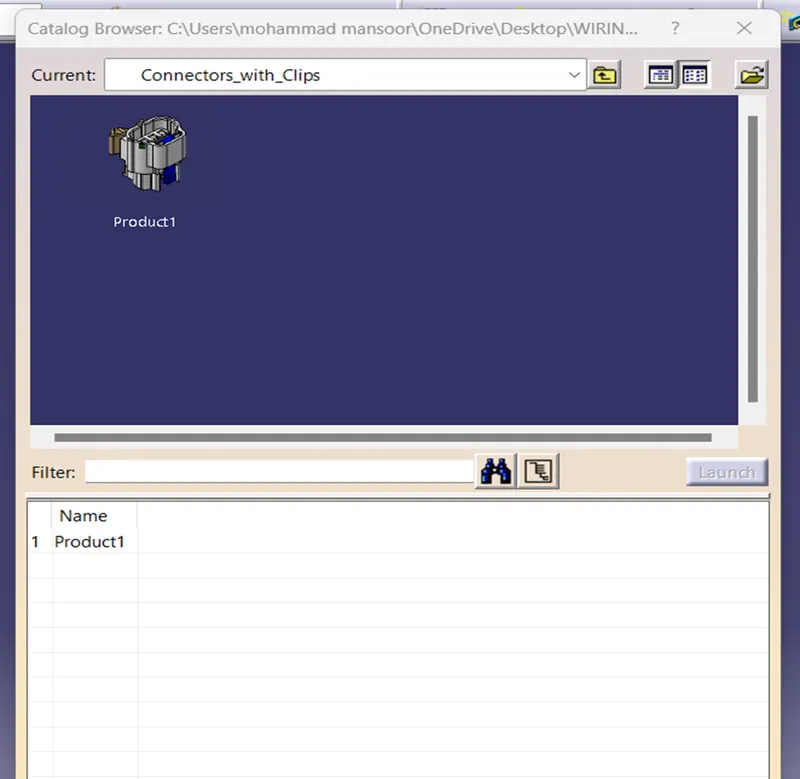

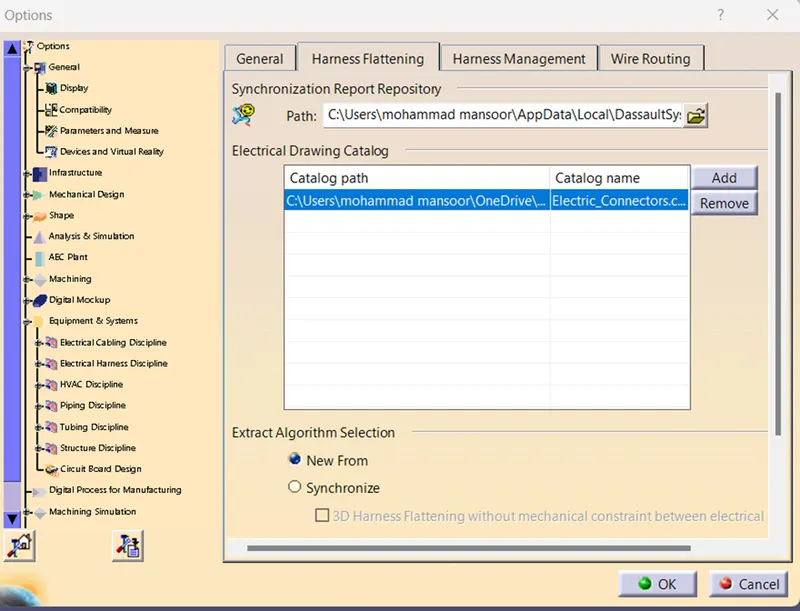

Electrical Connectors Catalogue:

Conclusion:

Hence the given connectors are defined as electrical connectors and a catalogue has been created.
