Week 9 - Attachment Feature Creation (Ribs & Screw Boss) - Challenge 1

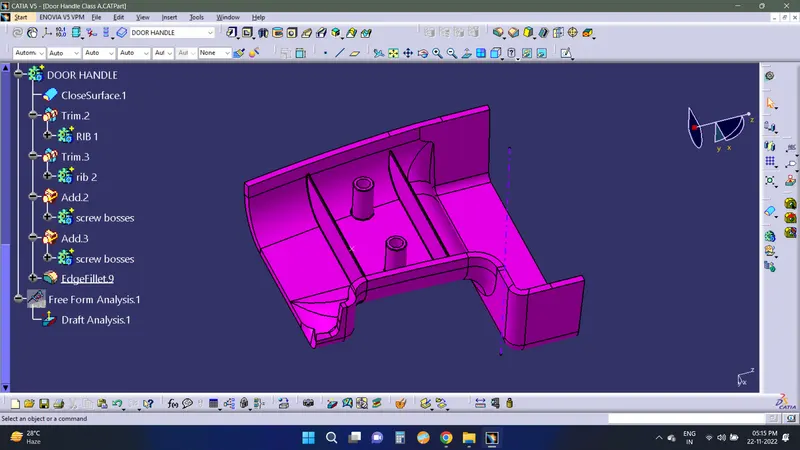

DOOR HANDEL WITH RIBS AND SCREW BOSSES :

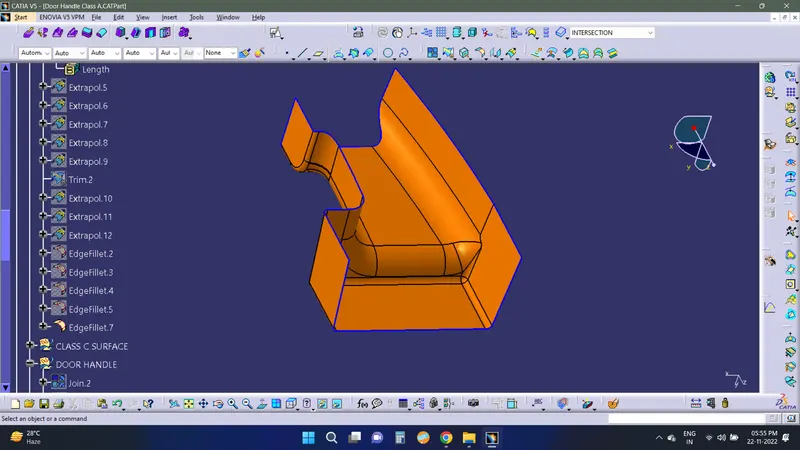

CLASS B SURACE :

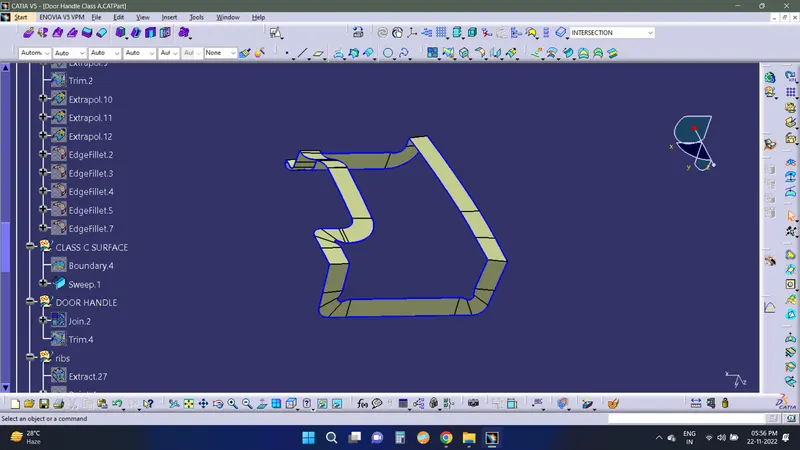

CLASS C SURFACE :

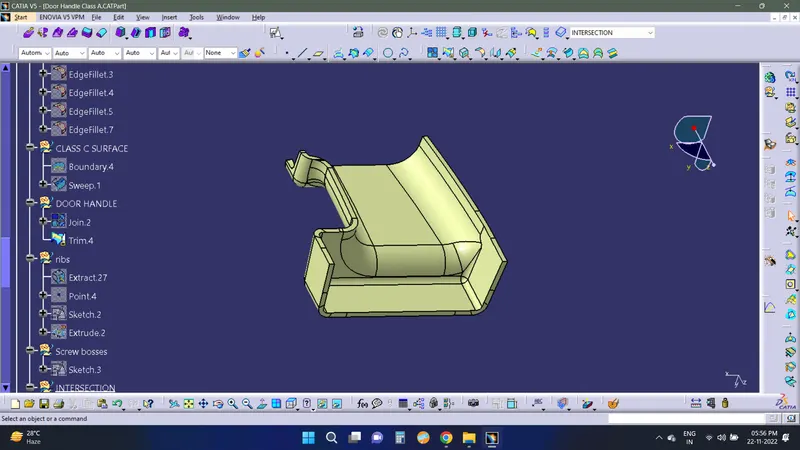

DOOR HANDLE SURFACE DESIGN :

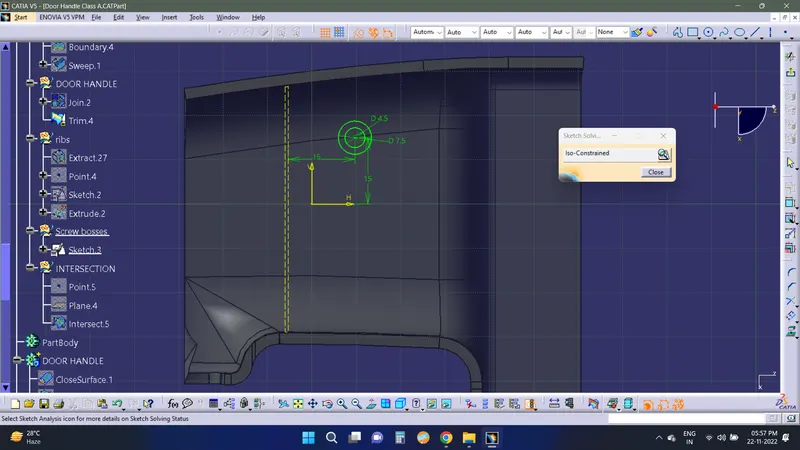

SCREW BOSSES SKETCH ISO CONSTRAINED :

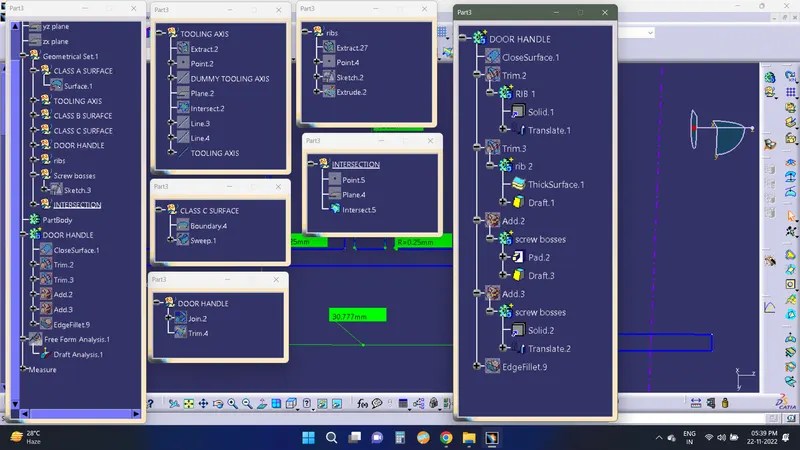

TREE STRUCTURE :

WORK REPORT DETAILS OF DOOR HANDLE :

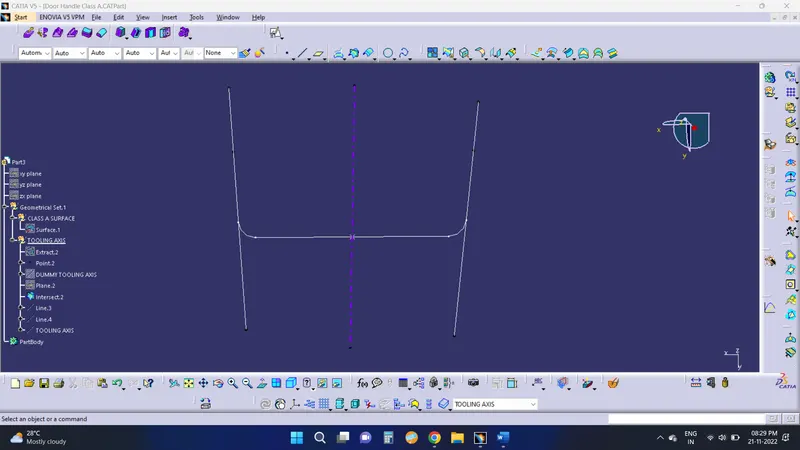

TOOLING AXIS OF DOOR HANDLE : Y AXIS

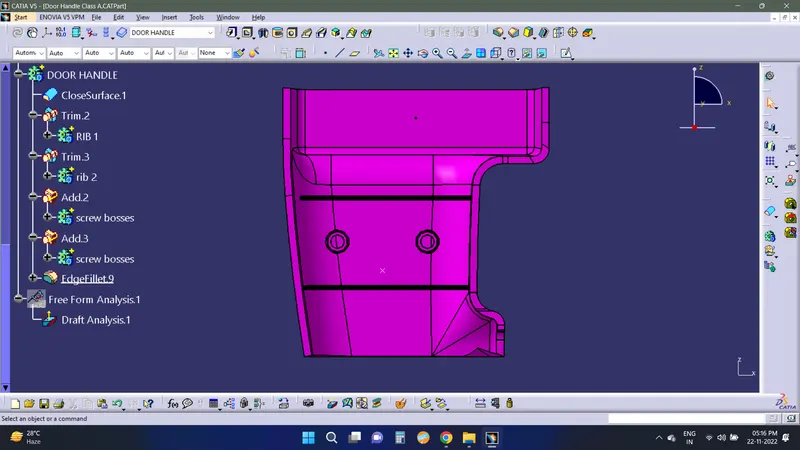

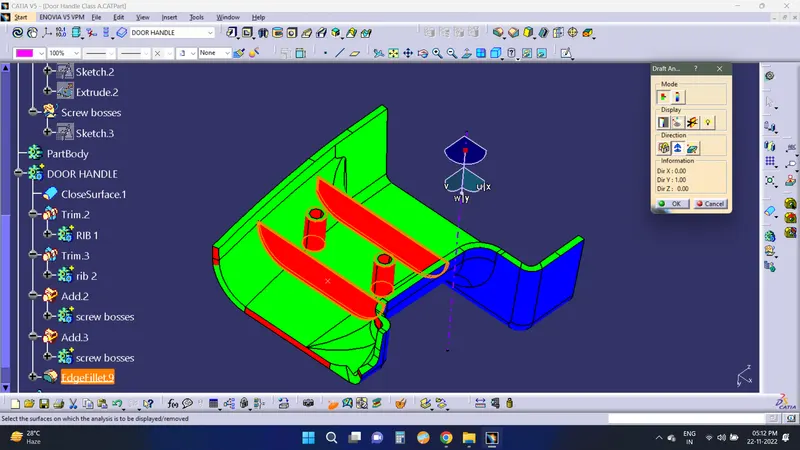

DRAFT ANALYSIS OF DOOR HANDEL :

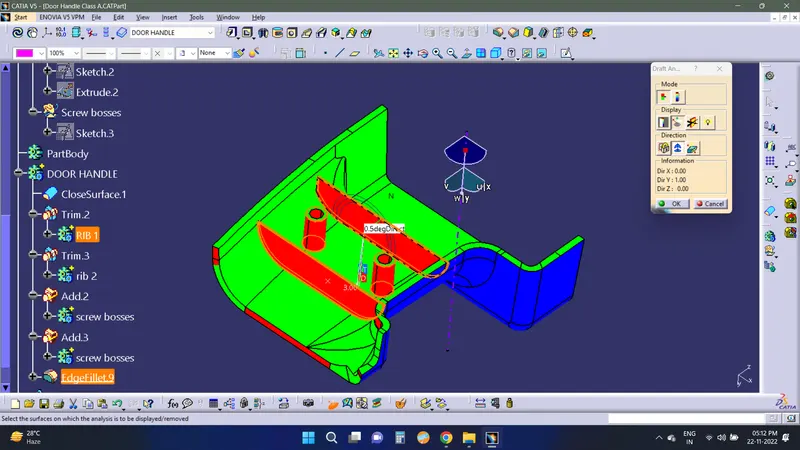

ALL THE SURFACES OF DOOR HANDLE ARE ABOVE 3 DEGREE DRAFT ANGLE EXCEPT THE MECHANICAL FEATURES . AS PER STANDARDS MEACHANICAL FEATURES ARE 0.5 DEGREE DARFT ANGLE AS SHOWN IN IMAGES BELOW .

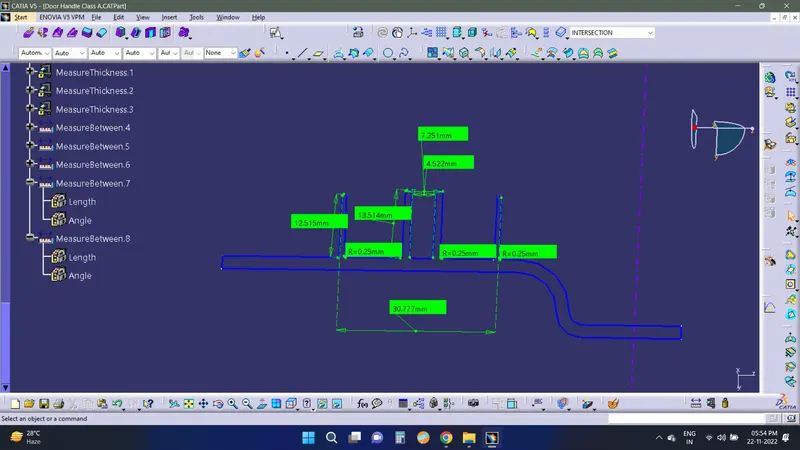

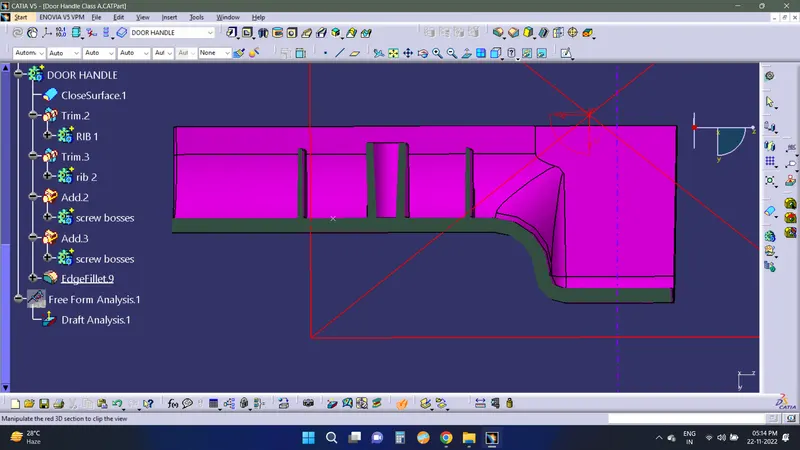

RIBS AND SCREW BOSSES : AS PER DESING RULES RIBS AND SCREW BOSSES ARE DESIGNED AS SHOWN IN IMAGE BELOW .
