Wiring harness design in CATIA V5 - 3D modeling Week 2 Challenge

AIM:=

• Download following connectors & Connector clip cad data from given link & define it as Electrical Connector using Electrical Part design Workbench. Define all the necessary properties to Connectors & Clip.

1. Deutsch DT06 – 08SA ( https://www.te.com/usa-en/product-DT06-08SA.html)
2. Tyco 174357-2 (https://www.te.com/usa-en/product-2-174357-2.html?source=header-match)
3. Tyco 85229-1 (https://www.te.com/usa-en/product-85229-1.html?q=85229&source=header

• CONNECTOR DEFINATIONS IN CATIA V5

1. Deutsch DT06 – 08SA

• Connector connection point

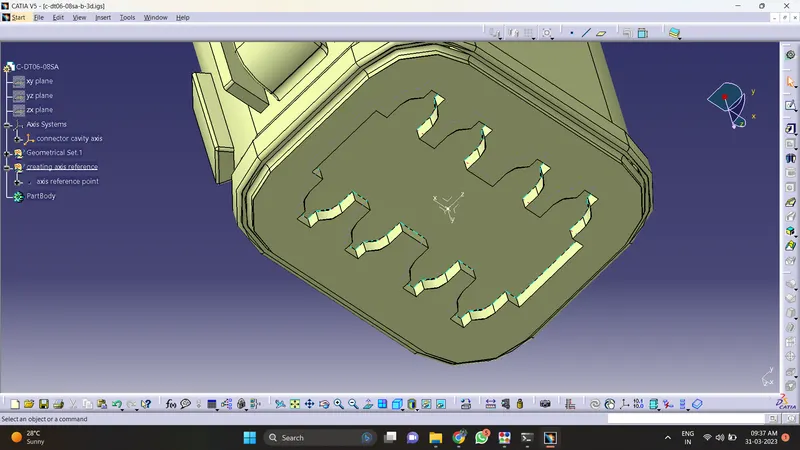

Create midpoint on the contact face which will be normal to wire bunddle insertion.

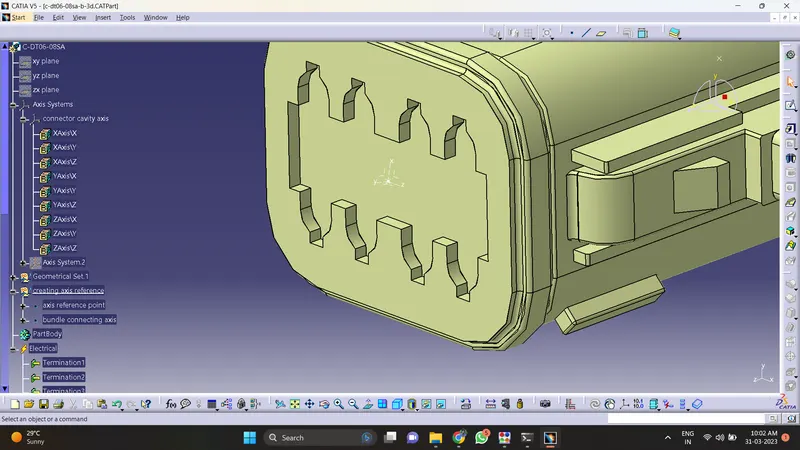

• Craete Axis System with respect to the point which we have created and defining the axis direction as shown below,

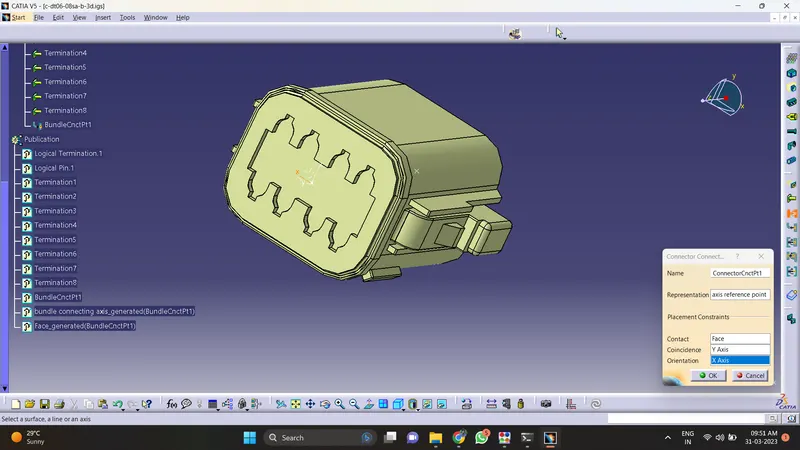

• define the connector point :

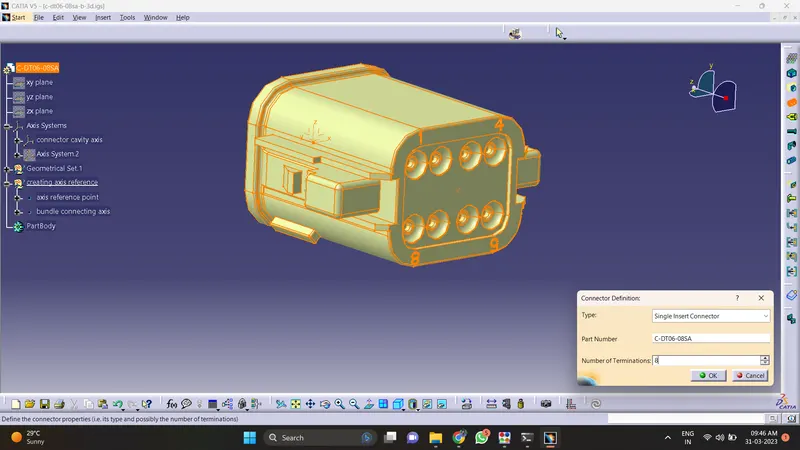

• Define the part as connector in catia, give no. of termination as 8 because we have 8 entry points for wire.

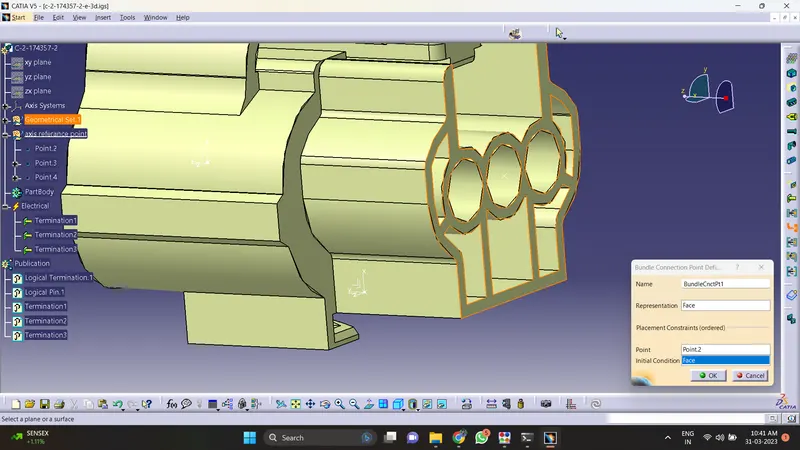

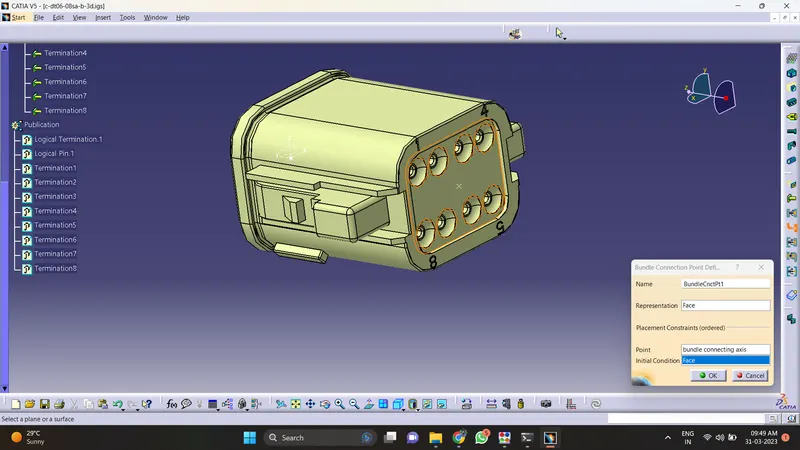

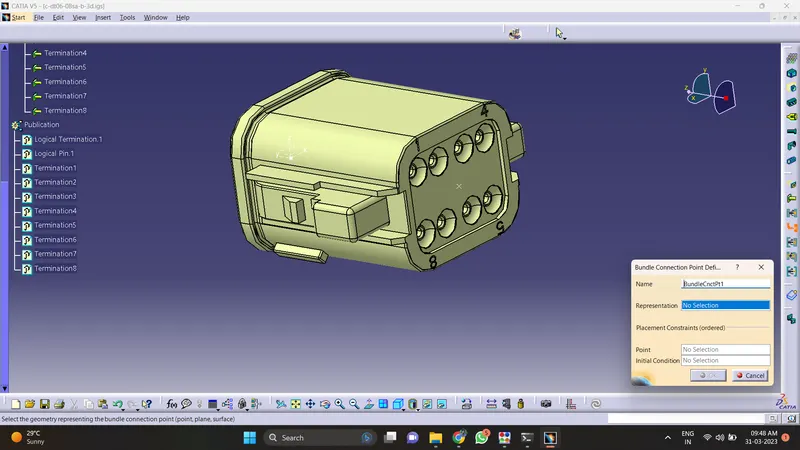

• Bundle connection point:

• Define connector connection point

2.Tyco 174357-2 :

• Create midpoint
• create Connector connection point

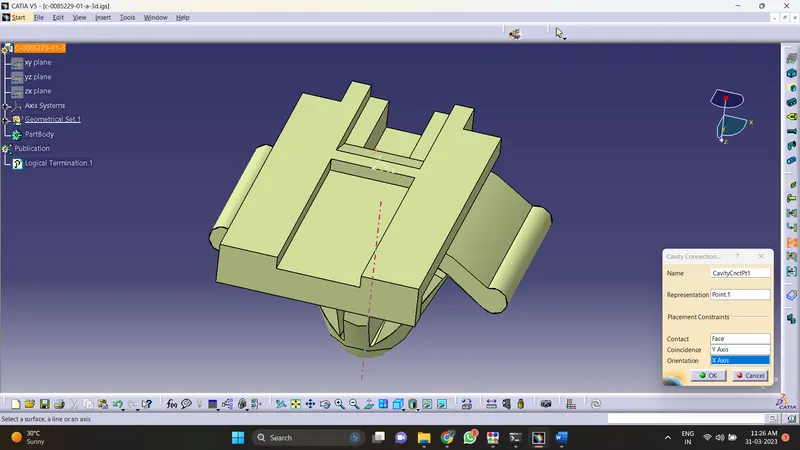

• create Connector connection axis system

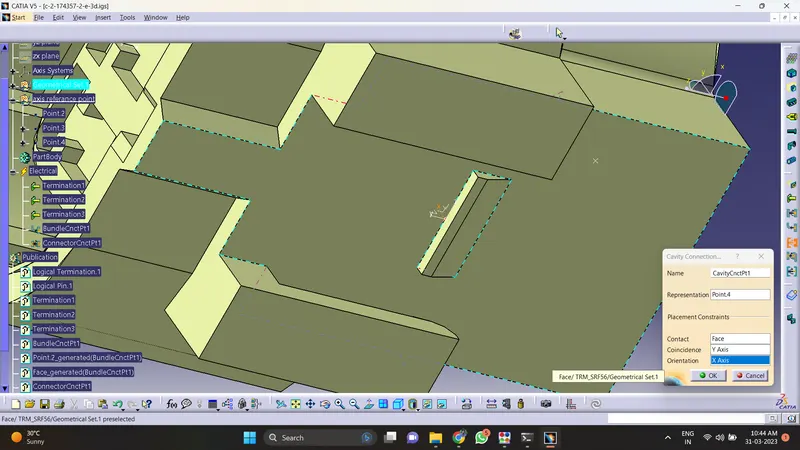

• create cavity connection point
• create cavity connection axis system

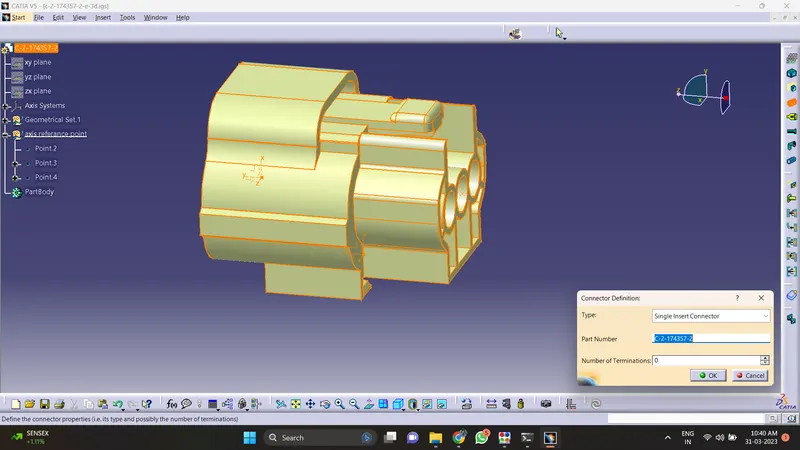

• Switch to Electric part design and define part as connector
• Define Connector connection point and cavity connection point

define cavity mount

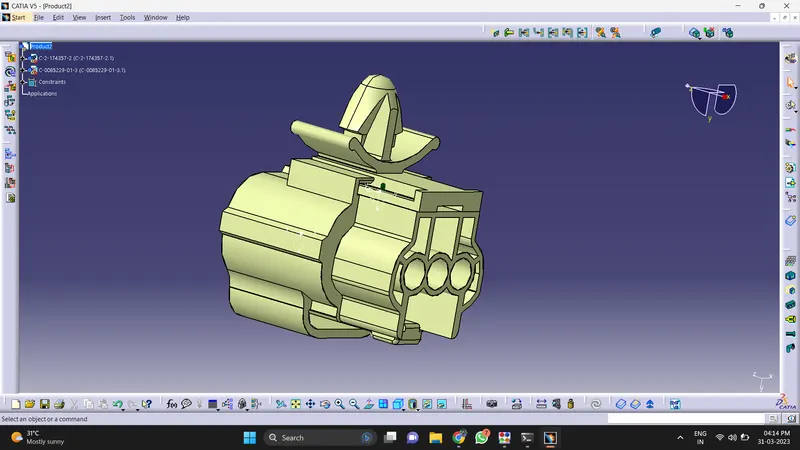

then assemble both
