Week 8 - Challenge 3 - Coin Holder Design

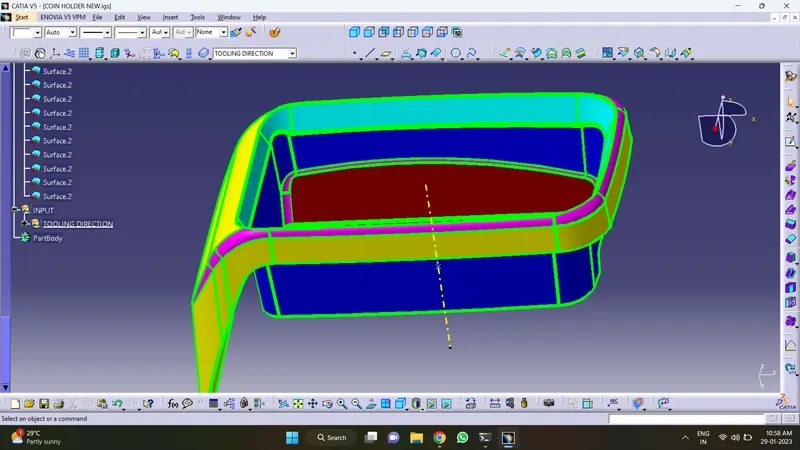

1. ADD AND OPEN CAT PAT FILE AND CHECK BOUNDRYS

2.AND TO GIVING TOOLING DIRECTION

3.AFTER OFFSET BETWEEN A SURAFCE IN ALL AREA

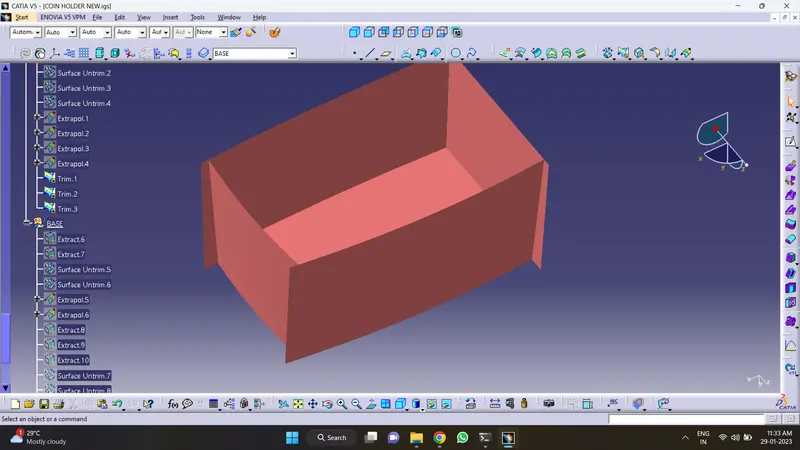

*WALL

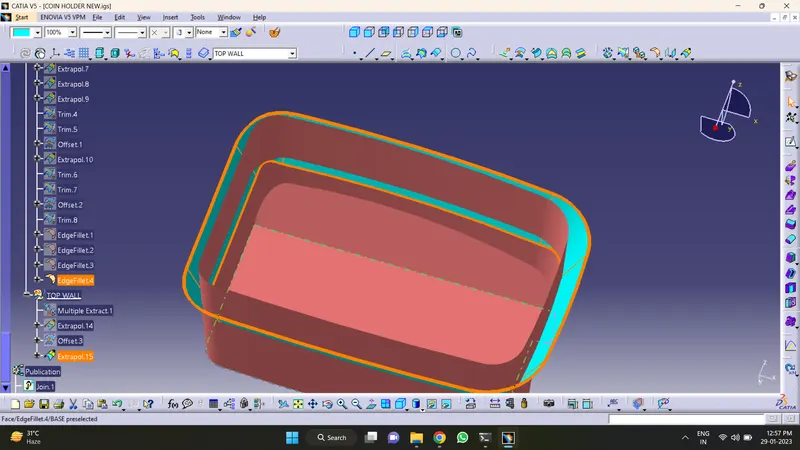

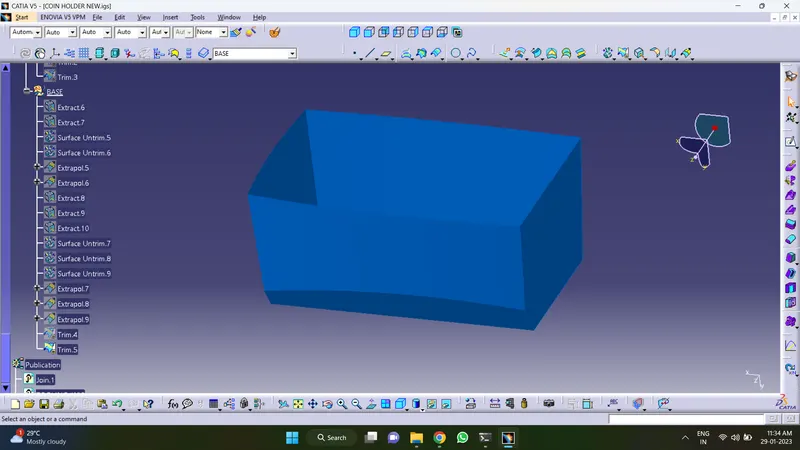

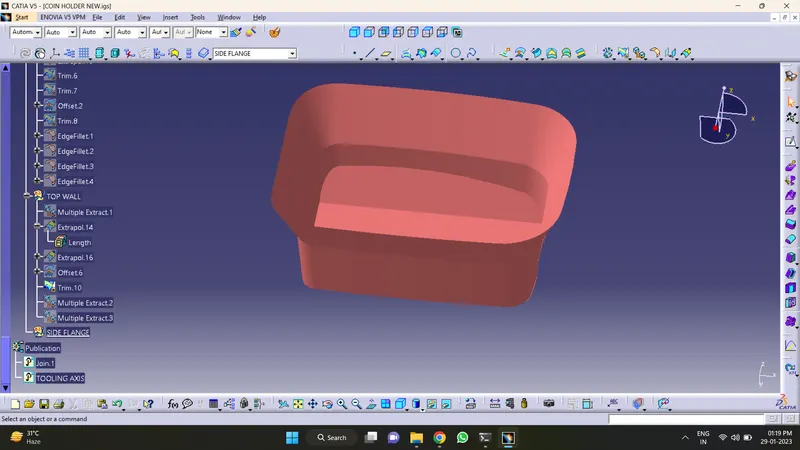

AFTER CREATING BASE AND TOP FLANGE

AND THEN PROVOIDE FILLETS FOR THE WALL AND BASE

YOU CAN CREAT B SURFACE AND MAKE ENSURE WITH BOUNDRYE

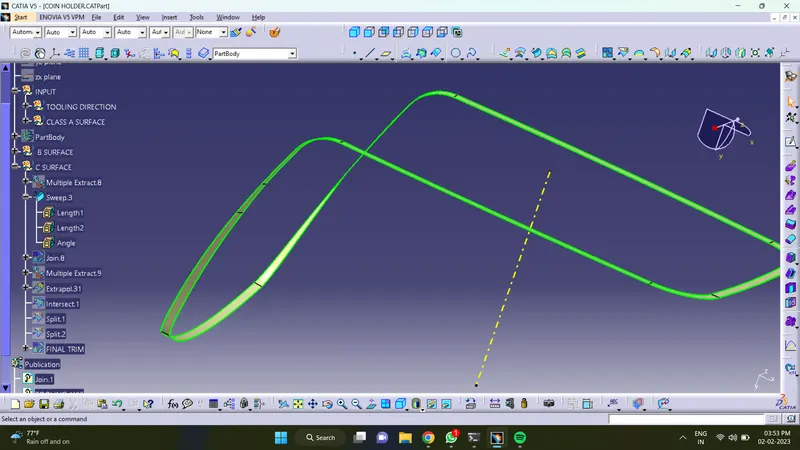

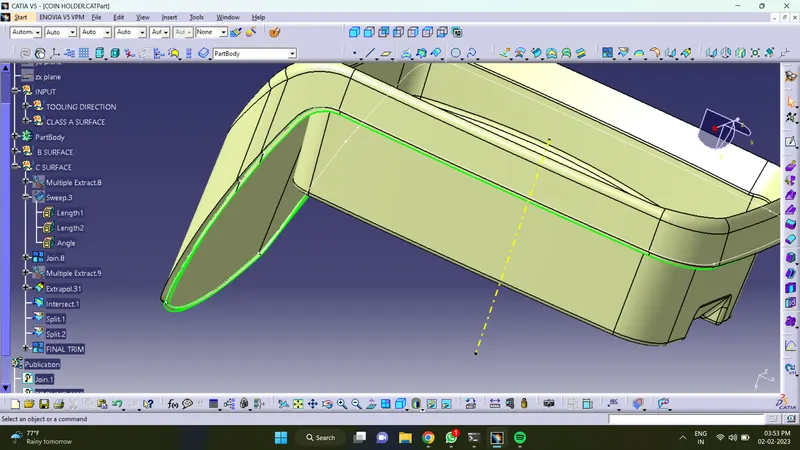

AND AFTER YOU CAN CREAT SWEEP AND JOIN WITH A

AND TRIM WITH B SURFACE

I HAVE SOME JOING ERROR SO I CAN DO USING INTESECTING FOR TRIMING PURPOSE

AFTER TRIMING YOU CAN CHECK BOUNDRY ERROR BECAUSE OF KNOWING CLOSING SURFACE IS THAT

AND YOU NEED TO CHANGE PART DESIGN AND ADD CLOSE SURFACE

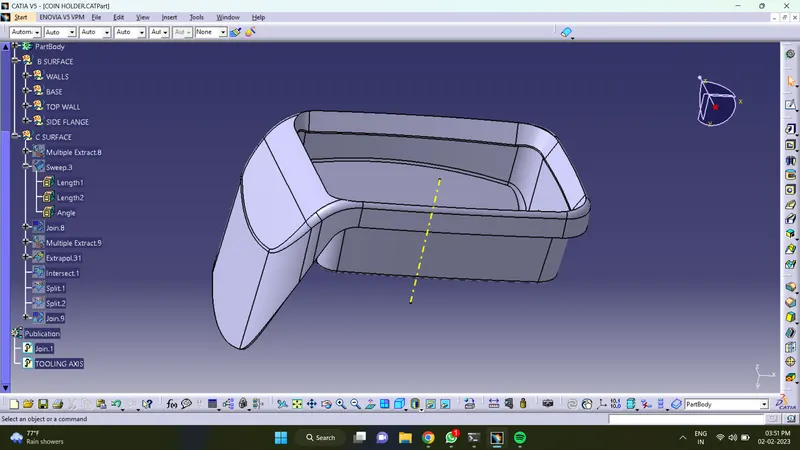

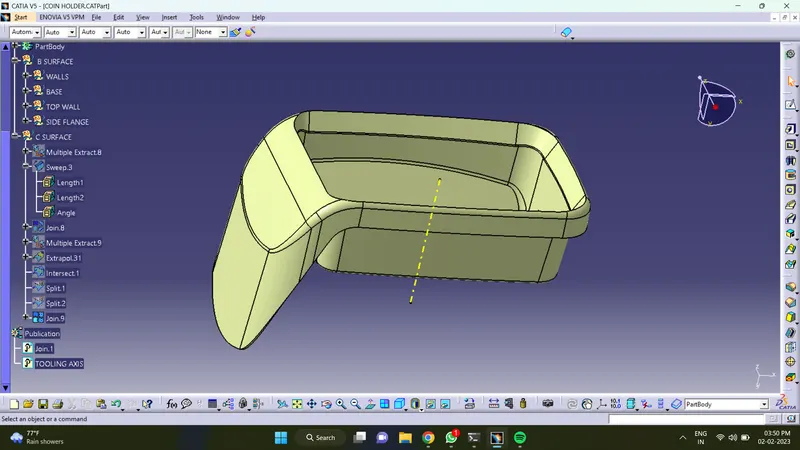

NOW YOU ARE FINISH DESIGN NOW CHECK FESIBILITY PORPUSE

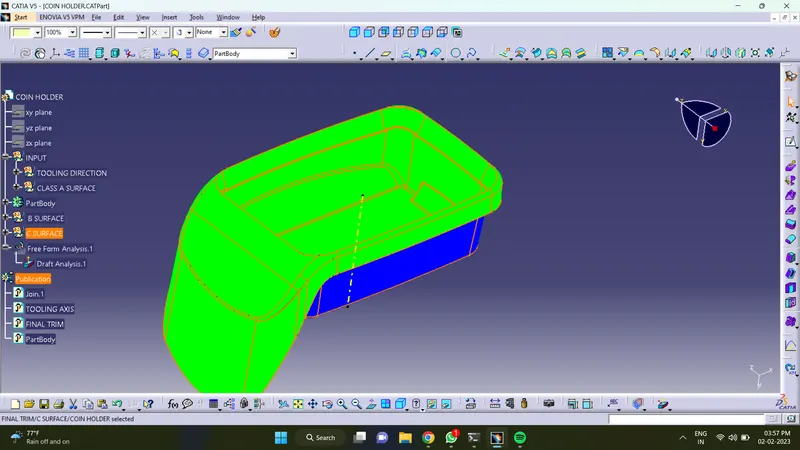

AND CHECK THE DRAFT ANALYSIS AND CHECK A AND C ARE SHOWING GREEN B IS GREEN .
