Wiring harness design in CATIA V5 - 3D modeling Week 2 Challenge
ANSWER:
Then we have to put the axis system on the created points of the connectors with same orientation to ensure the correct assembly of the components.
- Defining the part as connector using the define connector command by selecting the command and selecting the component.
- Define bundle connection point and selecting the required input from the created geometries such as axis and points and face.
- Define the connector connection point and select the required geometry inputs for connector connection.

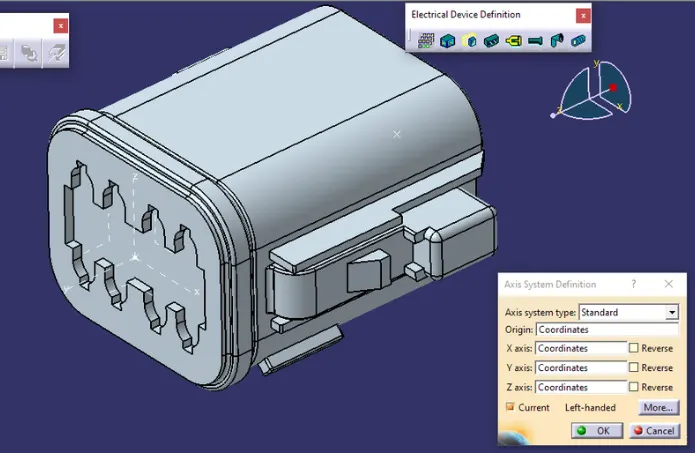

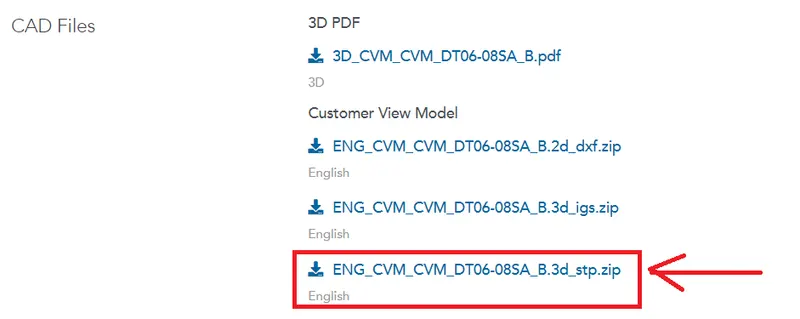

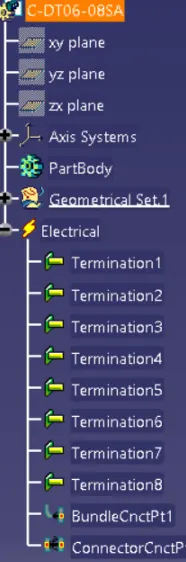

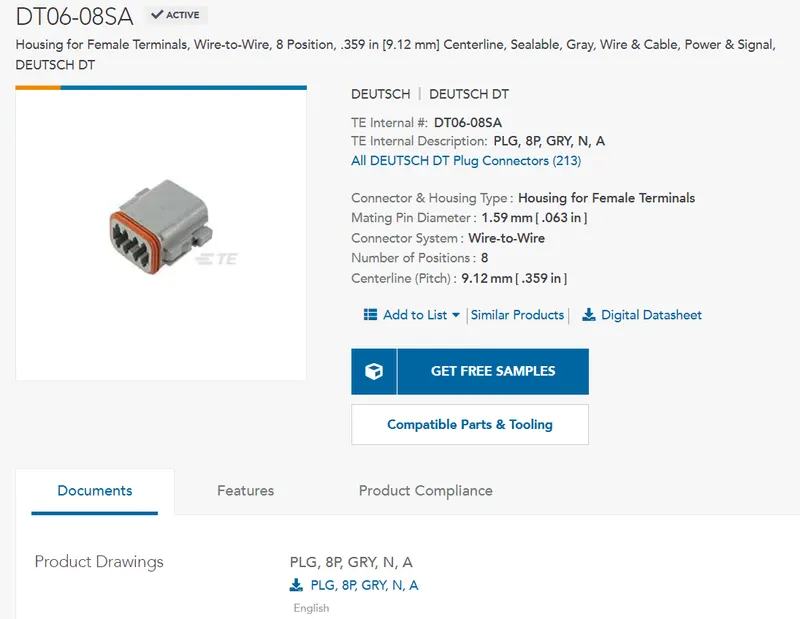

Creating required geometrical parameters for the connector side of DT06-08SA:

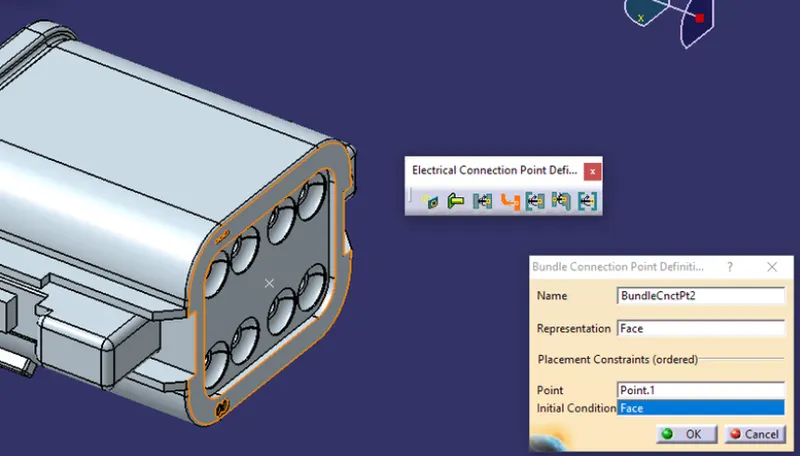

Bundle connection point:
Switch to 'Electric Part Design'

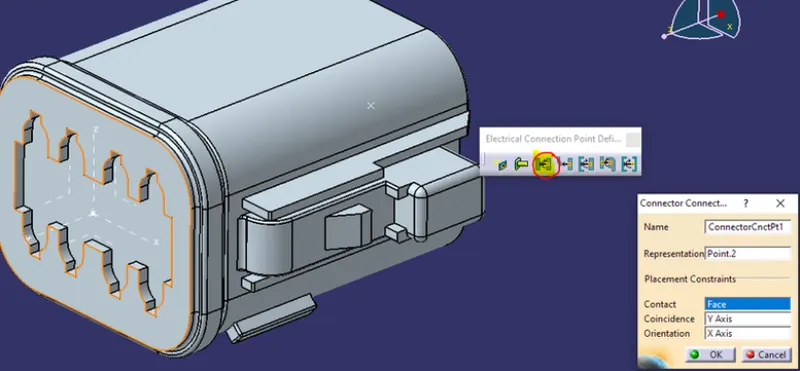

Define connector connection point:

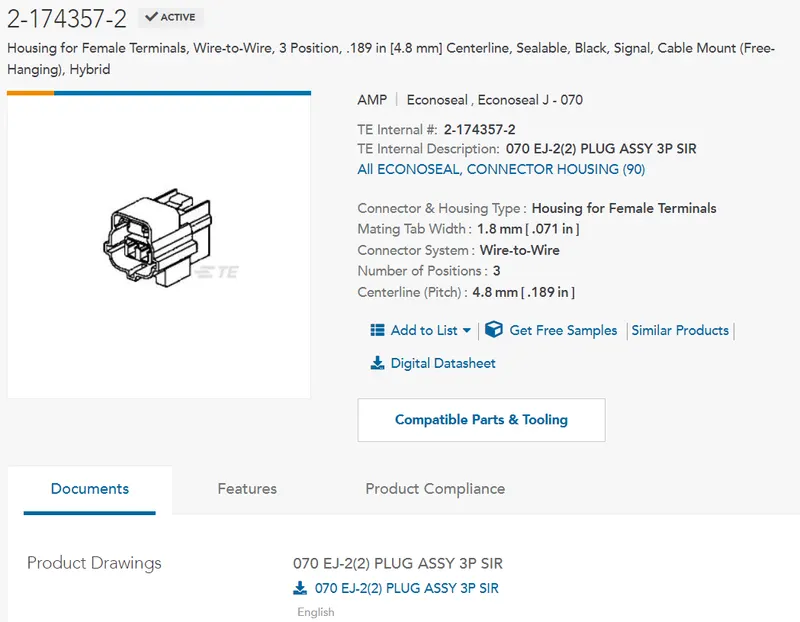

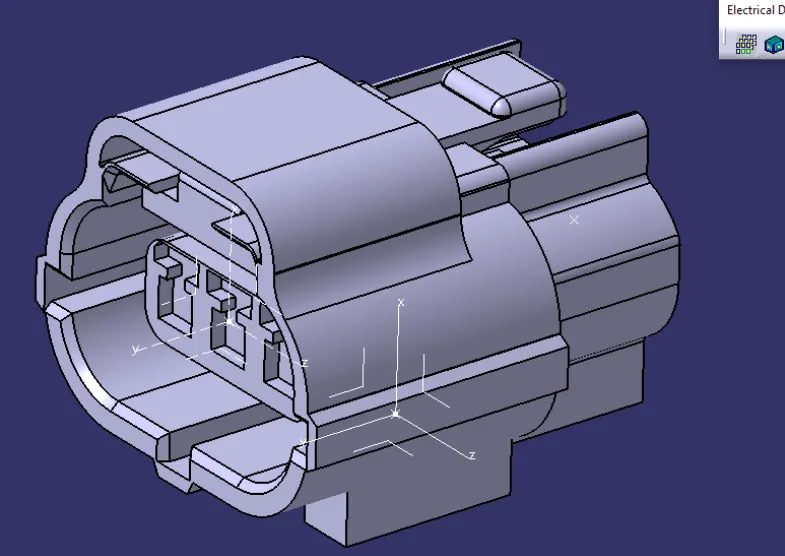

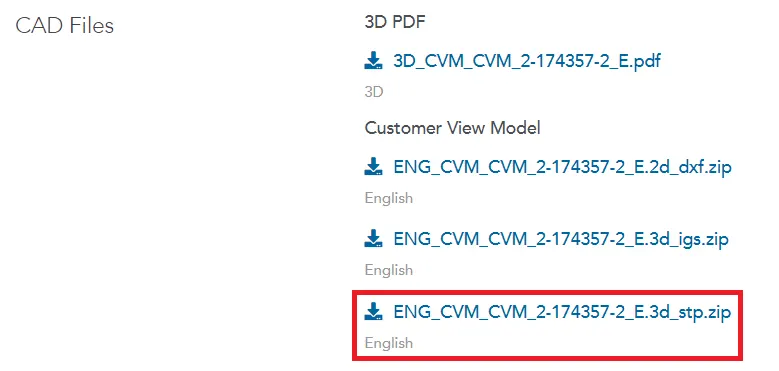

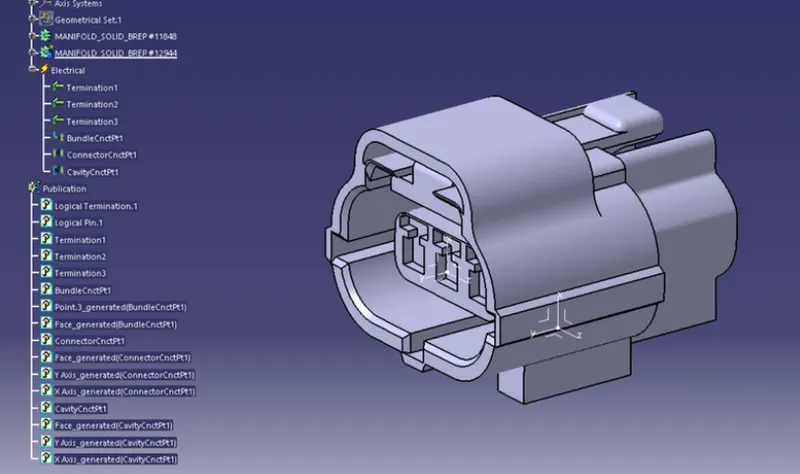

2.Tyco 174357-2 :

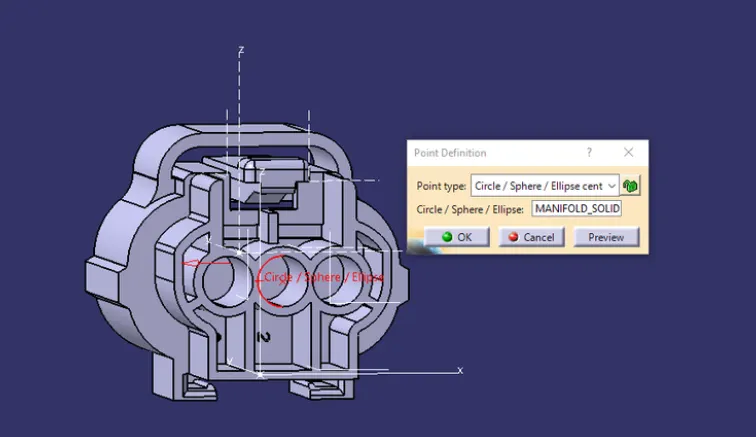

- Create midpoint
- create Connector connection point
- create Connector connection axis system
- create cavity connection point
- create cavity connection axis system

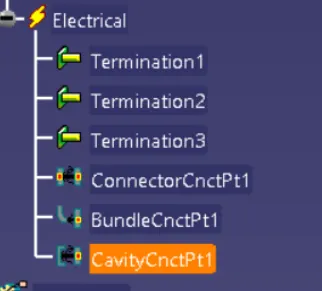

- Switch to Electric part design and define part as connector
- Define Connector connection point and cavity connection point

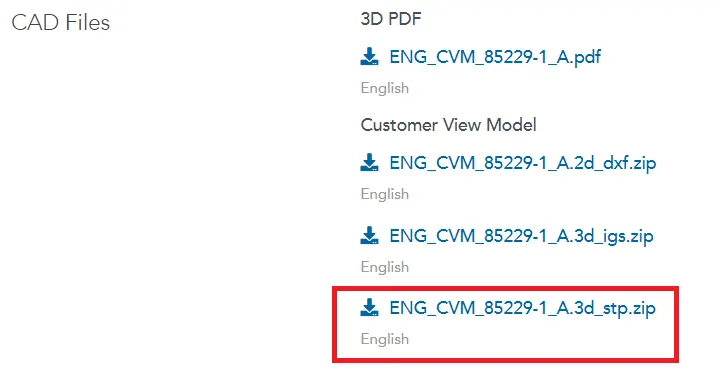

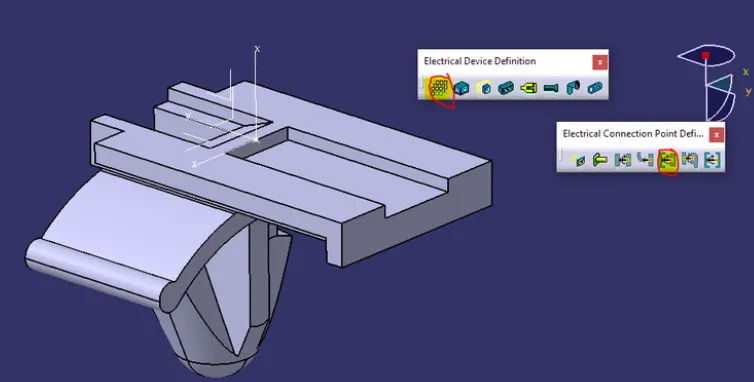

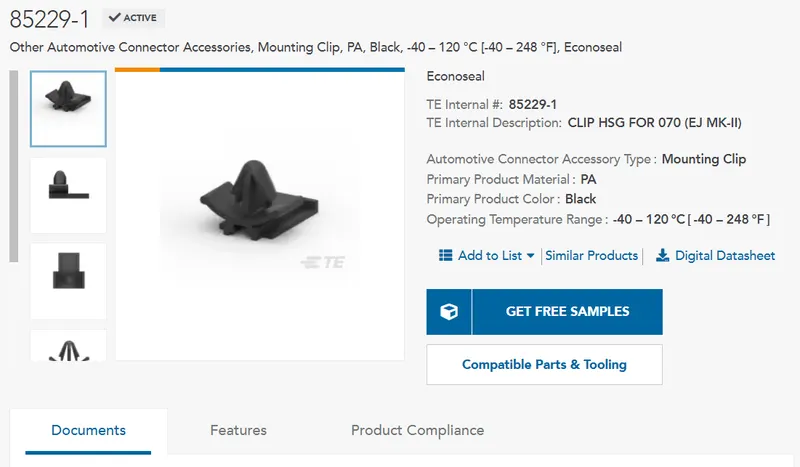

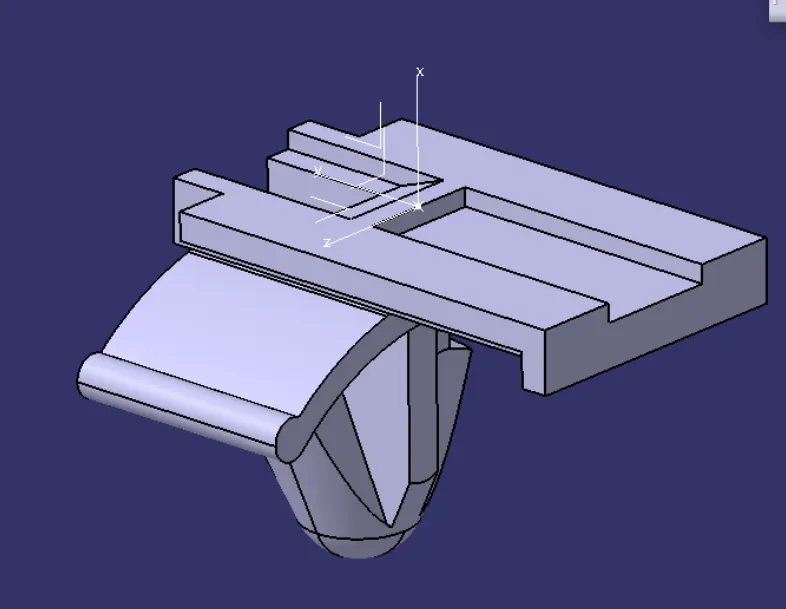

3. Tyco 85229-1 :
- Create midpoint
- create cavity connection point
- create cavity connection axis system and orientation should be same as in connector

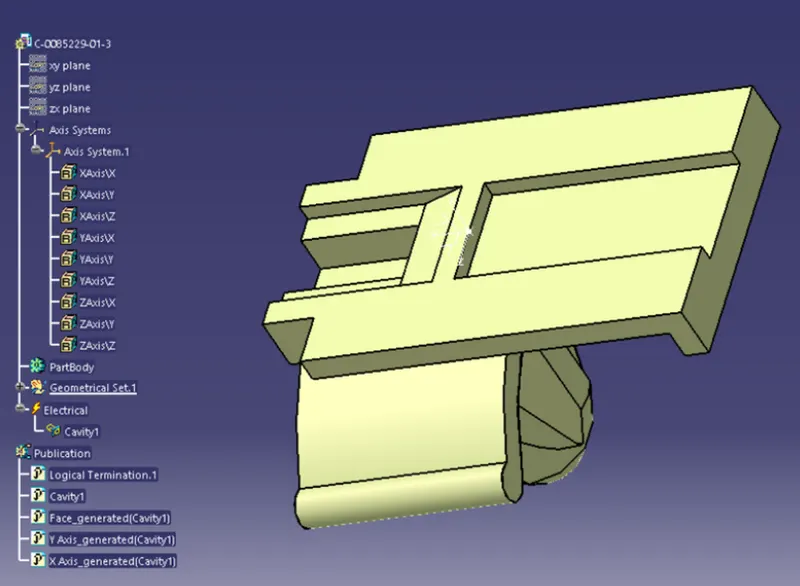

- Switch to Electric part design and define part as Mounting Equipment

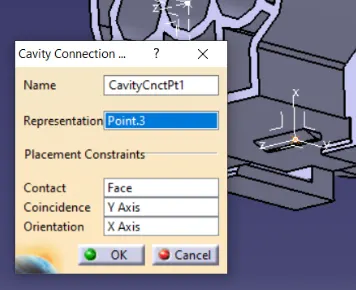

- Define cavity connection point

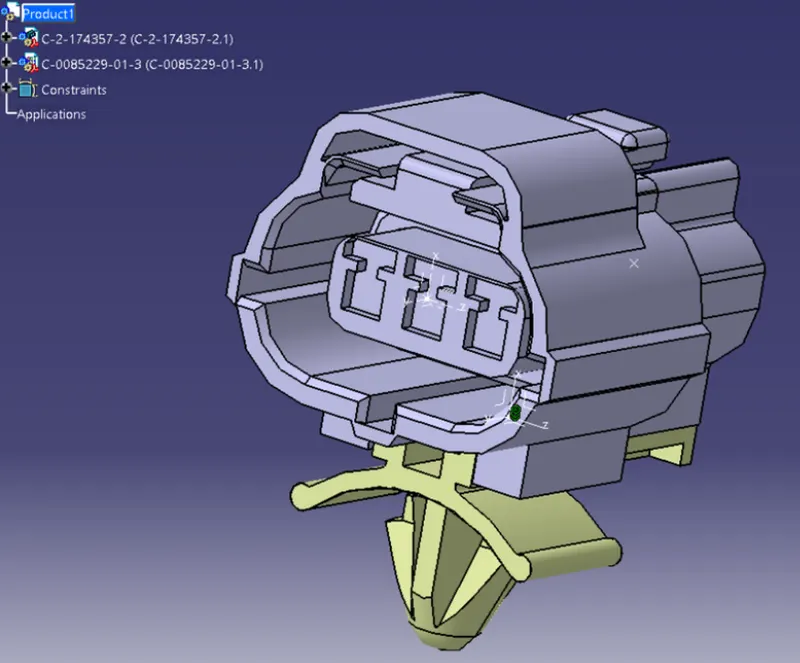

Electric Assembling Design:
- Import Connector and cavity / mounting clip.
- Select Defing Electric connection
- select cavity and then connector.
