Wiring harness design in CATIA V5 - 3D modeling Week 2 Challenge

Aim

Download following connectors & Connector clip cad data from given link & define it as Electrical Connector using Electrical Part design Workbench. Define all the necessary properties to Connectors & Clip.

1. Deutsch DT06 – 08SA ( https://www.te.com/usa-en/product-DT06-08SA.html)
2. Tyco 174357-2 (https://www.te.com/usa-en/product-2-174357-2.html?source=header-match)
3. Tyco 85229-1 – (https://www.te.com/usa-en/product-85229-1.html?q=85229&source=header)

Method:

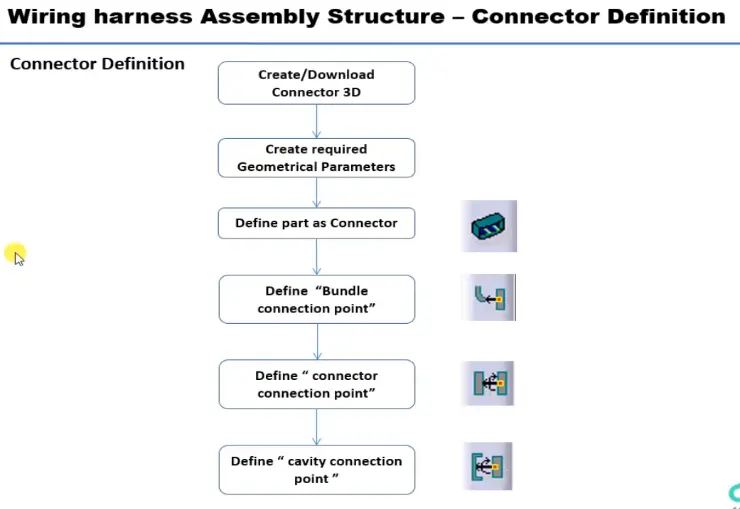

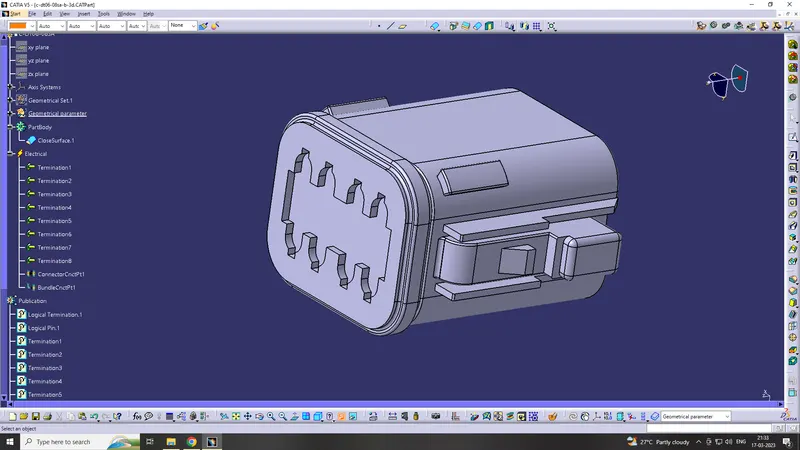

1. Deutsch DT06 – 08SA

Step 1

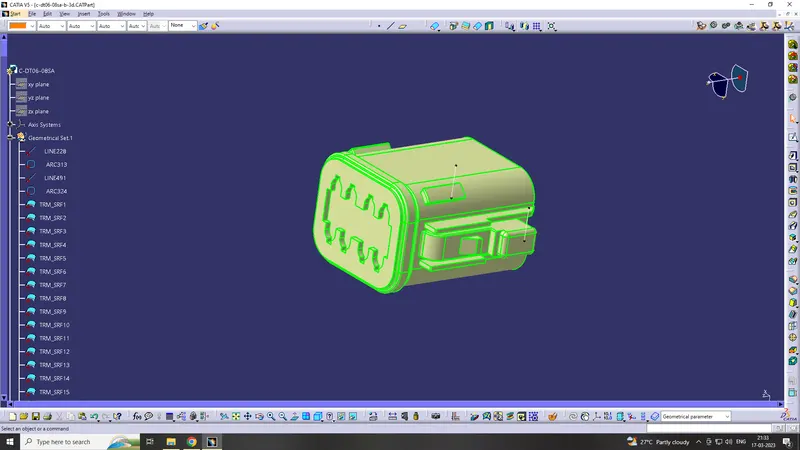

Check the downloaded file, if it is in surface model, convert it to part body and save it & cataloque it

Part body

Step 2

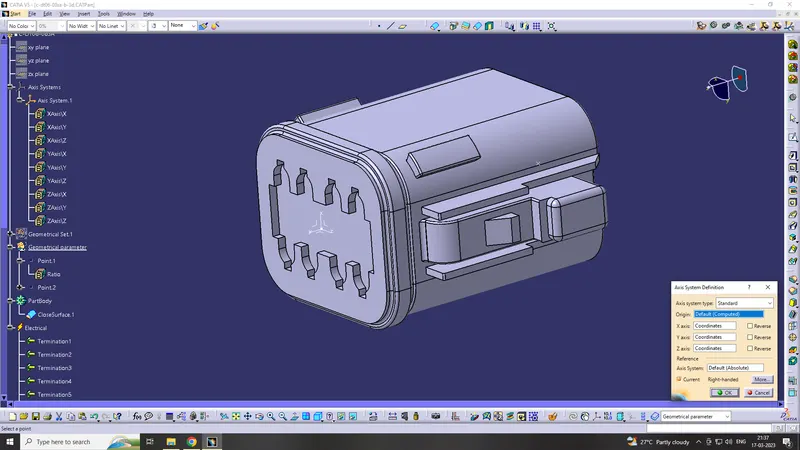

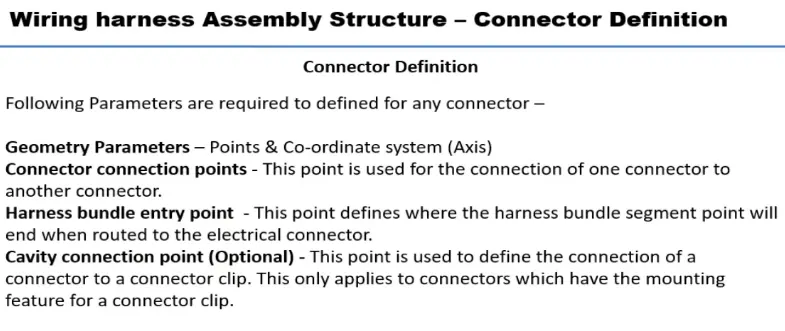

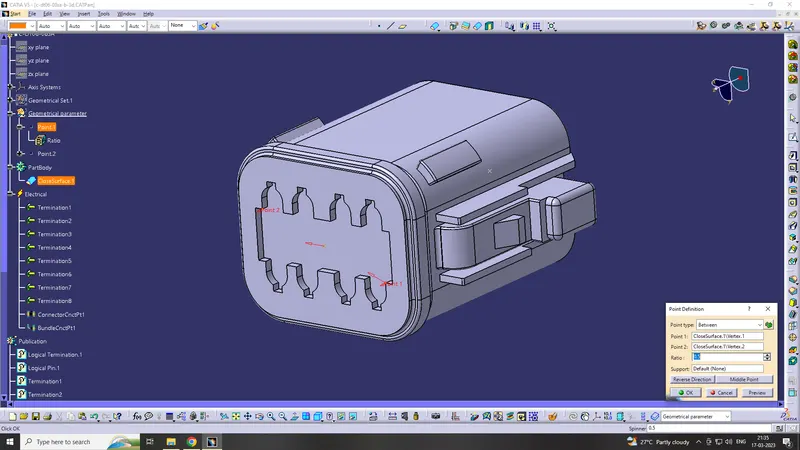

Create the geometrical parameter ( points & axis)

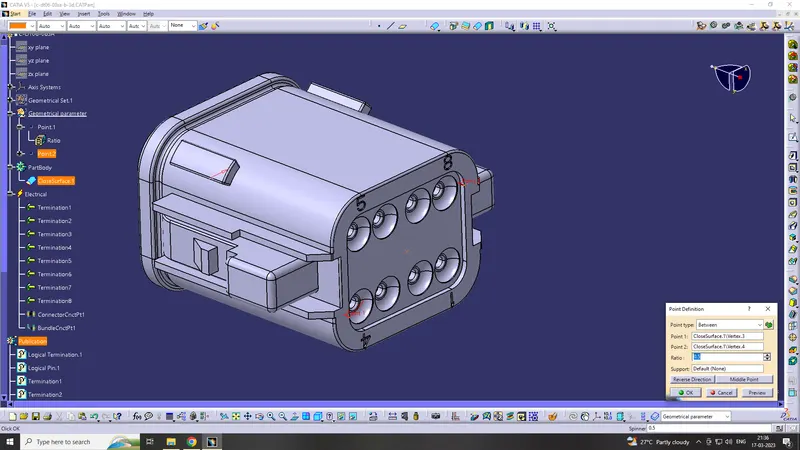

connector side point

connector side axis

Bundle side point

Step 3

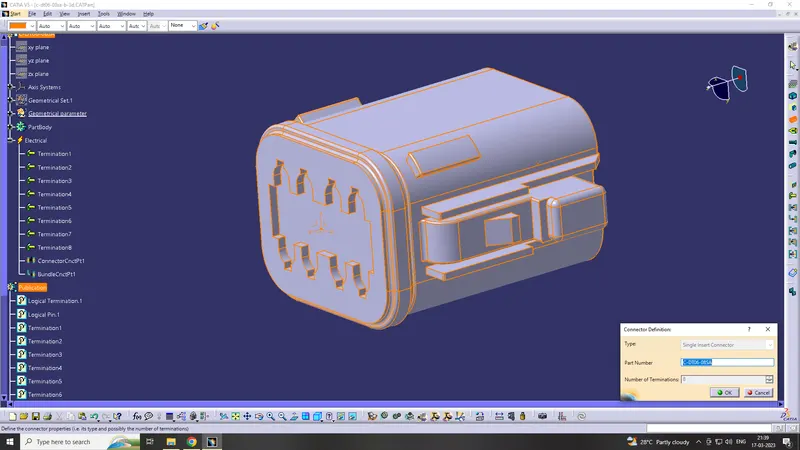

Define connector in elecrical part design

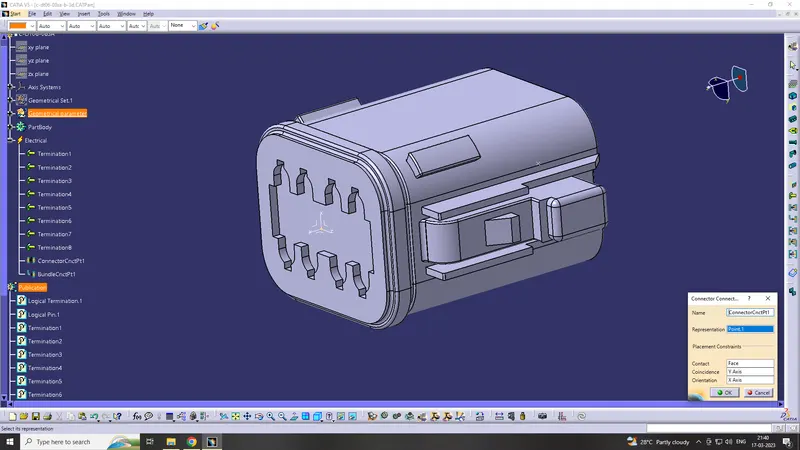

Step 4

Define connector connection point

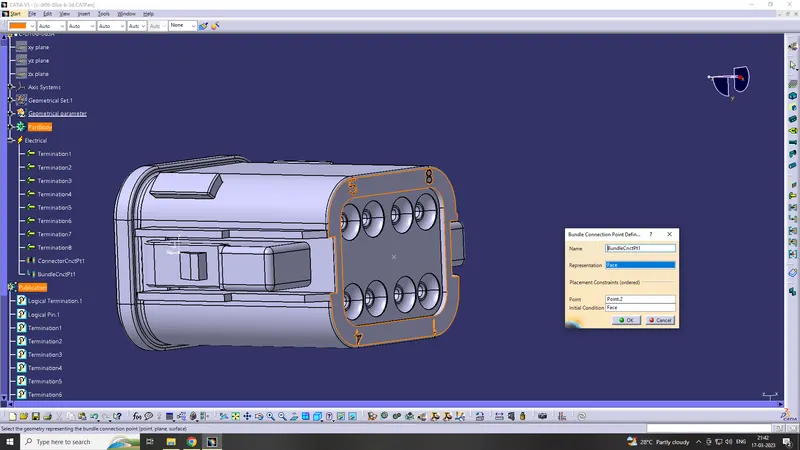

Step 5

define Bundle connection point

2. Connector & connector clip pin Assembly

Tyco 174357-2

Step 1

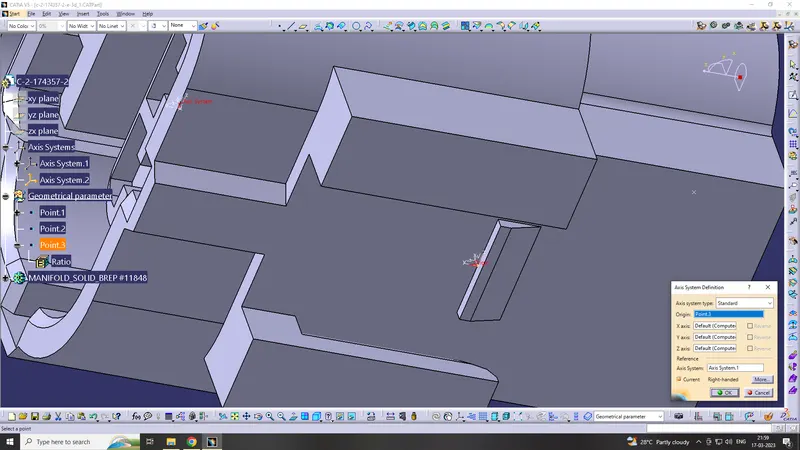

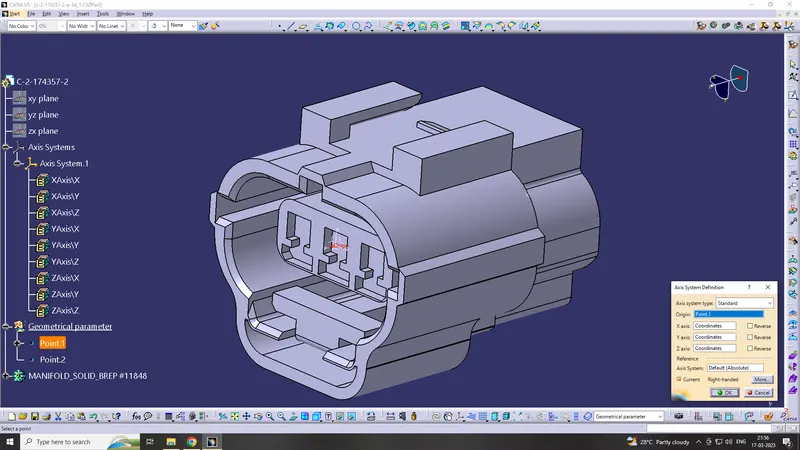

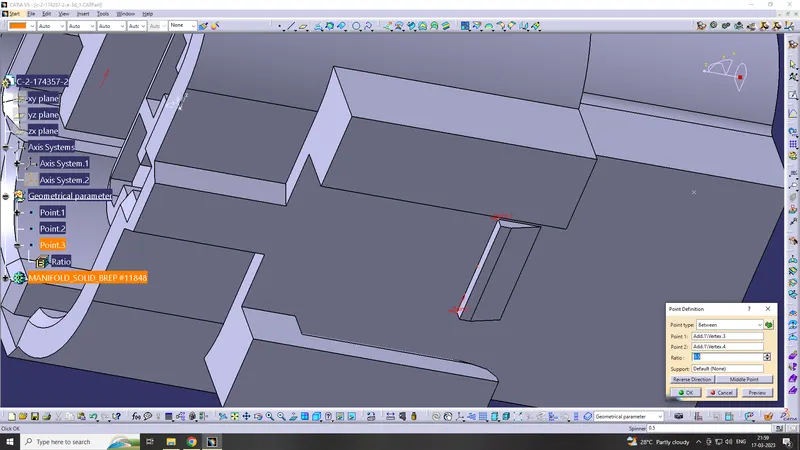

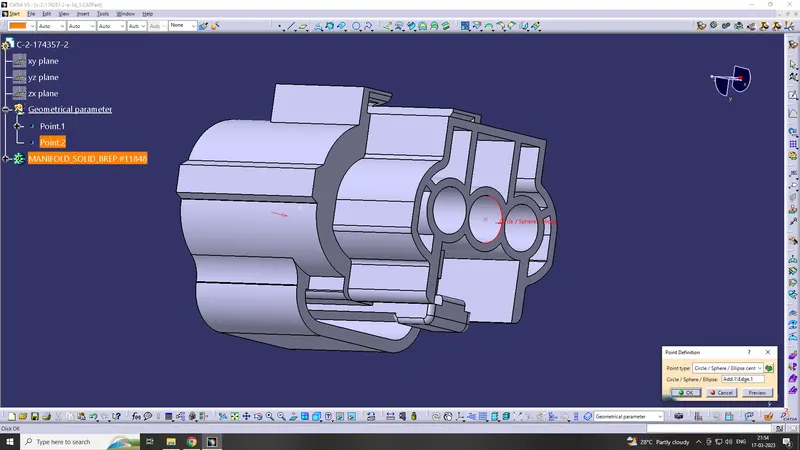

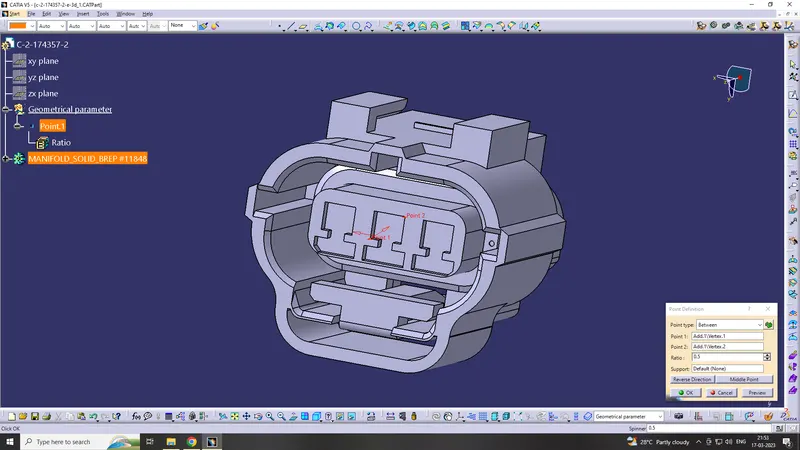

Create the geometrical parameter ( points & axis)

Connector side

Bundle side

cavity side

Step 2

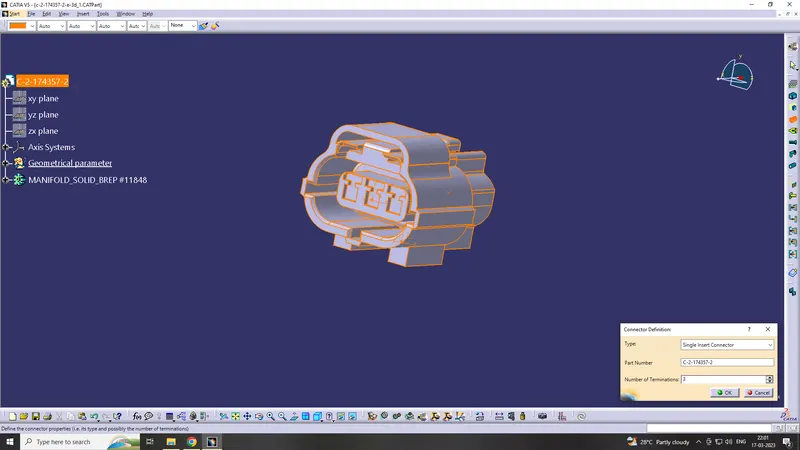

define connector in electrical part design

Step 3

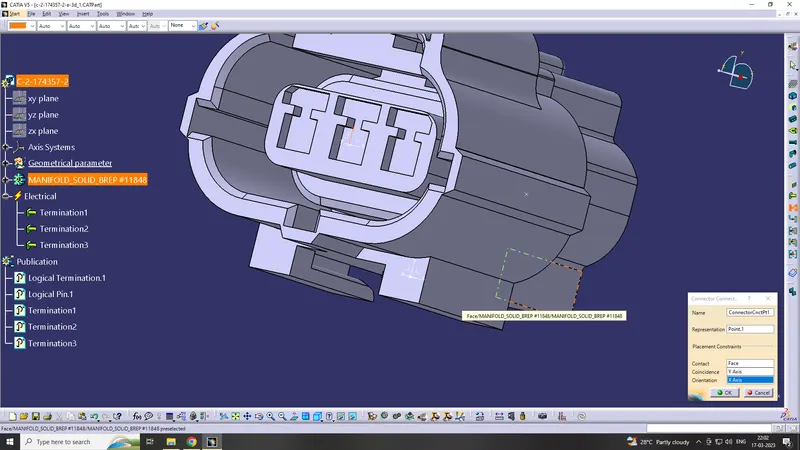

connector connection point

Step 4

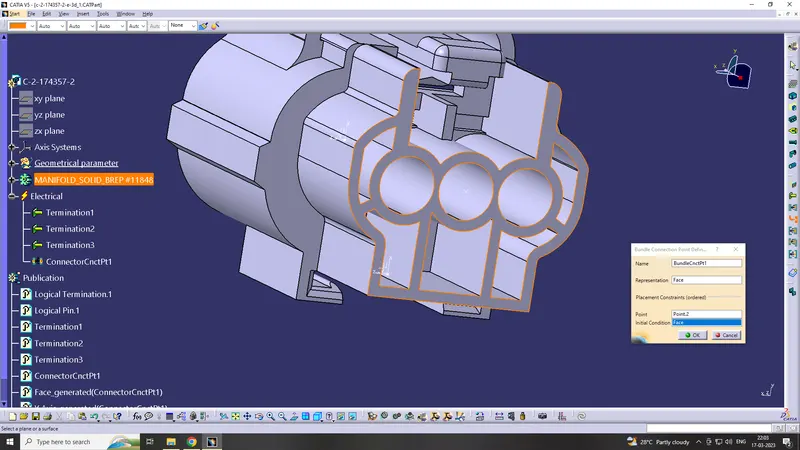

Bungle connection point

Step 5

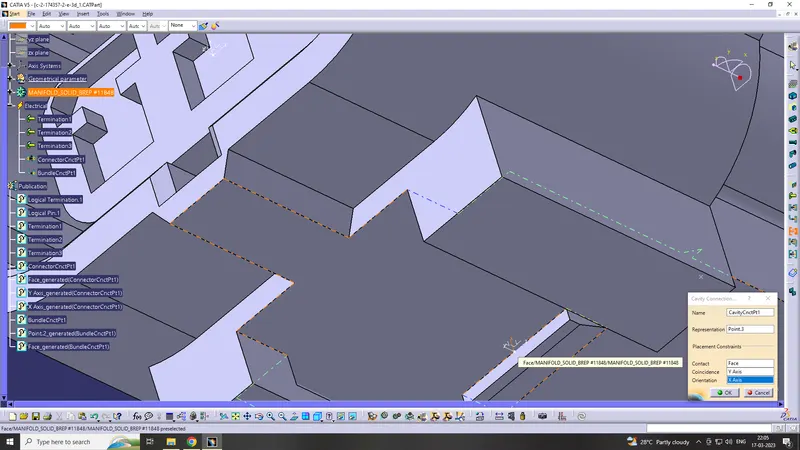

Cavity connection point

Tyco 85229-1

Step 1

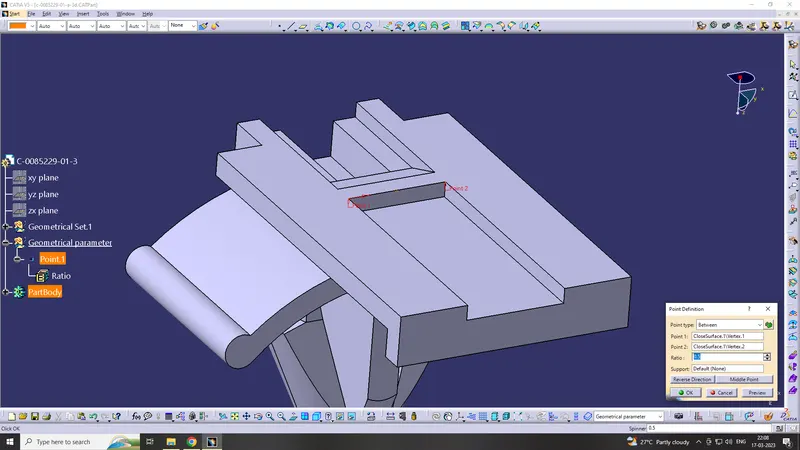

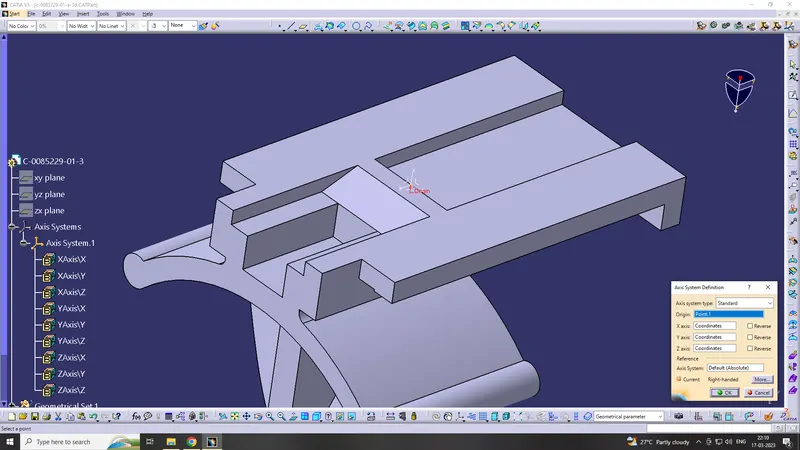

Create the geometrical parameter ( points & axis)

Step 2

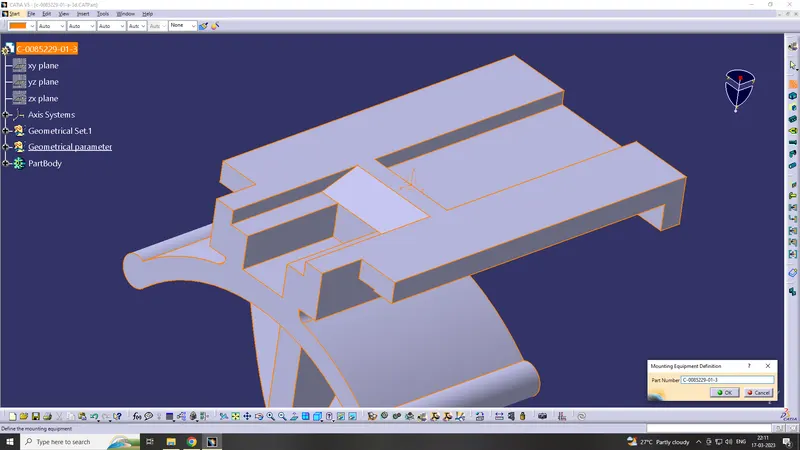

Define mounting equipment

Step 3

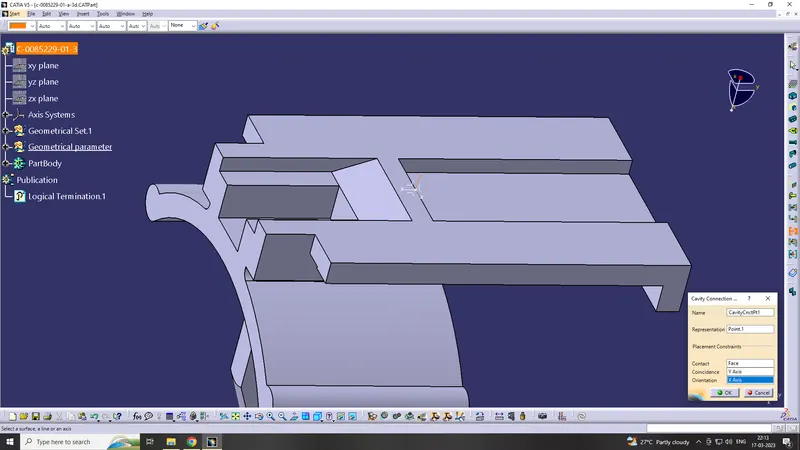

define cavity

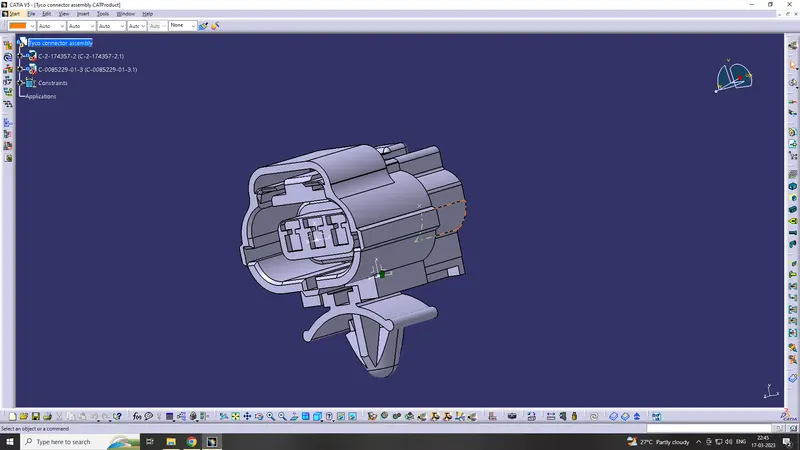

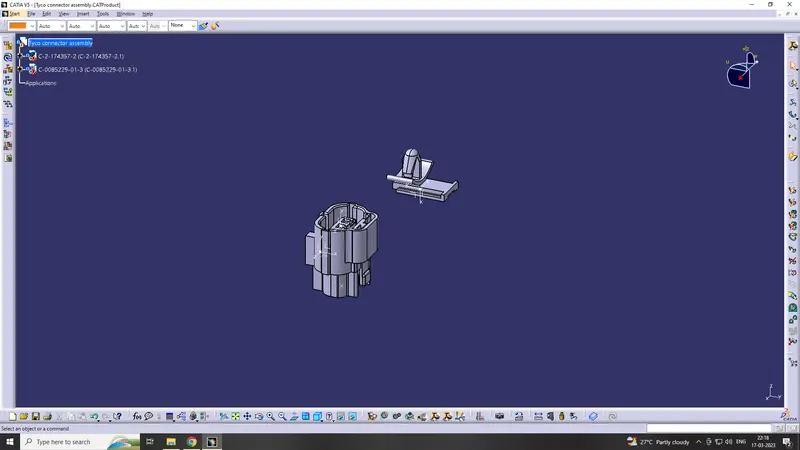

now, create a product file to assemble these tyco connector with connector clip

Step 1

create a new product file switch to electrical assembly design & paste the connector file and connector clip file

then go to connect electrical device & click the connector clip & connector

now connector clip is constraint with connector
