Week 8 - Challenge 1 - Base Bracket Design

Screenshots of the Draft analysis report for both the given Class-A surface and the final plastic component

Class A surface

complete Draft analysis

color scale variant

Solid body

solid model with the proper color code of the draft angle in various orientations

Isometric

Front

Top View

Work on to write a detailed report based on the Draft analysis result and add the images required

  1. Draft Analysis for Class A surface:

Step: 1

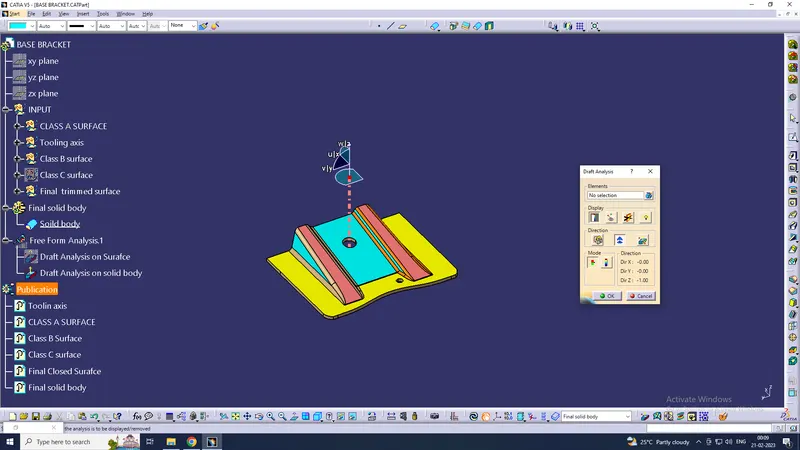

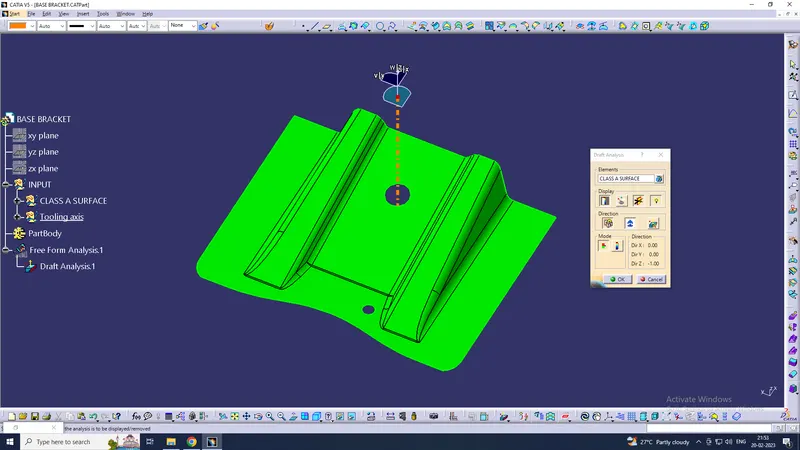

Initially we perform the draft analysis to the class a surface to ensure that we have good quality of surface to make Class B and C surface to achieve the same kind of quality surface. First we have to set the compass on the main tooling axis to get the direction of core and part moves along as shown below.

Step: 2

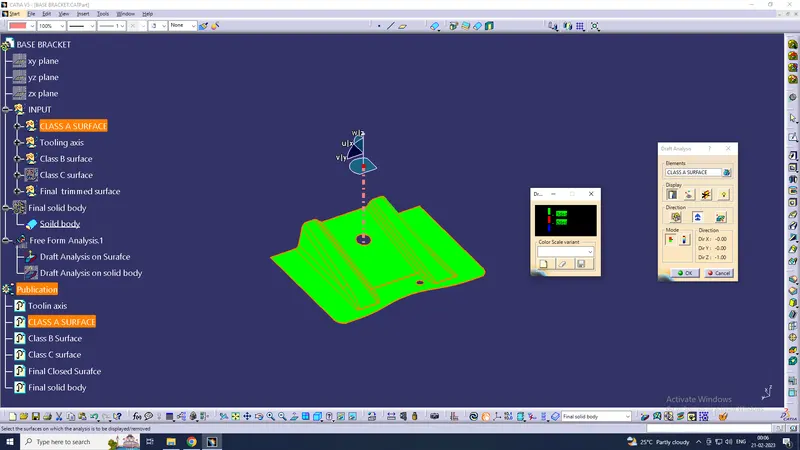

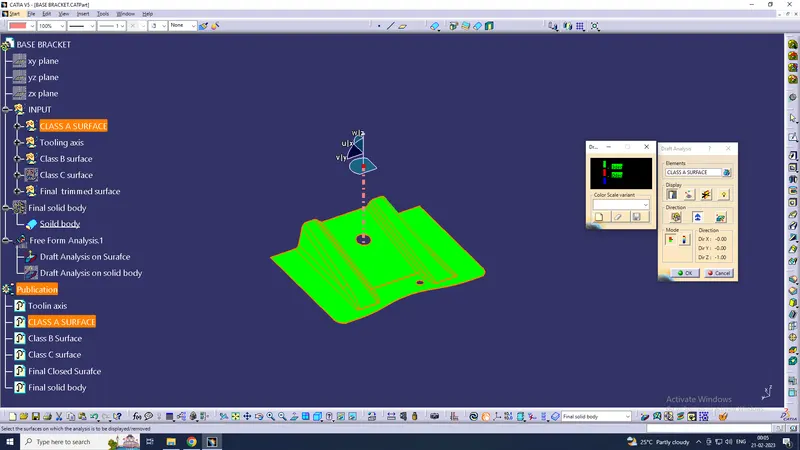

Once compass is locked in the axis, directly click on the surface it will appear quality of draft surface whether, it is pass or failed. Here the draft angle is given as 3 degree. Hence we achieved green colour on top surface. Hence it accepts the draft angle for the surface, so we build good quality component.

Step: 3

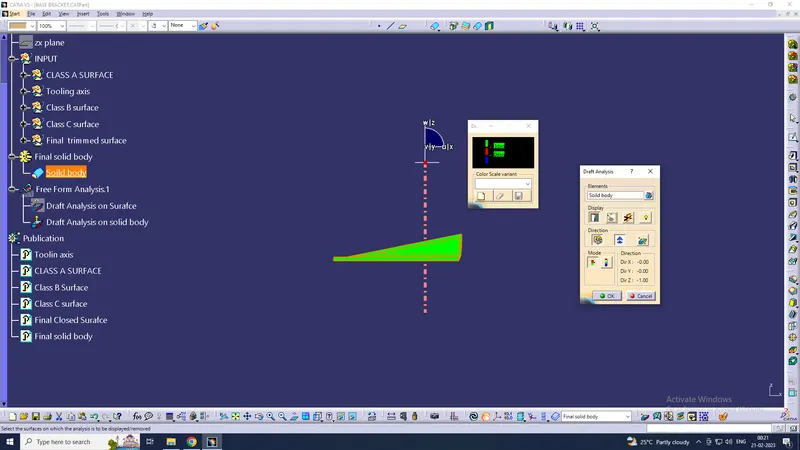

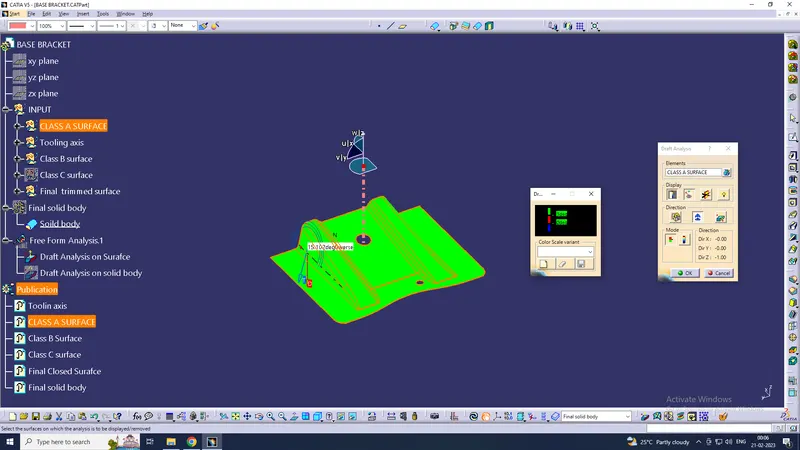

Now we check colour variant scale to ensure the maximum and minimum area draft angle is achieved by displaying by green, red and blue colour respectively. If the surface appears red in colour while analysing it is not accepted.

Step: 4

We can check the angle of draft given to surface by using draft tool analysis just point the over the surface where we have check angle of given draft to the component as shown below.

  1. Draft Analysis for final component:

Step: 1

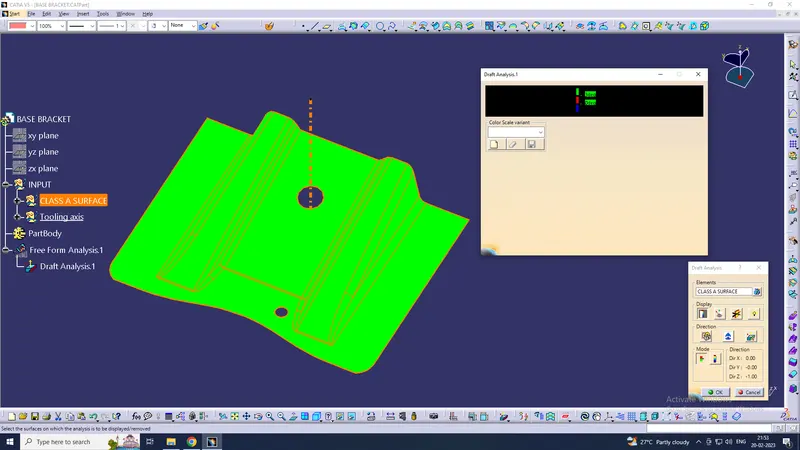

First we have to set the compass on the main tooling axis to get the direction of core and part moves along as shown below.

Step: 2

Once compass is locked in the axis, directly click on the surface it will appear quality of draft surface whether, it is pass or failed. Here the draft angle is given as 3 degree. Hence we achieved green colour on top surface. Hence it accepts the draft angle for the surface, so we build good quality component.

Step: 3

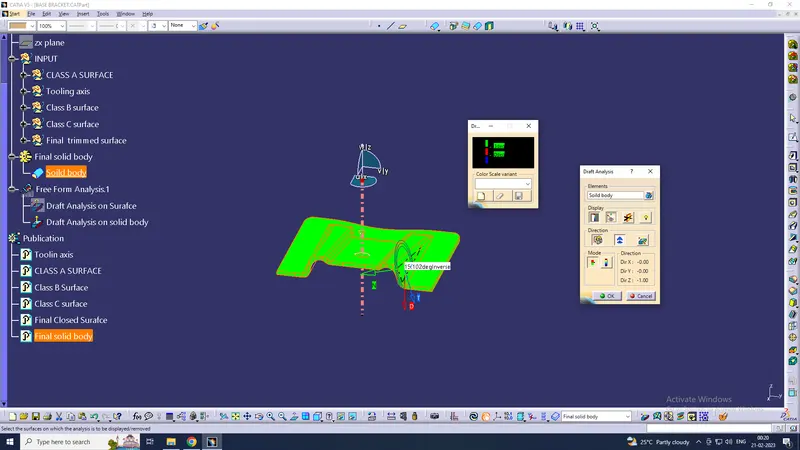

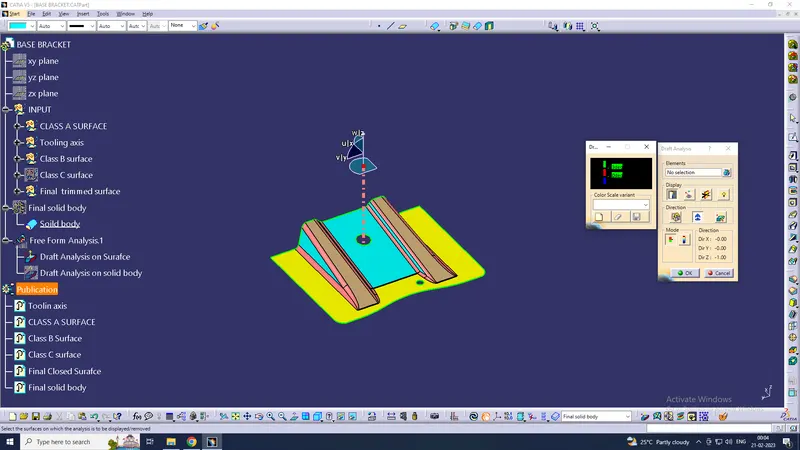

Now we check colour variant scale to ensure the maximum and minimum area draft angle is achieved by displaying by green, red and blue colour respectively. If the surface appears red in colour while analysing it is not accepted.

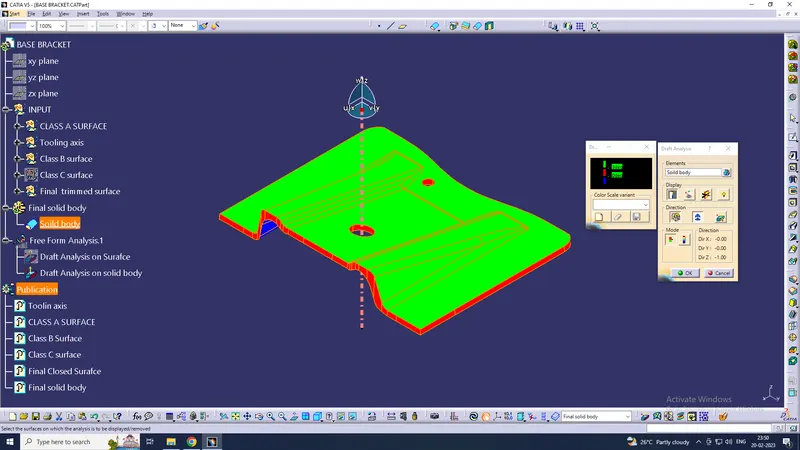

while giving 3 degree angle, the thickness walls gets red, so we analysis and give the draft angle 4 degree, the thickness wall gets green.

So we suggest that drafting angle more than 4 degree should be used

Step: 4

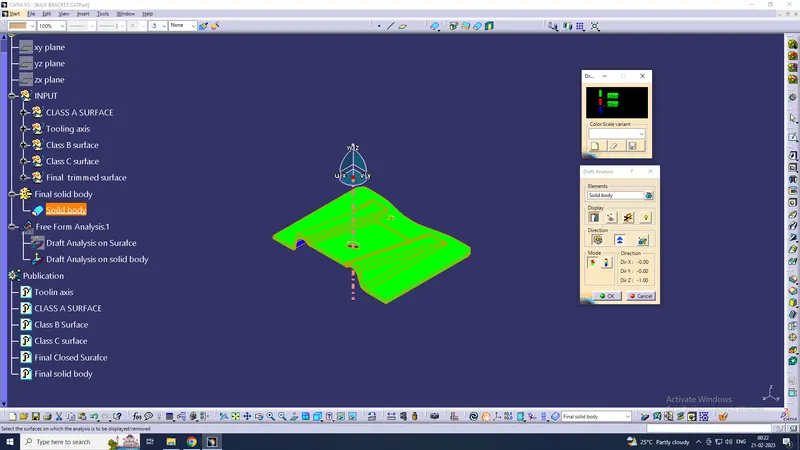

We can check the angle of draft given to surface by using draft tool analysis just point the over the surface where we have check angle of given draft to the component as shown below.

Screenshot views of Base Bracket with draft analysis:

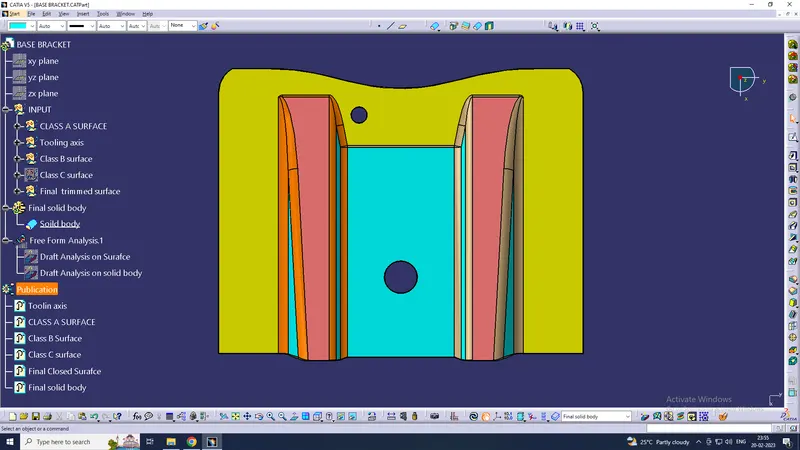

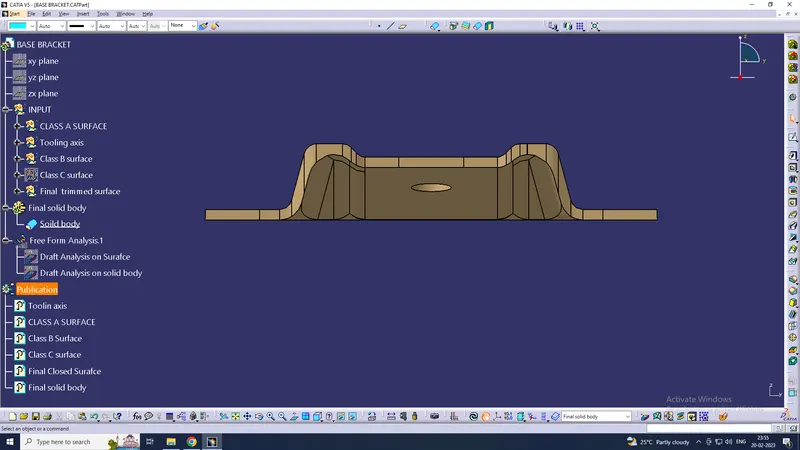

Front View:

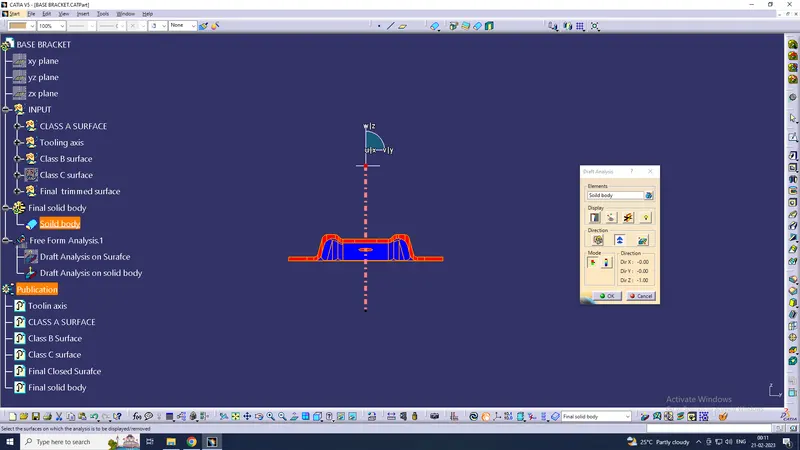

Side View:

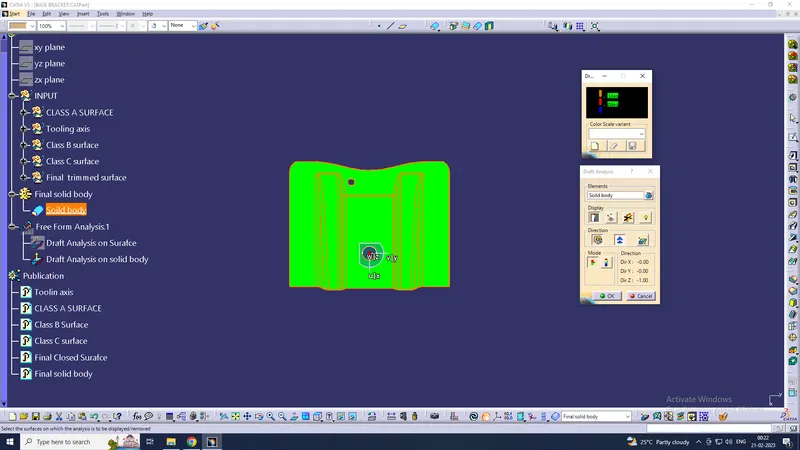

Top View:

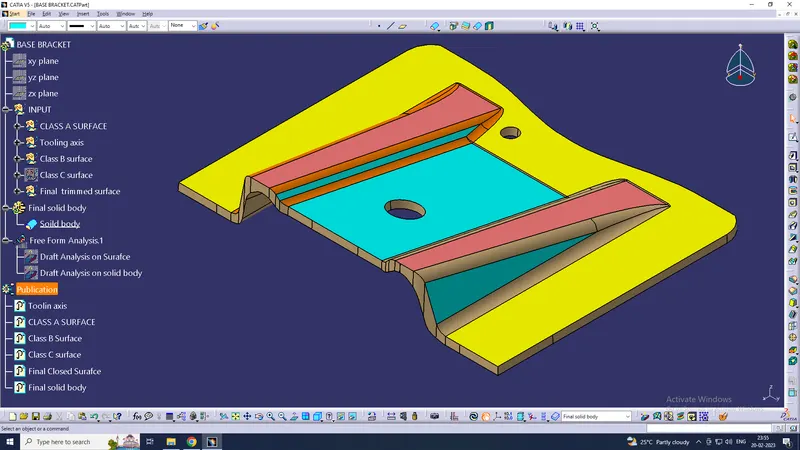

Isometric View:
