Wiring harness design in CATIA V5 - 3D modeling Week 2 Challenge
Steps In Defining A Electrical Part
- Create/download connector 3D
- Create required geometrical parameters
- Define part as connector
- Define bundle connection point
- Define connector connection point
- Define cavity connection point

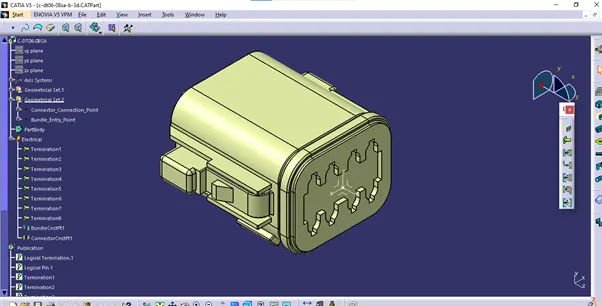

Deutsch DT06-08SA
Housing for Female Terminals, Wire-to-Wire, 8 Position, .359 in [9.12 mm] Centerline, Sealable, Gray, Wire & Cable, Power & Signal, DEUTSCH DT
TE Internal #: DT06-08SA
TE Internal Description: PLG, 8P, GRY, N, A
Connector & Housing Type : Housing for Female Terminals
Mating Pin Diameter : 1.59 mm [ .063 in ]
Connector System : Wire-to-Wire
Number of Positions : 8
Centerline (Pitch) : 9.12 mm [ .359 in ]

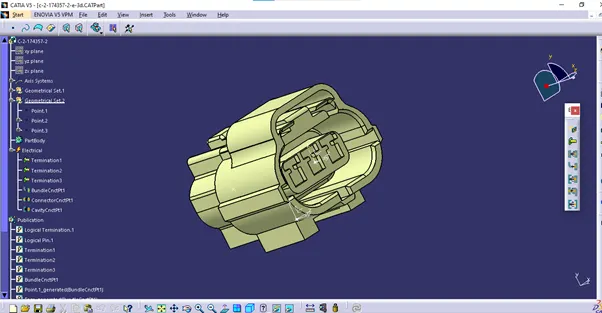

Tyco 174357-2
Housing for Female Terminals, Wire-to-Wire, 3 Position, .189 in [4.8 mm] Centerline, Sealable, Black, Signal, Cable Mount (Free-Hanging), Hybrid
TE Internal #: 2-174357-2
TE Internal Description: 070 EJ-2(2) PLUG ASSY 3P SIR
Connector & Housing Type : Housing for Female Terminals
Mating Tab Width : 1.8 mm [ .071 in ]
Connector System : Wire-to-Wire
Number of Positions : 3
Centerline (Pitch) : 4.8 mm [ .189 in ]

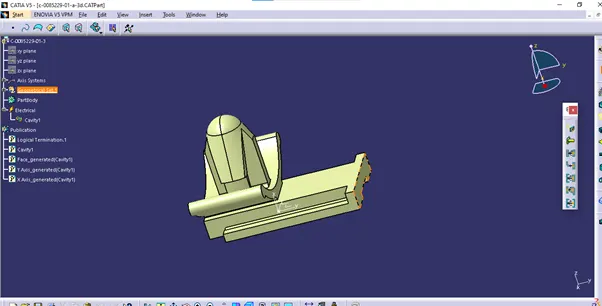

Tyco 85229-1
Other Automotive Connector Accessories, Mounting Clip, PA, Black, -40 – 120 °C [-40 – 248 °F], Econoseal
TE Internal #: 85229-1
TE Internal Description: CLIP HSG FOR 070 (EJ MK-II)
Automotive Connector Accessory Type : Mounting Clip
Primary Product Material : PA
Primary Product Color : Black
Operating Temperature Range : -40 – 120 °C [ -40 – 248 °F ]

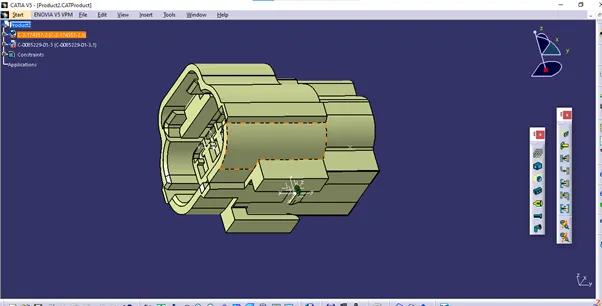

ASSEMBLY
