Wiring harness design in CATIA V5 - 3D modeling Week 2 Challenge

1 - FEMALE CONNECTOR ,MALE CONNECTOR , MOUNTING CLIP -

HERE I AM WORKING ON THE WIRING HARNESS AND THEN THIS IS OUR WEEK 2 CHALLENGE SO HERE GAVE TO THE THREE LINKS FIRST IS MALE CONNECTOR ,FEMALE CONNECTOR, MOUNTING CLIP.

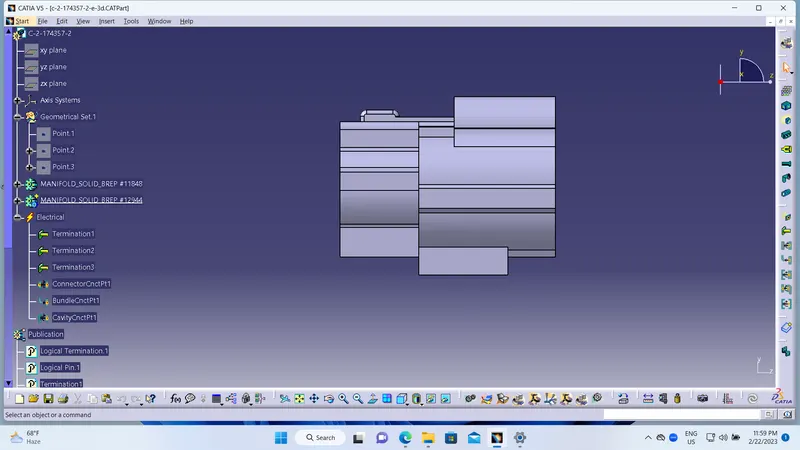

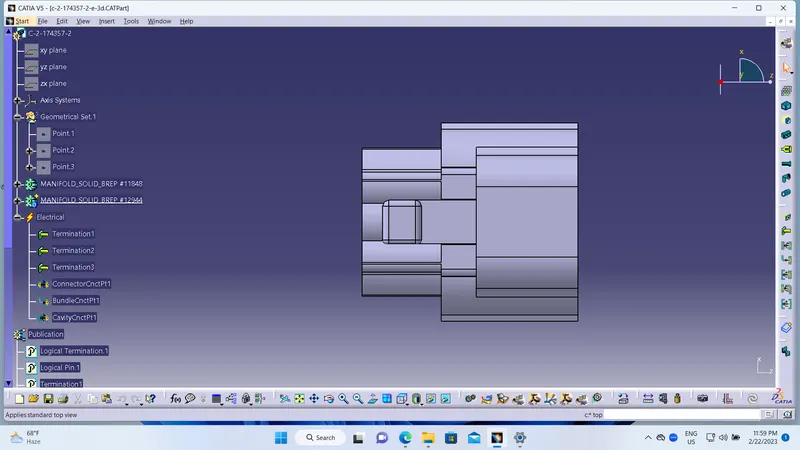

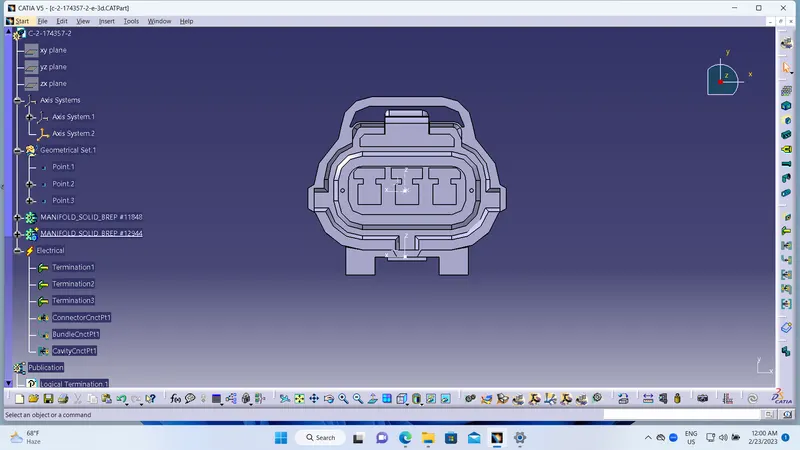

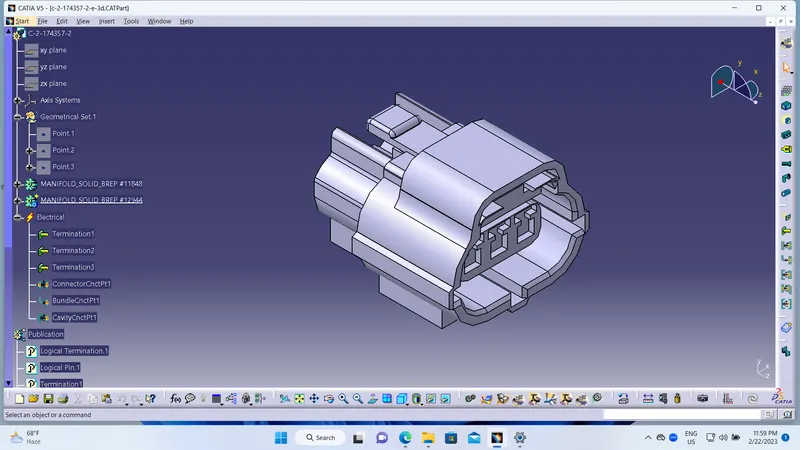

SO I WILL DOWNLOAD THE FIRST LINK FEMALE CONNECTOR AFTER THAT WILL GO TO THE PART DESIGN AND CREATE THREE POINTS FIRST IS MATING SURFACE AND SECOND IS LOCKING SURFACE AND THIRD IS CAVITY SIDE AFTER THAT WE WILL CREATE THE AXIS SYSTEM ON THE MATING SURFACE AND CAVITY SIDE AND ALWAYS ENSURE THAT Y AXIS TOWARDS THE MATING DIRECTION X AXIS TOWARDS THE LOCKING DIRECTION AND Z AXIS TOWARDS THE RIGHT OR LEFT AFTER COMPLETE THIS PROCESS I WILL JUMP ON ELECRTICAL PART DESIGN AND THEN I WILL USE SOME COMMAMD FIRST IS DEFINE EQUIPMENT SECOND IS DEFINE CONNECTOR CONNECTION POINT THIRD IS DEFINE BUNDLE CONNECTION POINT AND FOURTH IS DEFINE CAVITY CONNECTION POINT AFTER THAT THIS CONNECTOR IS FULLY DEFINE BY ELECTRICAL PART DESIGN.

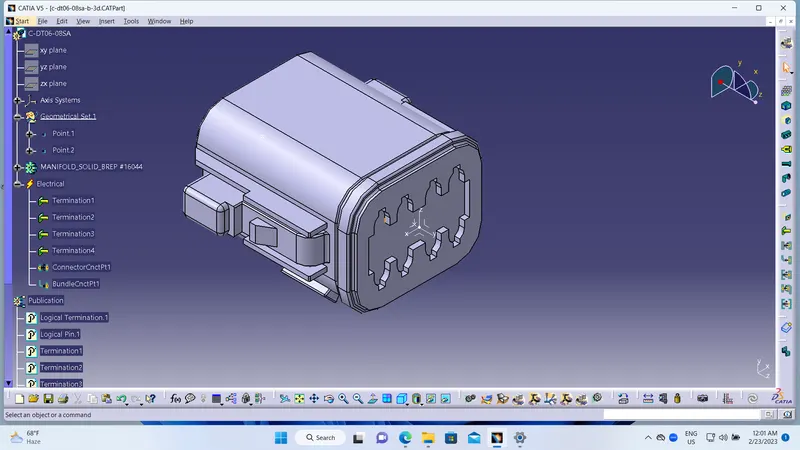

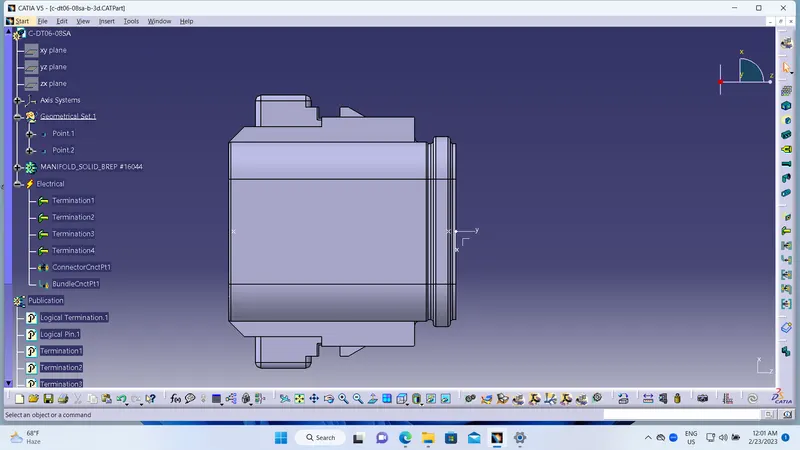

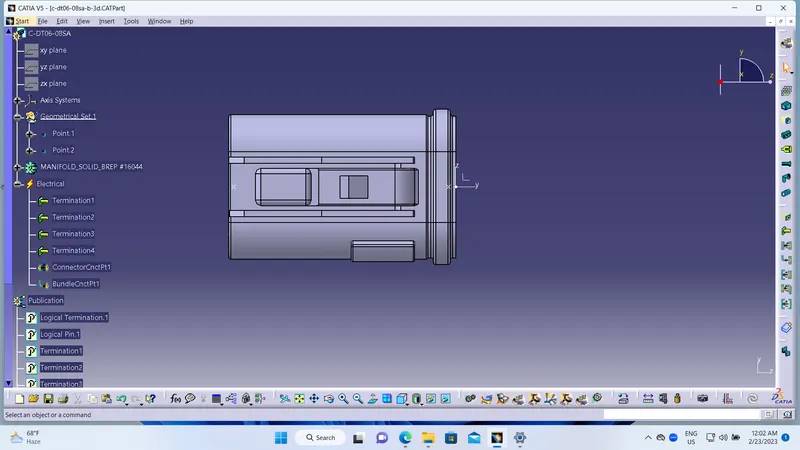

THEN I AM GOING TO THE FOR SECOND DOWNLOAD MALE CONNECTOR AFTER COMPLETE DOWNLADING I WILL USE THE PART DESIGN AND THEN CREATE THE TWO POINTS FIRST IS ON MATING SURFACE AND SECOND IS LOCKING SURFACE AFTER COMPLETE THIS PROCESS I WILL CREATE THE AXIS SYSTEM ON THE MATING SURFACE ALWAYS ENSURE THAT Y AXIS TOWARDS THE MATING DIRECTION X AXIS TOWARDS THE LOCKING DIRECTION AND Z AXIS TOWARDS THE RIGHT OR LEFTAFTER THAT I WILL USE THE ELECTRICAL PART DESIGN AND FIRST COMMAND I WILL USE DEFINE CONNECTOR , SECOND IS DEFINE CONNECTOR CONNECTION POINT AND THIRD IS DEFINE BUNDLE CONNECTION POINT AFTER THAT THIS CONNECTOR IS FULLY DEFINE BY ELECTRICAL PART DESIGN.

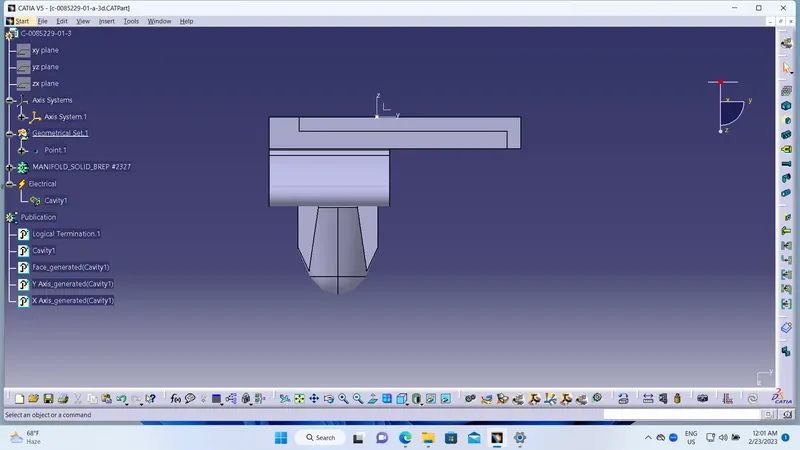

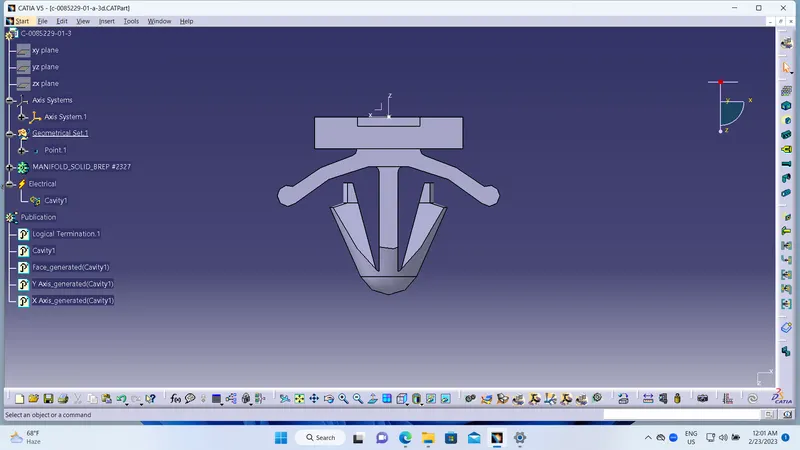

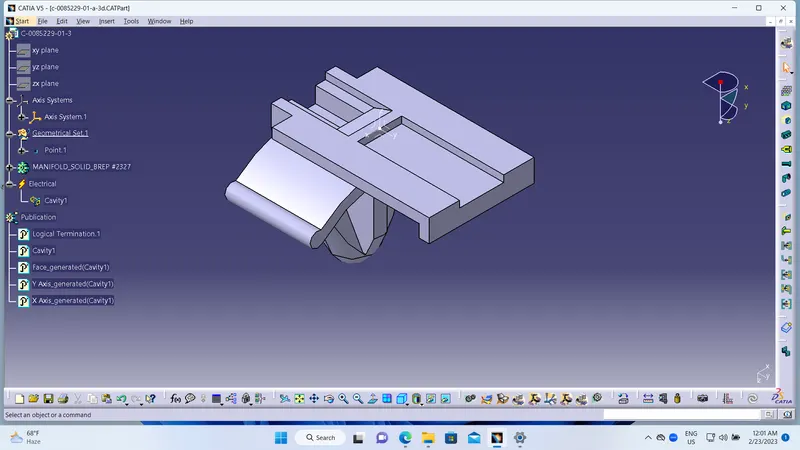

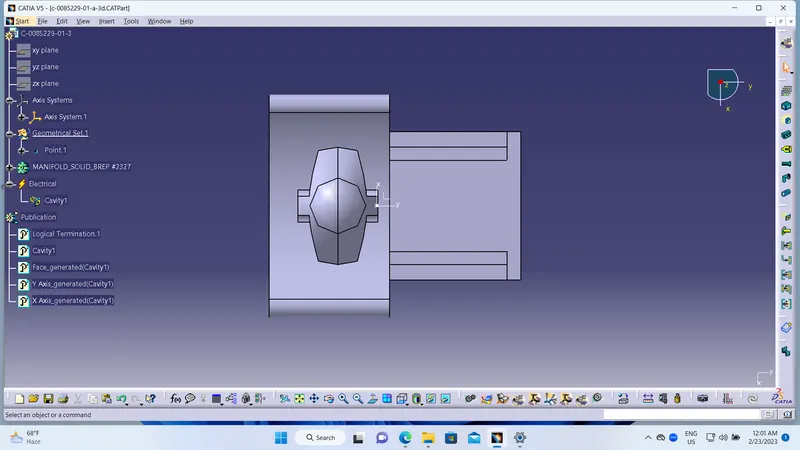

THEN I AM GOING TO THE FOR THIRD DOWNLOAD MOUNTING CLIP AFTER COMPLETE DOWNLADING I WILL USE THE PART DESIGN AND THEN CREATE THE ONE POINT POINTS FIRST IS ON CAVITY EDGE AFTER COMPLETE THIS PROCESS I WILL CREATE THE AXIS SYSTEM ON THE CAVITY EDGE AREA ALWAYS ENSURE THAT Y AXIS TOWARDS THE MATING DIRECTION X AXIS TOWARDS THE LOCKING DIRECTION AND Z AXIS TOWARDS THE RIGHT OR LEFTAFTER THAT I WILL USE THE ELECTRICAL PART DESIGN AND FIRST COMMAND I WILL USE DEFINE MOUNTING EQUIPMENTS , SECOND IS DEFINE EQUIPMENT AFTER THAT THIS CONNECTOR IS FULLY DEFINE BY ELECTRICAL PART DESIGN.

ASSEMBLY DESIGN -

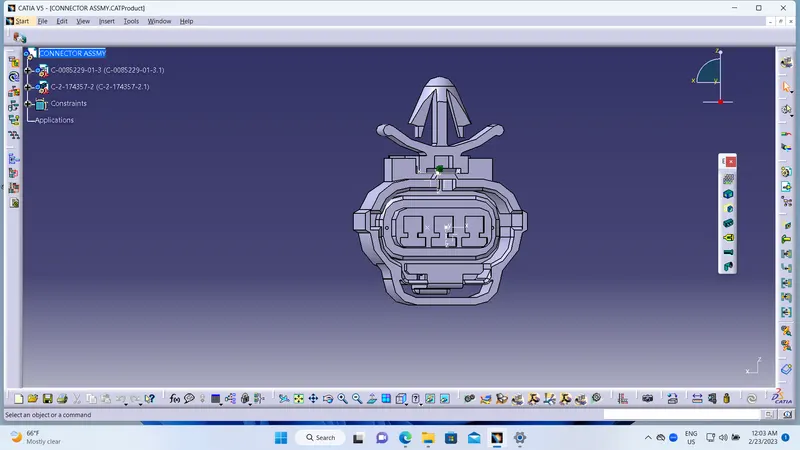

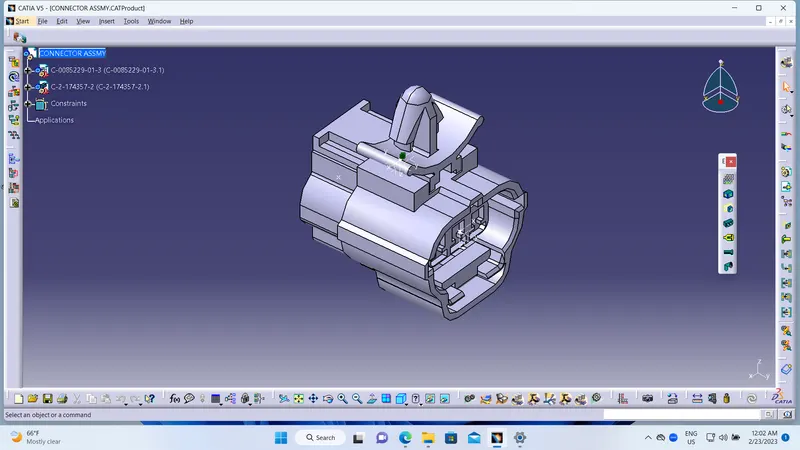

IN THE ASSEMBLY I WILL USE THE FEMALE CONNECTOR AND MOUNTING CLIP FIRST USE THE ROTATION AND MOVEMENT COMMAND AFTER THAT USE CONNECT ELECTRICAL PART COMMAND WITH SELECT AXIS SYSTEM THIS WILL CONNECT WITH THE EACH OTHER.

CATALOGUE CREATION -

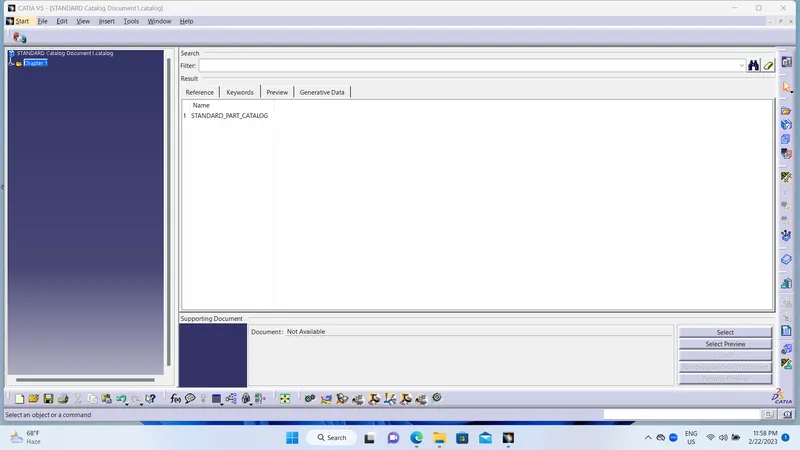

A CATALOG IS A CATIA V5 DOCUMENT THAT KEEPS A LIST OF REFERENCE TO OTHER CATIA PARTS AND FEACTURES. A TYPICAL CATIA DOCUMENT IS A GENERIC FAMILY TABLE WITH SPECIFIC INSTANCES WITH IN A LIBRARY CONTEXT WITH A FILE STRUCTURE IN PRATICE CATALOGS BEHAVE LIKE LARGE ASSEMBLIES.
