Wiring harness design in CATIA V5 - 3D modeling Week 2 Challenge
CONNECTOR DEFINATIONS IN CATIA V5

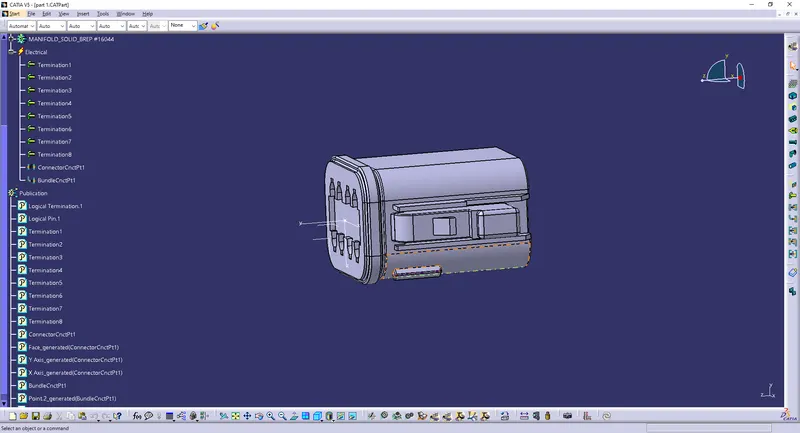

1. Deutsch DT06 – 08SA
Connector connection point:
Create midpoint on the contact face which will be normal to wire bunddle insertion.
Craete Axis System with respect to the point which we have created and defining the axis direction as shown below,
Switch to 'Electric Part Design'
Define the part as connector in catia, give no. of termination as 8 because we have 8 entry points for wire.
Define Bundle connection point
Define connector connection point

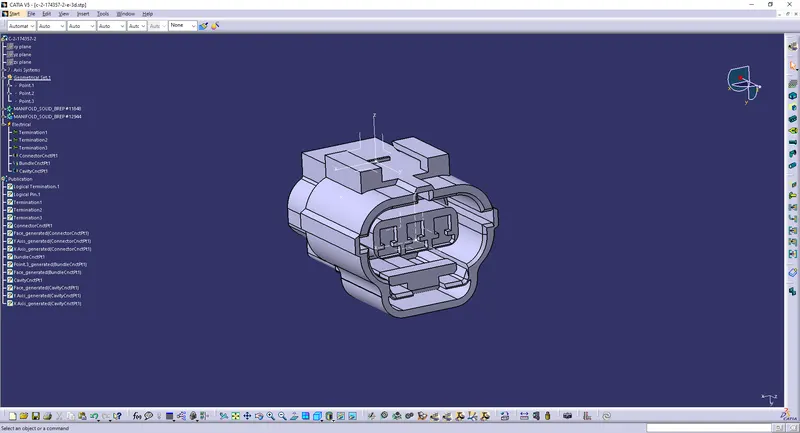

2.Tyco 174357-2 :
Create midpoint
create Connector connection point
create Connector connection axis system
create cavity connection point
create cavity connection axis system
Switch to Electric part design and define part as connector
Define Connector connection point and cavity connection point

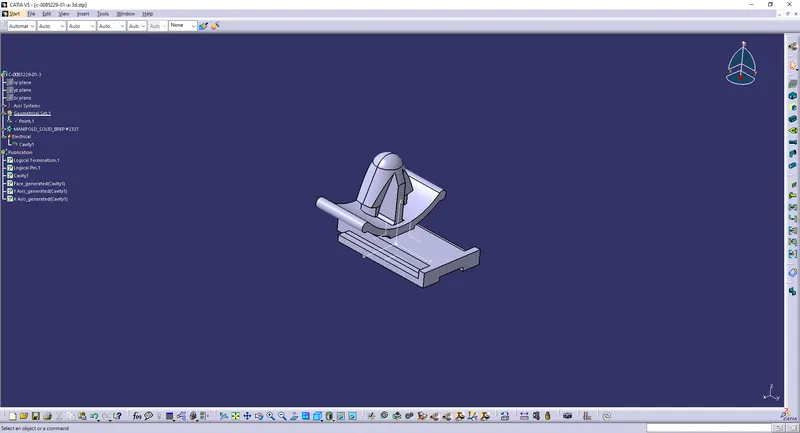

3. Tyco 85229-1 :
Create midpoint
create cavity connection point
create cavity connection axis system and orientation should be same as in connector
Switch to Electric part design and define part as Mounting Equipment
Define cavity connection point
