Wiring harness design in CATIA V5 - 3D modeling Week 2 Challenge

AIM:

Download following connectors & Connector clip cad data from given link & define it as Electrical Connector using Electrical Part design Workbench. Define all the necessary properties to Connectors & Clip.

Deutsch DT06 – 08SA ( https://www.te.com/usa-en/product-DT06-08SA.html)
Tyco 174357-2 (https://www.te.com/usa-en/product-2-174357-2.html?source=header-match)
Tyco 85229-1  (https://www.te.com/usa-en/product-85229-1.html?q=85229&source=header

INTRODUCTION TO WIRE HARNESS

Defining Electric Parameter Flow Chart

Connctor Definations in CATIA V5

1. Deutsch DT06-08SA

Connector Connection Point:

Create midpoint on the contact face which will be normal to wire bunddle insertion.

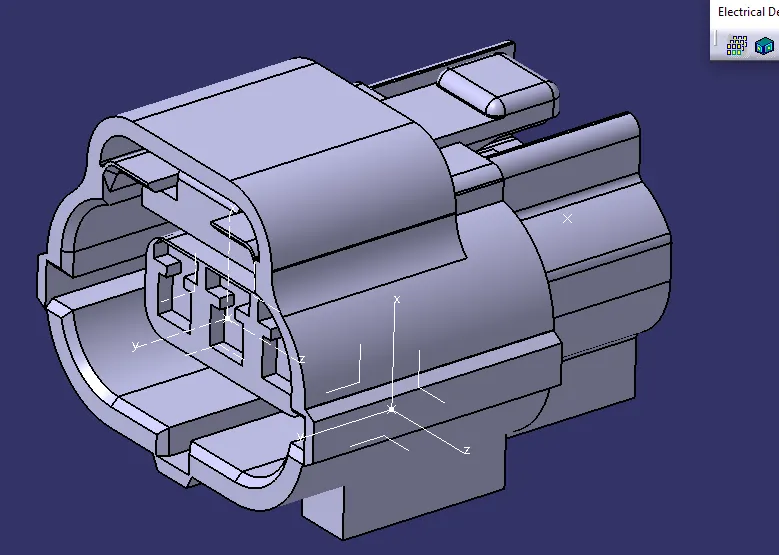

Crate Axis System with respect to the point which we have created and defining the axis direction as shown below,

Bunddle Connection Point:

Switch to 'Electric part Design'

Define the part as connector in catia, give no. of termination as 8 becacuse we have 8 entry points for wire.

Define Bundle Connection Point

Define Connector connection point

2.Tyco 174357-2:

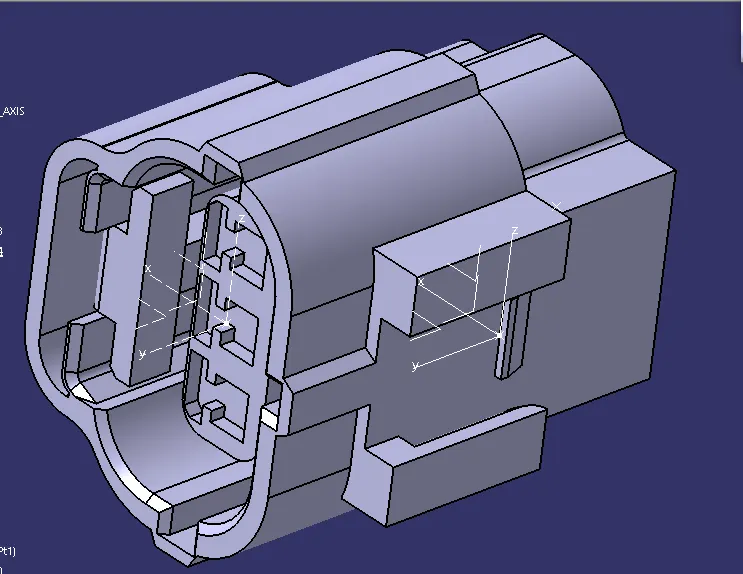

• Create midpoint
• Create Connector connection point
• Create Connector Connection axis System
• Create Cavity Connection point
• Create Cavity Connection System
• Switch to Electric part design and define part as Connector
• Define Connector Connection Point and Cavity Connection point

3. Tyco 85229-1:

• Create midpoint

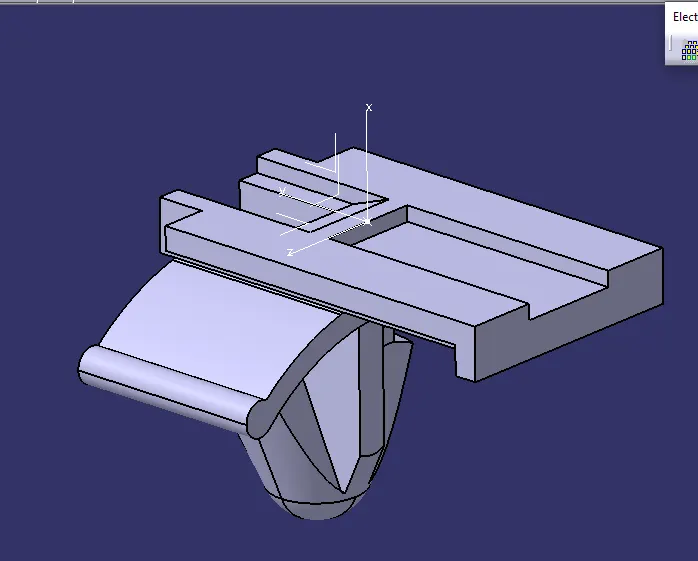

• Create cavity connection point
• create cavity connection axis system and orientation should be same as in connector

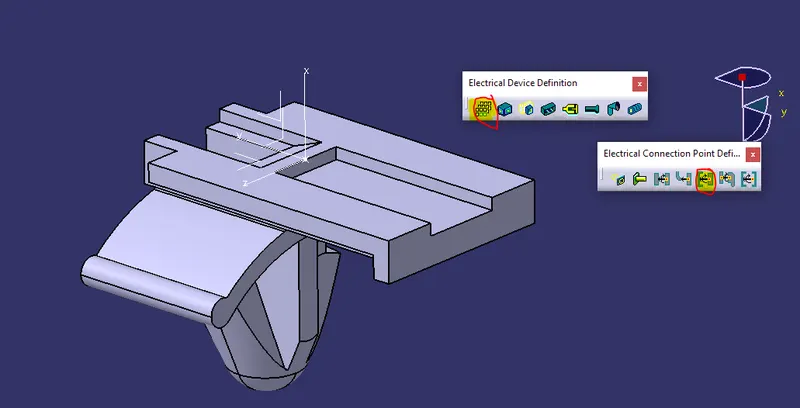

• switch to Electric part design and define part as Mounting Equipment
• Define cavity Connection point

Electric Assembly Design

• Import Connector and Cavity/ mounting clip.

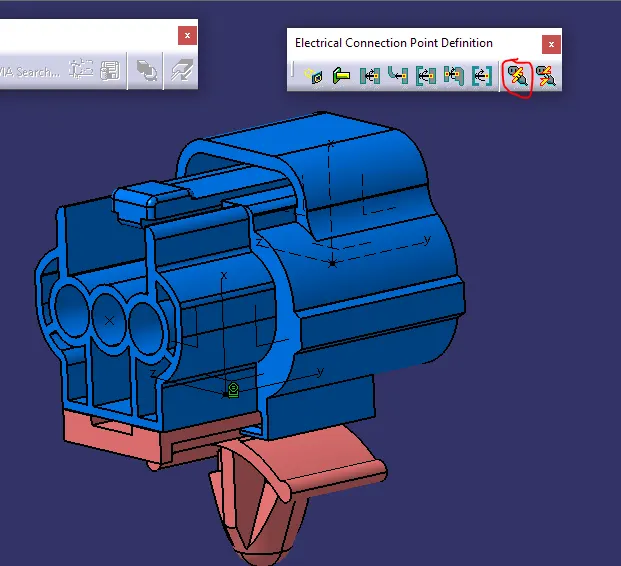

• Select Defing Electric Connection

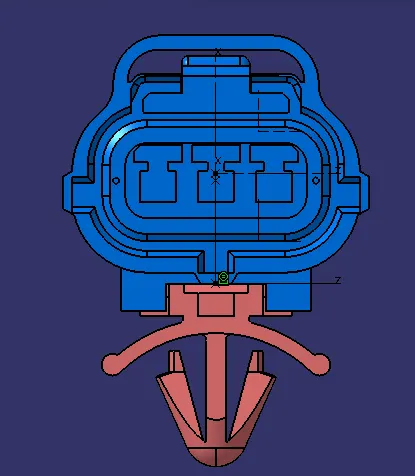

• Select cavity and then connector.

Here are the Solution connectors & Connector clip cad data from given link & define it as Electrical Connector using Electrical Part design Workbench and Define all the necessary properties to Connectors & Clip.
