AIM:
Download following connectors & Connector clip cad data from given link & define it as Electrical Connector using Electrical Part design Workbench. Define all the necessary properties to Connectors & Clip.
- Deutsch DT06 – 08SA ( https://www.te.com/usa-en/product-DT06-08SA.html)
- Tyco 174357-2 (https://www.te.com/usa-en/product-2-174357-2.html?source=header-match)
- Tyco 85229-1 (https://www.te.com/usa-en/product-85229-1.html?q=85229&source=header
CONNECTOR DEFINATIONS IN CATIA V5
1. Deutsch DT06 – 08SA
Connector connection point:

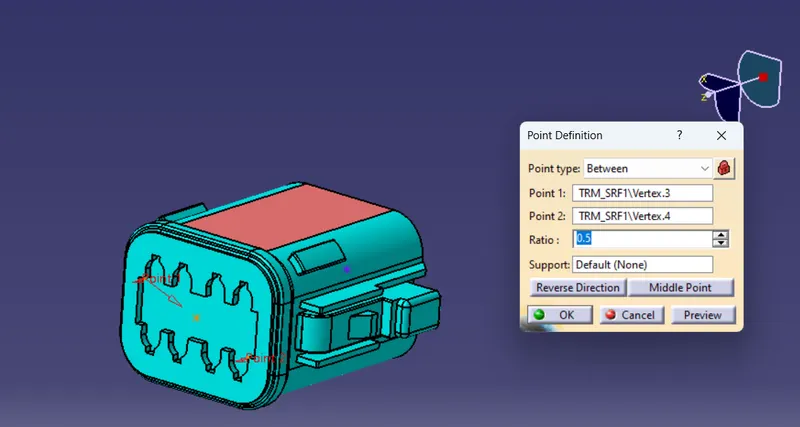

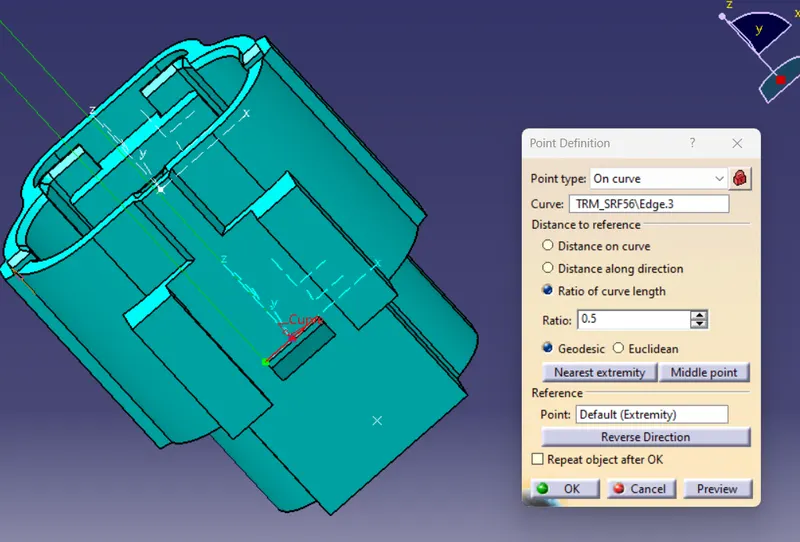

Create midpoint on the contact face which will be normal to wire bundle insertion

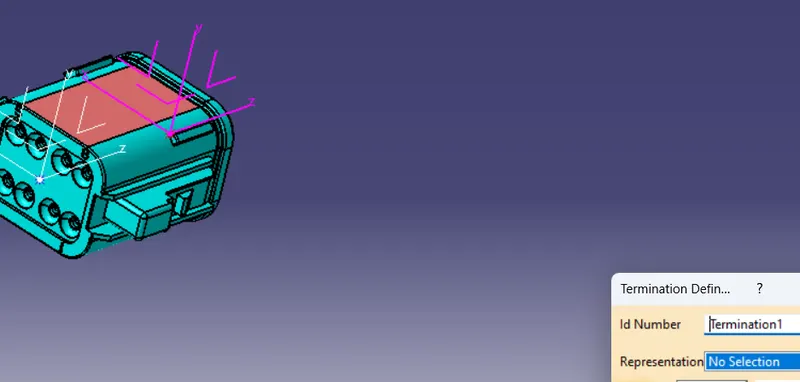

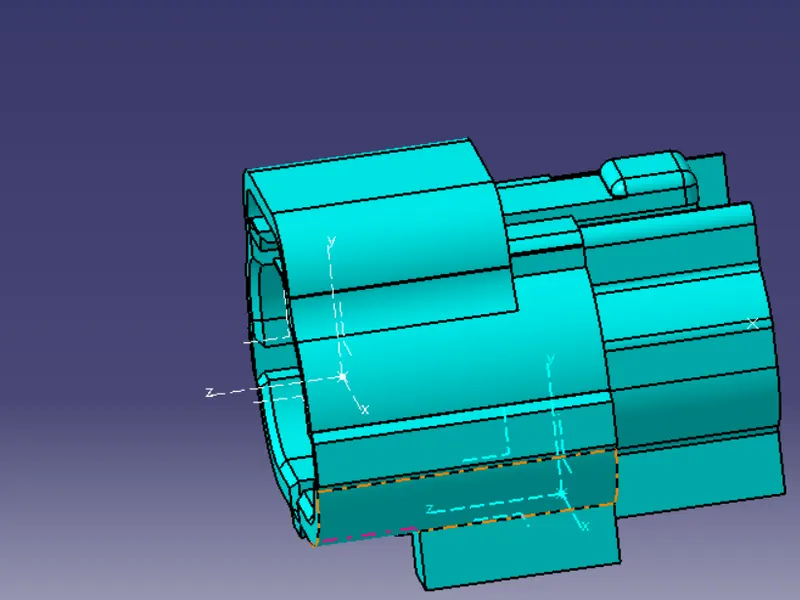

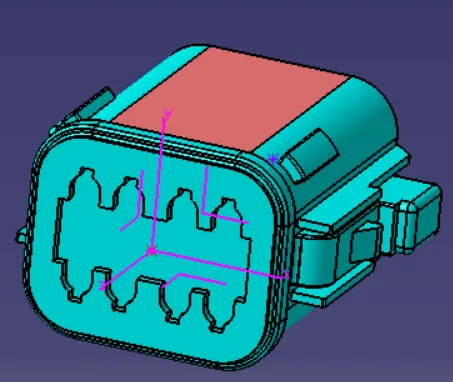

Craete Axis System with respect to the point which we have created and defining the axis direction as shown below,

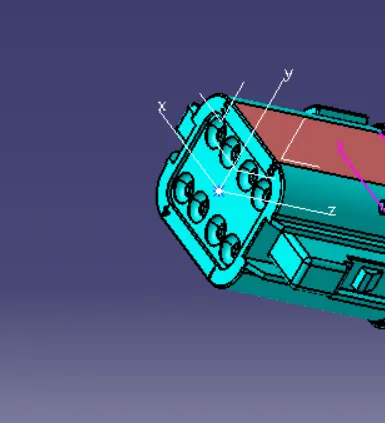

Create midpoint on the contact face which will be normal to wire bundle insertion,Craete Axis System with respect to the point which we have created and defining the axis direction as shown below,for wiring attachment area or bundle area
always while creating axis system we have to maintain the same moving and attaching direction
then we have to convert mechanical part into electrical part by switching in electrical part design then we have to define as electrical part

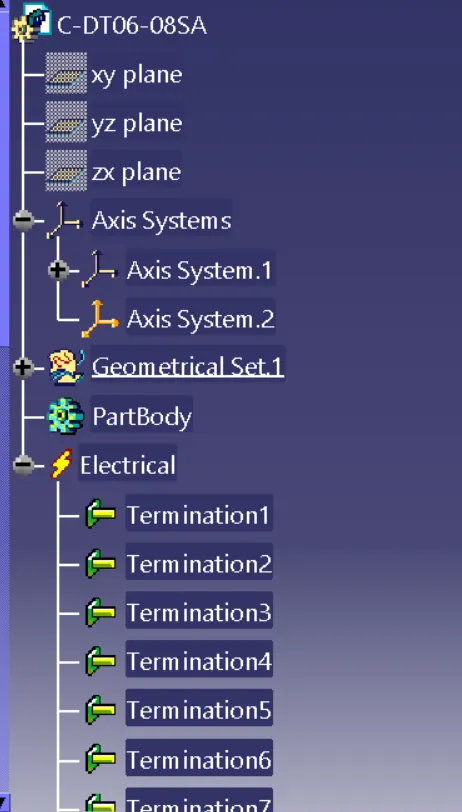

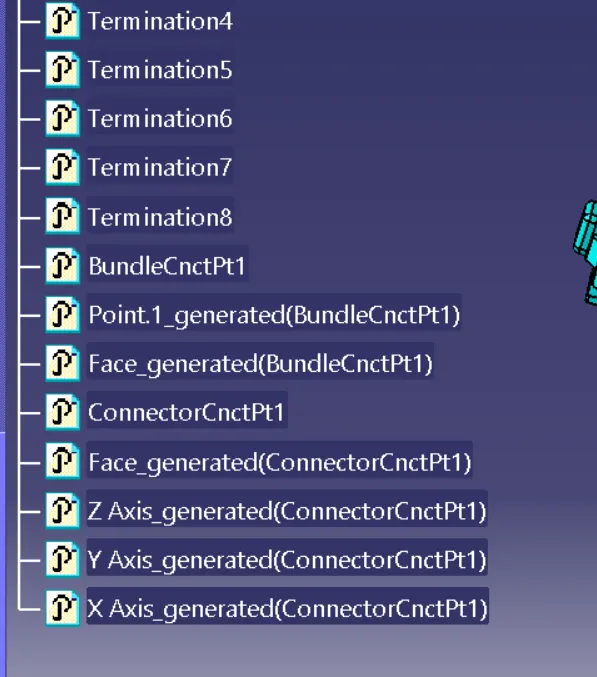

Define the part as connector in catia, give no. of termination as 8 because we have 8 entry points for wire.

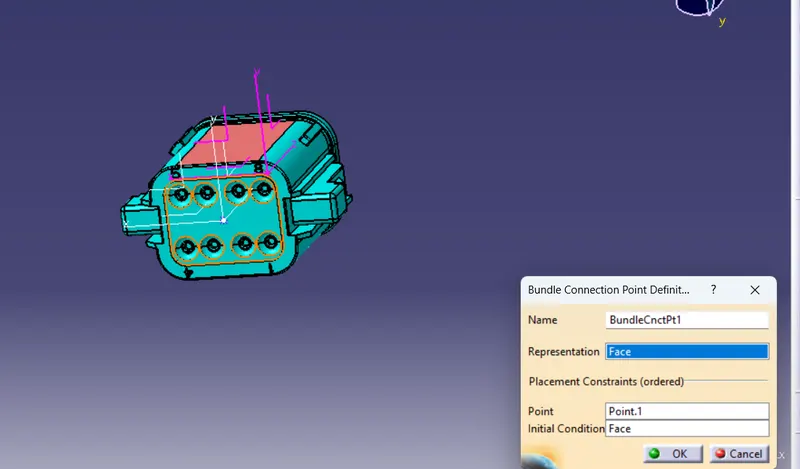

Define Bundle connection point

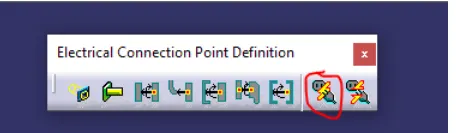

Define connector connection point
Steps followed given bellow
2.Tyco 174357-2 :
- Create midpoint

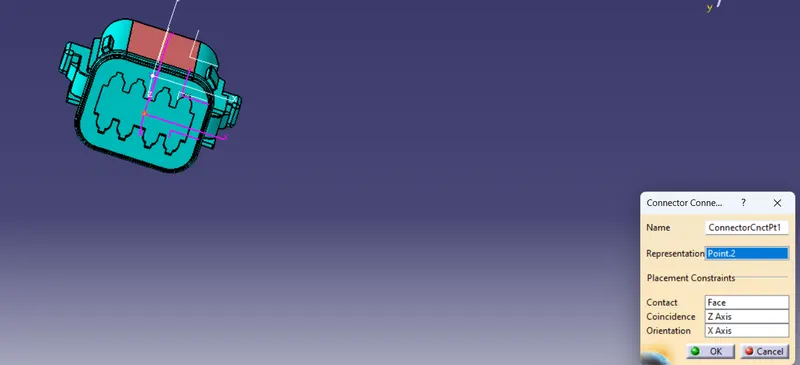

- create Connector connection point
- create Connector connection axis system

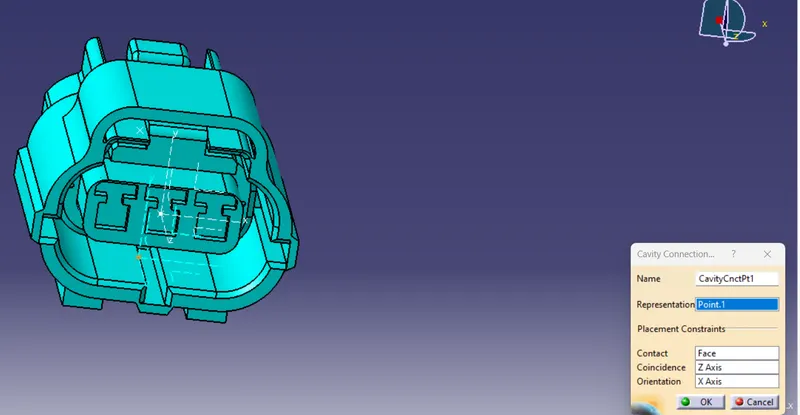

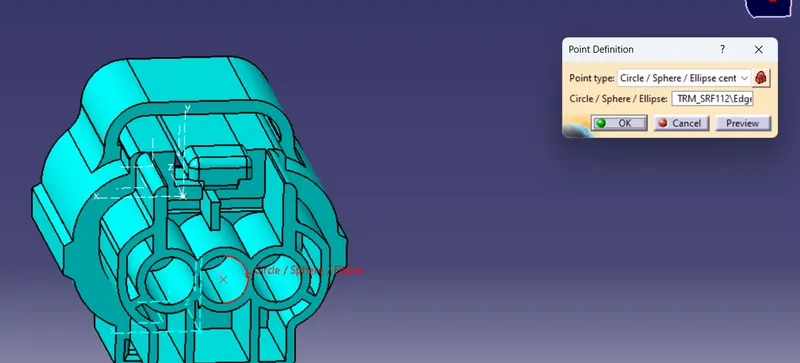

- create cavity connection point
- create cavity connection axis system

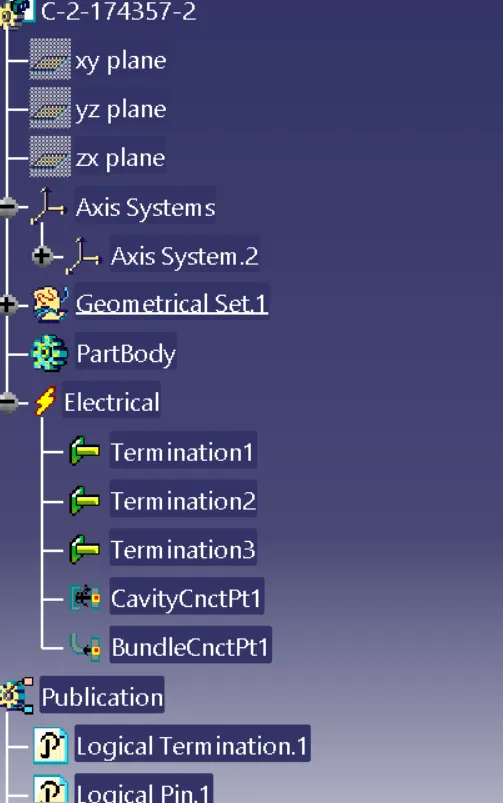

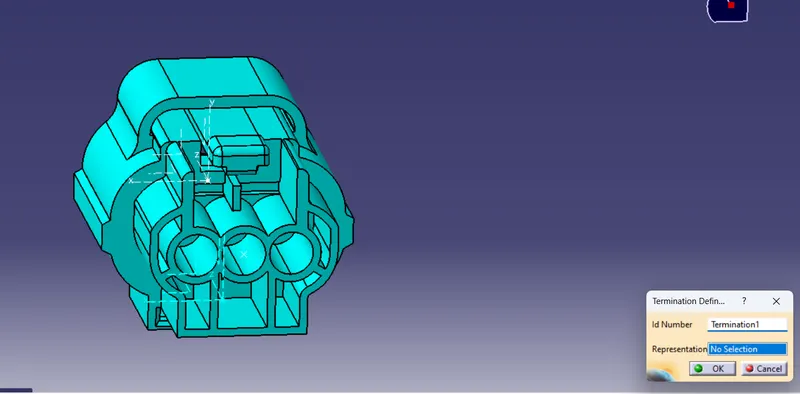

- Switch to Electric part design and define part as connector

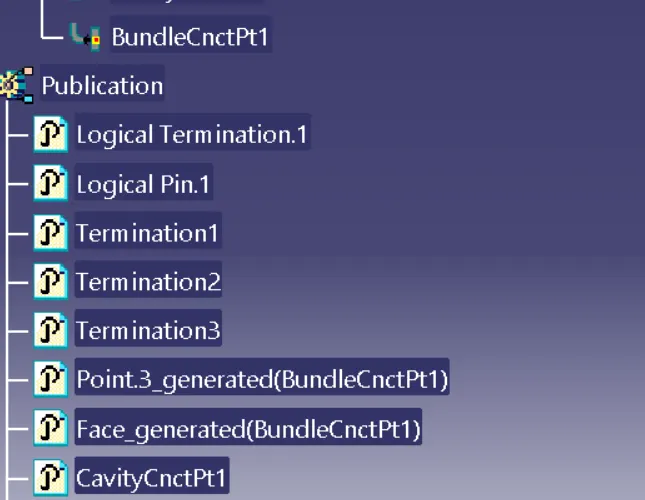

- Define Connector connection point and cavity connection point
Axis system
after that define it as a electrical part

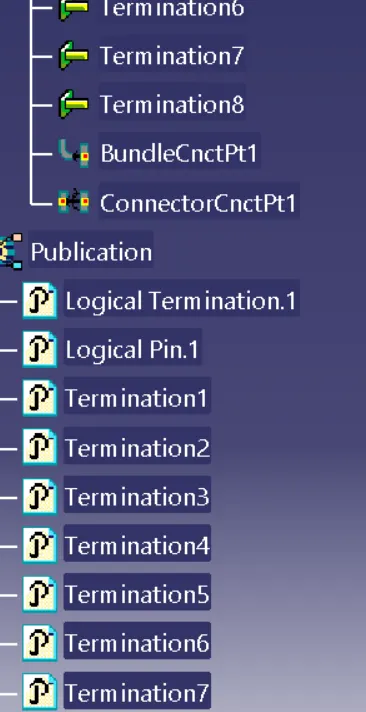

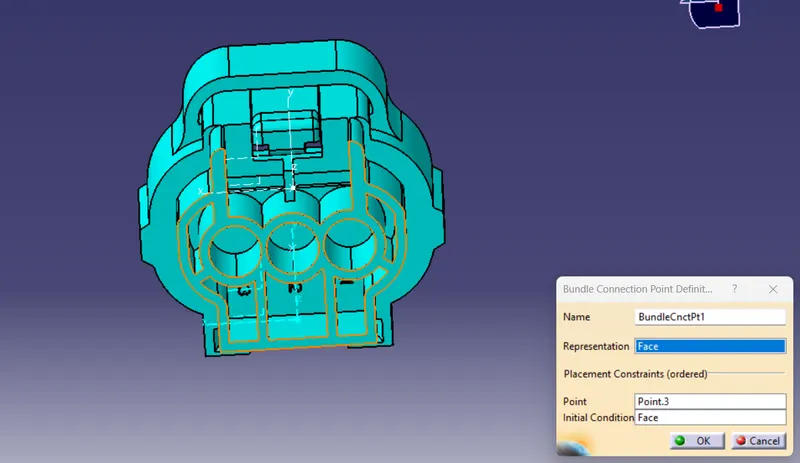

bundle connection
Steps used
3. Tyco 85229-1 :
- Create midpoint

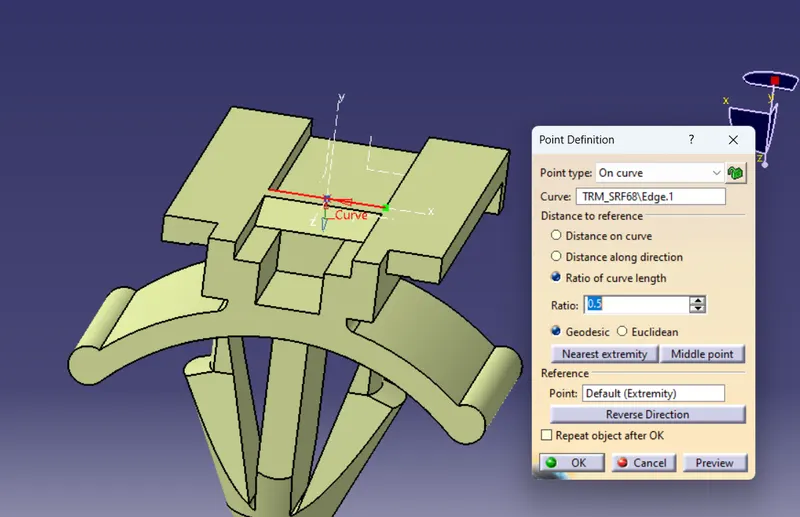

- create cavity connection point
- create cavity connection axis system and orientation should be same as in connector
- Switch to Electric part design and define part as Mounting Equipment

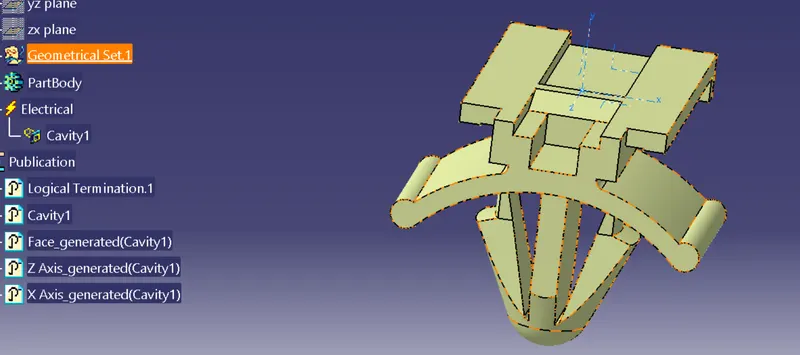

- Define cavity connection point

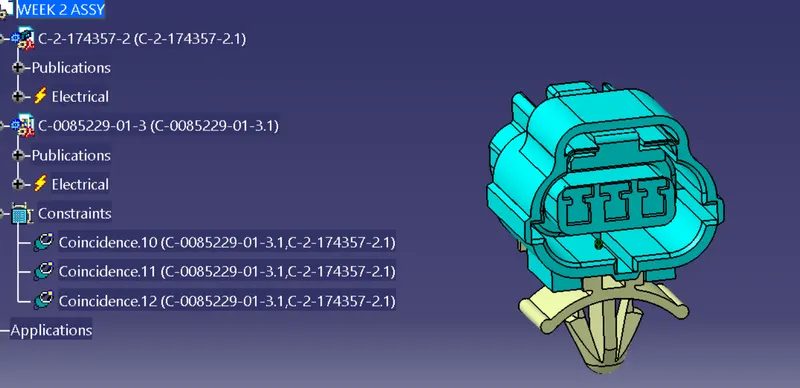

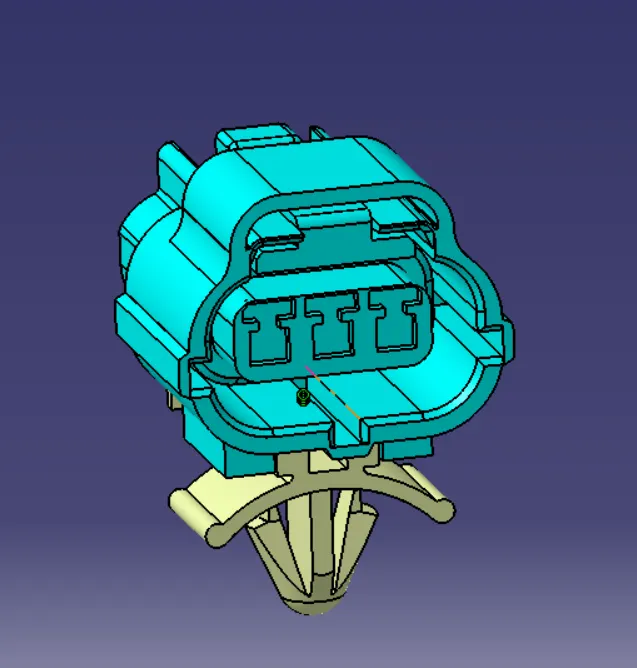

then we go electrical assemble design
first we already define axis so we switch electrical assemble design and go to
this option and select electrical part
And it assembled.
