Wiring harness design in CATIA V5 - 3D modeling Week 2 Challenge
Steps to define 3D Connectors as Electrical Connectors using the Electrical Part Design Workbench -
i. Create/Download connector 3D
ii. Mechanical Part Design
- Defining geometrical parameters by point and axis system (point for bundle/wire entry side, point and axis system for mating side).
iii. Electrical Part Design
- Define part as a connector
- Define bundle connection point (bundle/wire entry side)
- Define connector connection point (mating side)
- Define cavity connection point (optional, if connector needs mounting clip)
- Defining geometrical properties (points and axis system)
Bundle entry side center point -

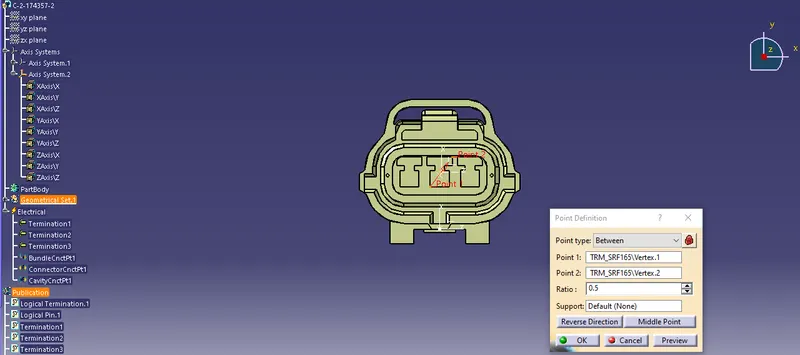

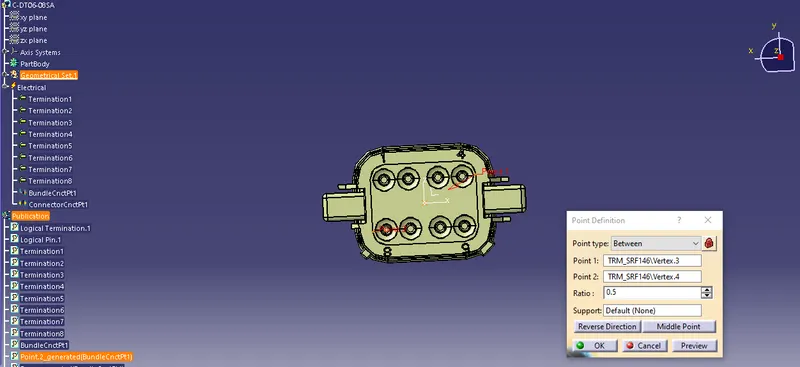

Selecting two random points diagonally to get a center point, under point type between.
Mating side center point -
Selecting two random points diagonally to get a center point, under point type between.
Mating side axis system -
Creating an axis system concerning the center point as the origin of the axis. The Y axis is directed at the mating direction, the X axis is directed towards the locking side and the Z axis is directed upwards.
ii. Electrical Part Design Workbench
- Define part as a connector

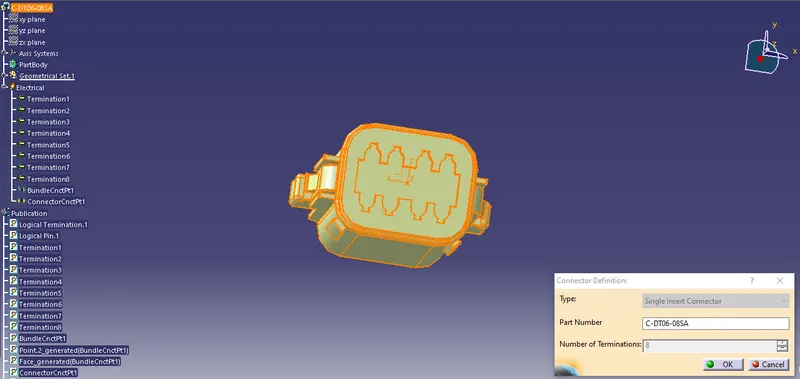

Defining part as an electrical connector under Electrical Part Design Workbench. Selecting the number terminations 8.
- Define bundle connection point (bundle/wire entry side)

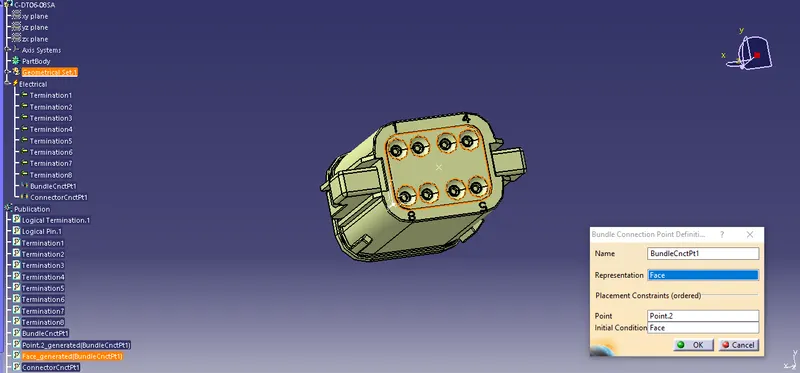

Defining bundle connection point at the bundle entry side where, representation is the face, point as the center point, and initial condition also as the face.
- Define connector connection point (mating side)

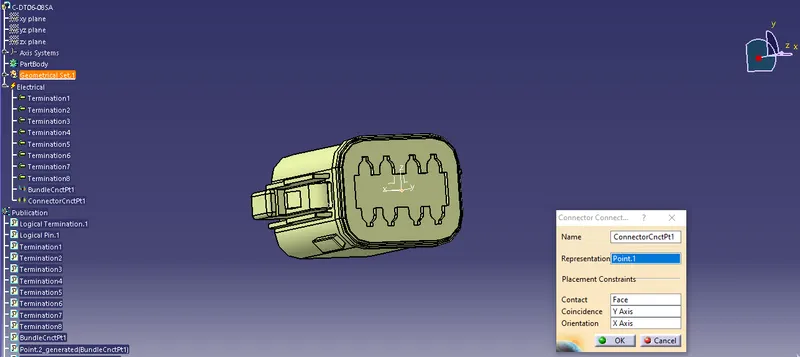

Defining connector connection point at the mating side of the connector where representation is the center point, contact is the face, coincidence is the Y axis, and, orientation is the X axis.
- Defining geometrical properties (points and axis system)
Bundle entry side center point -

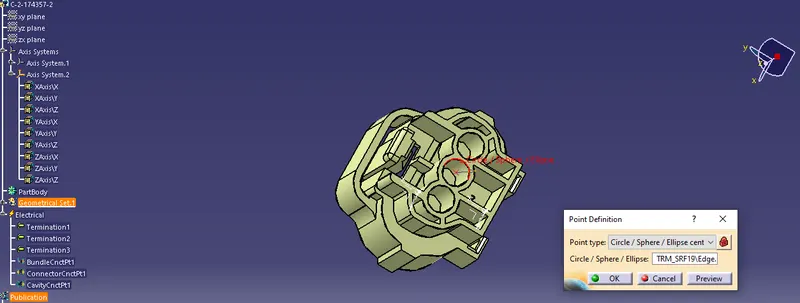

Selecting two random points diagonally to get a center point, under point type circle/sphere/ellipse center.
Mating side center point -

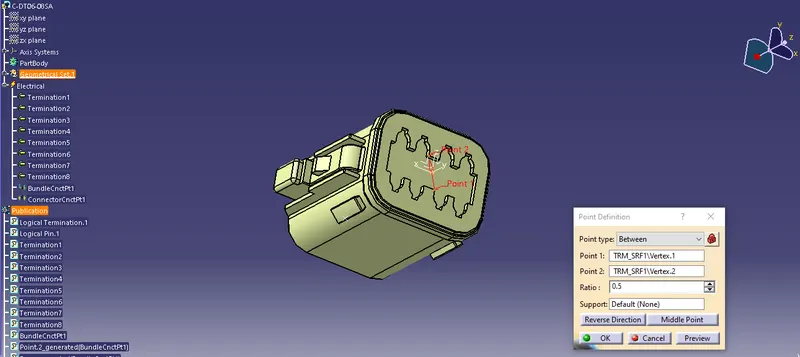

Selecting two random points diagonally to get a center point, under point type between.
Mating side axis system -

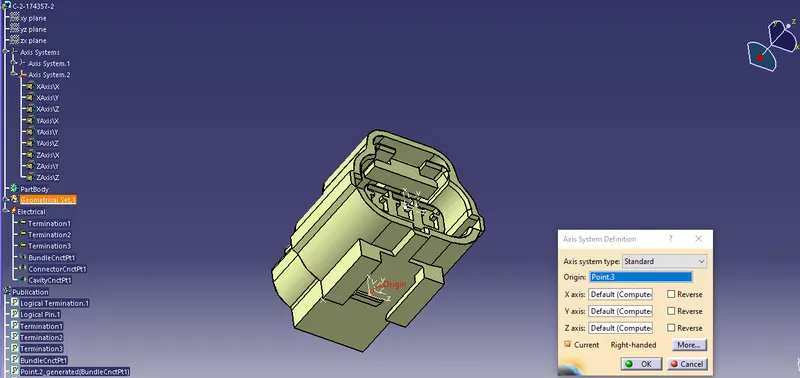

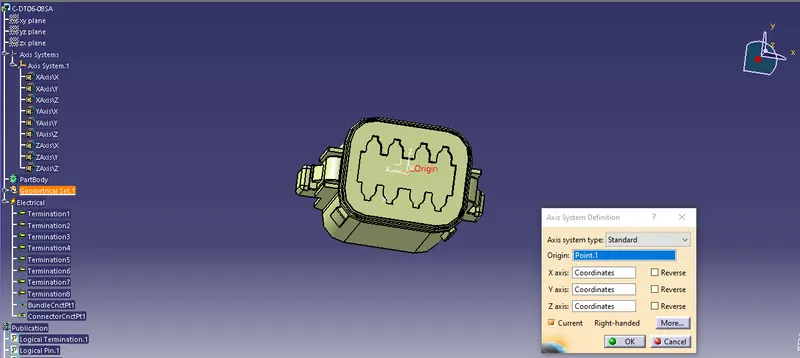

Creating an axis system concerning the center point as the origin of the axis. The Y axis is directed at the mating direction, the X axis is directed upwards and the Z axis is directed to the side.

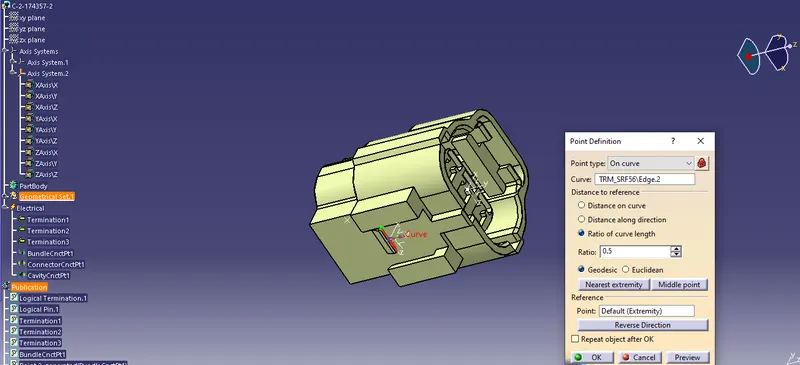

Selecting the edge of the cavity connection part to get a center point, under point type on the curve.

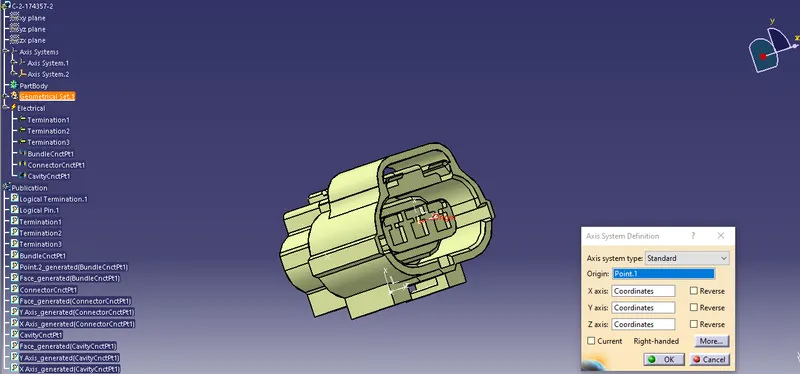

Creating an axis system concerning the center point as the origin of the axis. The Y axis is directed at the connection direction, the X axis is directed upwards and the Z axis is directed to the side.
ii. Electrical Part Design Workbench
- Define part as a connector

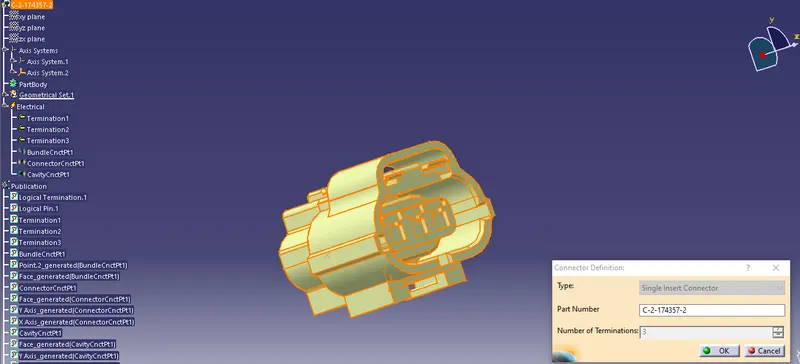

Defining part as an electrical connector under Electrical Part Design Workbench. Selecting the number terminations 3.
- Define bundle connection point (bundle/wire entry side)

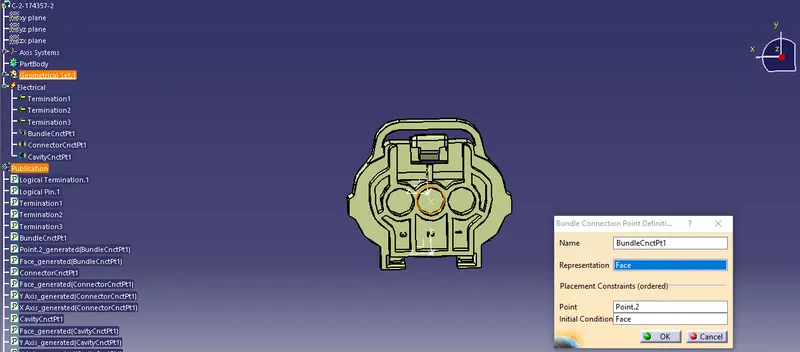

Defining bundle connection point at the bundle entry side where, representation is the face, point as the center point, and initial condition also as the face.
- Define connector connection point (mating side)

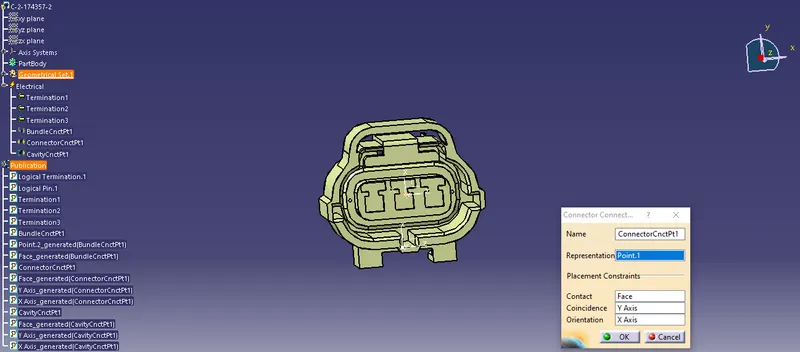

Defining connector connection point at the mating side of the connector where representation is the center point, contact is the face, coincidence is the Y axis, and, orientation is the X axis.
- Define cavity connection point (optional, if connector needs mounting clip)

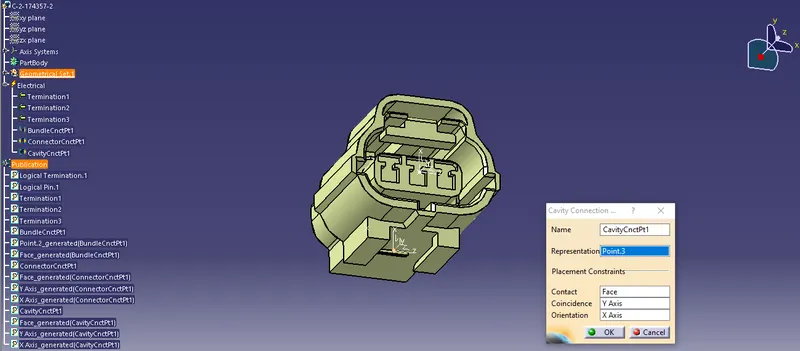

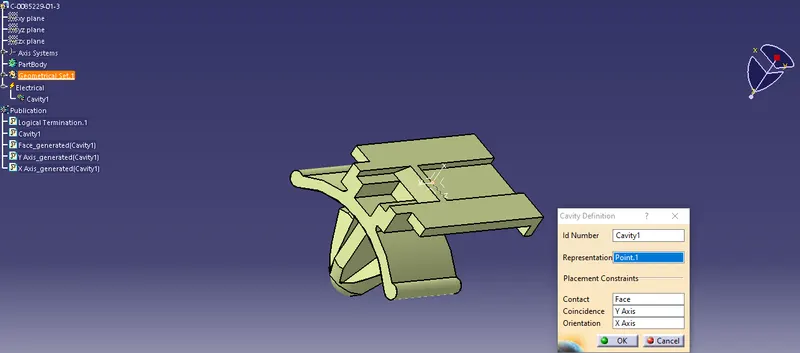

A cavity connection is defined as the connecting part for a connector clip where representation is the center point of the cavity connection, contact is the connection face, coincidence is the Y axis and, orientation is the X axis.
- Defining geometrical properties (points and axis system)
Mounting clip center point -

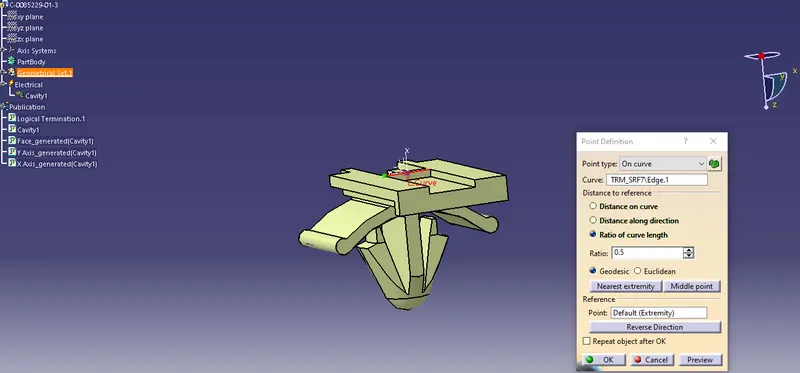

Selecting the edge of the connecting part to get a center point, under point type curve.

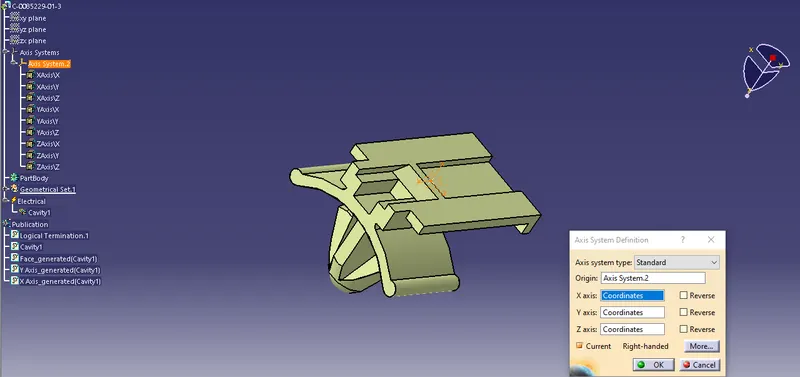

Mounting clip axis system -
Creating an axis system for the cavity, the origin is the center point, the Y axis is directed towards the insertion, the X axis is directed upwards and, the Z axis is directed to the side. The axis direction should follow the connector's cavity connection axis direction for proper mounting.
ii. Electrical Part Design Workbench
- Define part as a Mounting Equipment

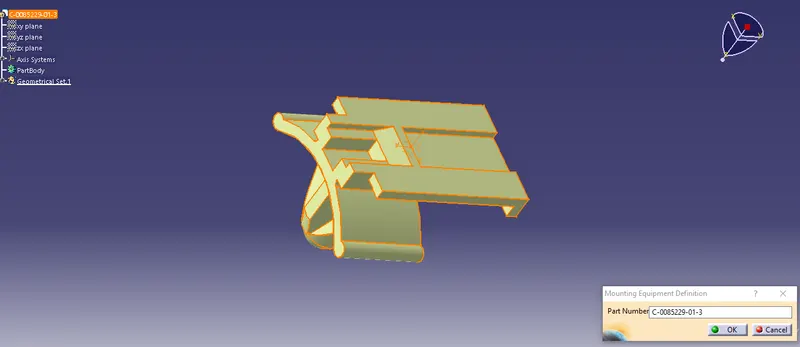

The clip is defined as electrical mounting equipment.
- Connect Electrical Devices

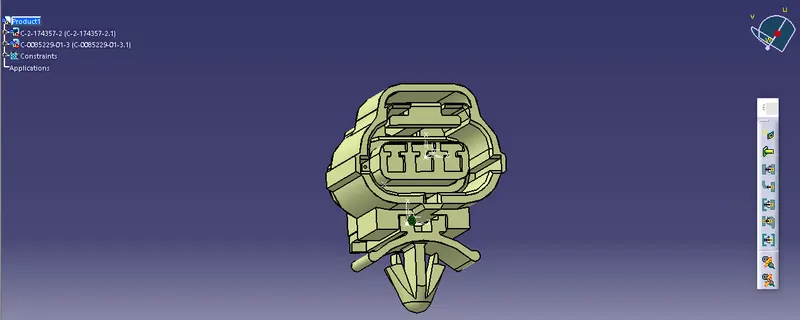

The connector and connector clip are connected under the electrical assembly design workbench using connected electrical devices.
