Wiring harness design in CATIA V5 - 3D modeling Week 2 Challenge

Tyco 174357-2

HERE THE FIRST STEP IS TO DIFINE POINTS A AND AXIS.

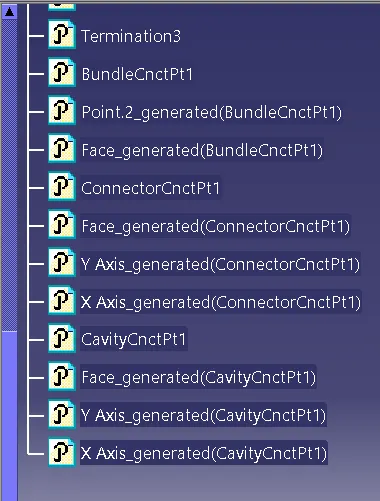

3 POINTS ARE ADDED AND AXIS TO IT ALSO

• POINT ONE FOR THE BUNDLE ENTRY
• POINT SECOND FOR CONNECTOR CONNECTION
• POINT THIRD IS FOR MOUNTING CLIP
• HE THE AXIS I KEPT Y AS A CONNECTING SIDE AND X IN LOCKING DIRECTION

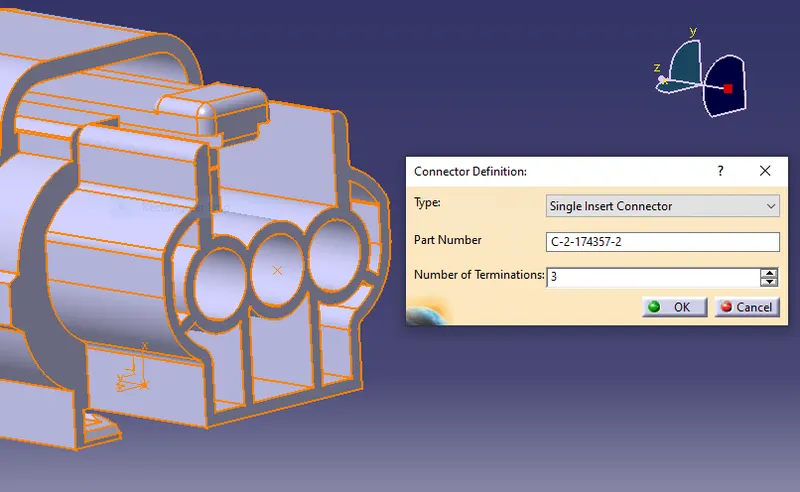

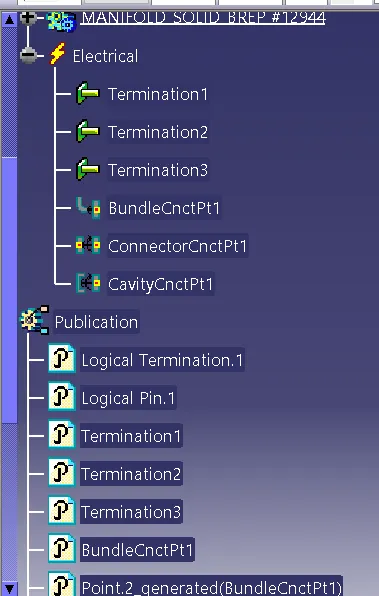

HER WE ADDED 3 BECAUSE THERE IS ONLY 3 INTAKE

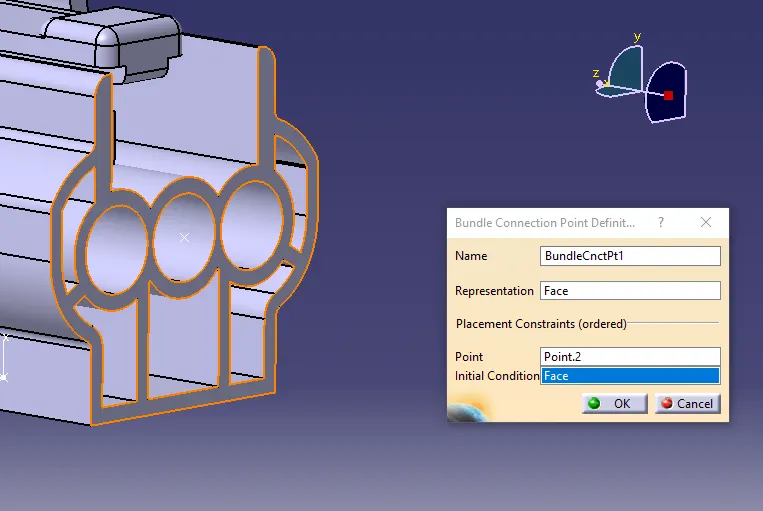

HE WE ADD ADD BUNDLE ENTRY

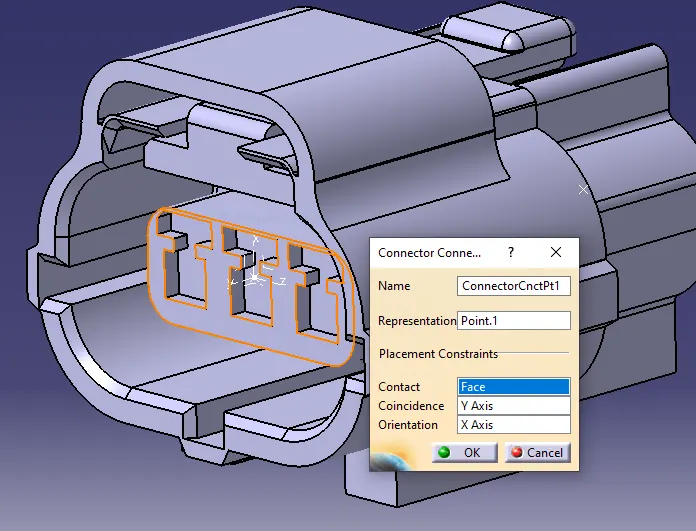

THIS IS FOR CONNECTOR CONNECTION

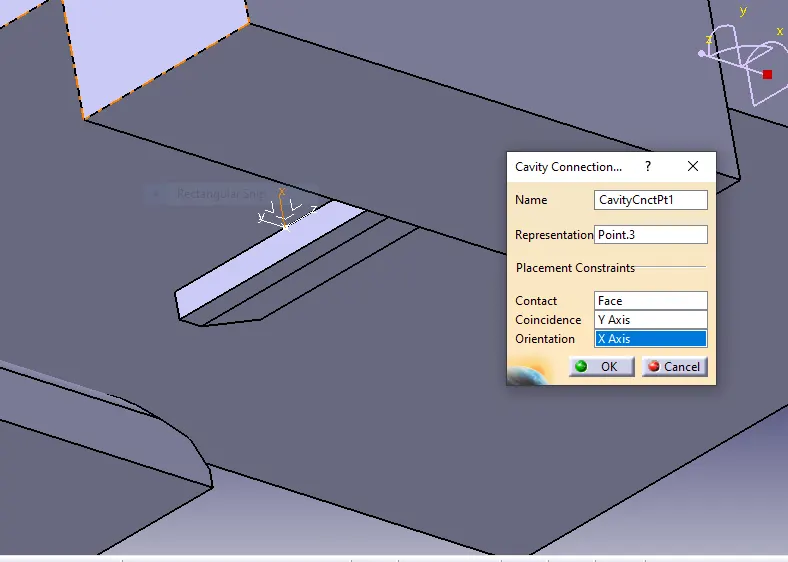

THIS IS FOR TTHE OUNTING PLACE

Tyco 85229-1

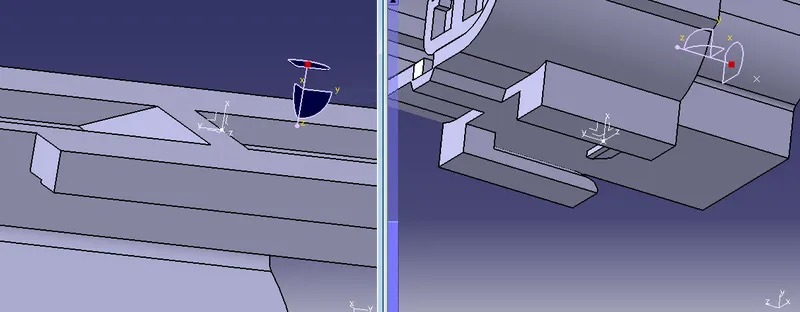

COMPAIR BOTH THE PART AND MAKE SURE THE DIRECTION OF X AND Y SHOULD BE SAME .

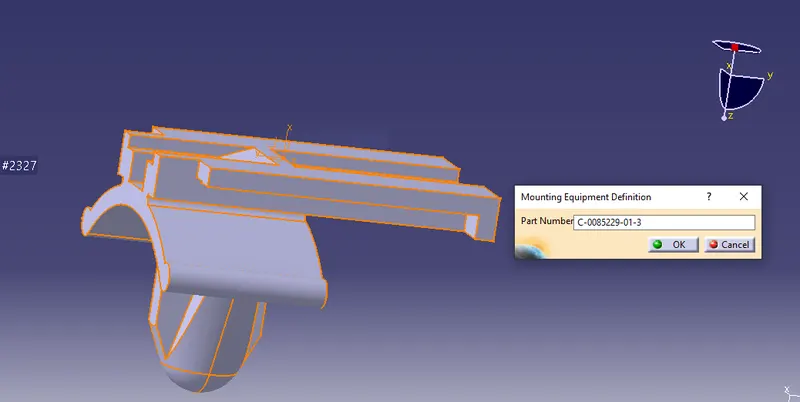

THIS IS THE MOUNTING PART SO USE MOUNTING EQUIPMENT

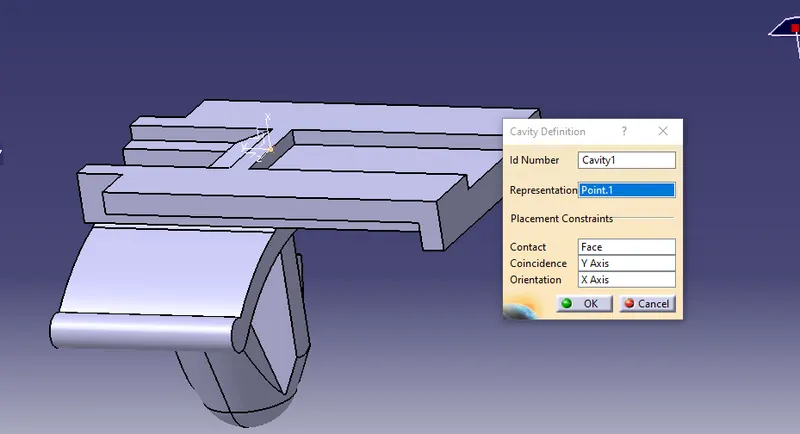

AND ADD CAVITY BECAUSE THIS IS GOING INSIDE THE CAVITY

ASSEMBLY OF Tyco 85229-1 AND Tyco 174357-2

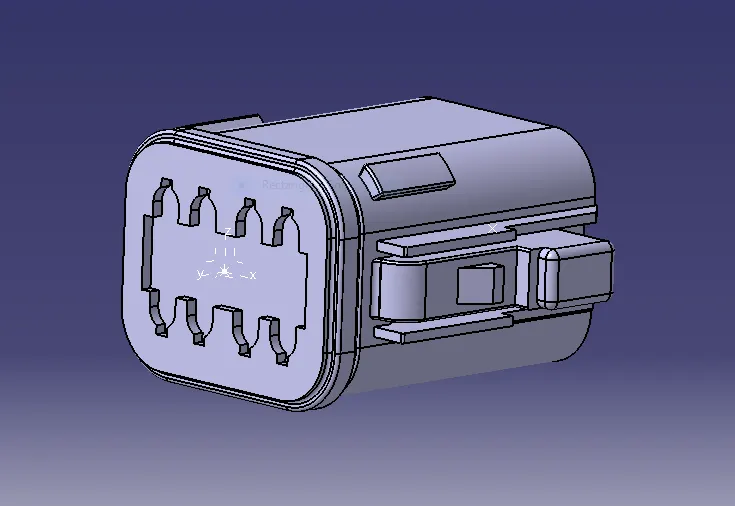

Deutsch DT06 – 08SA

here we are taking only 2 points this is because we are having

bundle entry and bundle connection point

there is no place for mounting clip so no need to add point.

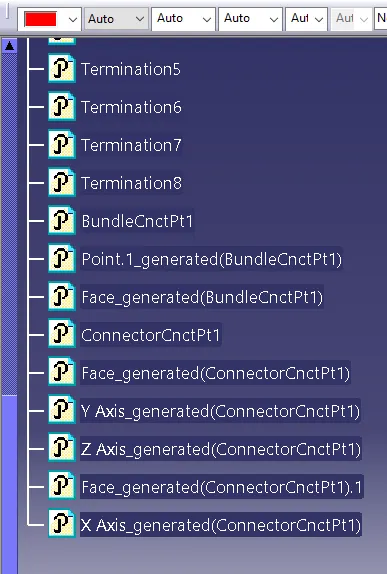

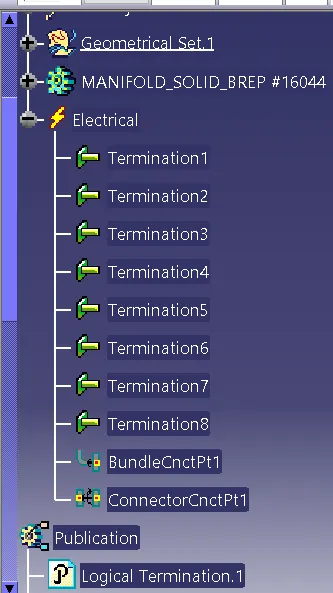

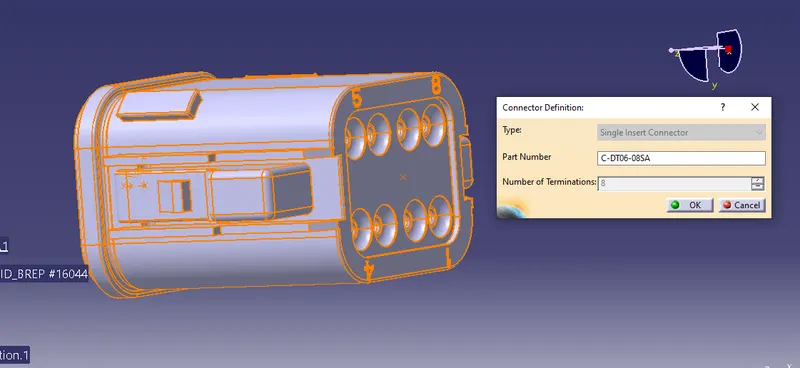

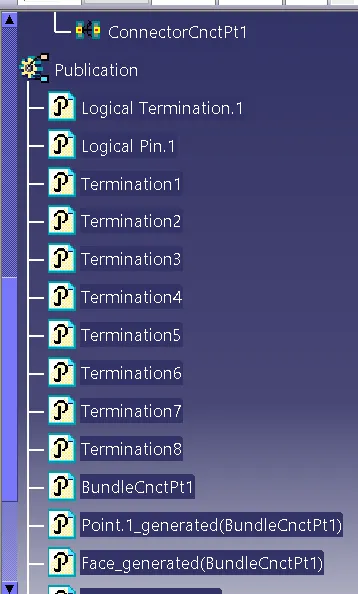

we are taking 8 because here is 8 no of input terminal
