Wiring harness design in CATIA V5 - 3D modeling Week 2 Challenge

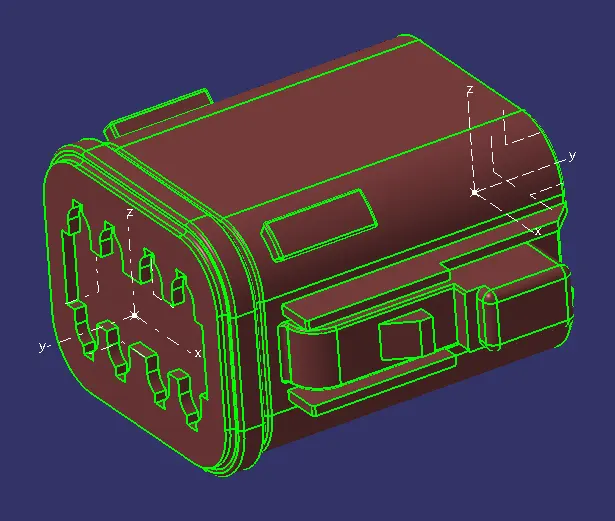

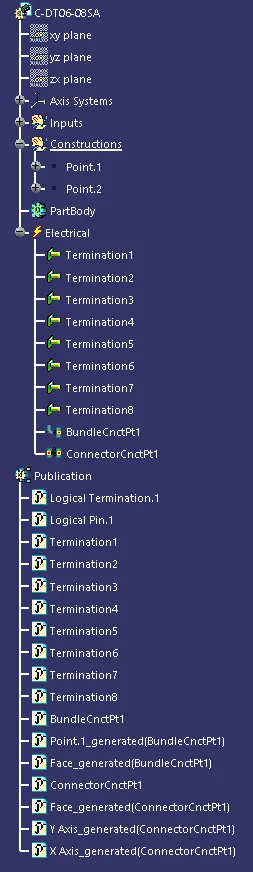

Deutsch DT06 – 08SA

It's a female connector with 8 inputs which doesn't have any cavity lock.

Steps for defining connector,

• Save it as CATPart and switch to Electrical Part Design Workbench.
• Creating points & axis system for bundle and connector.
• Defining the bundle input using "Define Connector" option.
• Defining the connector using "Define Connector Connection Point" option.

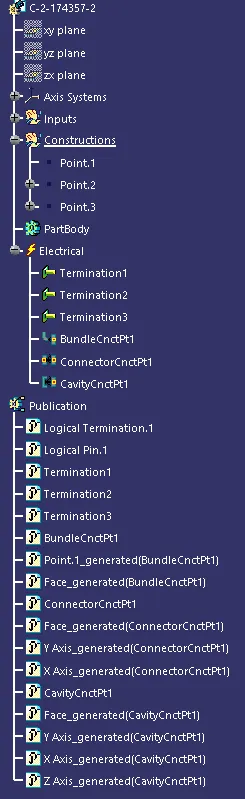

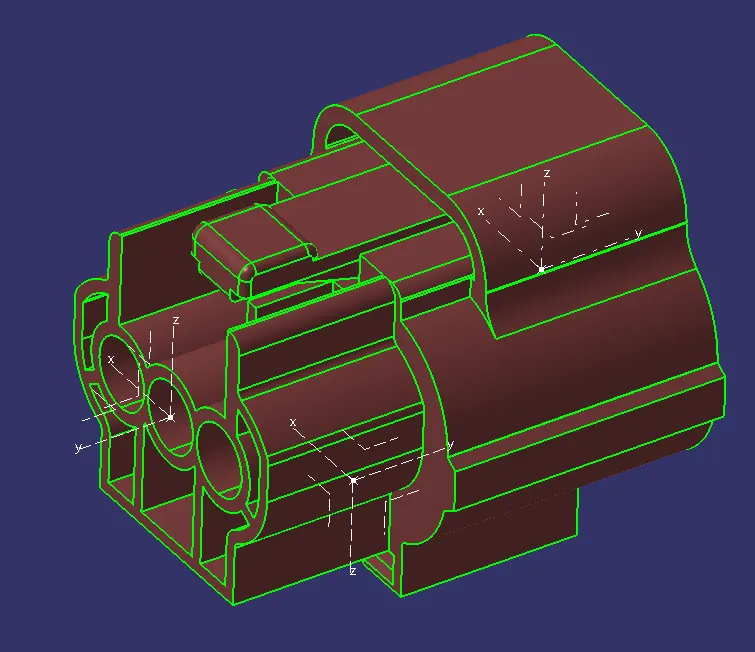

Tyco 174357-2

It's a female connector with 3 inputs that have a cavity lock.

Steps for defining connector,

• Save it as CATPart and switch to Electrical Part Design Workbench.
• Creating points & axis system for bundle, cavity connection and connector.
• Defining the bundle input using "Define Connector" option.
• Defining the connector using "Define Connector Connection Point" option.
• Defining the cavity connection point.

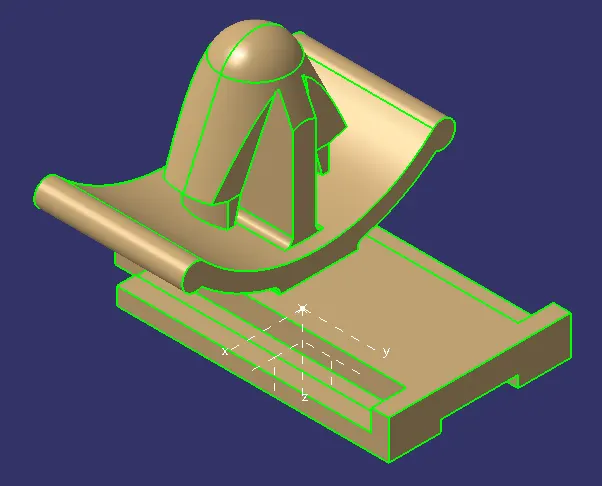

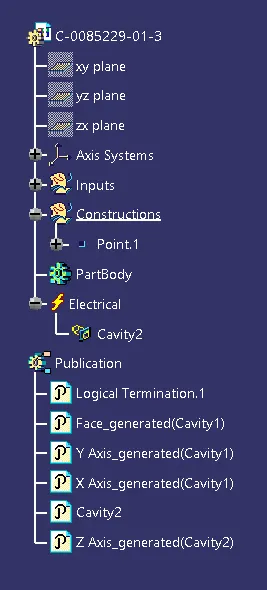

Tyco 85229-1

It's a mounting clip for a connector

Steps for defining mouting clip,

• Save it as CATPart and switch to Electrical Part Design Workbench.
• Creating point and axis system for defining the cavity.
• Defining the clip as cavity which has to be inserted inside the connector.
