Wiring harness design in CATIA V5 - 3D modeling Week 2 Challenge

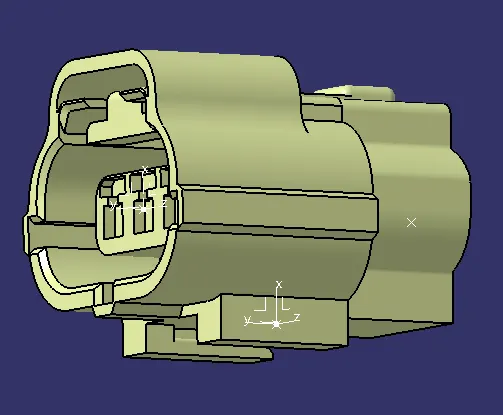

Deutsch DT06 – 08SA

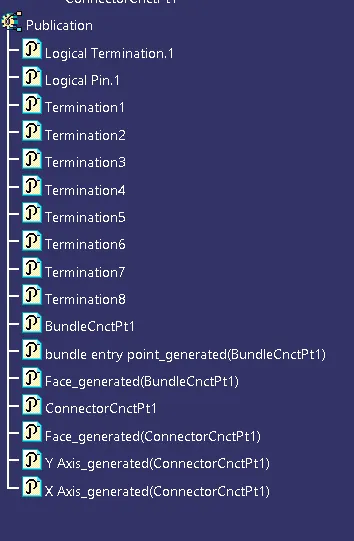

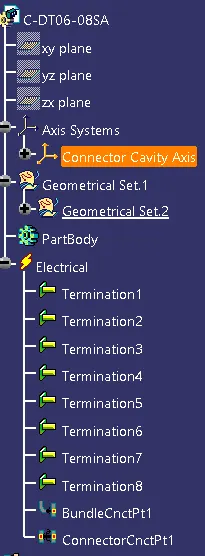

model tree

their is no slot for clip so only connector connection point and bundle connection point are defined

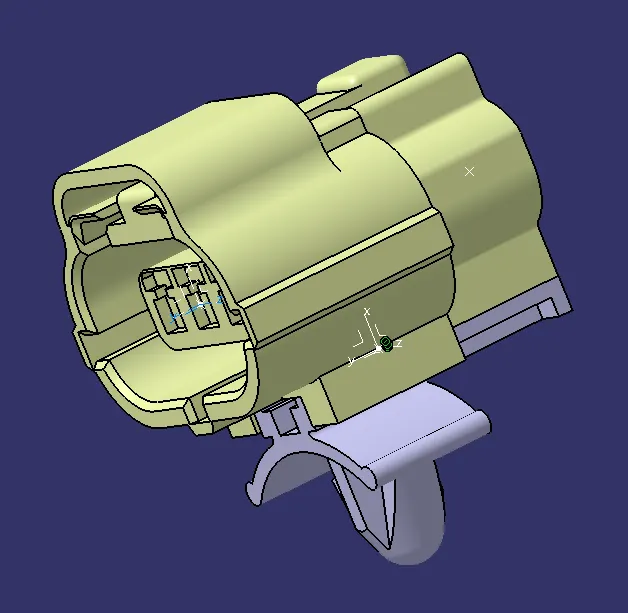

connector and clip assembly

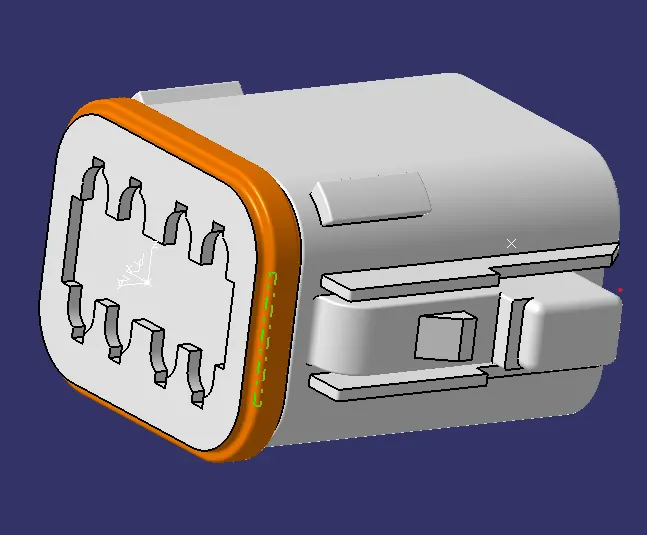

connector

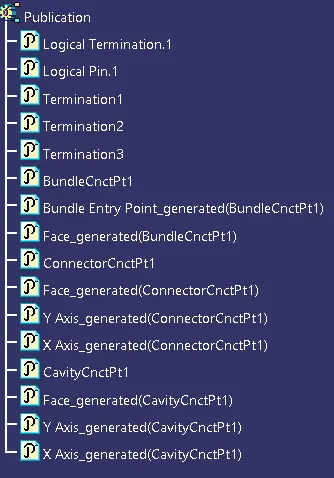

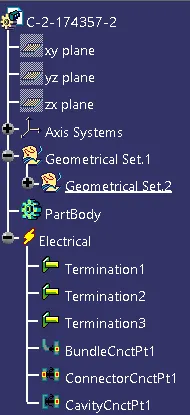

model tree

their is slot for clip available so connector connection point, bundle connection point and cavity connection point are defined

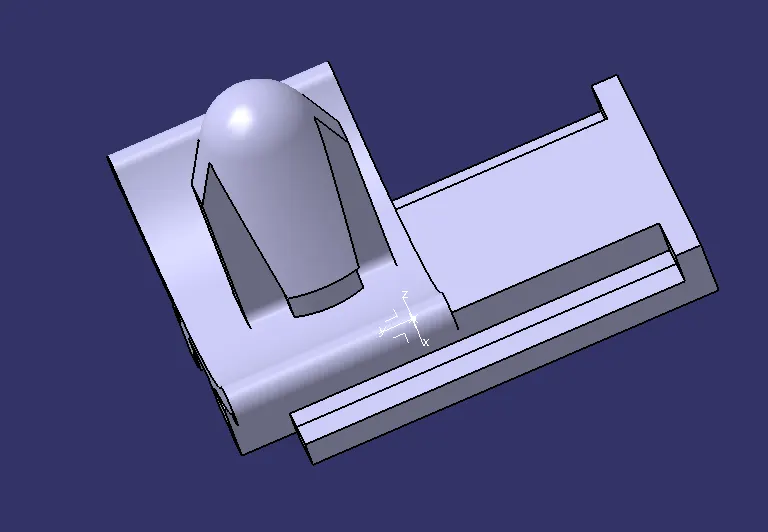

mounting clip

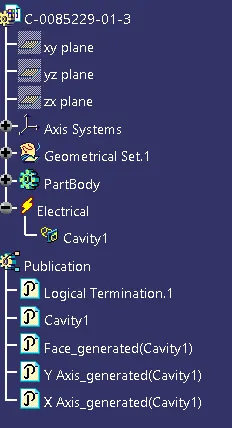

model tree

cavity is defined in the mounting clip
