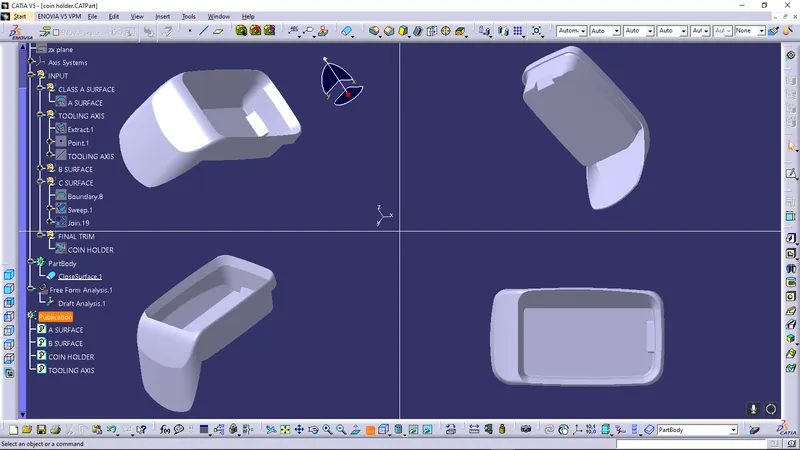

Week 8 - Challenge 3 - Coin Holder Design

TOOLING AXIS CREATION

• Create a geometrical set for tooling axis
• Extracted the base surface of coin holder and mark a point at the center of the surface
• Insert an axis system at that point
• Create a line normal to the surface through the point

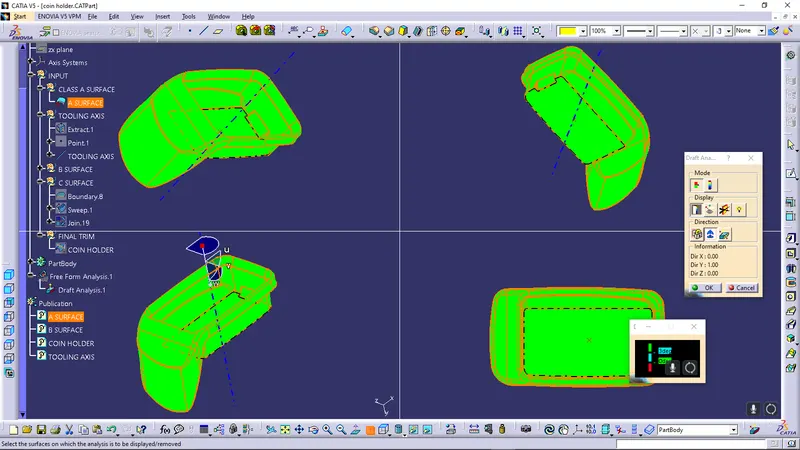

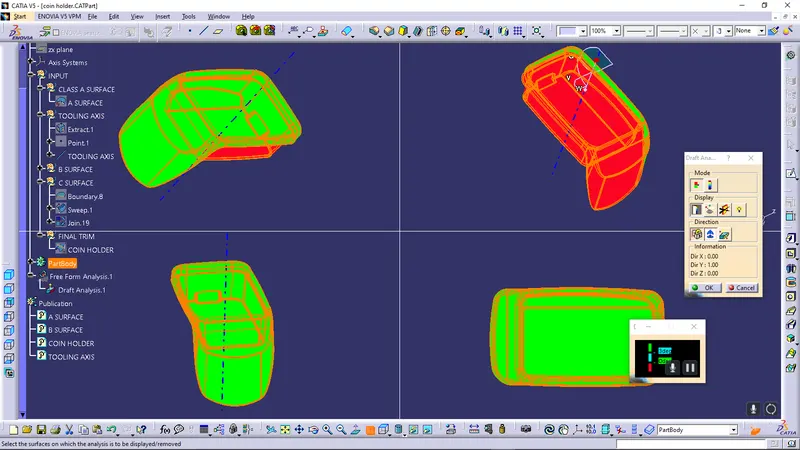

DRAFT ANALYSIS

the top portion is having an angle of more than 3degree in the top portion and have an angle of below 3 degree in bottom portion
