Wiring harness design in CATIA V5 - 3D modeling Week 2 Challenge

Download/Create/Request component data.

Define as an electrical Part.

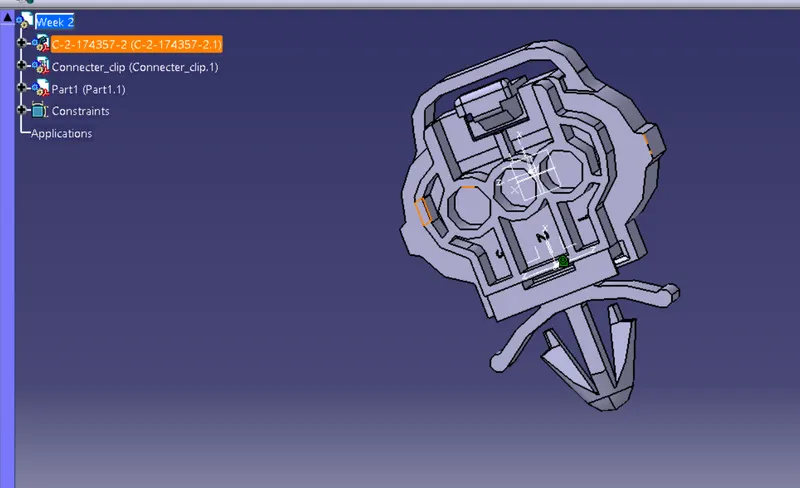

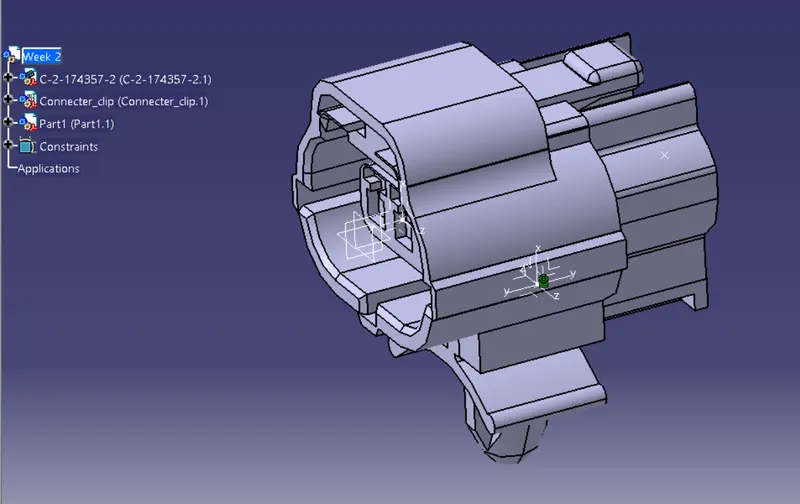

Place all the harness components at desired locations,

Prepare context assembly with surrounding data,

Use "Electrical Harness Assembly" Workbench.

Wiring harness Assembly Structure Connector Definition

Connector Definition

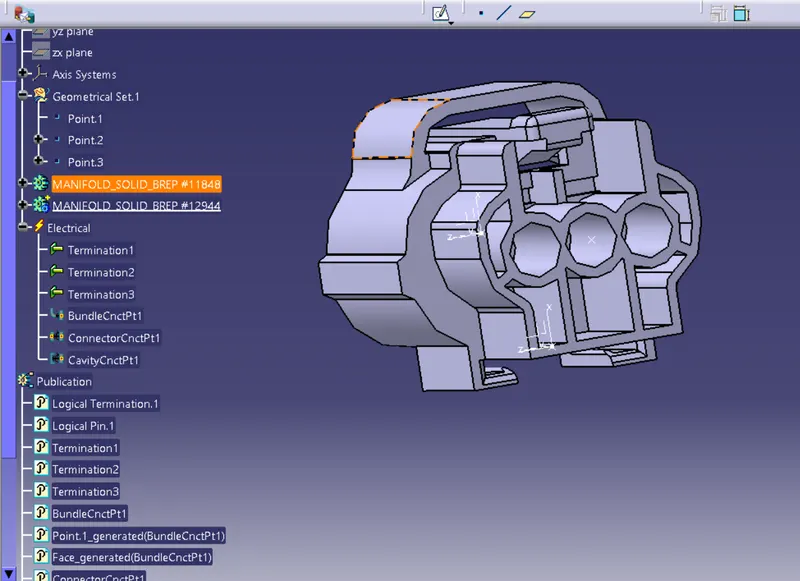

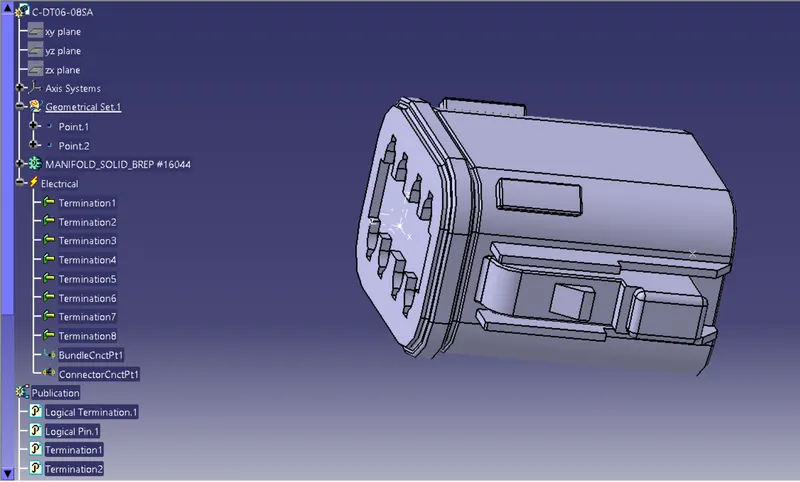

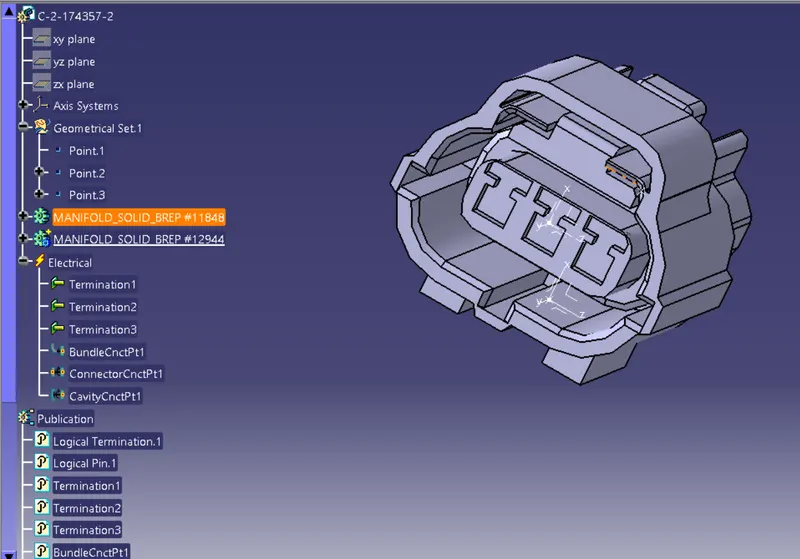

Following Parameters are required to defined for any connector -

Geometry Parameters - Points & Co-ordinate system (Axis)

Connector connection points - This point is used for the connection of one connector to another connector.

Harness bundle entry point - This point defines where the harness bundle segment point will end when routed to the electrical connector.

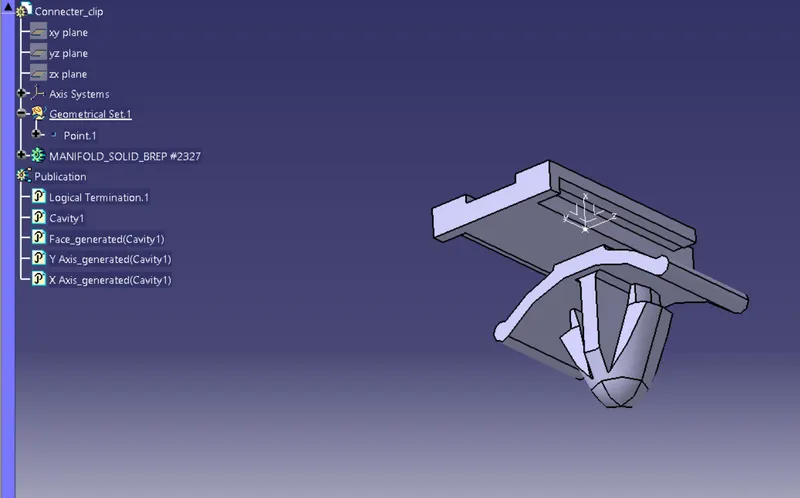

Cavity connection point (Optional) - This point is used to define the connection of a connector to a connector clip. This only applies to connectors which have the mounting feature for a connector clip.
