Wiring harness design in CATIA V5 - 3D modeling Week 2 Challenge
AIM:-
Download following connectors & Connector clip cad data from given link & define it as
Electrical Connector using Electrical Part design Workbench. Define all the necessary
properties to Connectors & Clip.
Deutsch DT06 –08SA ( https://www.te.com/usa-en/product-DT06-08SA.html)
Tyco 174357-2 (https://www.te.com/usa-en/product-2-174357-2.html?source=header-match)
Tyco 85229-1 (https://www.te.com/usa-en/product-85229-1.html?q=85229&source=header
CONNECTOR DEFINATIONS IN CATIA V5
1. Deutsch DT06 – 08SA
Connector connection point:
Create midpoint on the contact face which will be normal to wire bunddle insertion.

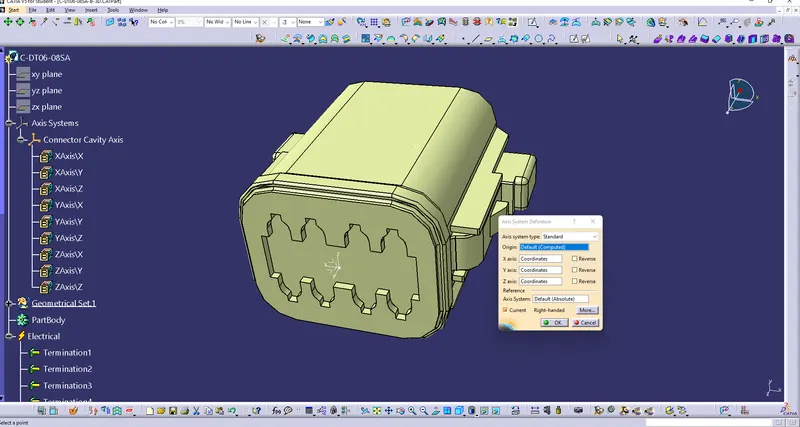

Create Axis System with respect to the point which we have created and defining the axis
direction as shown below

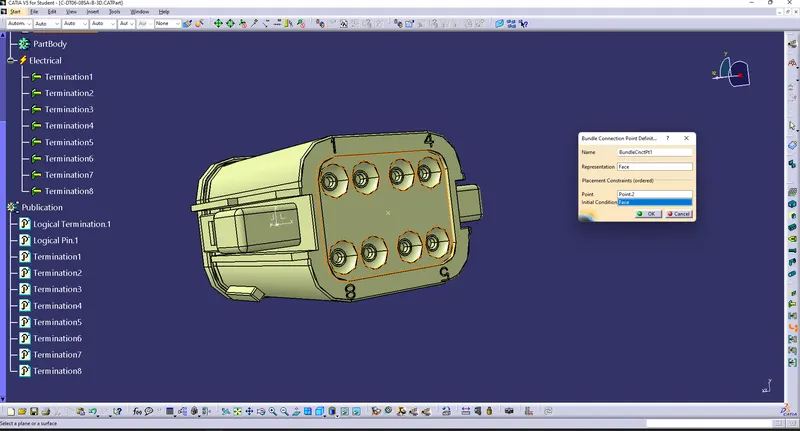

Define Bundle connection point:-
Switch to 'Electric Part Design'

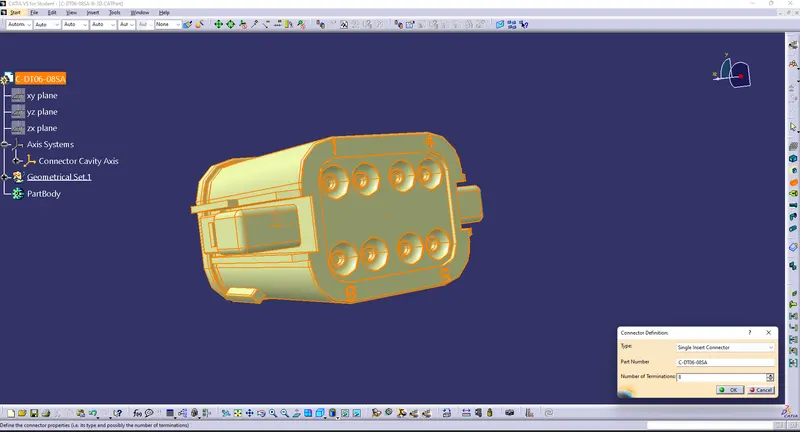

Define the part as connector in catia, give no. of termination as 8 because we have 8 entry
points for wire.

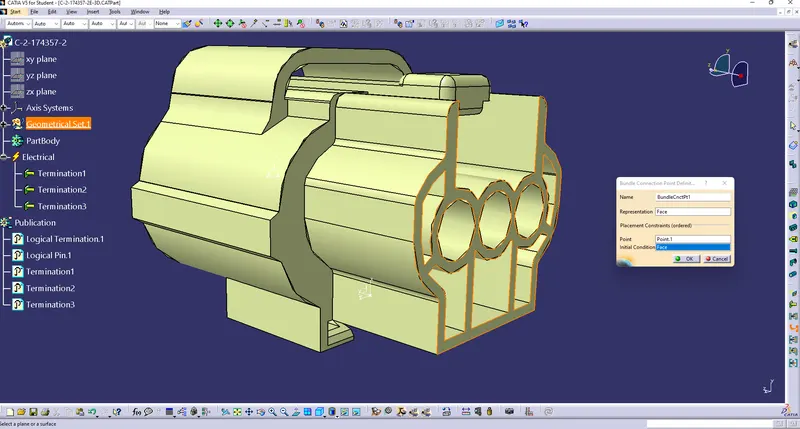

2.Tyco 174357-2 :-
- Create a midpoint
- Create a Connector connection point
- Create a Connector connection axis system

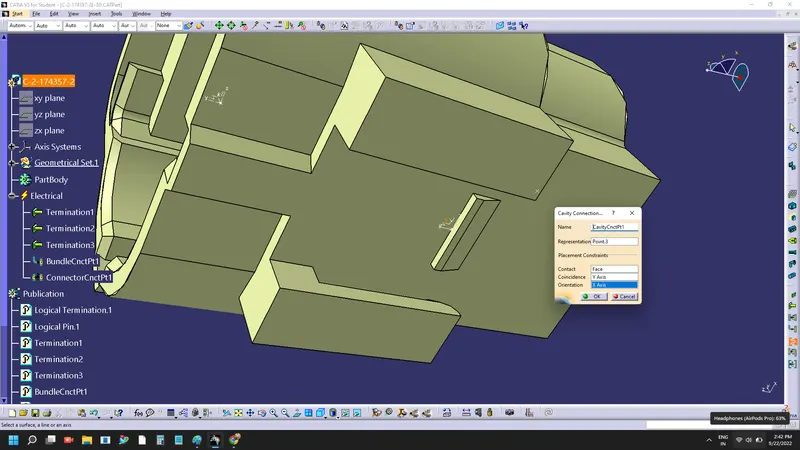

- Create a cavity connection point
- Create a cavity connection axis system
- Switch to Electric part design and define the part as a connector

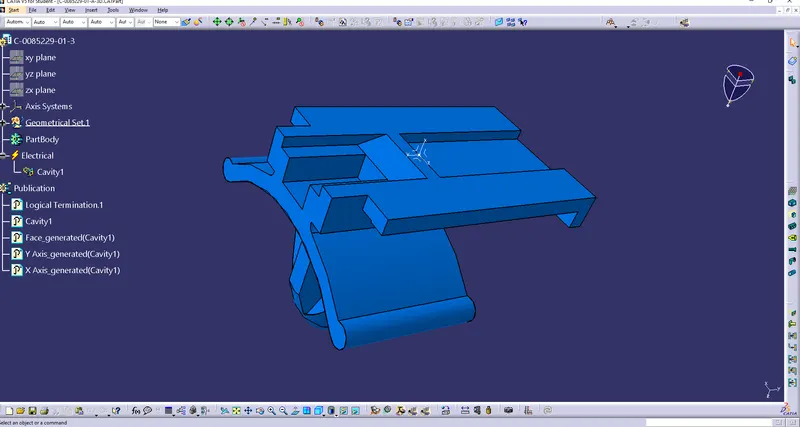

3. Tyco 85229-1 :-
- Create a midpoint, a cavity connection point, and a cavity connection axis system with the same orientation as the connector.
- Switch to an electric part design and define the part as Mounting Equipment.

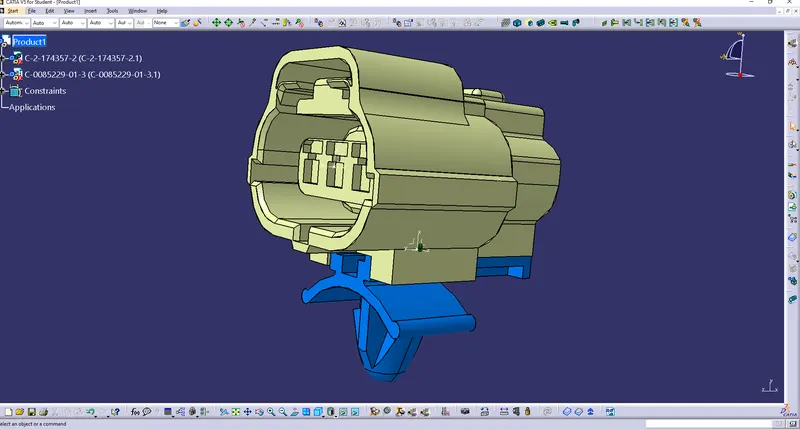

Electric Assembly Design
- Import Connector as well as cavity/mounting clip
- Choose Connect Electrical Devices, and select the axis system from both the cavity and connector.

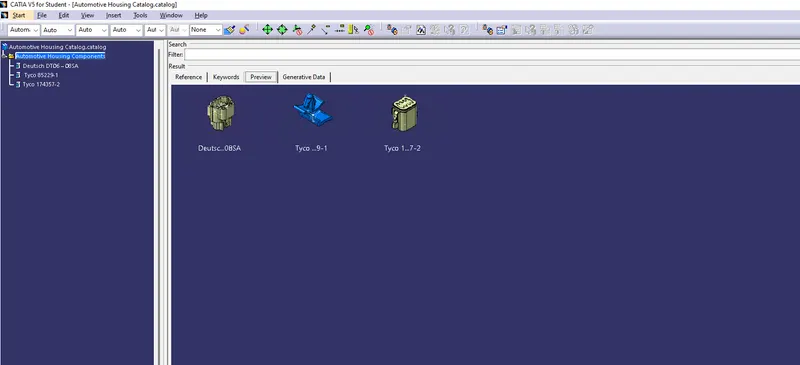

creating a catalogue for the Automotive Housing Components
Deutsch DT06 – 08SA
Tyco 174357-2
Tyco 85229-1
