Challenge

Week 9 Tension and Torsion test challenge

Aim - To simulate Tension and Torsion

Procedure

1. Select Steel 1006 material

2. Import geometry

3. Assign material

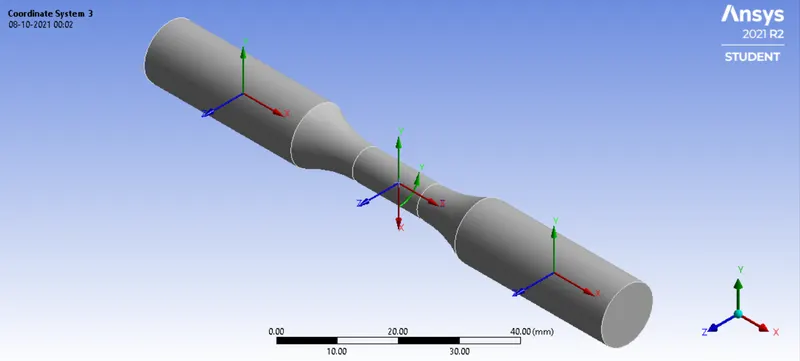

4. Create 3 coordinates

6. On Analysis settings, set end time to 0.003s.

7. Fixed joint on one end

8. Displacement in X direction for tension. Displacement (in degrees) in Y direction for torsion.

9. Set up required results.

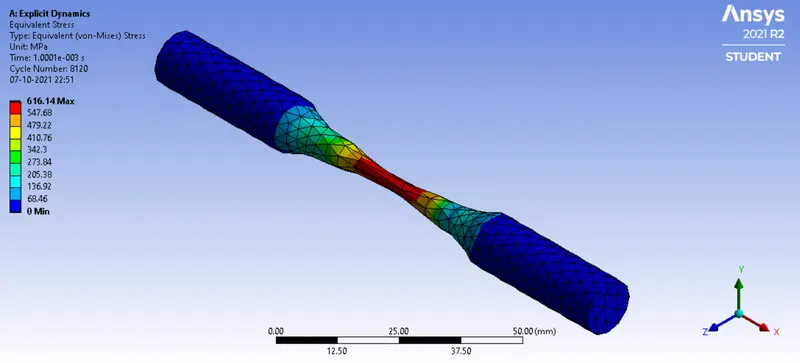

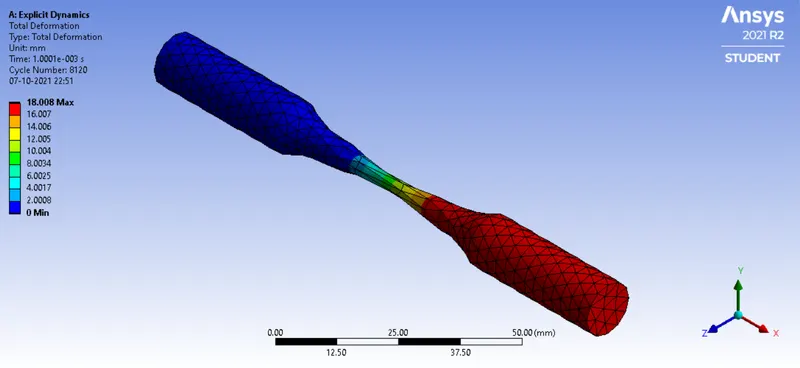

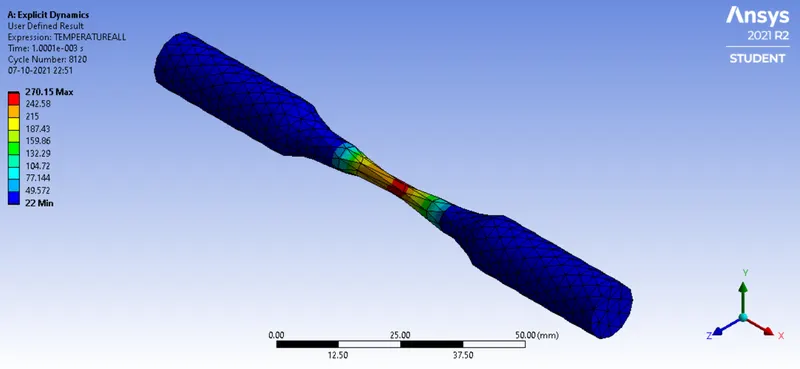

TENSION

Results

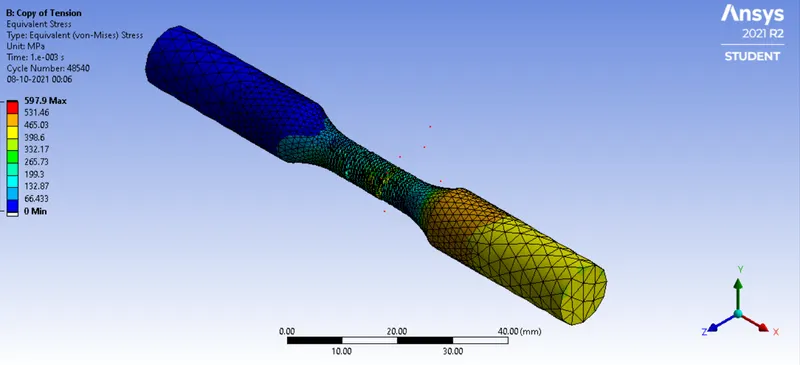

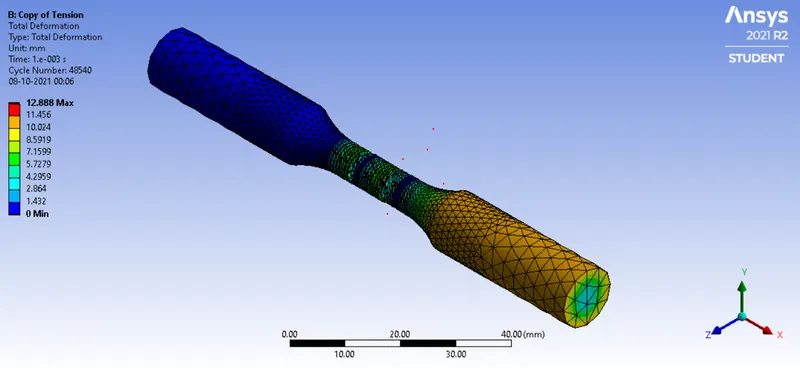

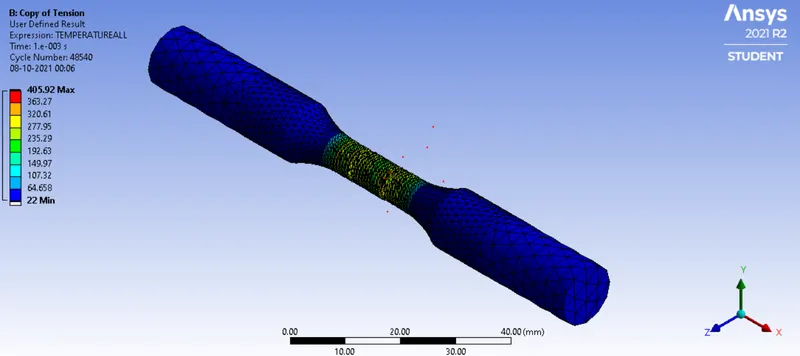

TORSION

Results
