Week 9 Tension and Torsion test challenge

OBJECTIVE:

• To Set up the model for Tension and Torsional test by Explicit dynamics analysis system

Steps for Tension test:

Import geometry:-

• Open the Explicit Dynamics Analysis system

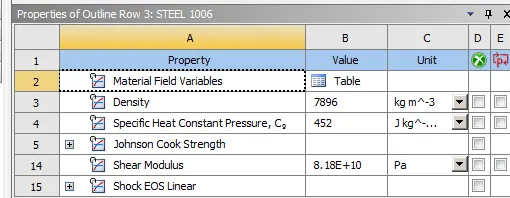

• Import Steel 1006 material from engineering data resources>Explicit materials

• Open the model in Space claim to see for any abnormalities

Mechanical workbench:-

• Rename the model if needed

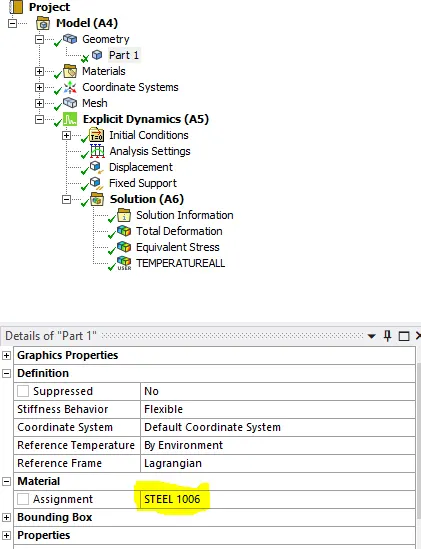

• Change the material to Steel 1006


Create New co-ordinate systems:-

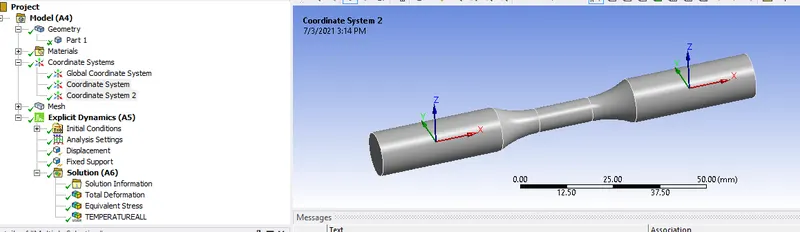

• Create two new co ordinate system on the two faces of specimen, lkie shown below




Mesh:-

• Insert Method and type as tetrahedron for whole body

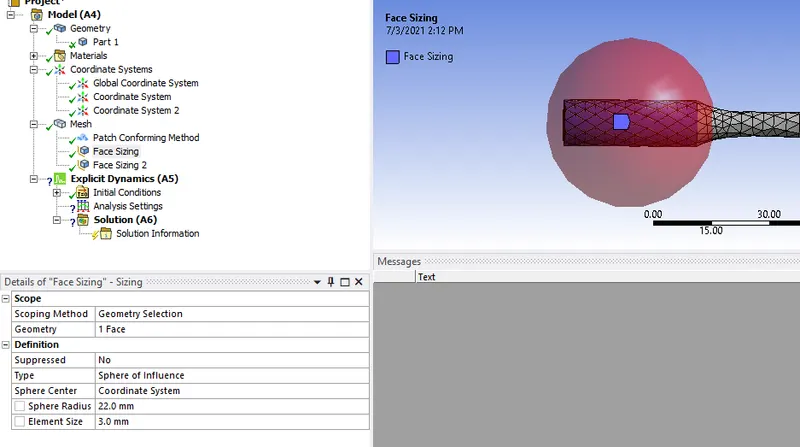

• Do face sizing for both the end of the model

• Same like above do the face sizing to the both ends

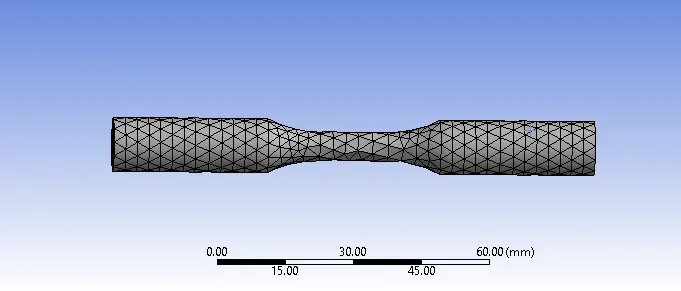

• Meshed model is shown in below image


Analysis Setting:-

• Define end time as 1E-03
• Do not change any other options

Define Load :-

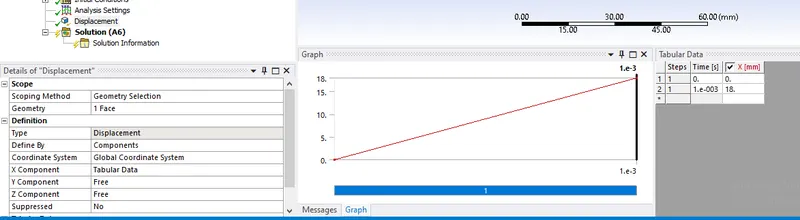

• Insert a displacement load on one end

• Insert a Fixed support on the other face

Output request:-

• We need solutions for total deformation , Equivalent stress and temperatue
• After the simulation is done select solution and go to worksheet
• From the worksheet list right click on temperature>user defined results
• Evaluate result for the same, you will have temperature output

Steps for Trosion Test:

Duplicate:-

• Duplicate the tension test and rename it as Torsion test
• Change few steps in existinf set up to perform this test

Create Co-ordinate system:

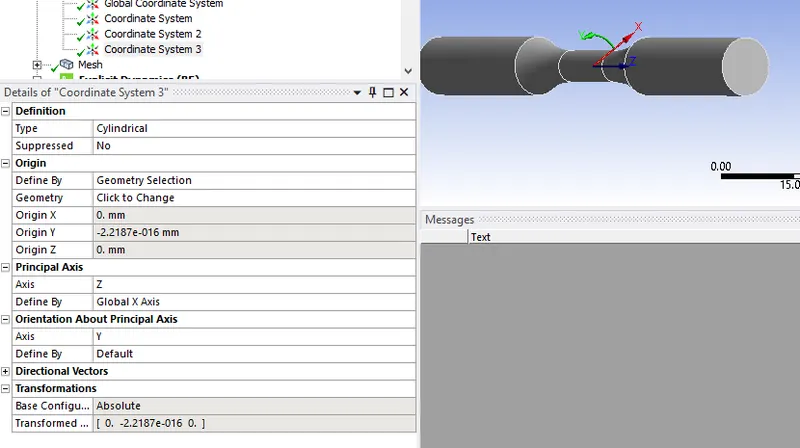

• Apart from the existing co-ordinate system creat new co-ordinate system of cylindrical type


Mesh:-

• Perform a Face sizing on the filleted area of the model with 1.5mm element size

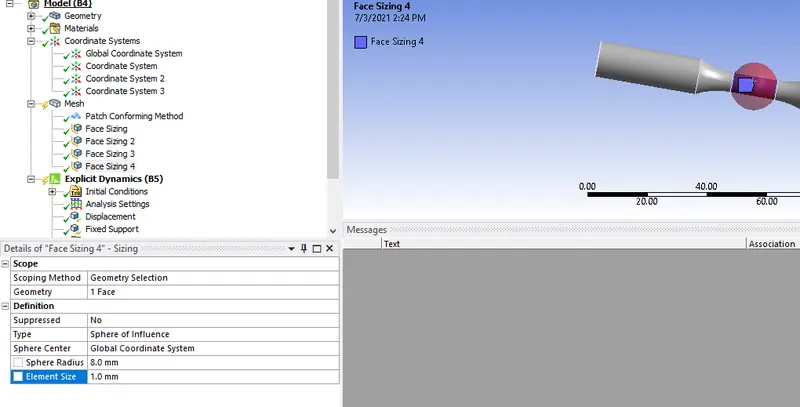

• Perform a Face sizing in the below shown region with global cordinate system

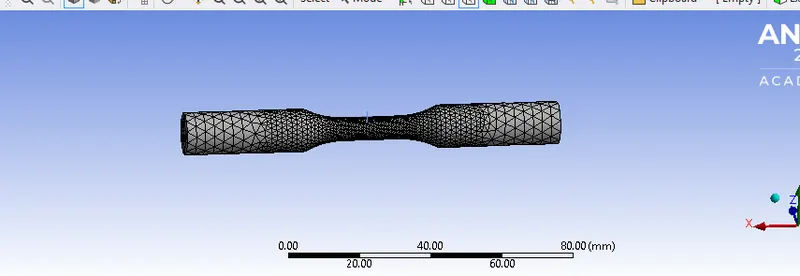

• Meshed model is shown below


Define load:-

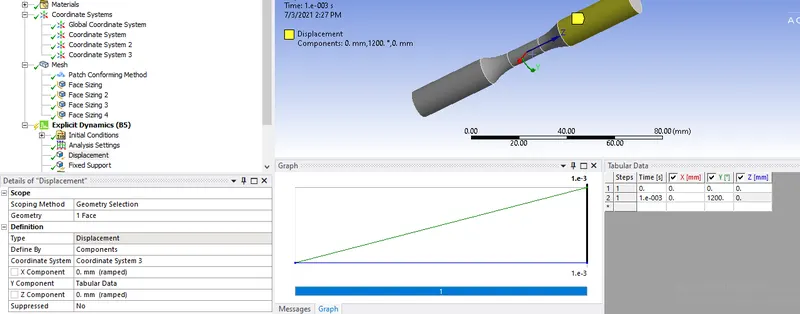

• There should be a change displacement load, like shown below



• Same output request for thus test also

RESULTS:

Tension test:-

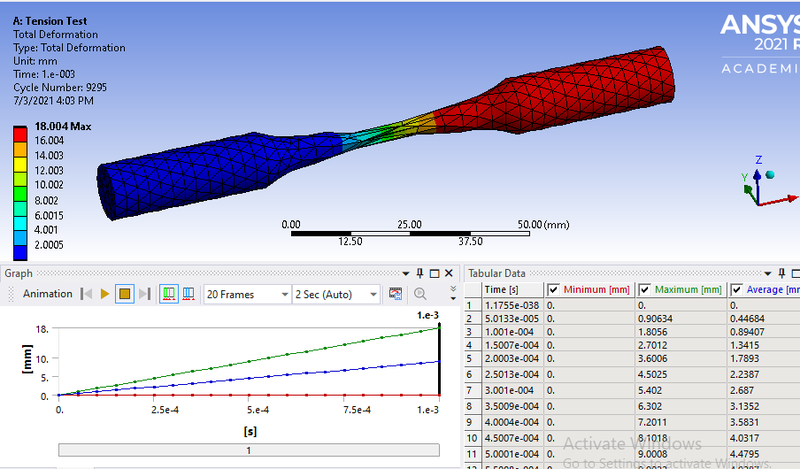

• Total Deformation

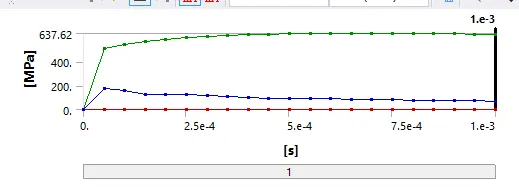

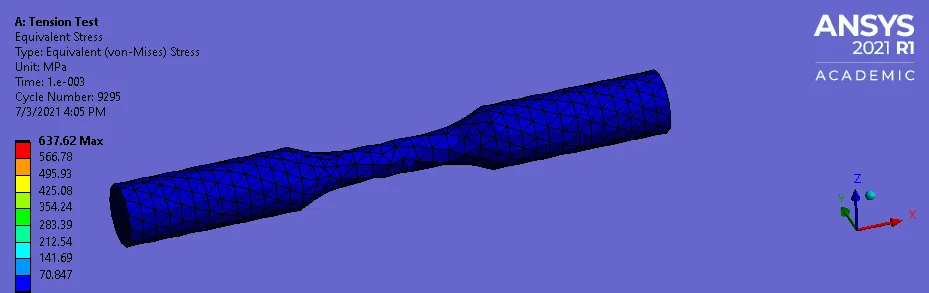

• Equivalent Stress

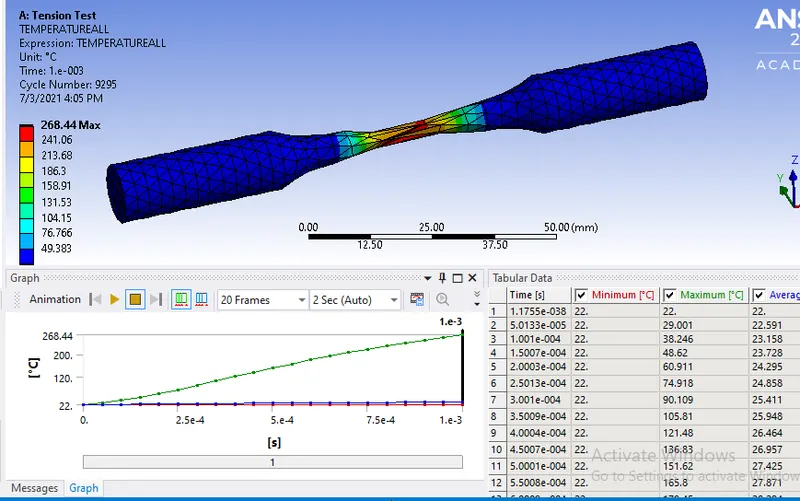

• Temperature



Torsion test:-

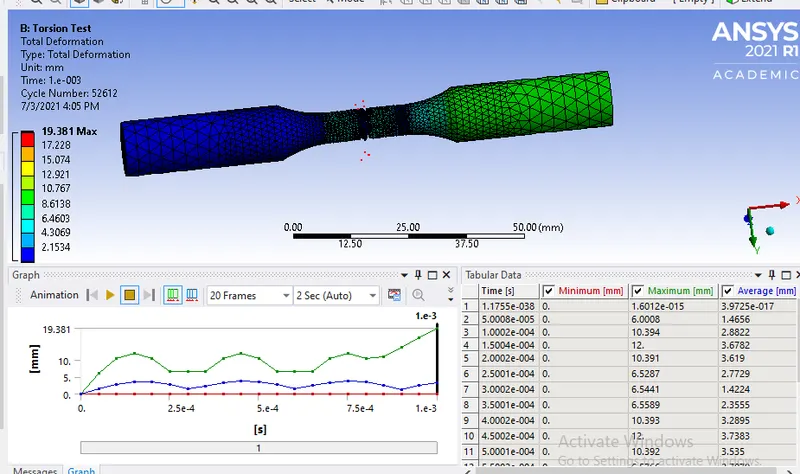

• Total Deformation

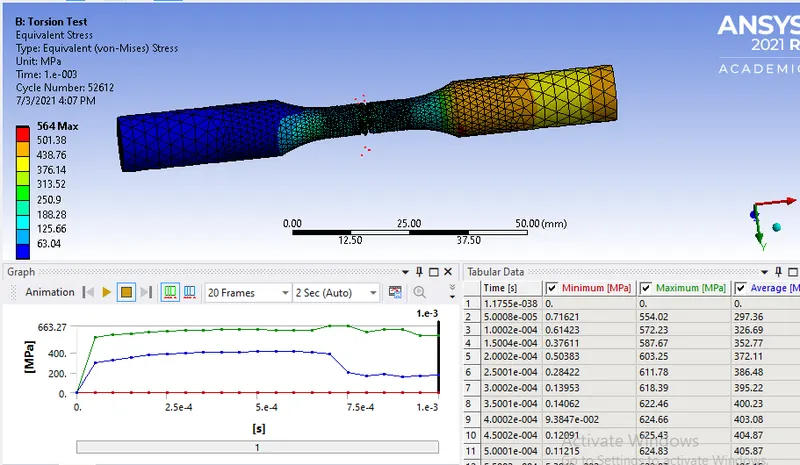

• Equivalent Stress

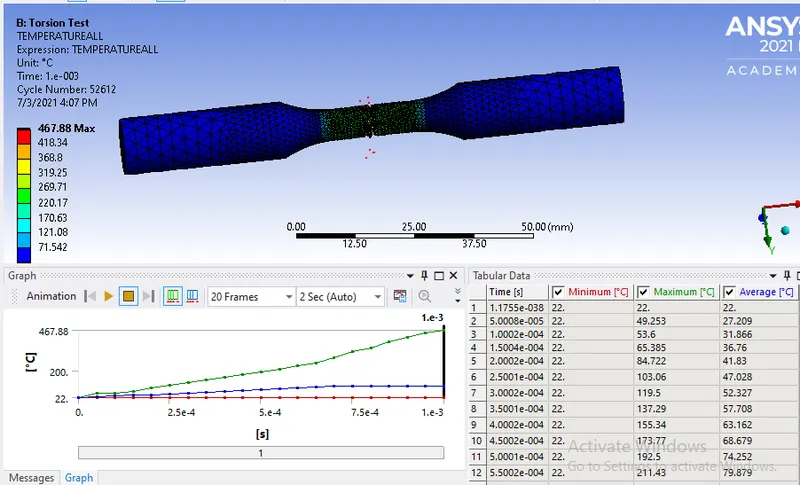

• Temperature



• Test	Total deformation(mm)	Equivalent Stress(Mpa)	Temperature(degree celsius)
  Tension	18.004	630.45	268.44
  Torsion	19.381	564	467.88

CONCLUSION:

• From the above results we can see the temperature is more in Torsional stress
• The stress Generated in Tension test is more
• In tension test the necking has happened there is no fracture in this case
• In torsion test the fracture of the model has been occured
• The material used is ductile material, this material holds good for tension test and it comparitively soon fails in shear ad torsion stress
• So by looking at the results we got a satisfying output
