Week 9 Tension and Torsion test challenge
Objective:
To find the Total deformation , Stress and Temperature of a steel 1006 test specimen and run the tension and torsional test.

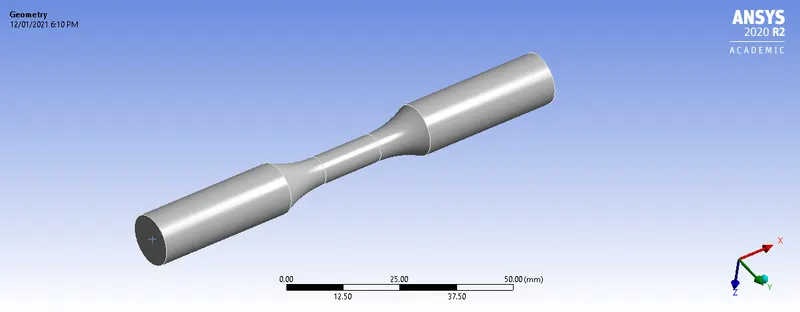

Model:

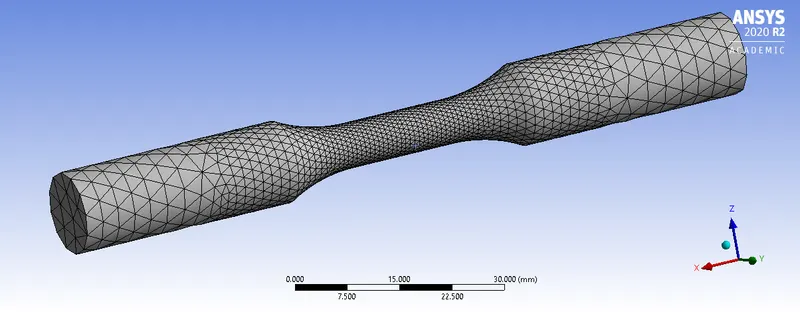

Mesh:
CASE 1: (TENSION TEST)
TOTAL DEFORMATION:
The total deformation is 18mm.
MAX STRESS:
Max Stress is 610Mpa
TEMPERATURE:
Max Temperature is 206 degree celcius
CASE 2:(TORSION TEST)

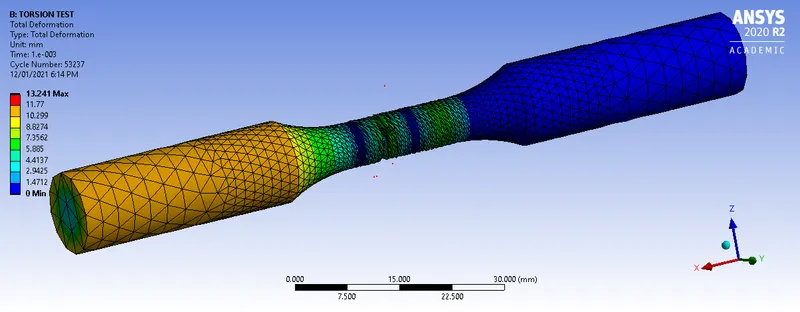

TOTAL DEFORMATION:

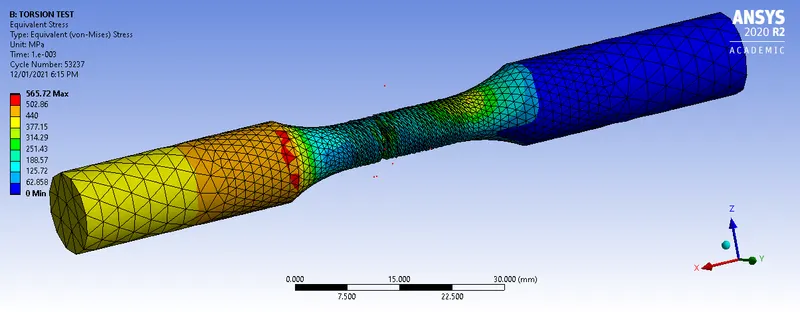

STRESS:
Max Stress is 565 Mpa

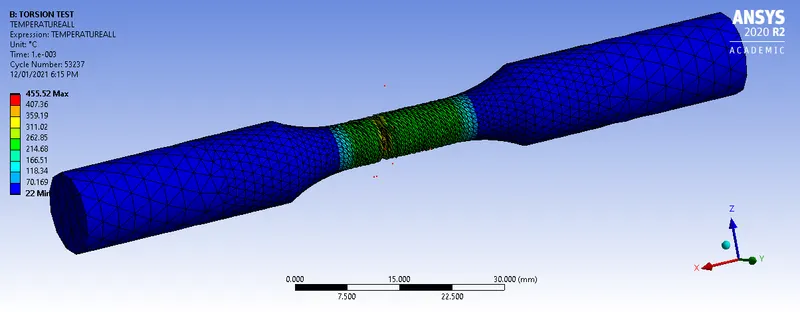

TEMPERATURE:
.
Max Temperature is 455 degree celcius
