Week 9 Tension and Torsion test challenge

Introduction

Tension Test:

Tensile testing, also known as tension test. It is a fundamental materials science and engineering test in which a sample is subjected to a controlled tension until failure. Properties that are directly measured via a tensile test are ultimate tensile strength, breaking strength, maximum elongation and reduction in area. From these measurements the following properties can also be determined:

• Young's modulus
• Poisson's ratio
• Yield strength
• Strain-hardening characteristics.

Uniaxial tensile testing is the most commonly used for obtaining the mechanical characteristics of isotropic materials

Torsion Test:

Torsion testing is a type of mechanical testing that evaluates the properties of materials or devices while under stress from angular displacement. Torsion testing can be split into two distinct categories: testing raw materials like metal wires or plastic tubing to determine properties such as shear strength and modulus, or functional testing of finished products subjected to torsion, such as screws, pharmaceutical bottles, and sheathed cables. The most common mechanical properties measured by torsion testing are:

• Modulus of elasticity in shear
• Yield shear strength
• Ultimate shear strength
• Modulus of rupture in shear
• Ductility
  • In Tension test, while keeping the one end fixed, other end will be displaced in linear direction.
  • In Torsion test, while keeping the one end fixed, other end will be displaced in the angular direction.

    Analysis

    Here we will perform Explicit Dynamic analysis for Tension and Torsion test on a specimen.

    There will be two different analyses on a same specimen with different type of displacement.

• On applying the load of the displacement for Tension and Torsion test, we will measure different parameters such as Stress, Strain and Deformation.

  There is an increase in temperature with deformation of a specimen. So we will also measure the temperature for the specimen

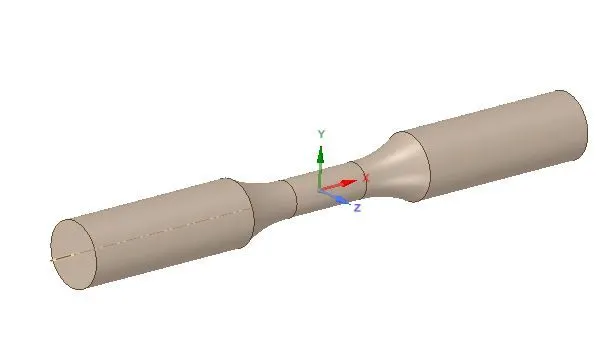

• Geometry:



Material : Use Steel 1006 and assign it ti the geometry

Mesh:

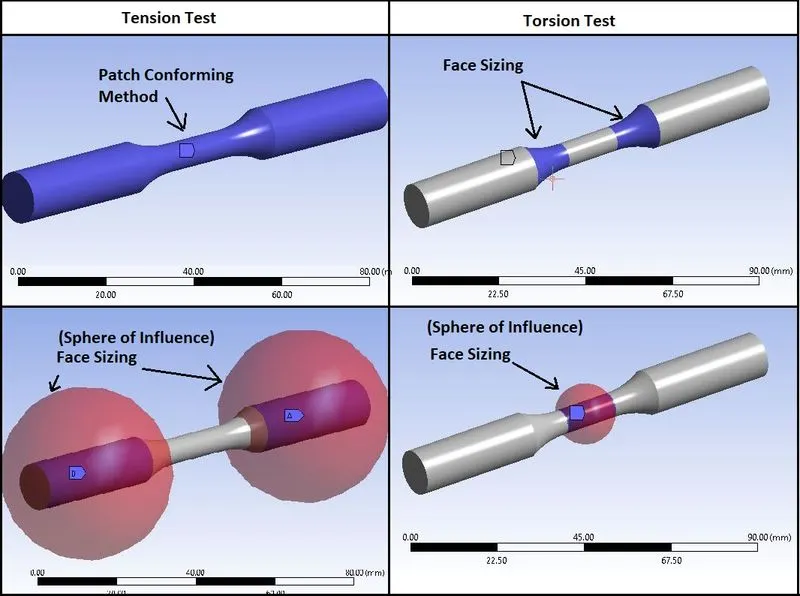

• Here for Tension Test, we have used Patch conforming method and used Tetrahedron meshing for the Specimen body.
• Also for the sizing of the grip section, we have used face sizing and sizing is applied with help of “Sphere of Influence”.
• For Torsion Test, in addition to above mesh criteria, we have used face sixing for the Shoulder areas.
• And for the Neck portion, face sizing is done with help of “Sphere of Influence”.

Coordinate System:

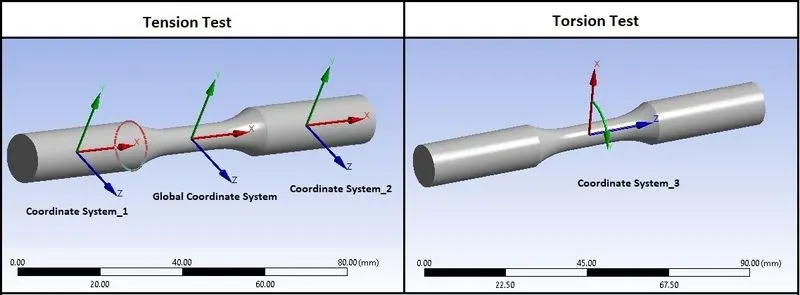

For proper meshing, and use of “Sphere of Influence”, we have used different coordinate system as given below:

• Coordinate systems generated on the shoulder area are used for the “Sphere of Influence in face sizing of different portions in Tension and Torsion Test.
• Cylindrical coordinate system as shown in above image is used for the angular displacement in Torsion Test.

Mesh Details:

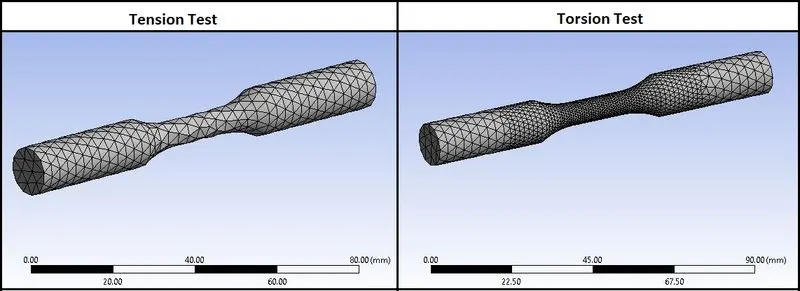

Meshing parameters for Tension as well as Torsion test are as given below:

• Patch conforming method: Tetrahedron
  • Body : Specimen
• Face Sizing: 2 Grip Faces
  • Type: Sphere of influence
  • Sphere Centre: Coordinate system 1 & 2
  • Sphere Radius: 22mm
  • Element Size: 3 mm
• Face Sizing: Neck Portion
  • Type: Sphere of influence
  • Sphere Centre: Global Coordinate system
  • Sphere Radius: 8 mm
  • Element Size: 1 mm
• Face Sizing: 2 Shoulder Areas
  • Element Size: 1.5 mm

Procedure:

• Import model in Explicit Dynamics in Geometry section.
• Then go to Mechanical model section.
• Check or Rename the Part of the setup as “Specimen” as shown in above geometry image.

Boundary Conditions:

• After meshing as described above, create Boundary Conditions as given below:

Analysis Settings:

• No.of Steps: 1
• End Time: 1e-3
• Maximum Number of Cycles:1e+07
• Initial Time Step: Program Controlled
• Minimum Time Step: Program Controlled
• Maximum Time Step: Program Controlled

Fix Support (For Tension & Torsion Test):

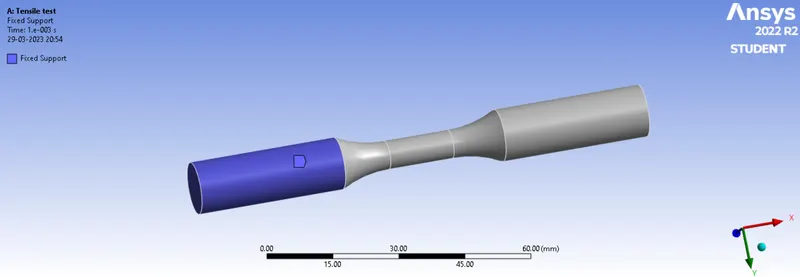

• Keep one end of the specimen as a fixed to see the effect of Tension and Torsion as below:
•

Displacement (For Tension Test):

• Apply Displacement to one end of the specimen with Global coordinate system in order to give a uniaxial Tension as below:

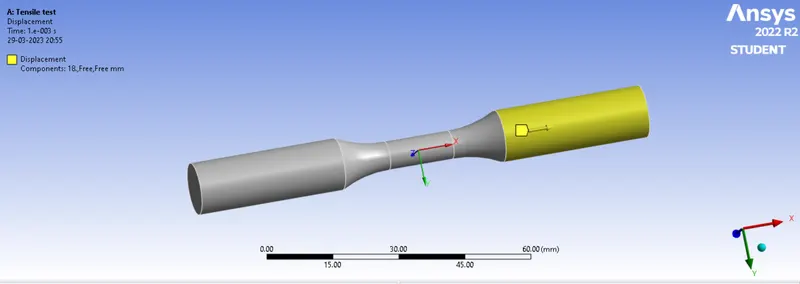

• Here the Displacement to the one end of the specimen is given up to 18 mm in Global X- Direction.

Displacement (For Torsion Test):

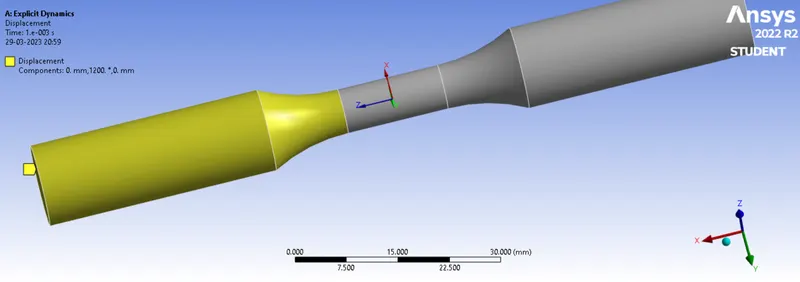

• Apply Displacement (Angular) to one end of the specimen in order to generate torsion with angular displacement with help of Cylindrical coordinate system (Coordinate system 3) as below:
• Here the Angular Displacement to one end of the specimen is given up to 1200 degree with help of Cylindrical coordinate system (Coordinate system 3) generated at the Neck portion in local rotational Y-Direction.
• Here the displacement in X and Z direction is set to 0 in order to avoid the displacement in that direction.

Solution:

• After giving proper boundary conditions, create desired solutions for output results.
• Create Solutions for :
  • Equivalent Stress
  • Equivalent Elastic Strain
  • Total Deformation
  • User Defined Result: Temperature ( With help of Worksheet)

Results:

• Now we will see all the results for Tension and Torsion Test.

Tension Test Results:

Total Deformation:

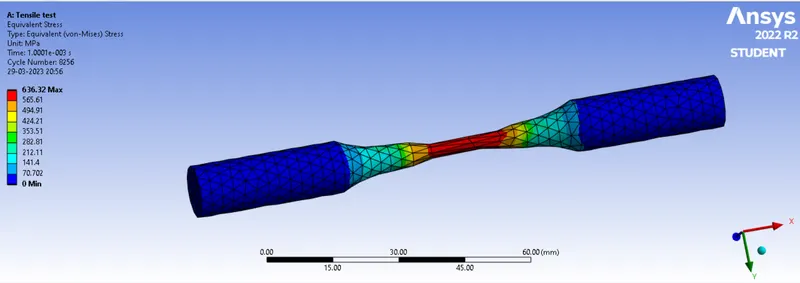

Equivalent Stress

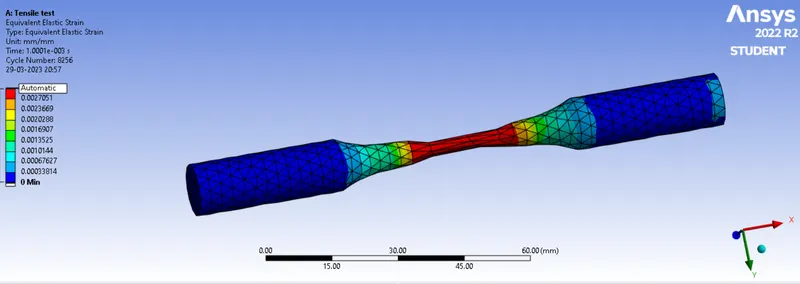

Equivalent Strain:

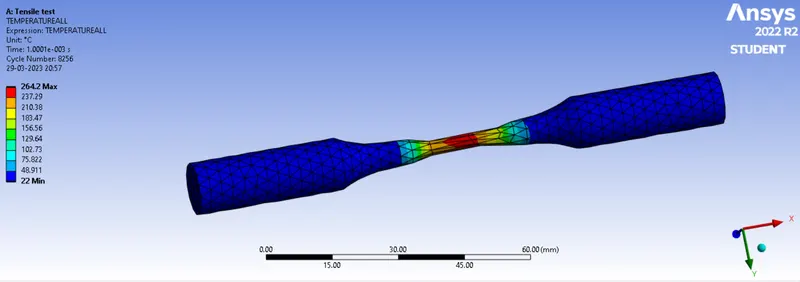

Temperature:

Torsion Test Results:

Stress Contours:

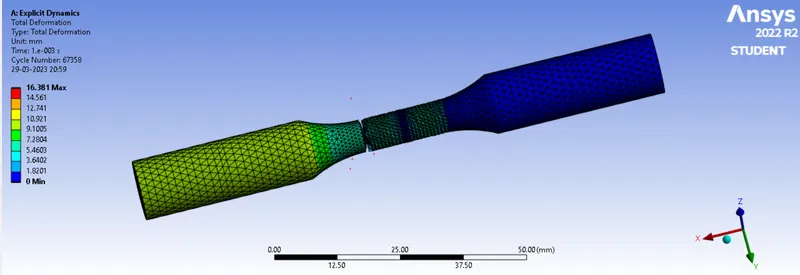

Total Deformation:

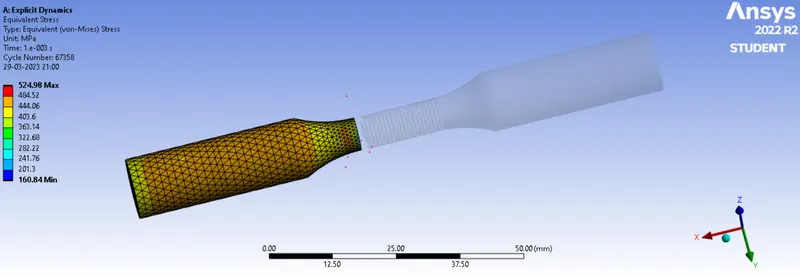

Equivalent Stress

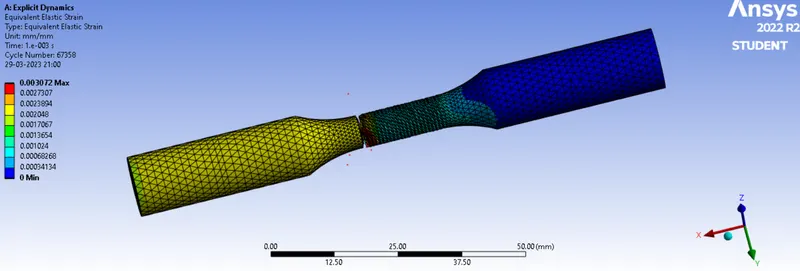

Equivalent Strain

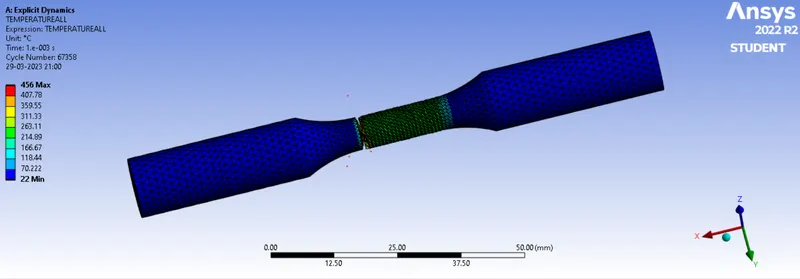

Temperature

Comparision

Result	Total Deformation(mm)	Equivalent Stress (MPa)	Equivalent Strain	Temperature( c)
Tension Test	18.005	636.32	0.0027051	264.2
Torsion Test	16.381	524.98	0.003072	456

Conclusion:

• From the above results, we can conclude that the failure of the specimen in Tension Test is due to permanent deformation due to elongation and due to neck generation. This concludes that failure of the Specimen is due to max. Tensile Stress.
• Failure of the Specimen in the Torsion Test shows, the flat failure surface. This concludes that failure is due to Max. Shear Stress. Also it is ductile material, which indicates the failure in the Plane of maximum sheer stress perpendicular to the axis of the Specimen.
• Also we can see that Temperature in Torsion Test is very high due to high sheer stress.
• In Tension Test, Lateral Stress also occurs due to axial tension and reduction of the cross section area at neck portion.
• In Torsion Test, Shear Stress is important due to twisting of the specimen in the angular direction.
• As the material is Steel 1006, we know from the results that, the fracture in Tension Test initiates in the necked portion.
• For the Torsion Test fracture is occurring in flat surface, or in Shear plane, so steel is failing at large shear strains.
• Here the temperature is also important factor in both the Tests, as we know that at higher temperature elongation or fracture of the material can differ.
• Effectiveness and quality of materials used in manufacturing play a crucial role in bringing about marketplace success. Tensile tests help determine the effectiveness and behavior of a material when a stretching force acts on it. Tensile tests are done under optimum temperature and pressure conditions and determine the maximum strength or load that the material can withstand.
• The purpose of a torsion test is to determine sample behavior when twisted, or under tensional forces, as a result of applied moments that cause shear stress about the axis. Measurable values include: the modulus of elasticity in shear, yield shear strength, tensional fatigue life, ductility, ultimate shear strength, and modulus of rupture in shear. These values are dissimilar to those measured by an axial tensile test and are important in manufacturing as they may be used to simulate the service conditions, check the product’s quality and design, and ensure correct manufacture.
