Week 9 Tension and Torsion test challenge

OBJECTIVE

To perform the tension and torsion test on the specimen

For the Tension Test dipslace one end of the specimen to 18mm while keeping the other fixed

For the Torsion Test displace one end  of the specimen to an angle of 1200 degree while keeping teh other fixed

Find out the total defomation equivalent stress and tempertaure of the specimen

 PRODECURE

Tension Test

Create Explicit Dynamics in Ansys workbench and in engineering data select the material steel 1006 from explicit materials

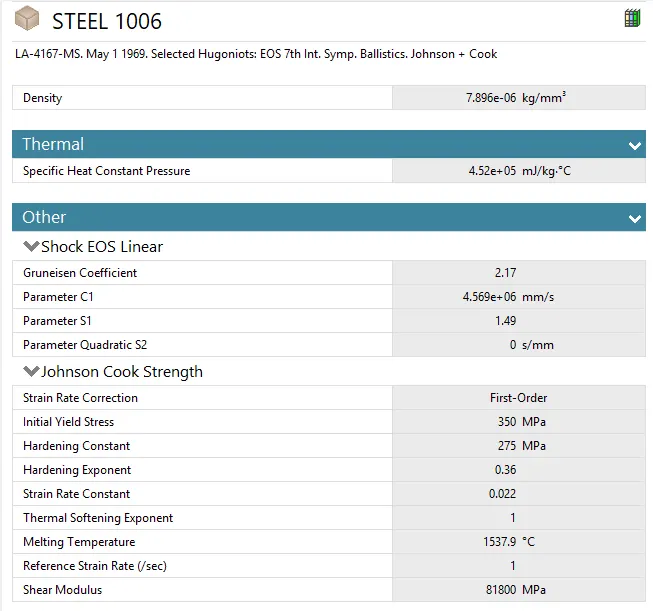

Steel 1006

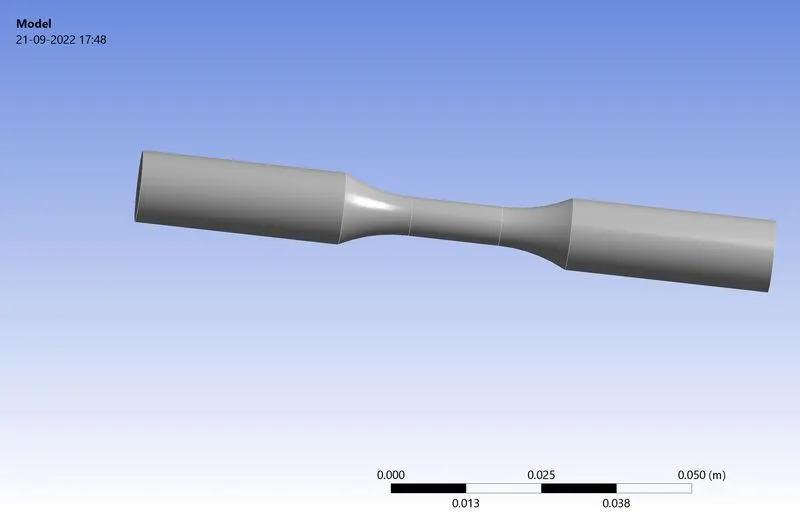

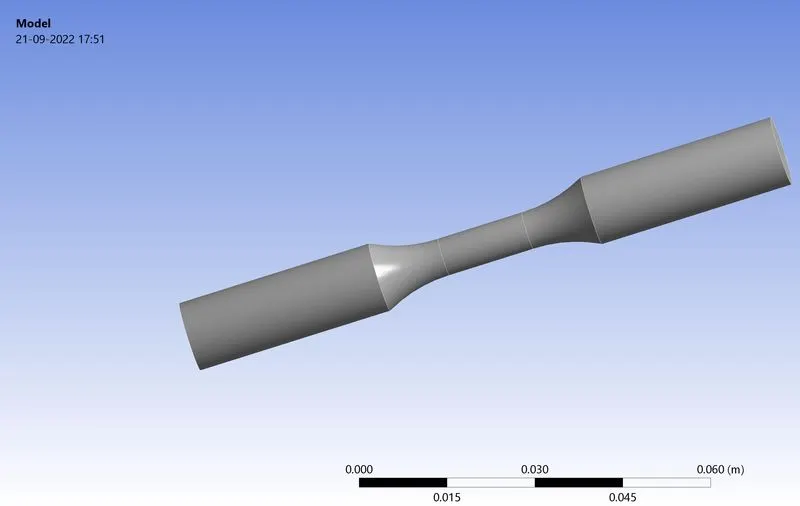

Import the geometry and check in Spaceclaim for any irregularties

Then open Ansys mechanical and assign the steel 1006 and material to the components

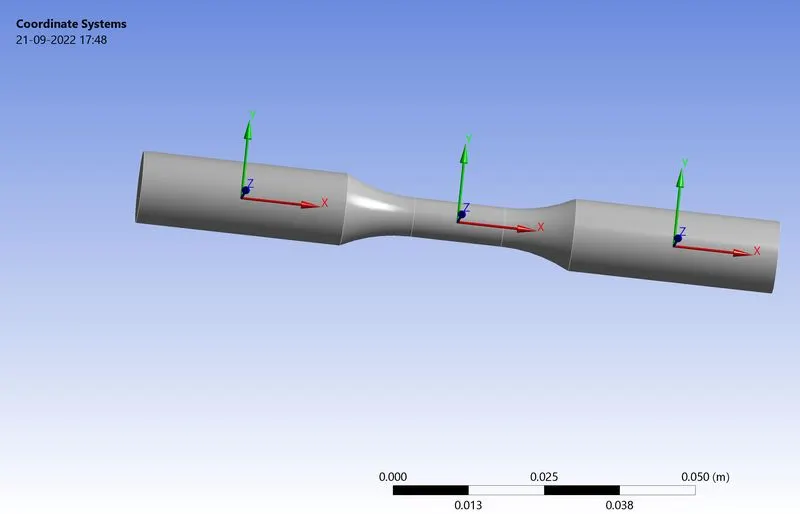

Coordinate System  For meshing two additional carestian system are defined

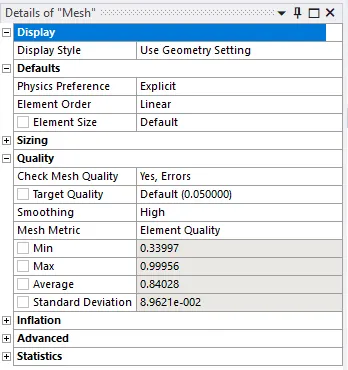

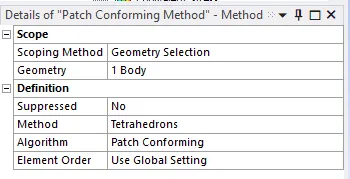

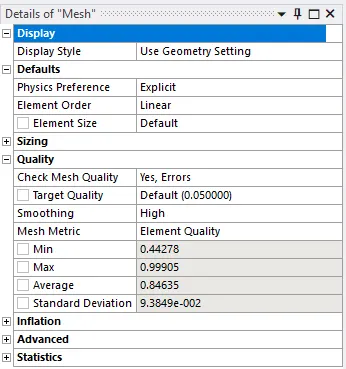

Mesh   The model is meshed by using Patch conforming method and tetrahedrons used.

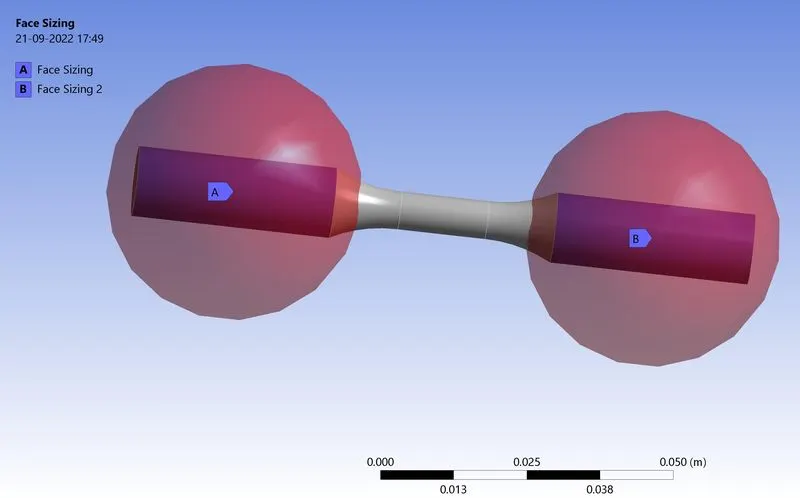

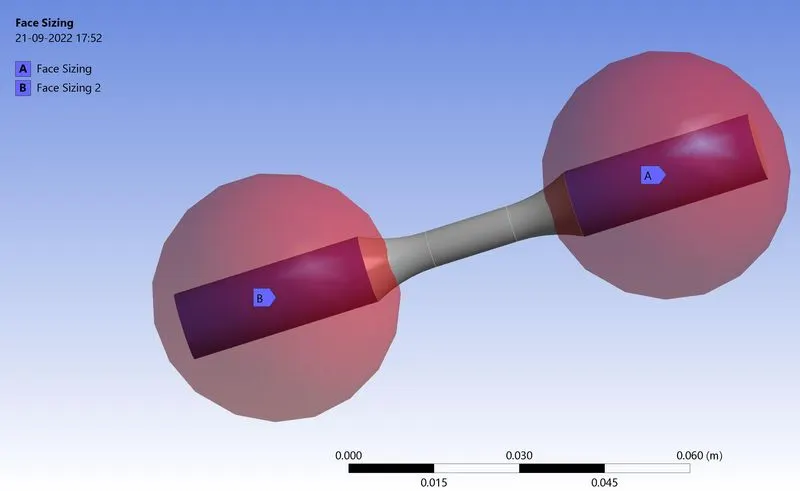

Face sizing   Face sizing option used .Type set to sphere of influence with sphere center as the center of the manually defined coordinate system and sphere  radius of 22mm and element size of 3mm

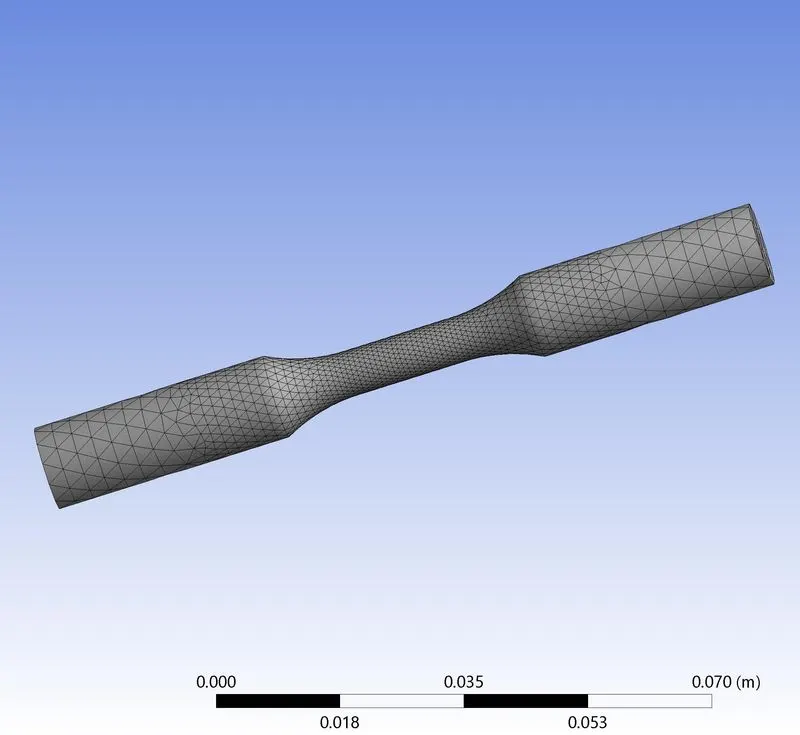

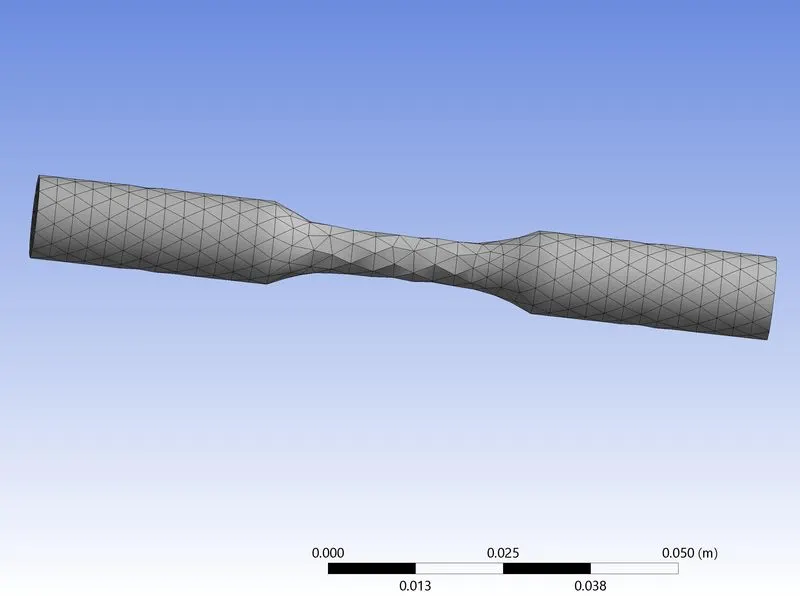

Final Mesh

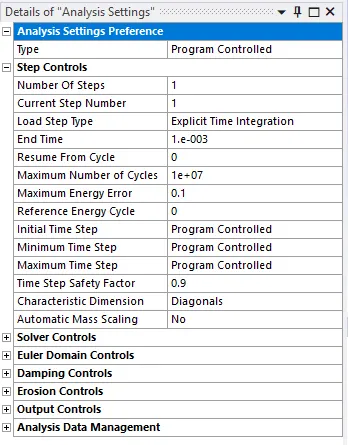

Analysis Setting   Set end time as 1e-3 and all the setting set to default

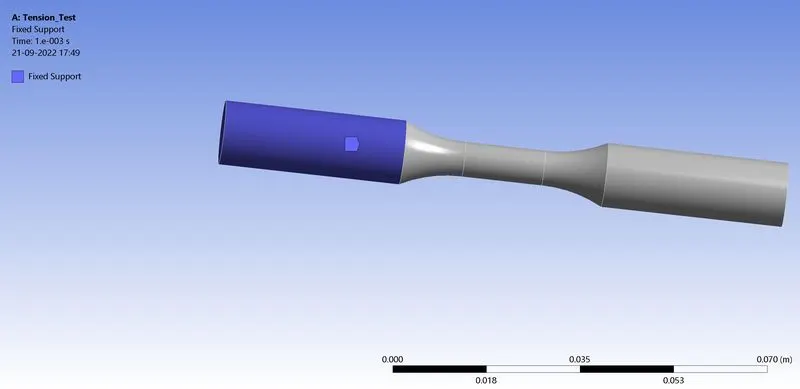

Fixed Support    One end of the specimen is fixed

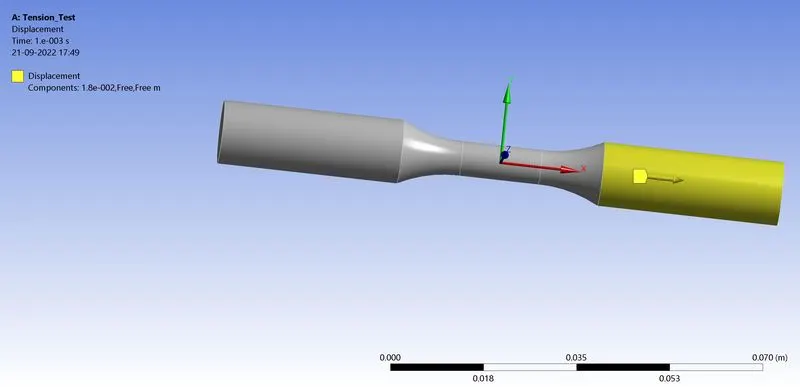

Displacement    Displace other end of the specimen to 18mm



Result      The analysis runs successfully and results obtained

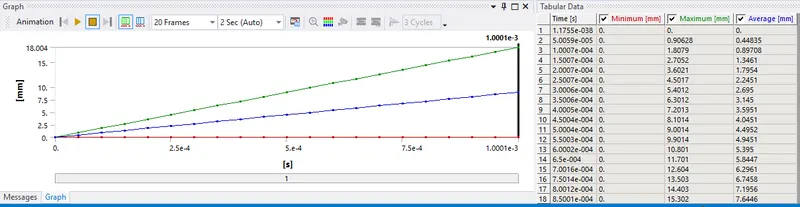

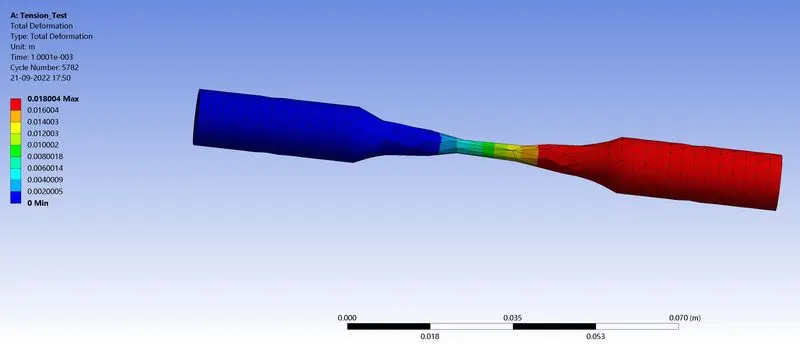

Total Deformation Max - 18.004mm

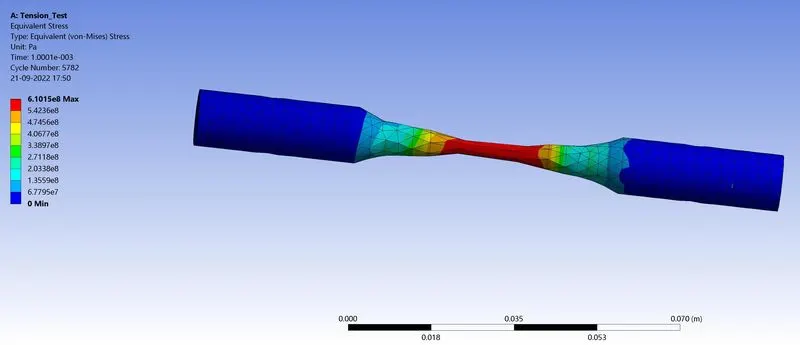

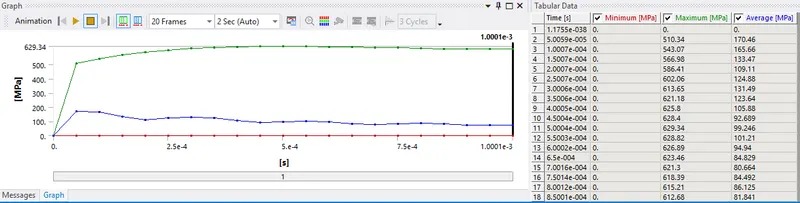

Equivalent Stress Max - 610.15 Mpa

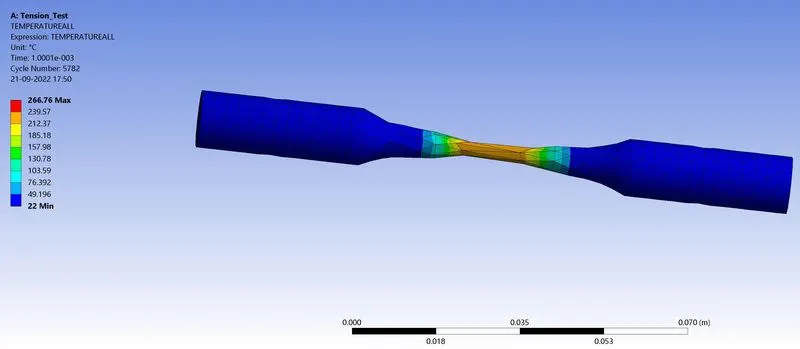

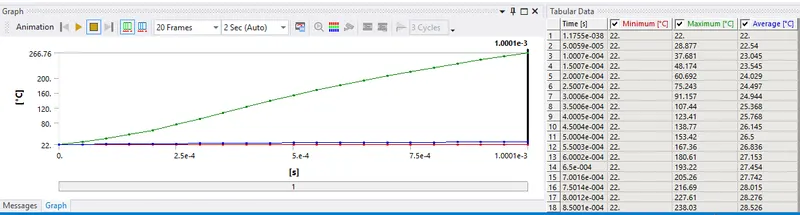

Temperature Max - 266.76 Degree Celsius





Conclusion

• Max equivalent stress is developed in the center portion of the workpiece where neck formation occurs
• Maximum Temperature is developed at the center portion
• The maximum deformation of the workpiece is 18.004 which matches the given displacement value

Torsion Test

Create Explicit Dynamics in Ansys worrkbench and in engineering data select the material steel 1006 from explicit material

Steel 1006

Import the geometry and check in spaceclaim for any irregularties

Then open Ansys Mechanical and assign the steel 1006 material to the components

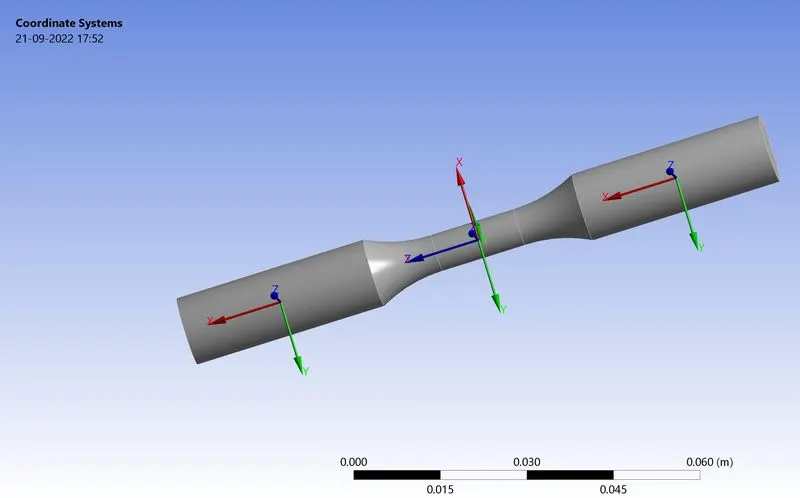

Coordinate System   For meshing two additional carestian coordinate system are defined and one cylindrical coordinates defined



Mesh   The model is  meshed by using batch conforming method and tetrahedrons used.

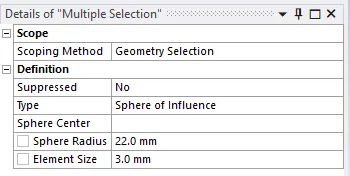

Face Sizing   Face Sizing option used Type set to sphere of influence with sphere center as the center of the manually defined coordinate system and sphere radius of 22mm and element size of 3mm

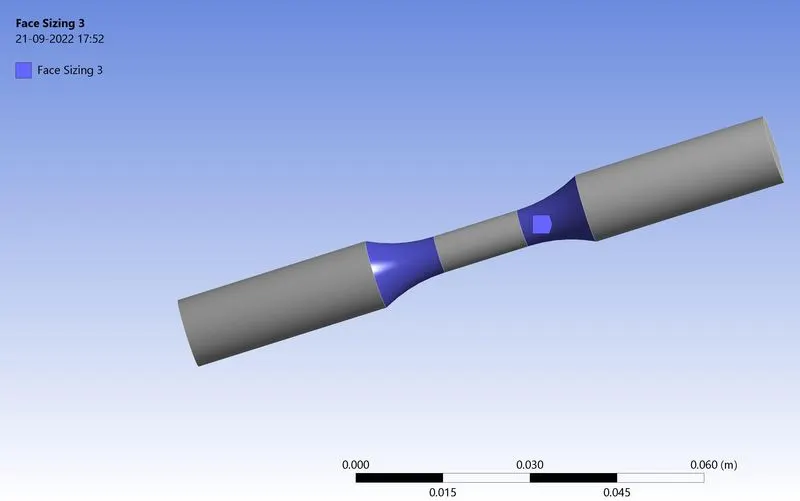

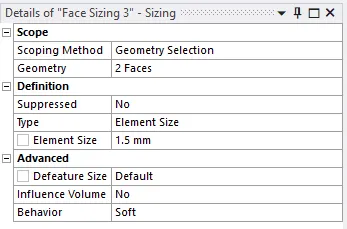

Face Sizing   2Face of the specimen in meshed with element size of 1.5mm

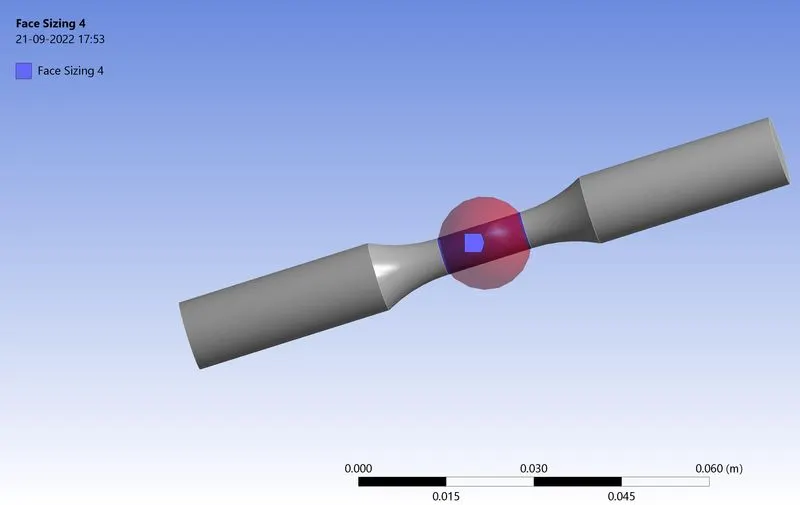

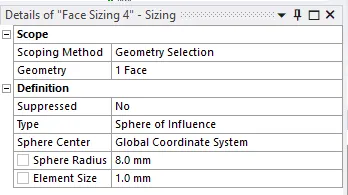

Face Sizing Type set to sphere of influence with sphere center as the center of the manually defined system and sphere radius of 8mm and element size of 1mm



Final Mesh



Analysis Setting  Set endtime as 1e-3 and all the the setting set to default

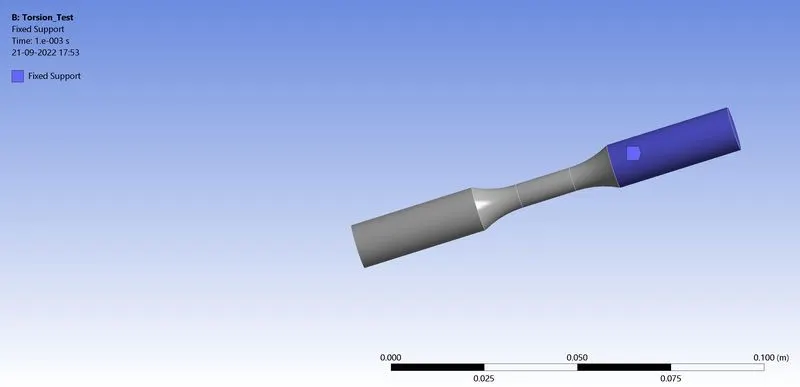

Fixed Support   One end of the specimen is fixed

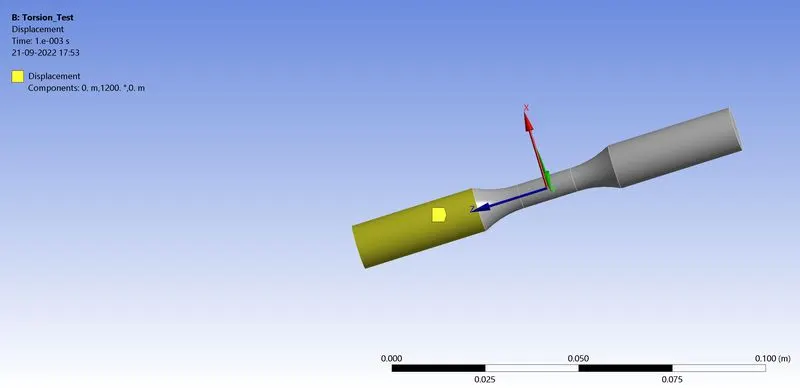

Displacement   Displace one end of the specimen to an angle of 1200 degree



Run the simulation and results obtained

Result The analysis runs successfully and results obtained

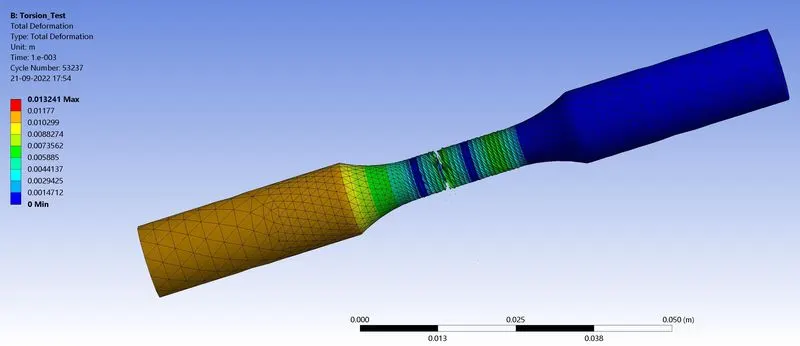

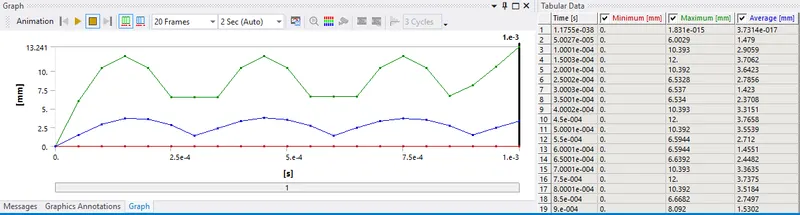

Total Deformation Max - 13.241mm

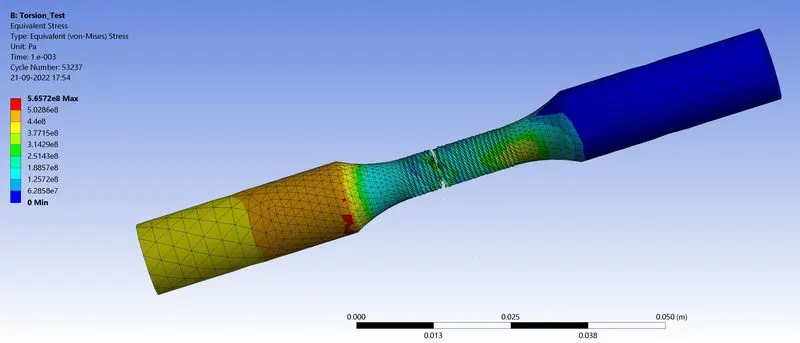

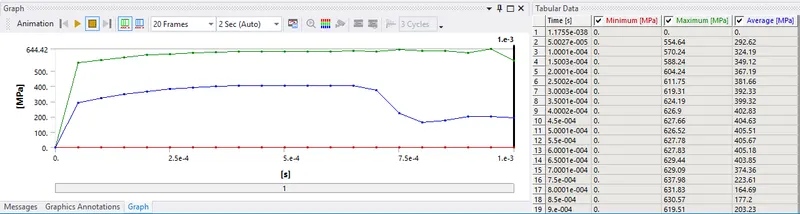

Equivalent Stress Max - 566.72 Mpa

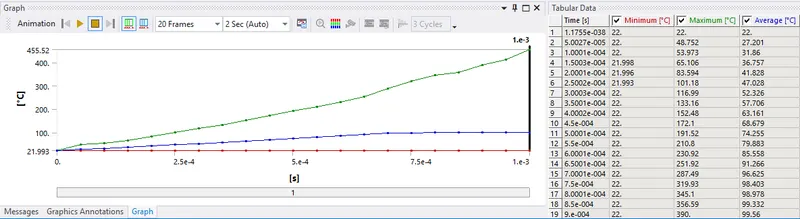

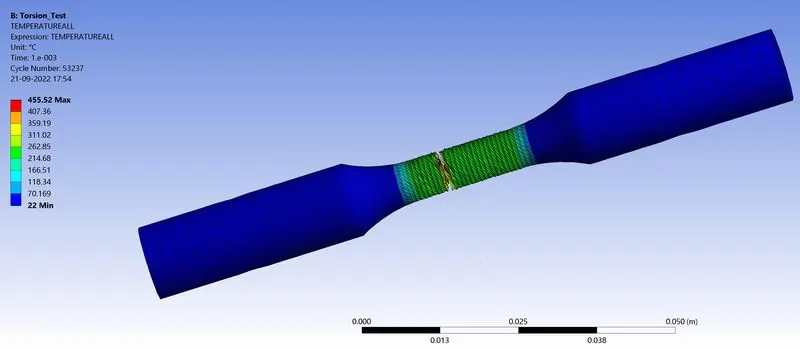

Temperature Max - 455.52 Degree Celsius





CONCLUSION

• Max equivalent stress is developed in the center portion of the workpiece
• Maximum Temperature is developed at the center position
