Week 9 - Project - Master Section Development

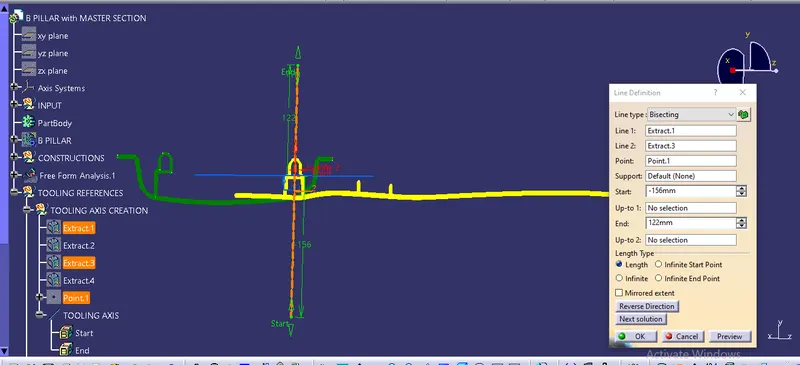

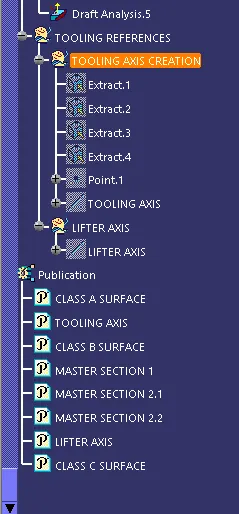

PART1-:Creating Tooling axis
PART 2-: Construction

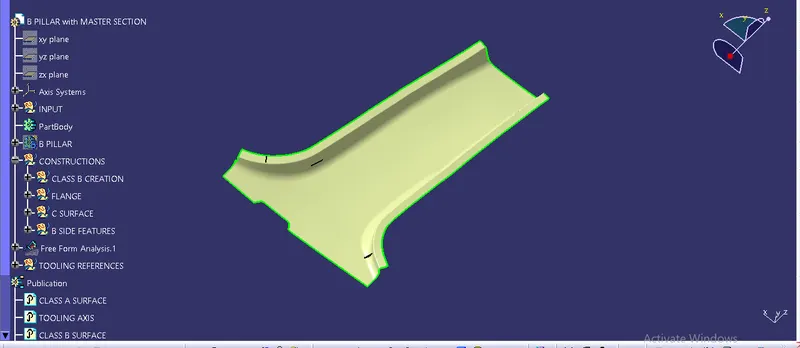

1) Class A surface with flange.
2) Class B surface.
3) Class B surface with flange.

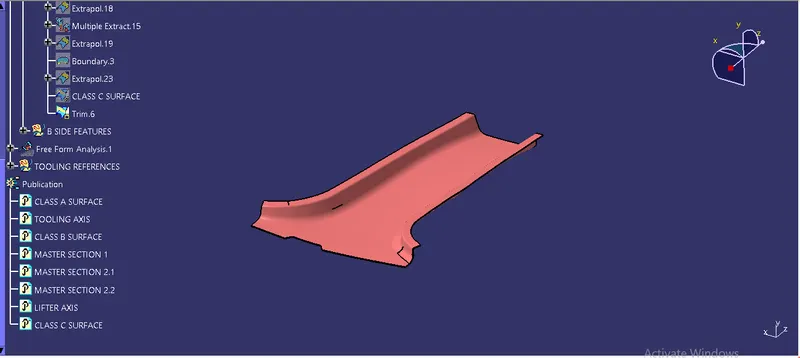

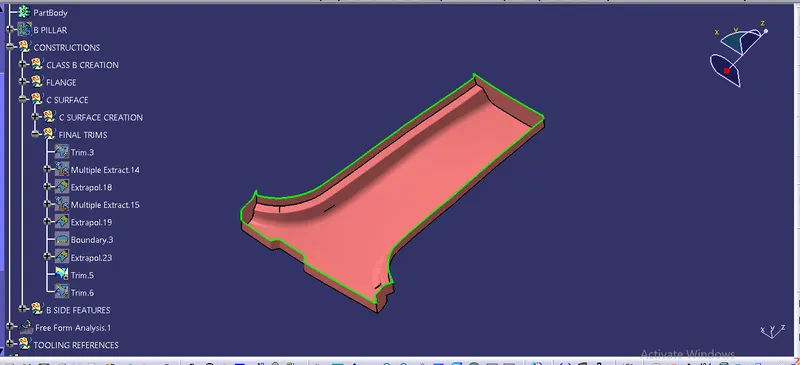

4) Class C surface.

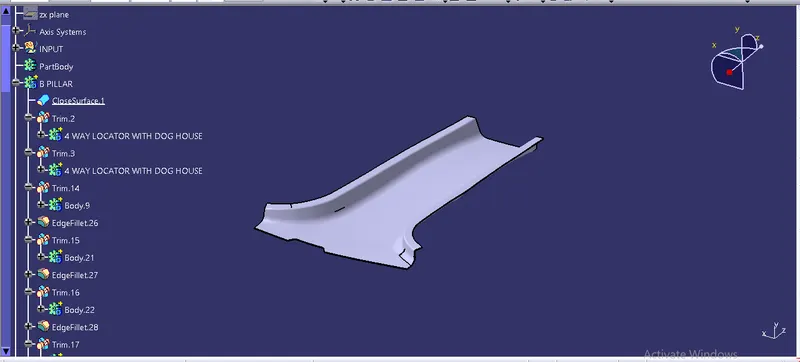

5) Closed surface.
6) Closed Body.
7) Dog House and Four way locators.

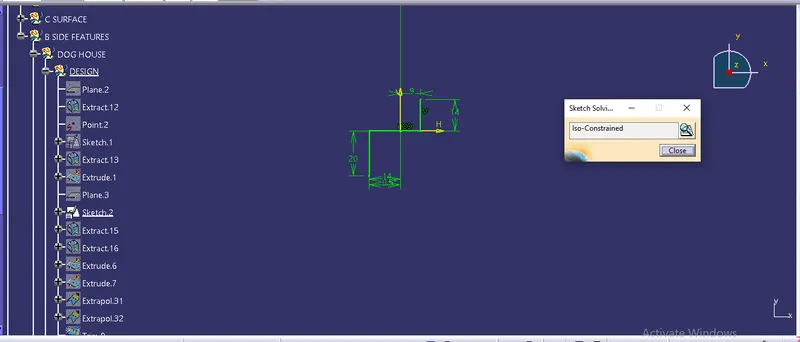

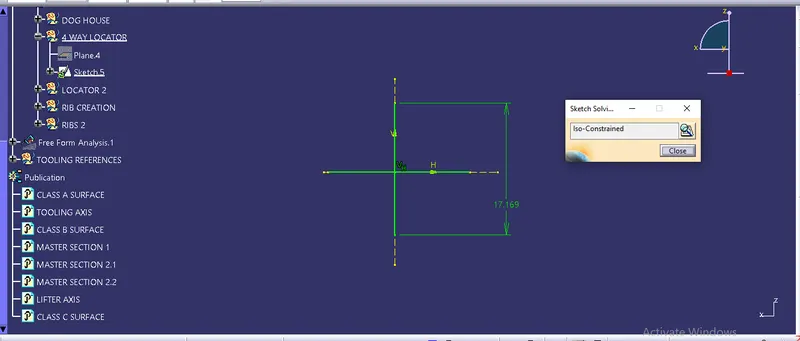

Sketch
Four way locator.
Dog house with four way locator.

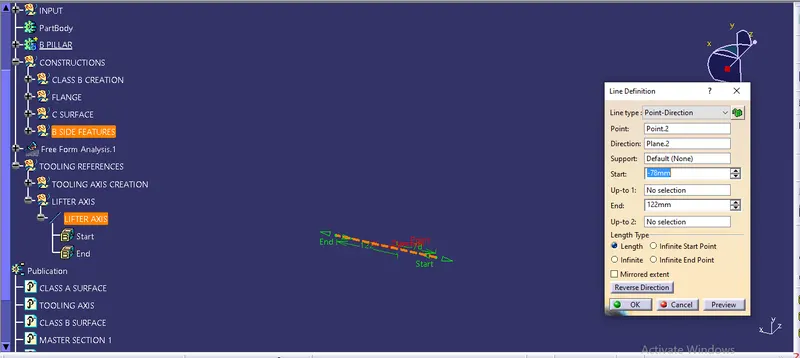

8) Creating Lifter axis.
9) Ribs.
Sketch lines.
Ribs on pillar.

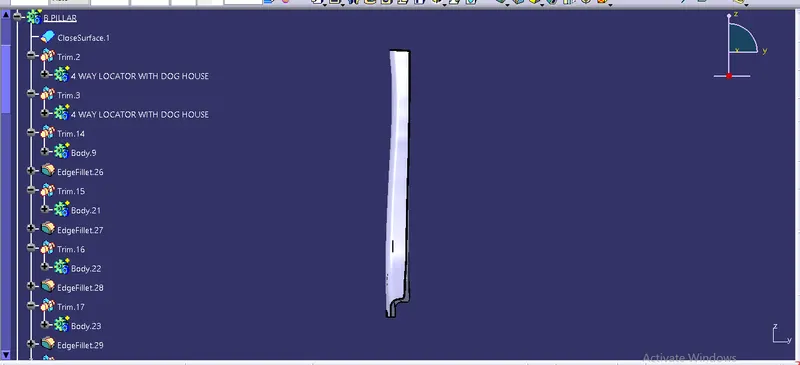

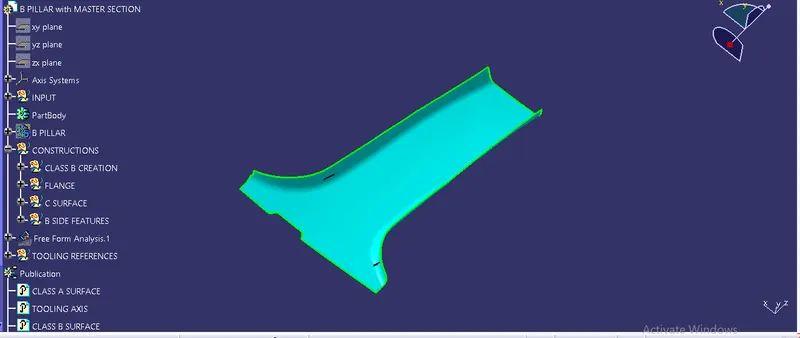

B pillar views.

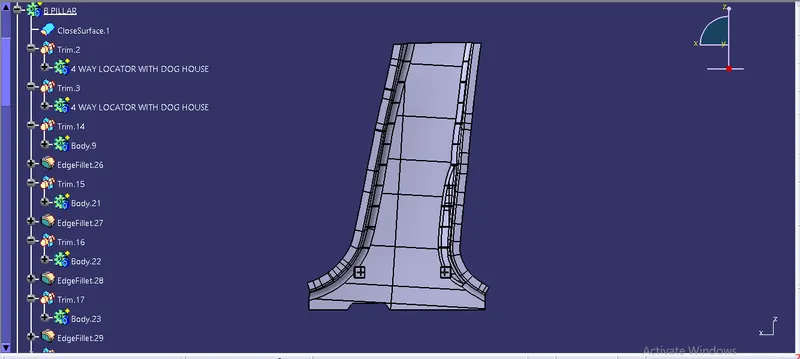

1. Isometric View.

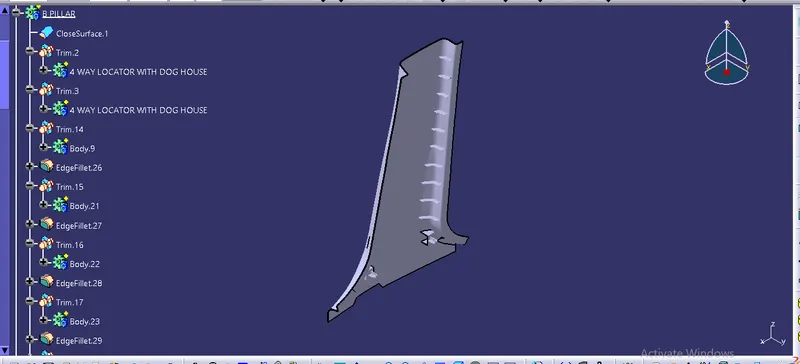

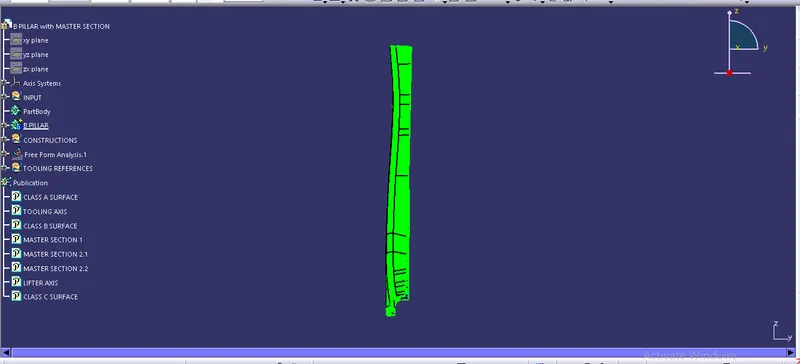

2. Front view.

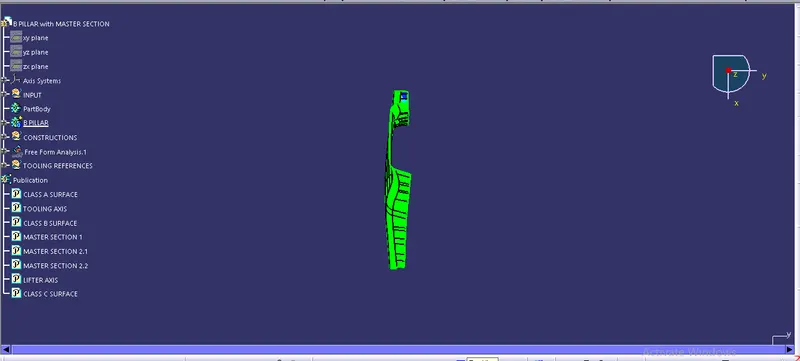

3. Side view.

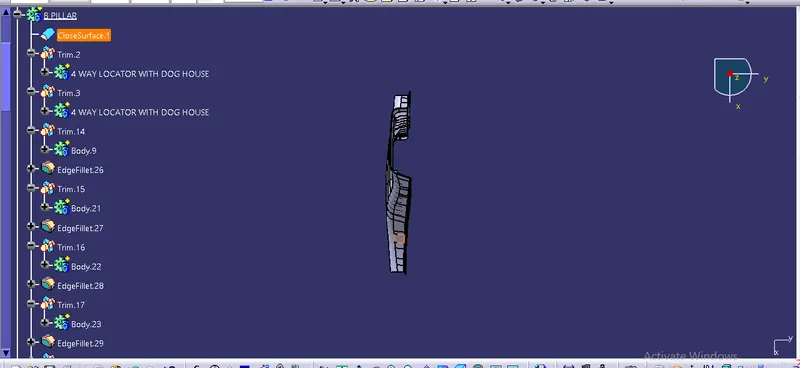

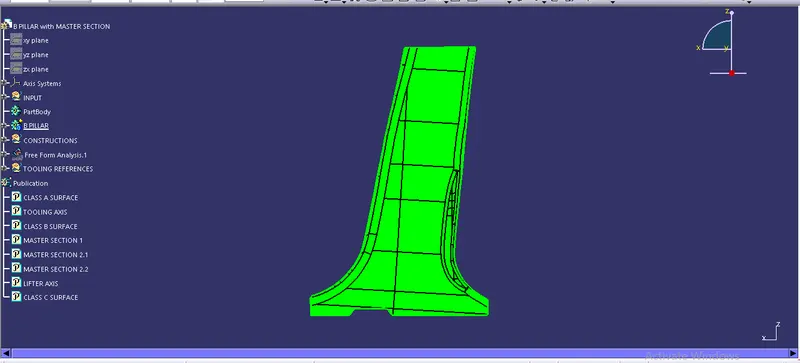

4. Top view.
PART 3-: Draft analysis.

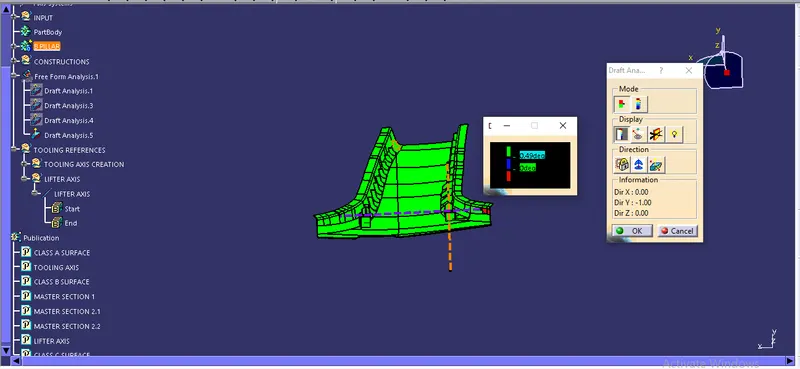

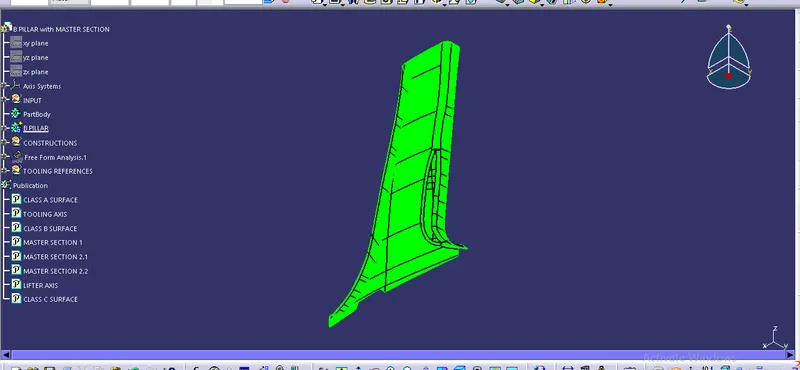

1) Draft analysis on class A surface.
1. Isometric view.
2. Front view.
3. Side view.
4. Top view

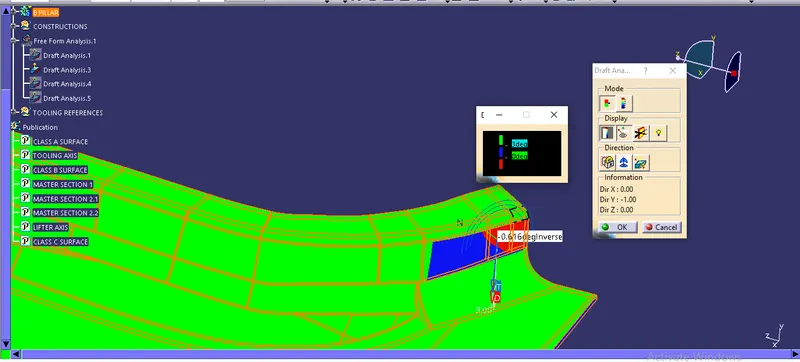

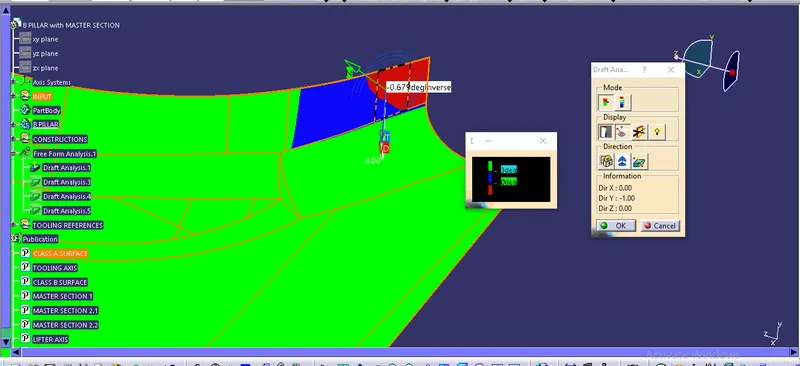

Surfaces that got errors.

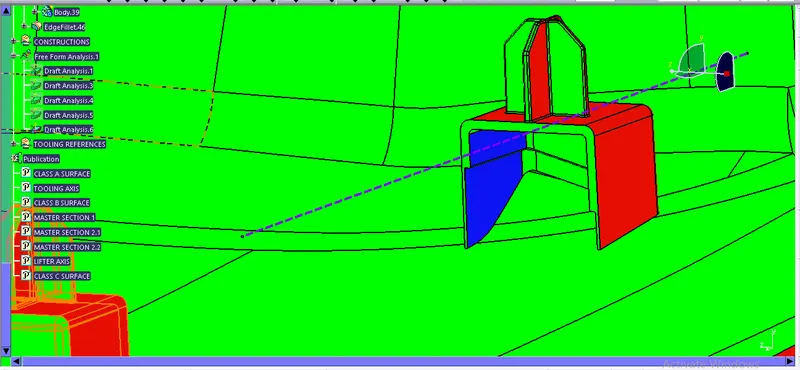

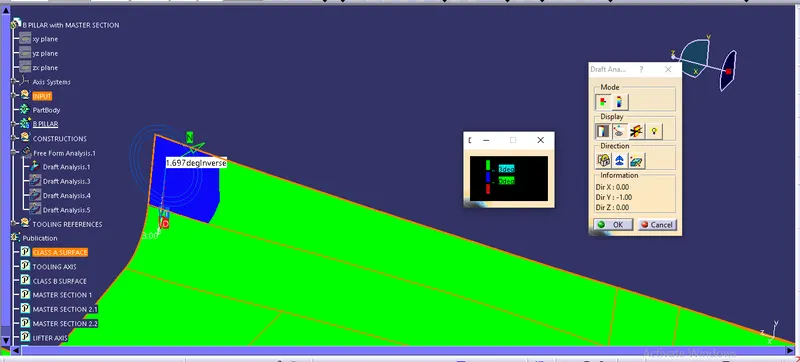

- The green colour represents angle of surface with respect to the tooling axis being greater than 3 degrees.
- The blue colour represents angle between 0 and 2 degrees.
- The red colour represents angle lesser than 0 degrees. It represents errorneous draft angle the needs to be corrected.

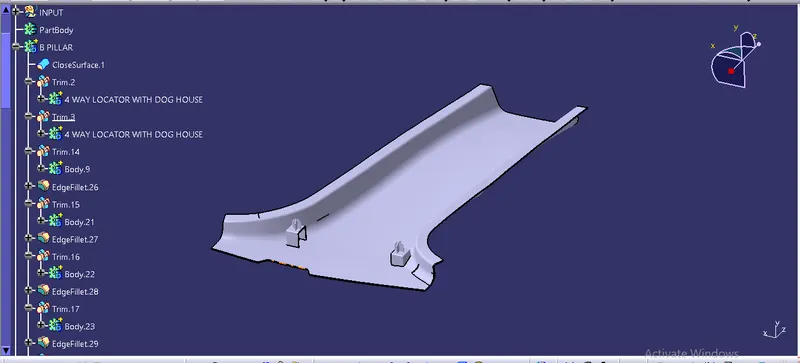

2) B pillar solid body.
The maximum draft angle is 2.8 degree and minimum is -1.48 degree.
The maximum draft angle is 2.8 degrees.
3) Dog house and 4 way locator.

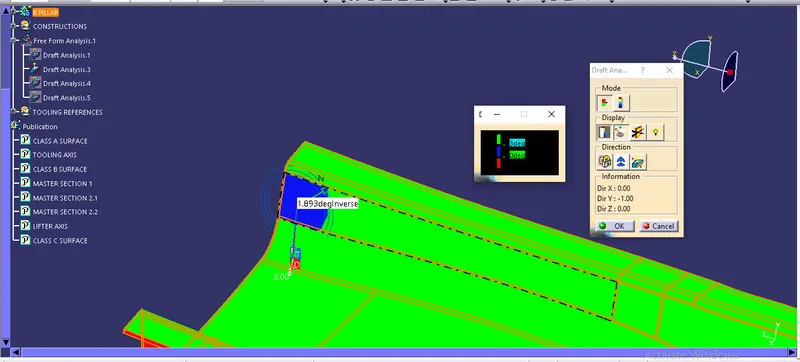

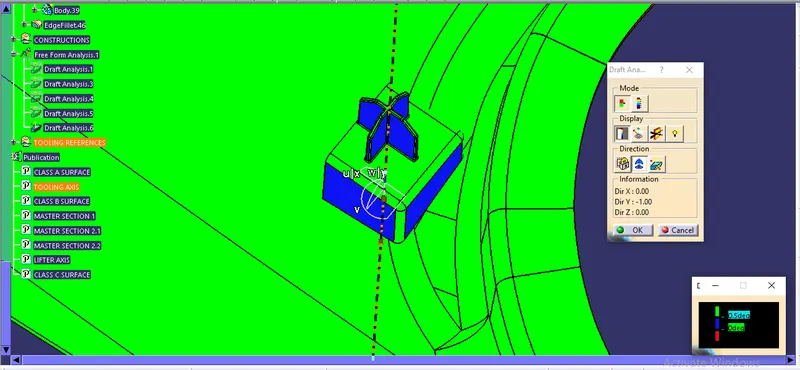

Draft analysis of screw boss.
- With respect to main tooling axis.
The minimum angle is 0.5 degrees over blue faces and 3 degrees on other faces.
- With respect to Lifter axis.
The minimum angle is 0.5 degrees over blue faces and 3 degrees on other faces.
Draft analysis of final ribs.

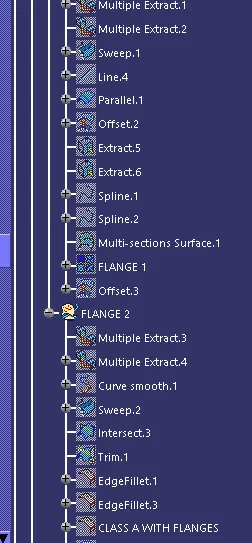

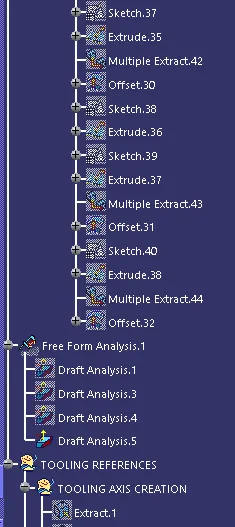

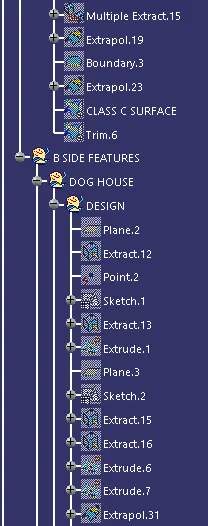

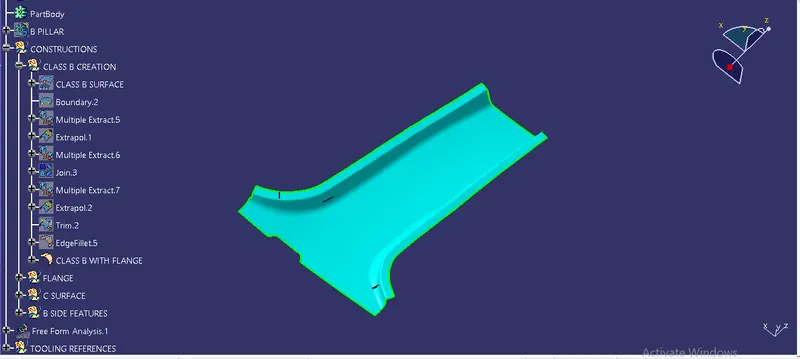

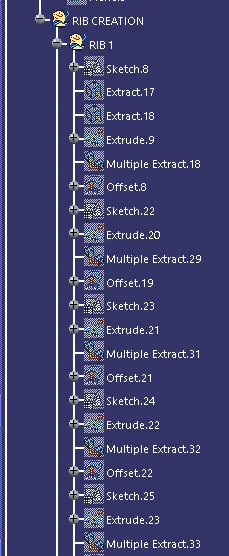

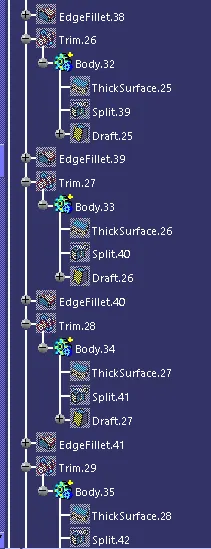

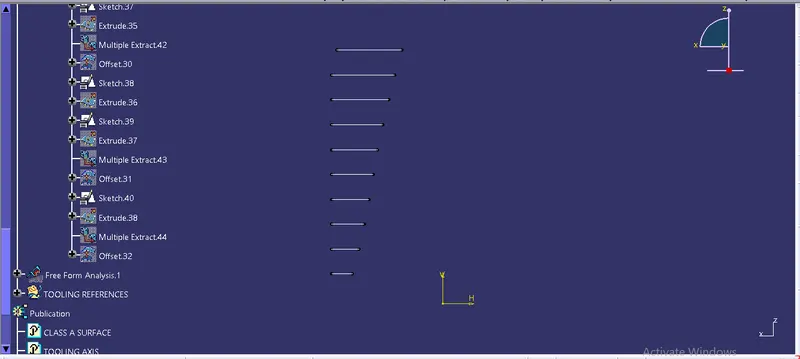

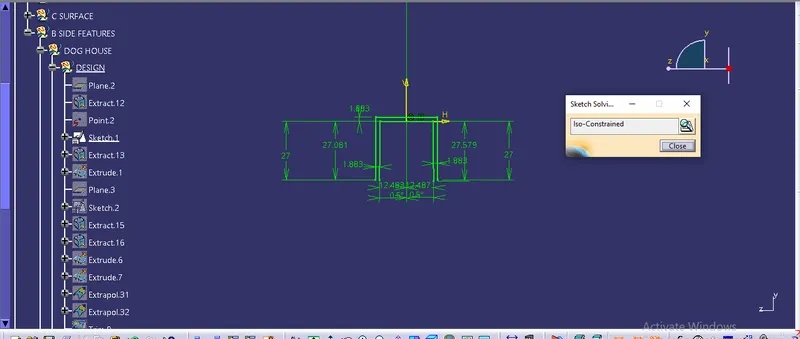

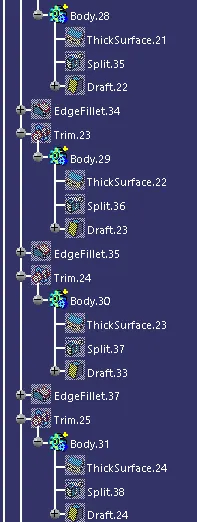

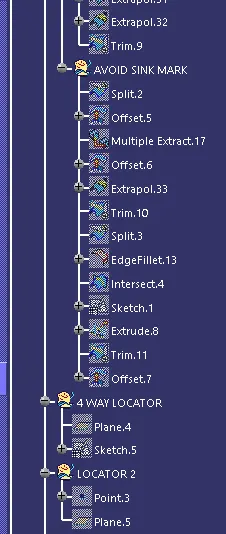

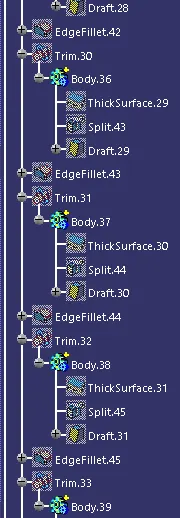

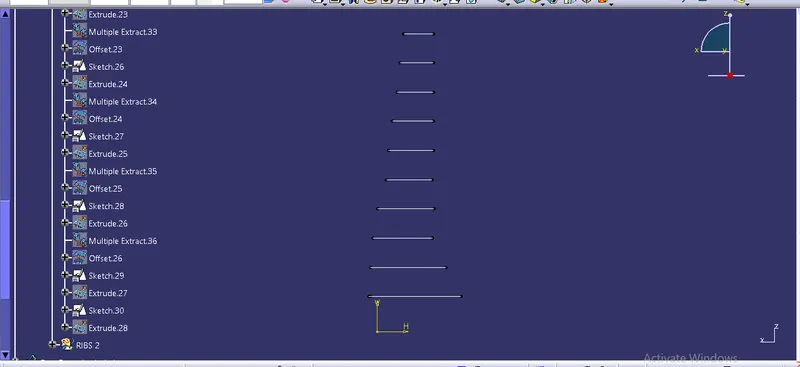

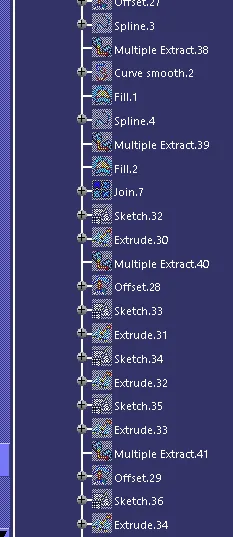

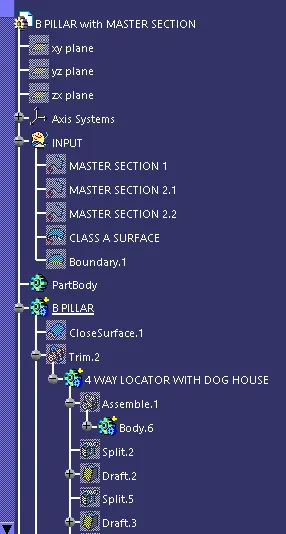

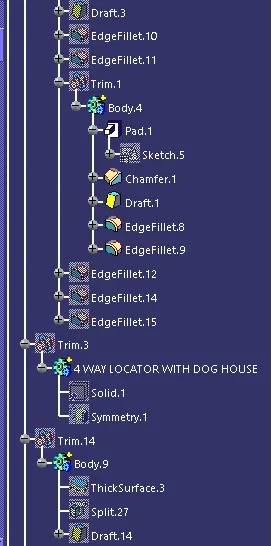

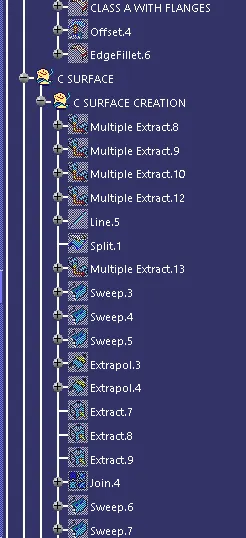

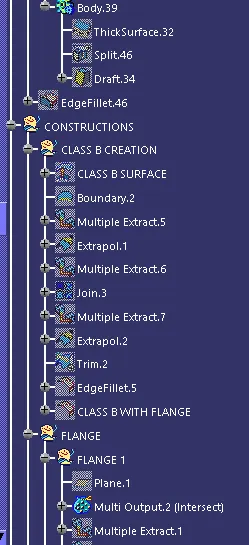

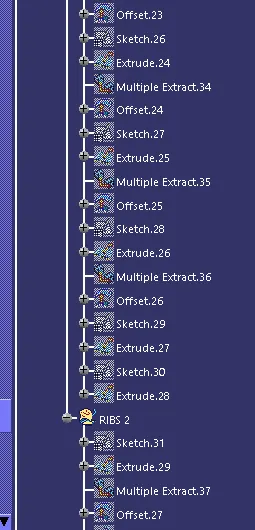

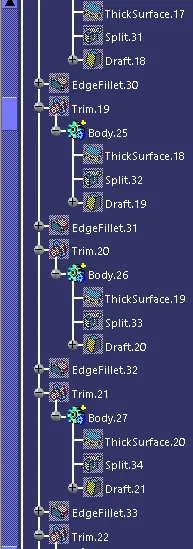

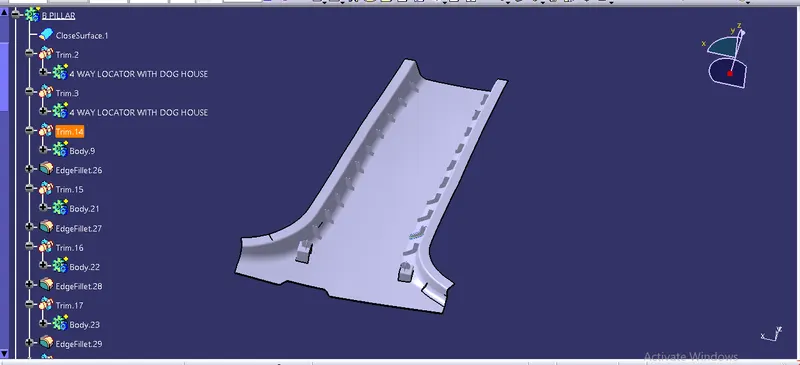

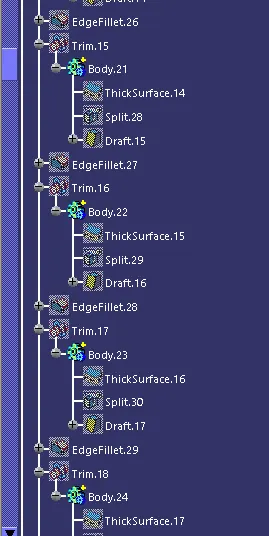

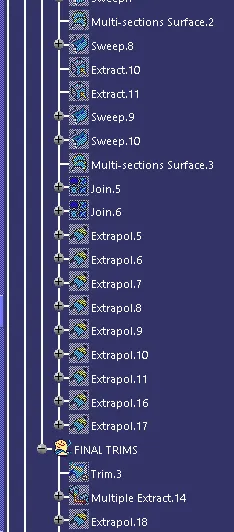

Expanded feature tree structure screenshots are pasted below for reference.
