Week 9 - Project - Master Section Development

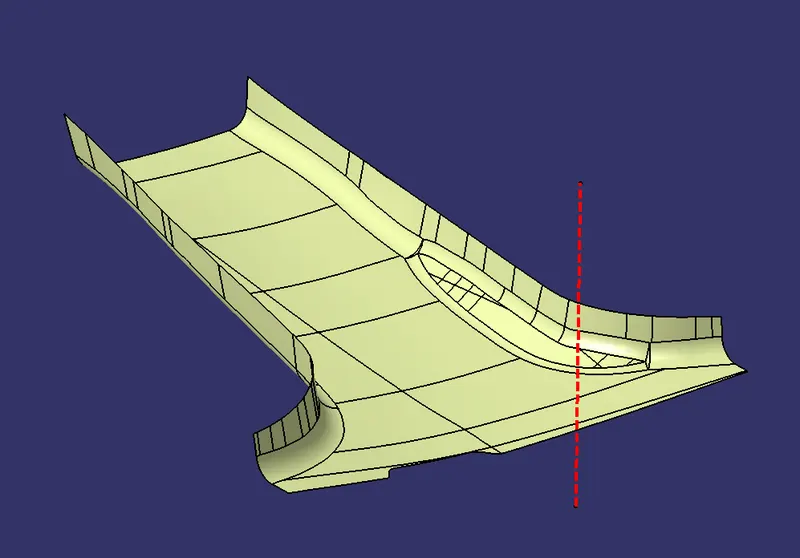

Main Tooling Axis.

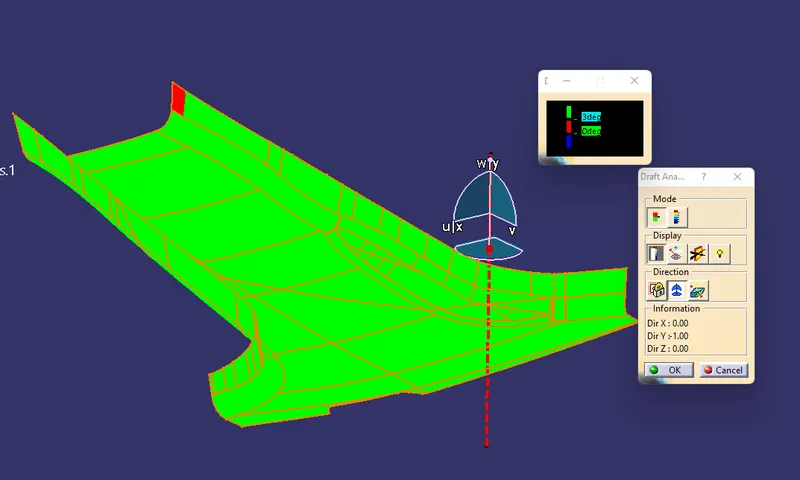

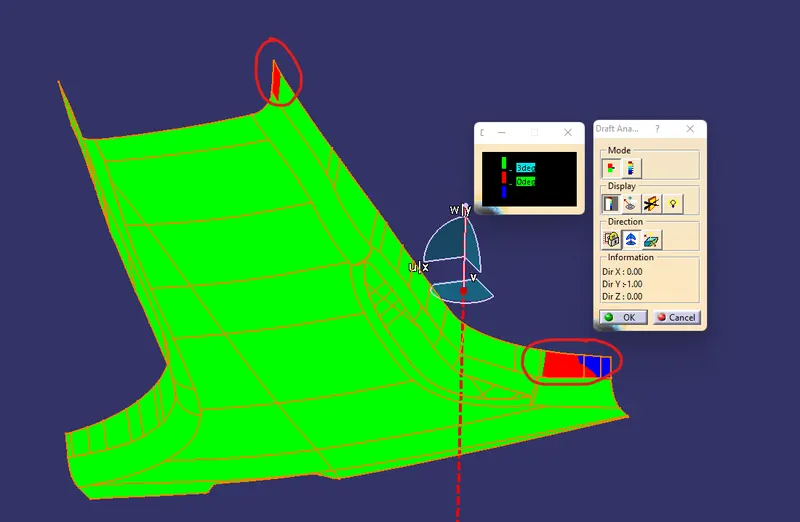

Draft analysis

\

We can see in the above image that the draft analysis WRT tooling axis. the Highlighted are lesser than 3 degree and Some are in minus Side so wee need to alter the minus side surface by taking approval from Class A surface creator.

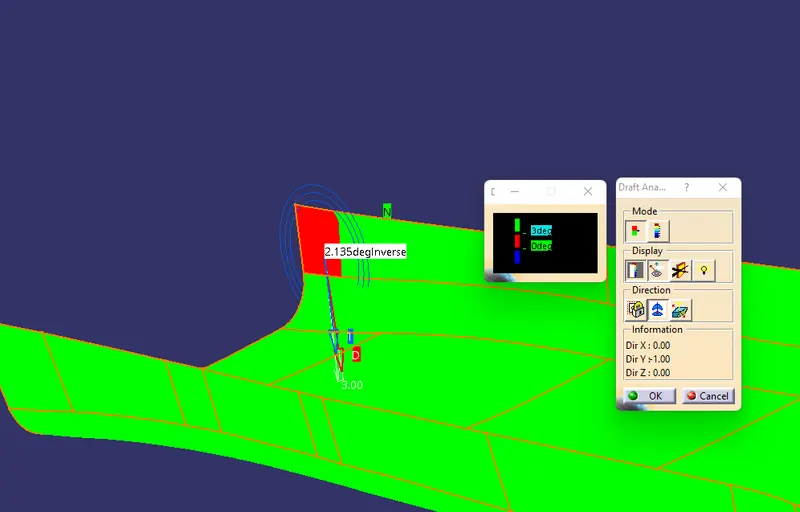

minimum draft angle.2.135 degree.

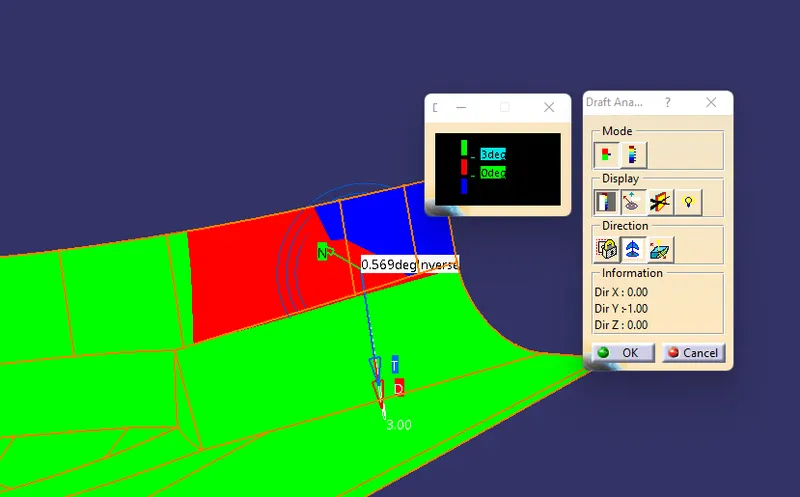

Minimum draft angle of this side is 0.5 degree.

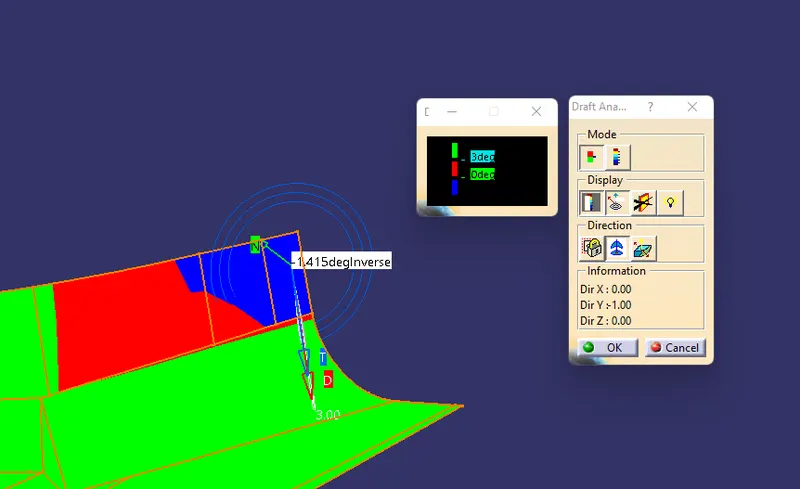

Minus side draft angle is -1.415 degree.

So that minus side draft angle need to modify by taking approve from the Class A surface creator.

We can see in the above image that modified of Class A surface by removing Negative draft angle.

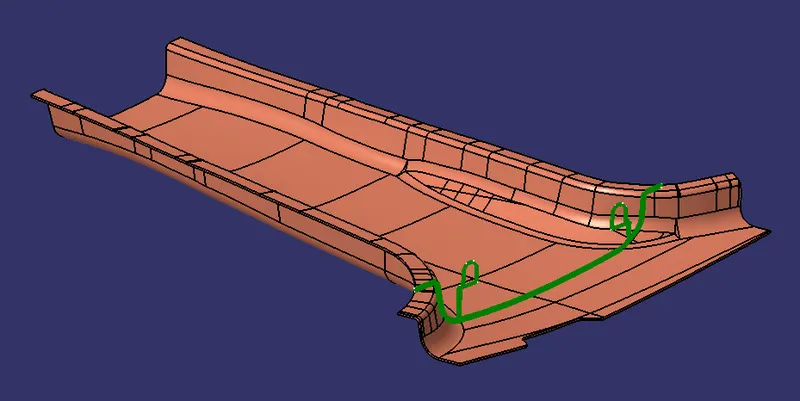

Class B surface creation.

Class C surface creation.

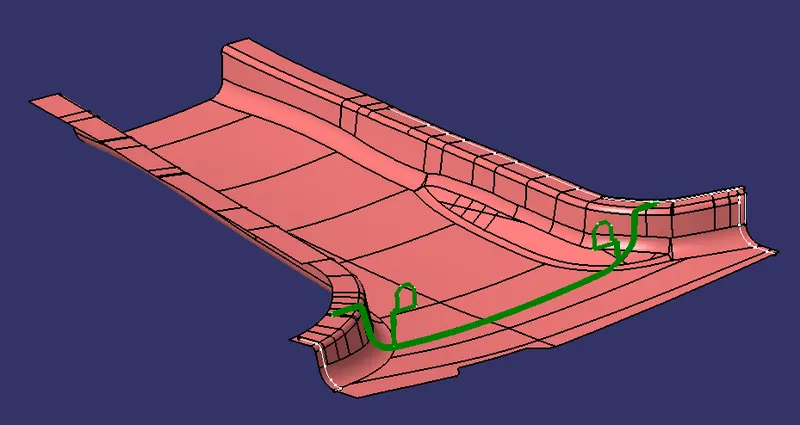

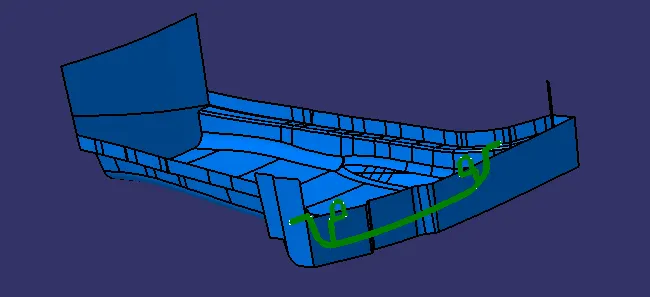

Part body.

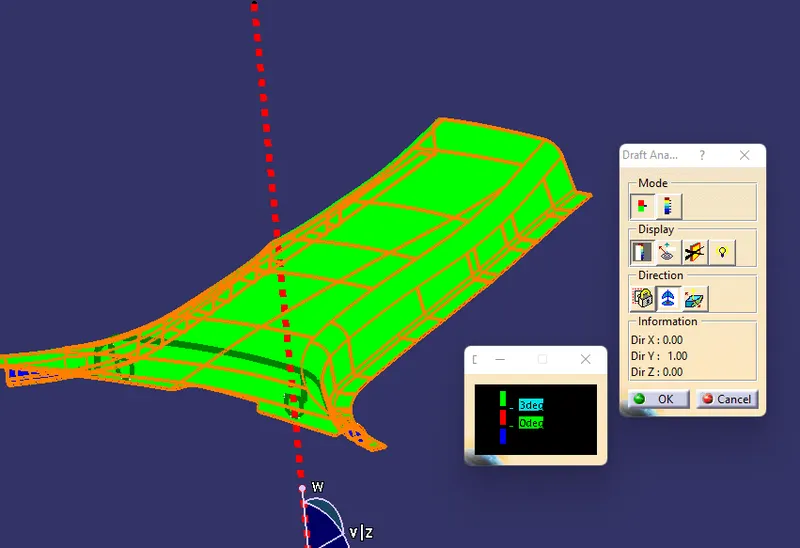

Draft analysis of the part.

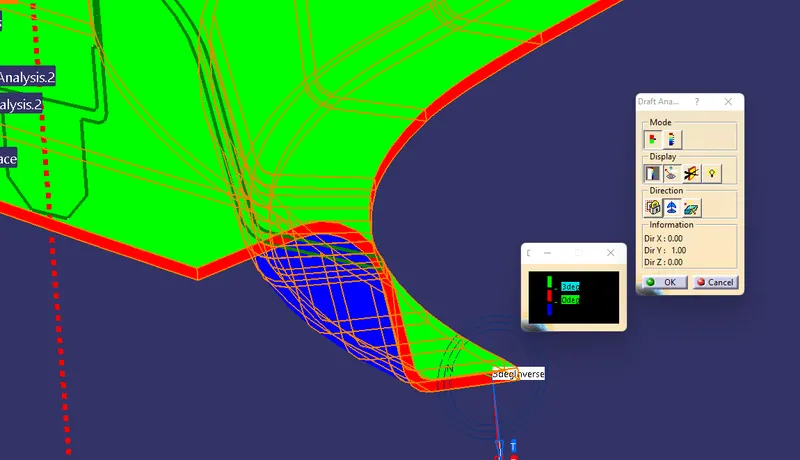

We can see in the Below image is that Class C surface which is red in color because the draft angle is 3 degree

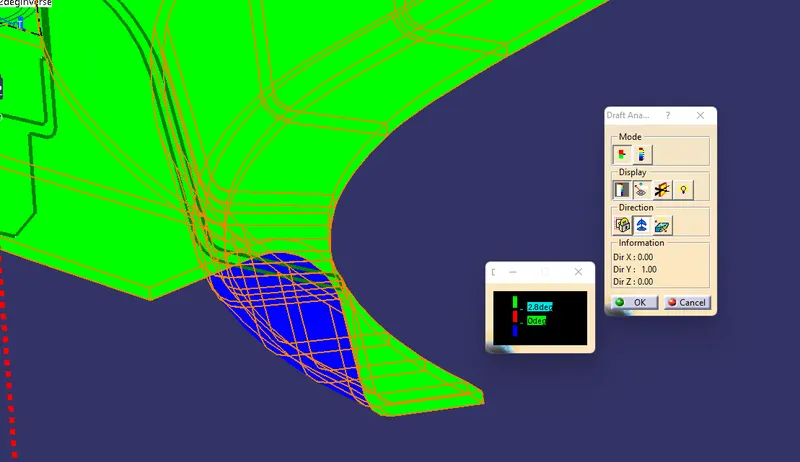

if we consider draft angle is 2.8 degree the class C surface also good to go.

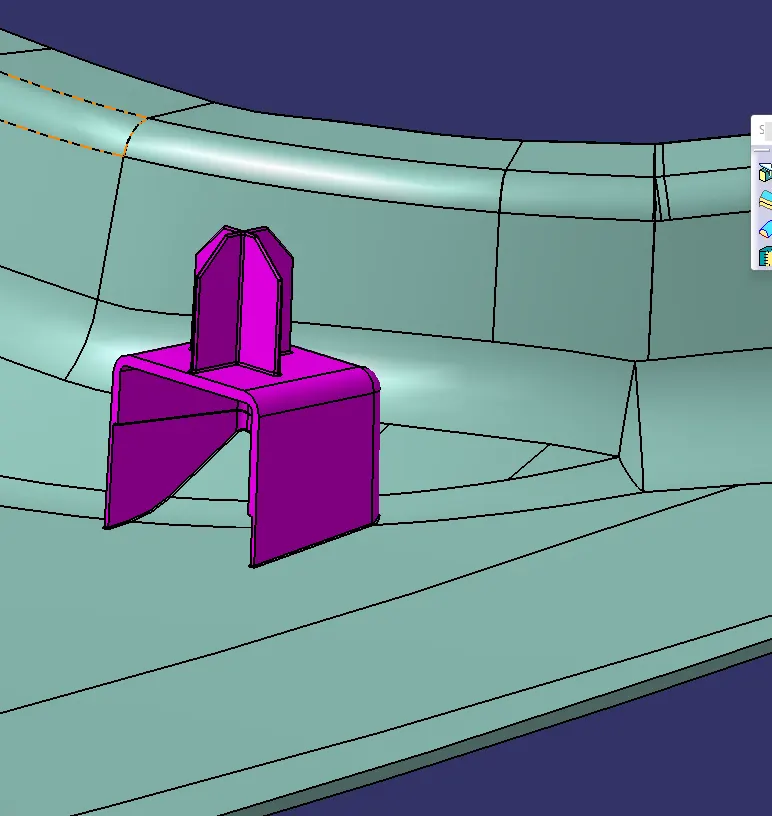

Dog house Creation.

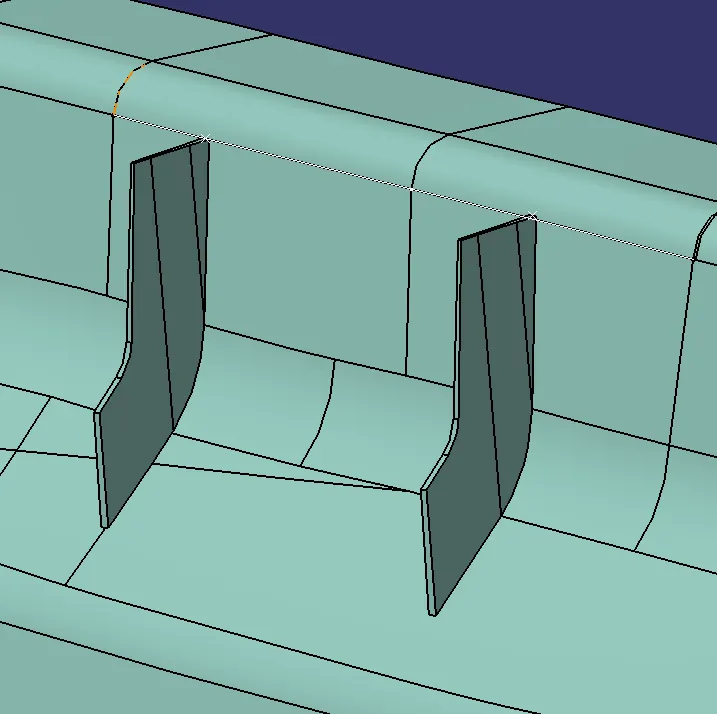

RIbs Creation.

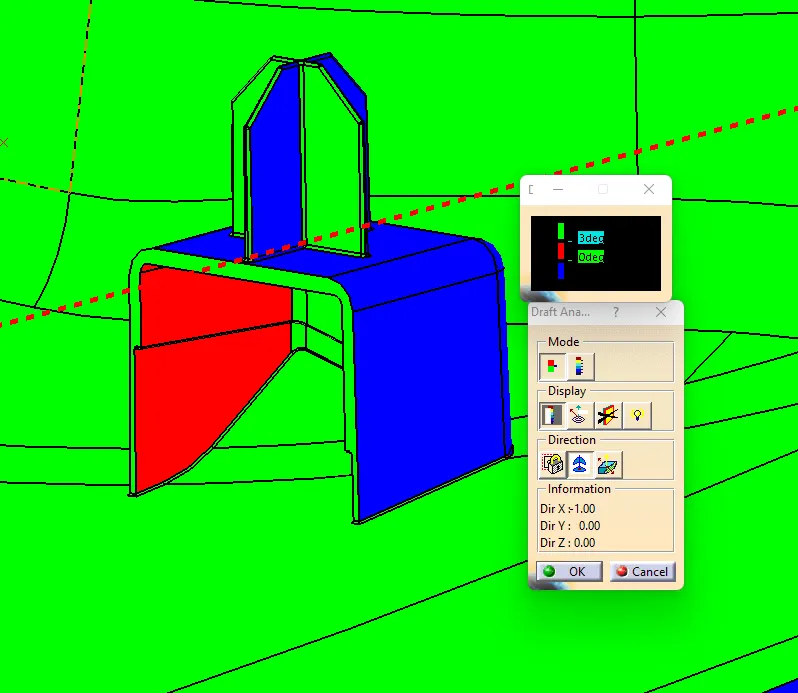

Draft analysis of Dog house.

We can see in the above image that draft analysis of the Dog house, we can see in some part are red in colour becuase it is less than 3 degree.

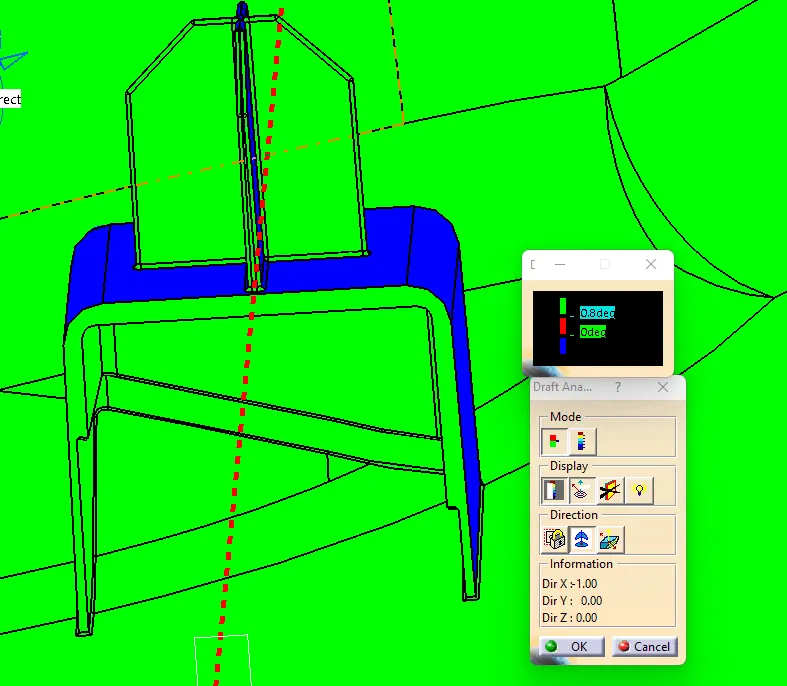

IF we consider the 0.8 degree as a minimum draft angle it shows Complete green. so it is good to Go.

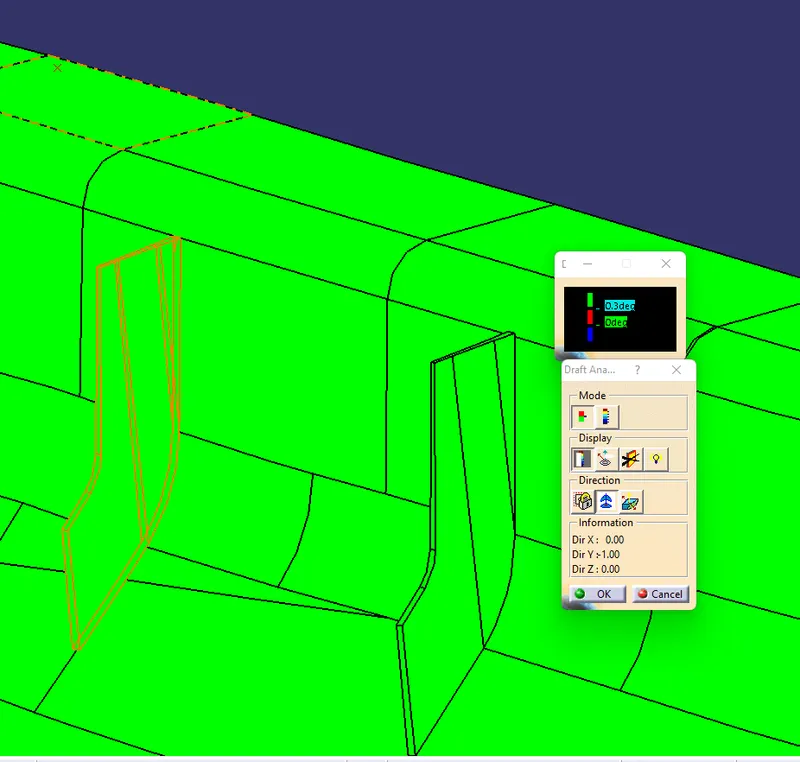

Draft analysis of the Ribs.

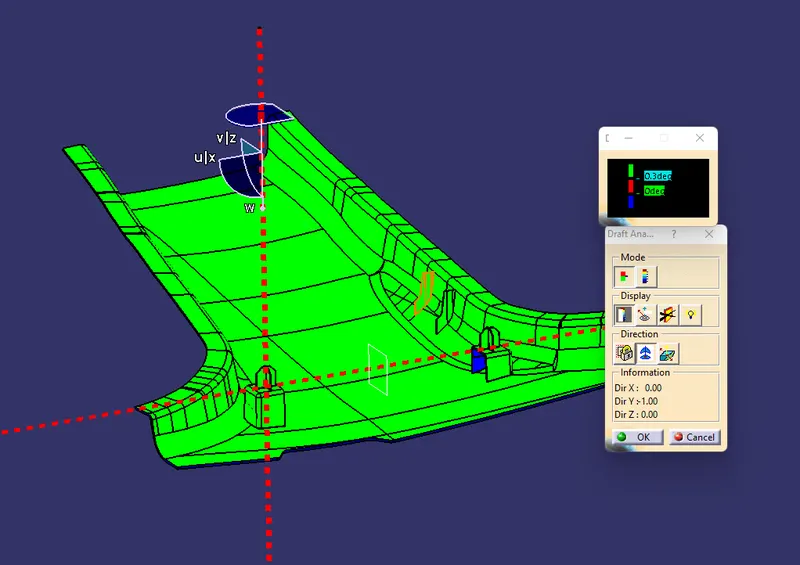

Draft analysis Of the complete body.

We can see in the above image that complete draft analysis of the the body in Core side where the minimum draft angle is 0.3 degree WRT to main tooling axis.
