Week 8 - Challenge 3 - Switch Bezel Design

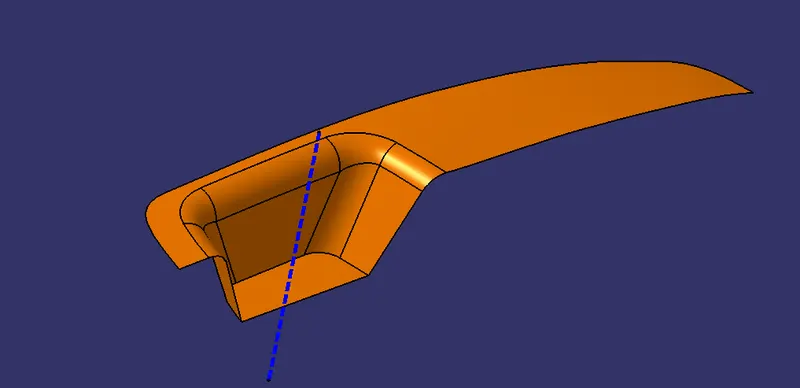

Tooliong axis is considered based on Intersection method

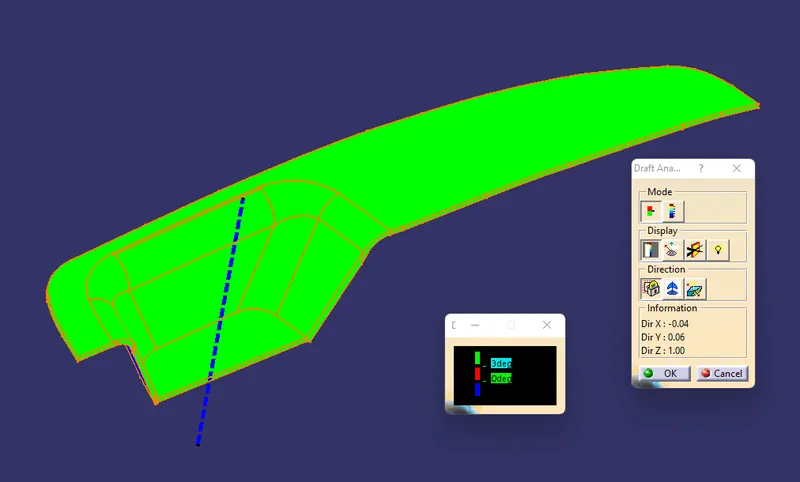

Draft analysis

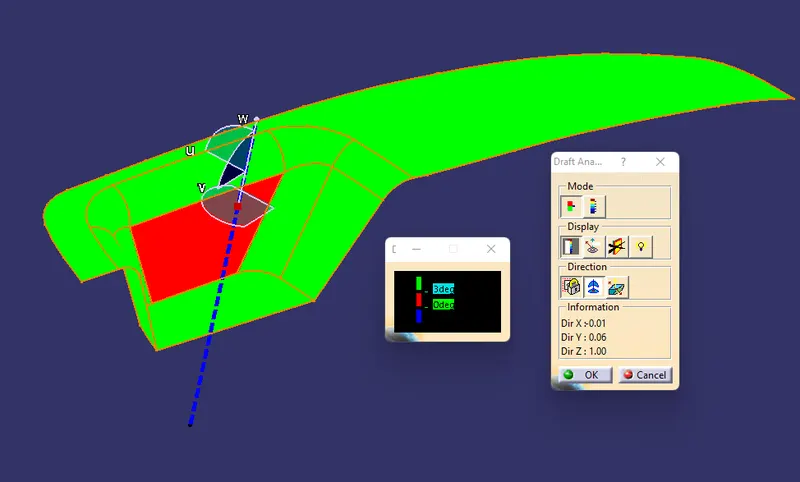

By considering the tooling axis the draft angle should be more than 3Degree but we can see in the image that one of the surface in lesser than 3degree.

So we need to increase the draft angle of the suirface that cna be done by editing the tooling axis from 3degree to 6 degree.

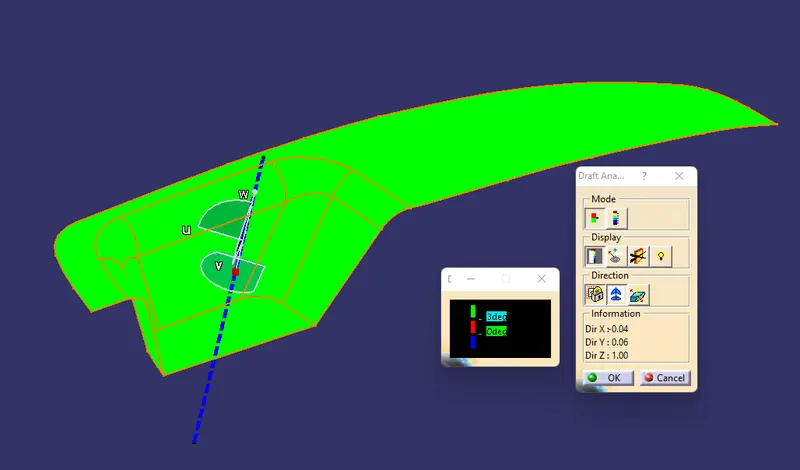

We can see in the above attached image the draft angle of the class A surface is more tahn 3Degree so not it is good to desing Class B and Class A surface.

Class B surface

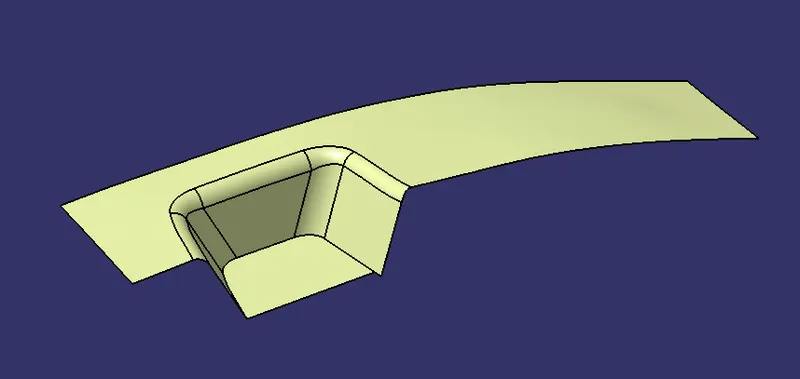

Class A surface

We can see in the below image that Class C surface is more than 3degree on all the surface.

So it shows that what i have done is correct.

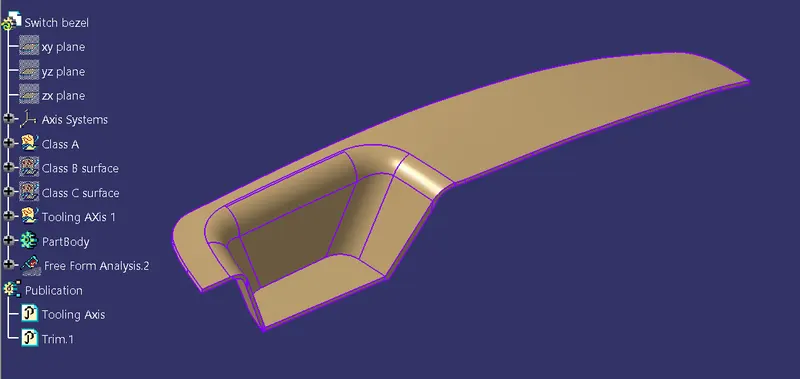

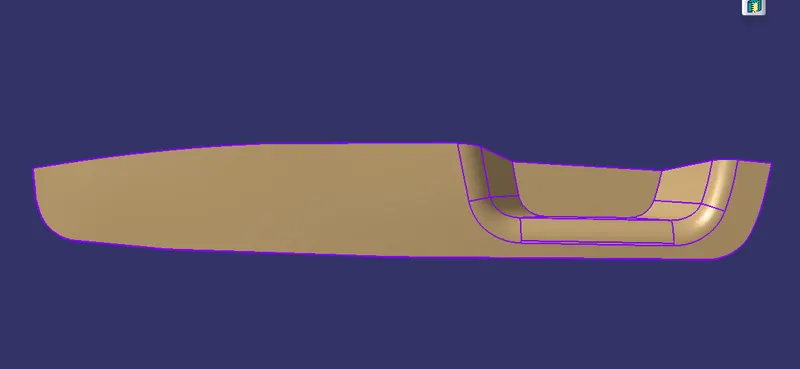

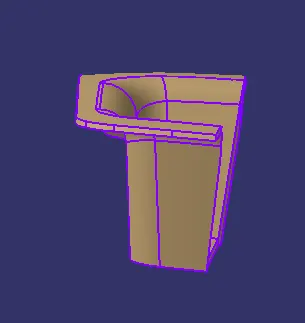

Below images shows the part body.
