Week 8 - Challenge 4 - Coin Holder Design

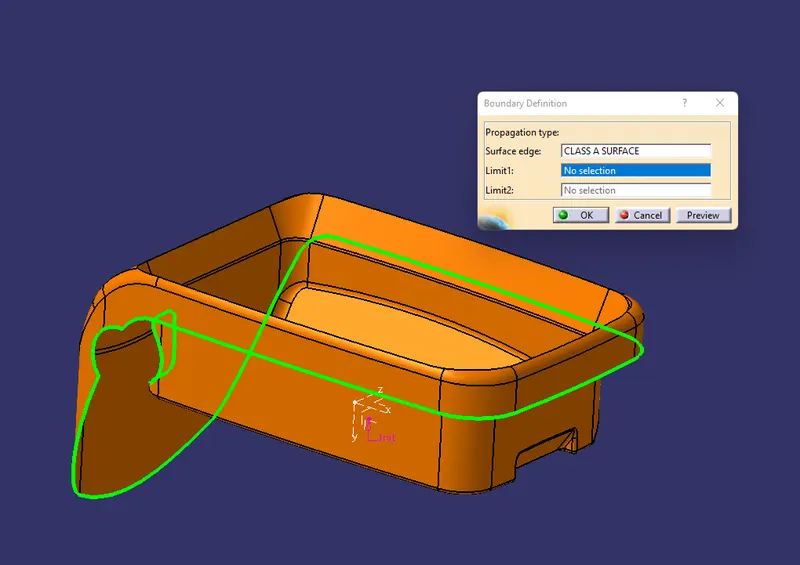

Before going to draft analysis of the body we have to ensure that the Class A surface is closed or not.

We can see in the above image that boundaries are visible at outside surface hence the Class A surface is in closed condition

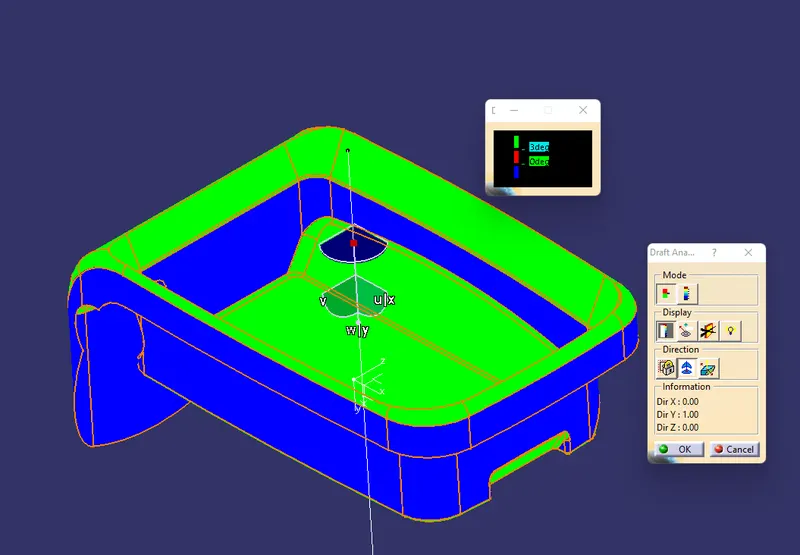

Draft analysis WRT to tooling axis..

the Blue colour shows that the surface is at 0degree WRT to tooling axis.

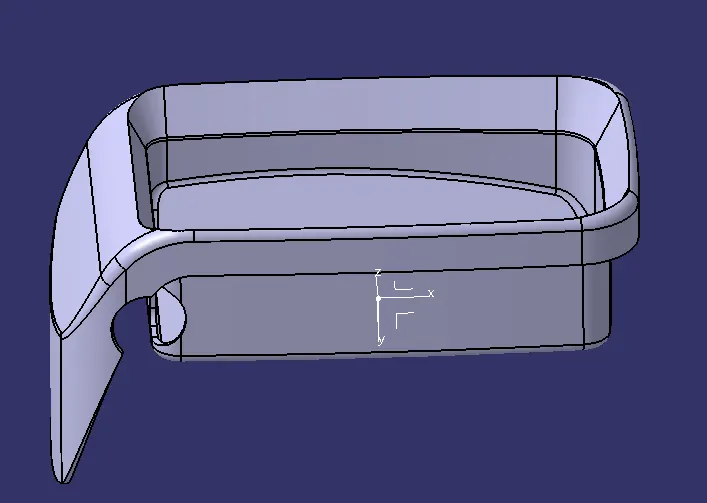

Class B surface

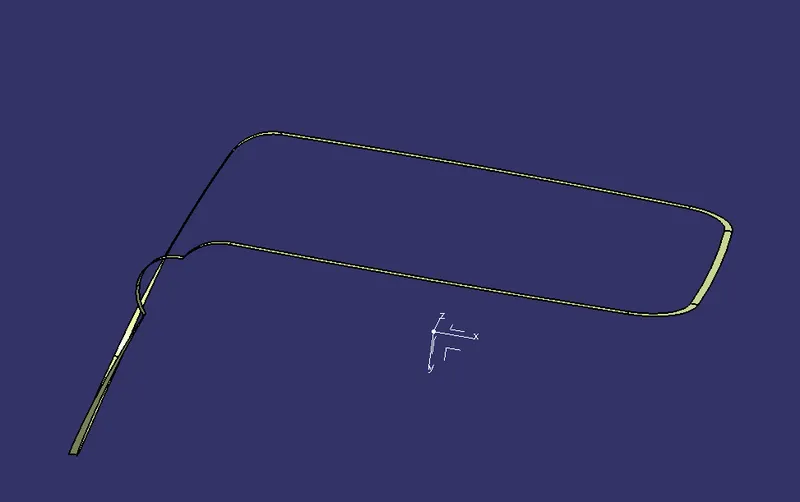

Class C surface

Class C surface WRT Sweep with surface reference.and 90degree from Class A surface.

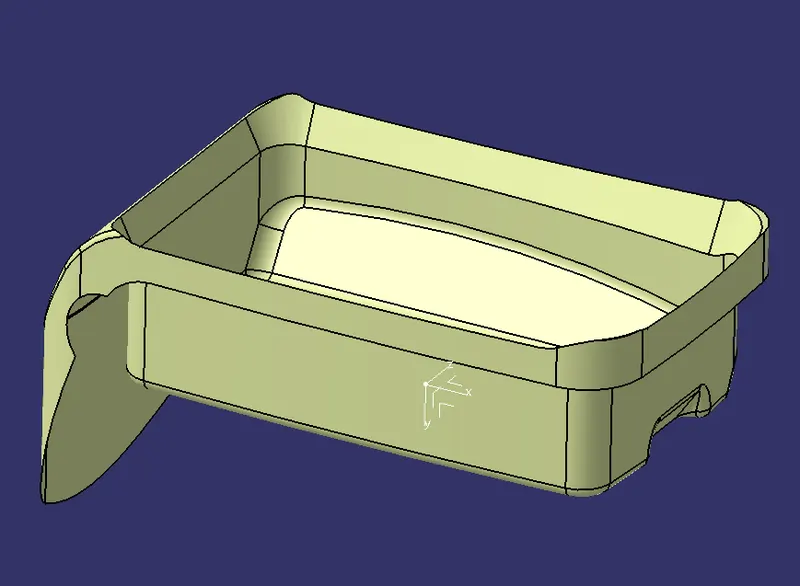

Part body
