Week 9 - Project - Master Section Development

Views:

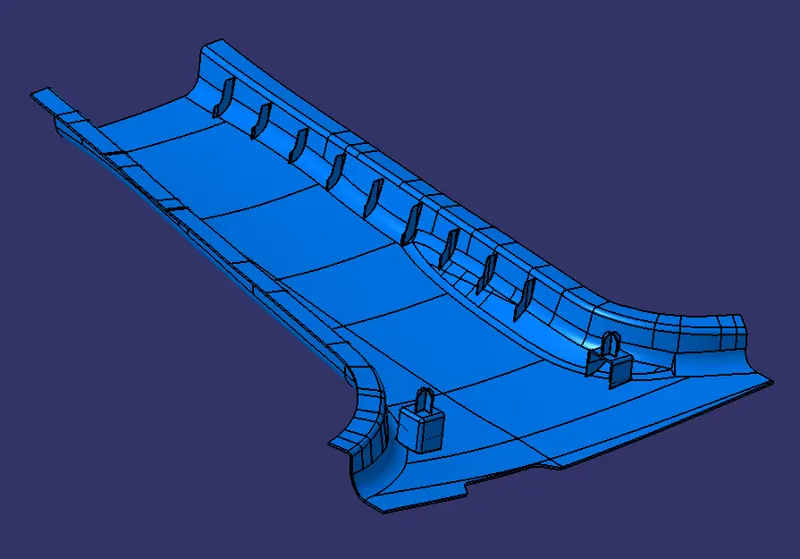

Isometric:

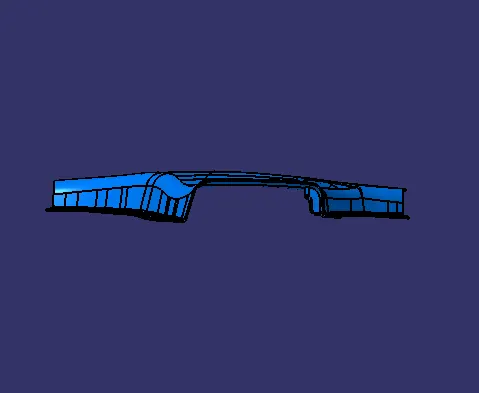

Front:

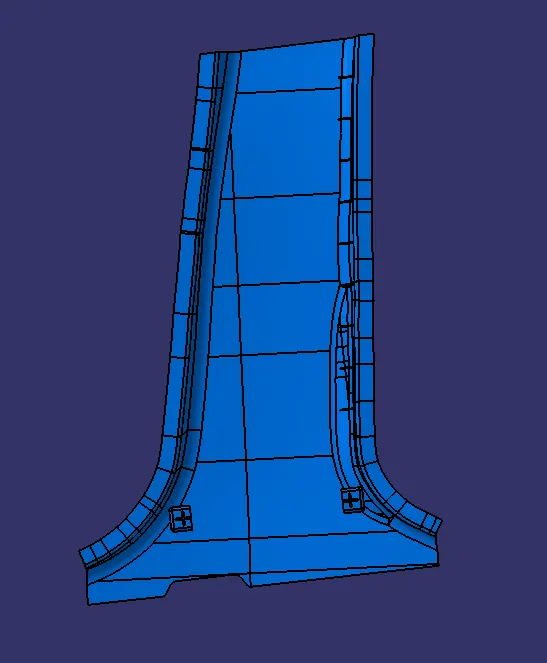

Top:

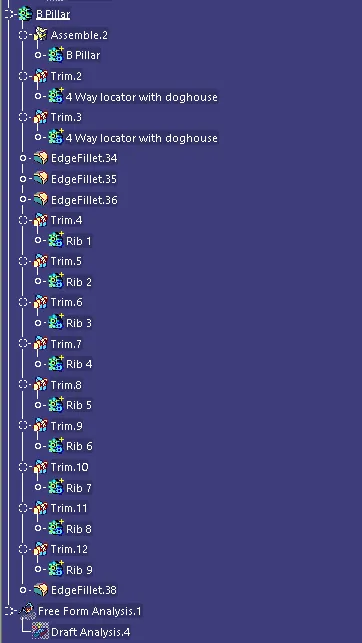

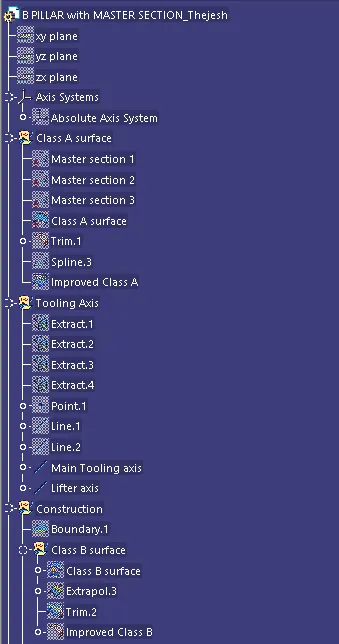

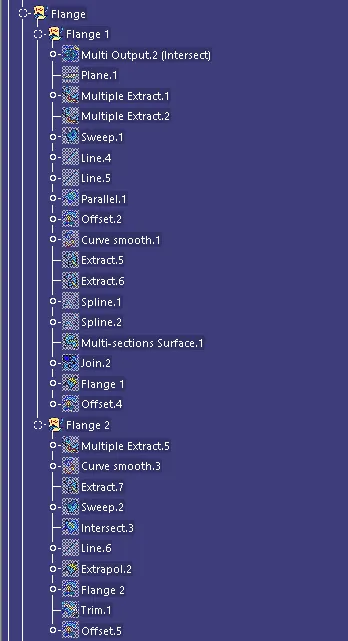

Modal tree:

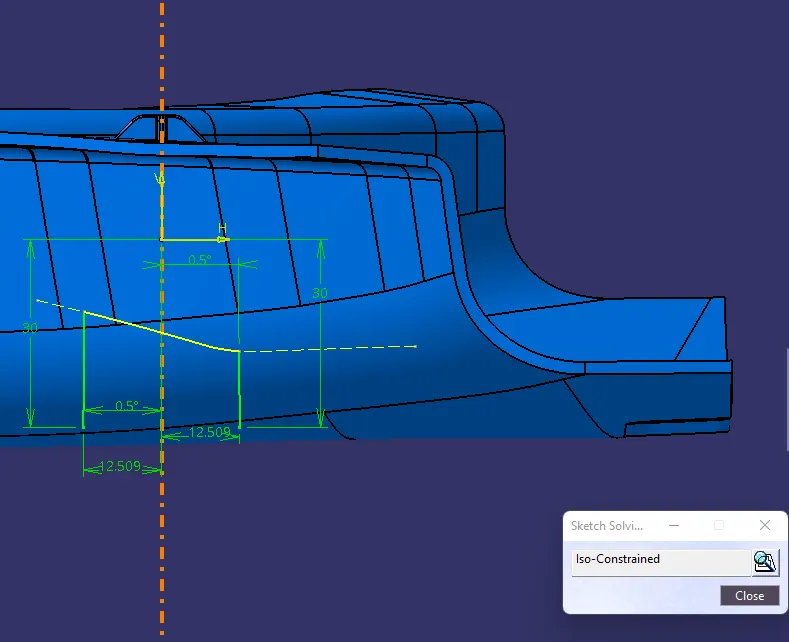

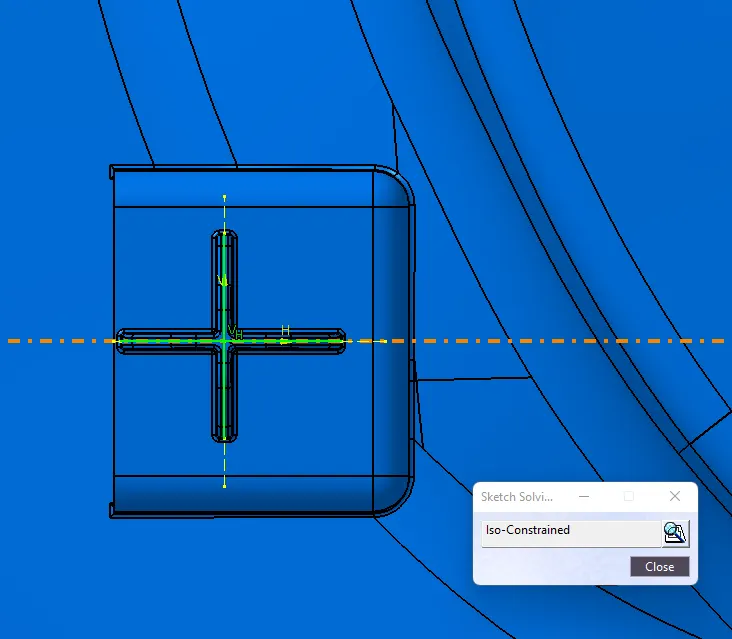

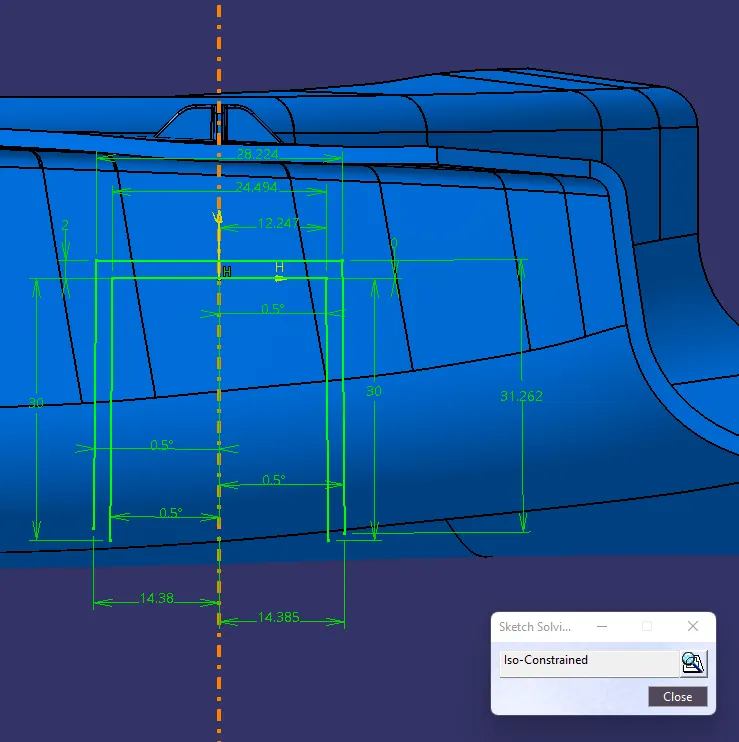

Sketch analysis:

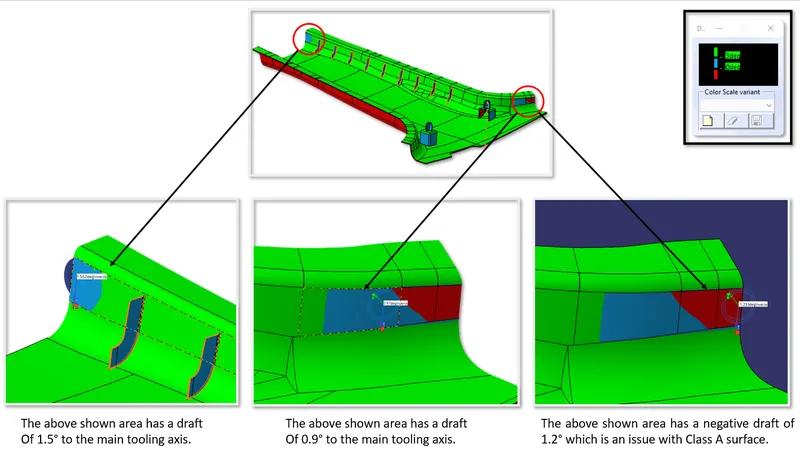

Design rules:

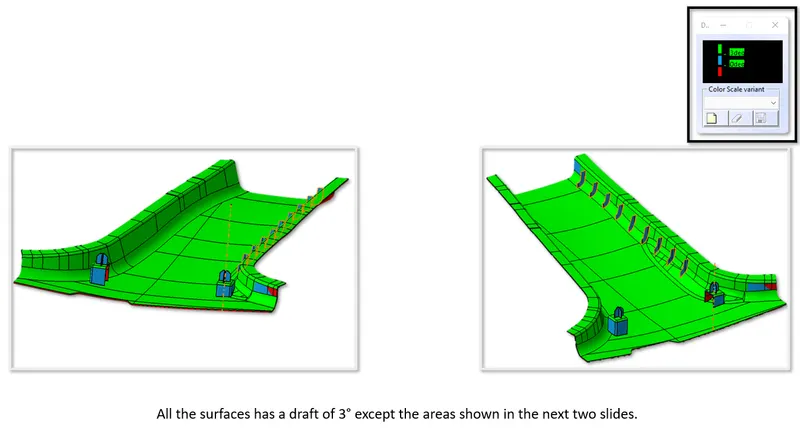

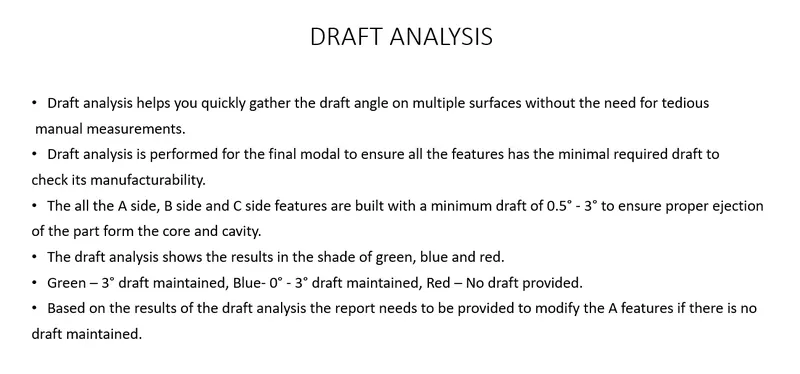

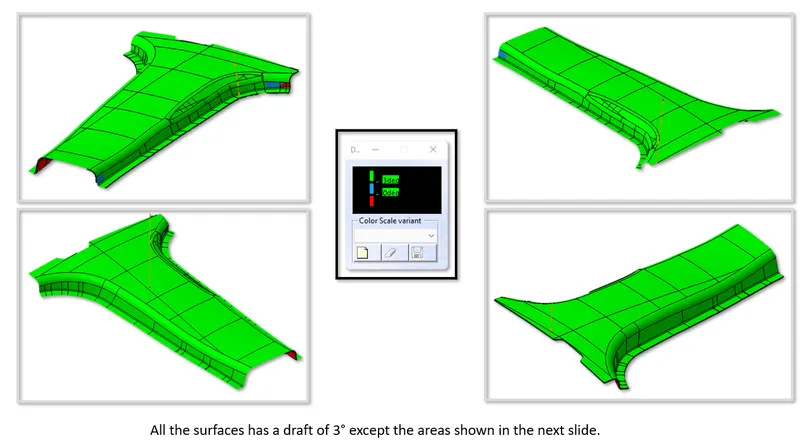

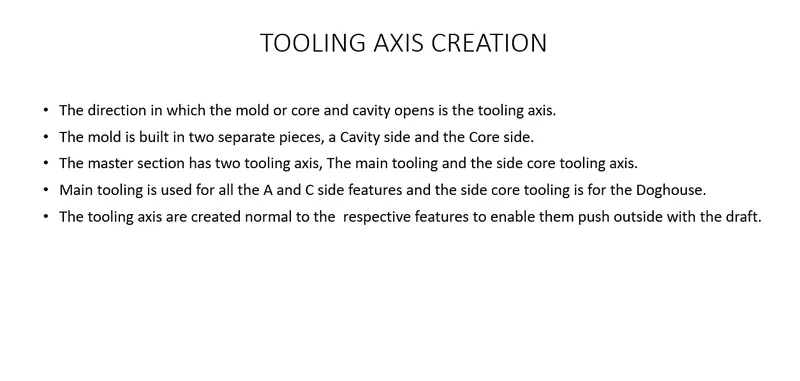

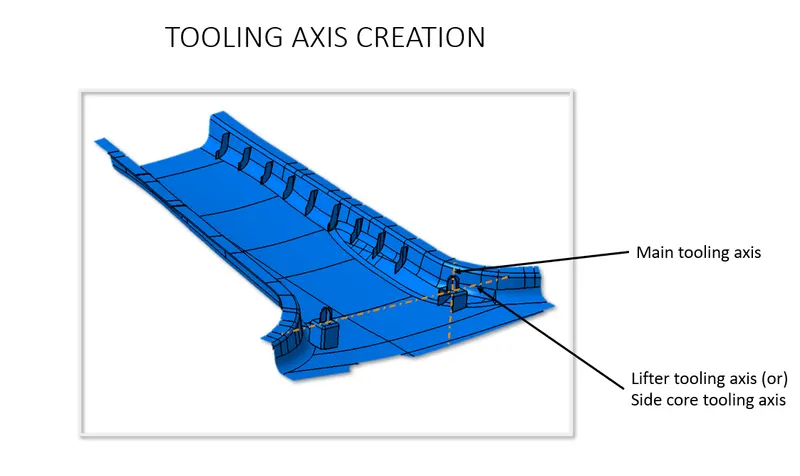

The final part is built by following all the design rules by providing the minimal draft for all the features with respect to the tooling axis. The design of B-side features was also built by maintaining the design guidelines. The draft analysis report is submitted in PPT which provides all the details.

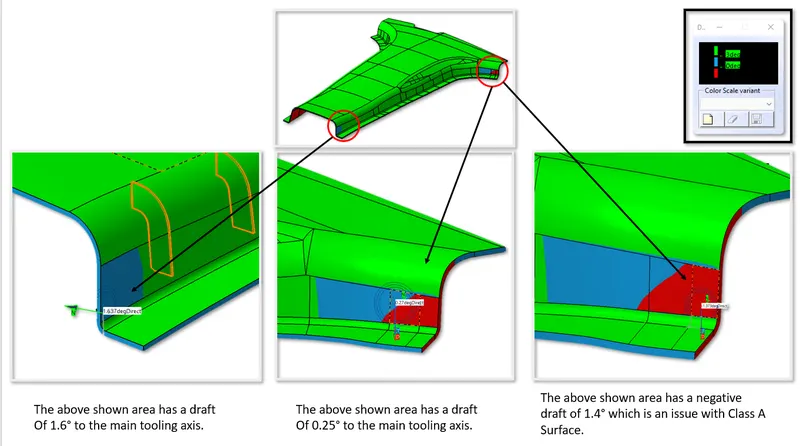

CLASS A SURFACES:

CLASS B SURFACES:

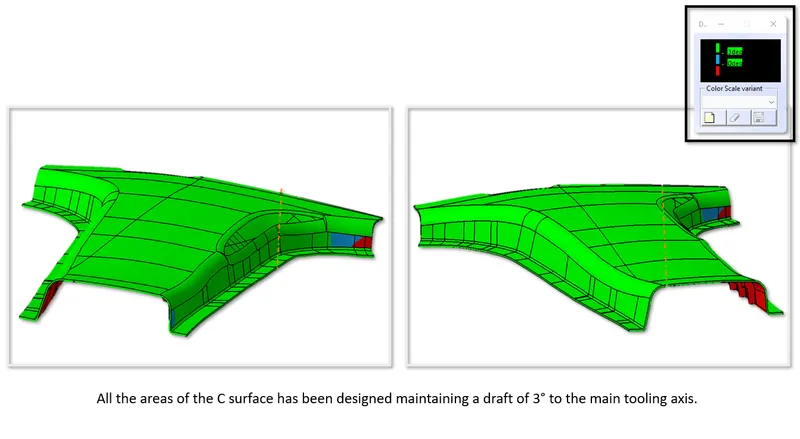

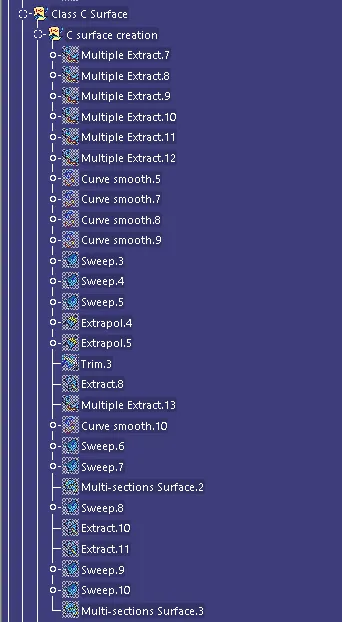

CLASS C SURFACE:

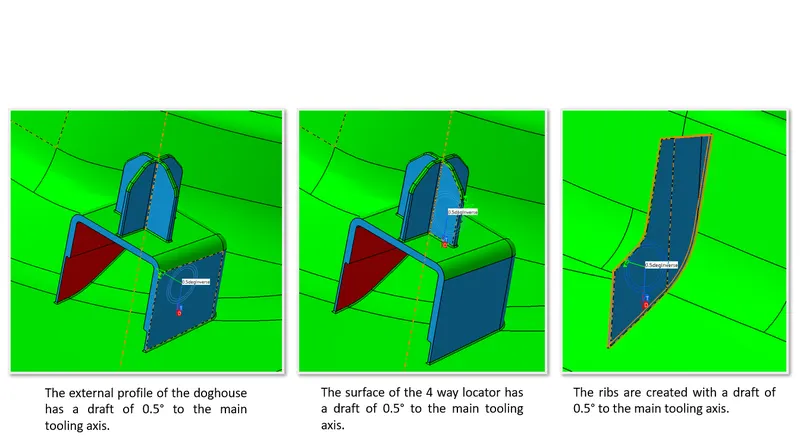

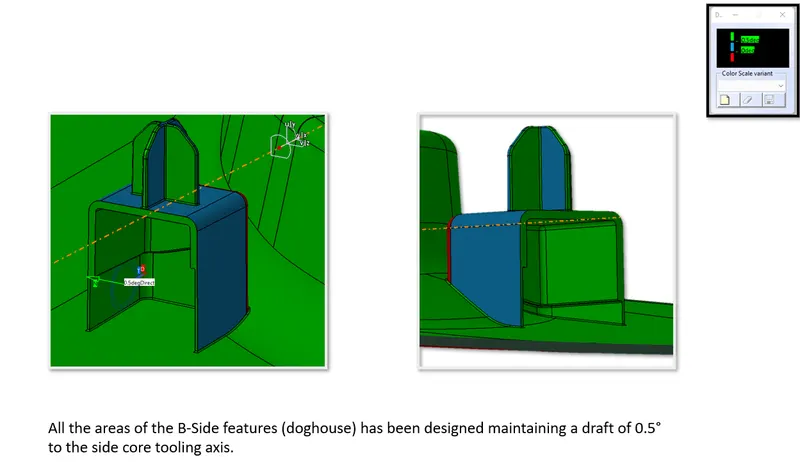

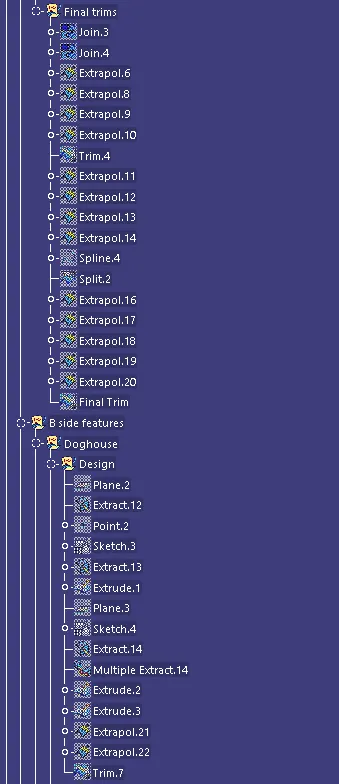

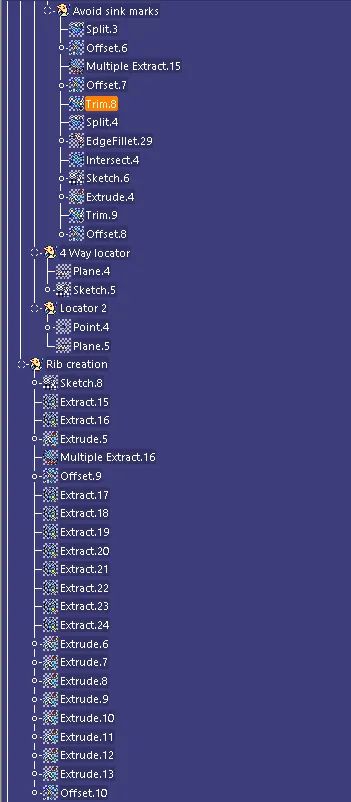

B-SIDE FEATURES:

CONCLUSION:

The modal is built with all the required features with proper tooling axis and drafts. A few portions need to be adjusted on the Class A Surface and the details are provided in the report.
