Week 9 - Project - Master Section Development

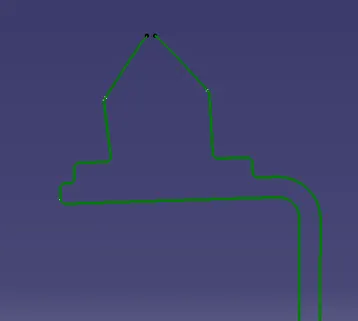

DEVELOPMENT OF MASTER SECTION OF B PILLER :

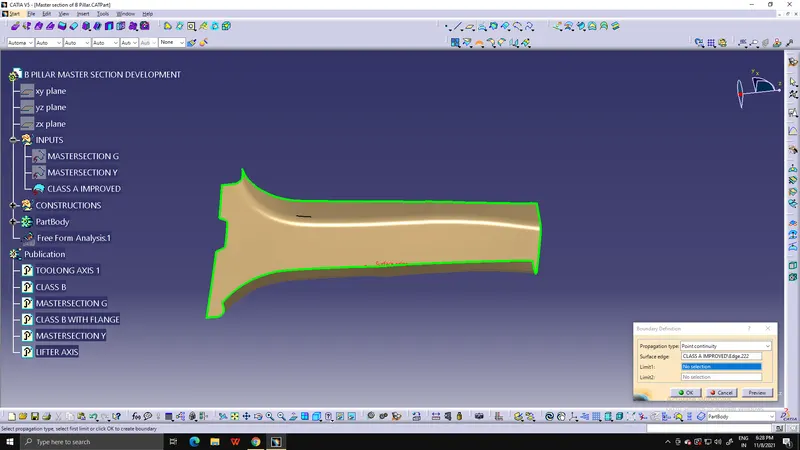

First upon check the given class A surface. It should not have any open boundary.

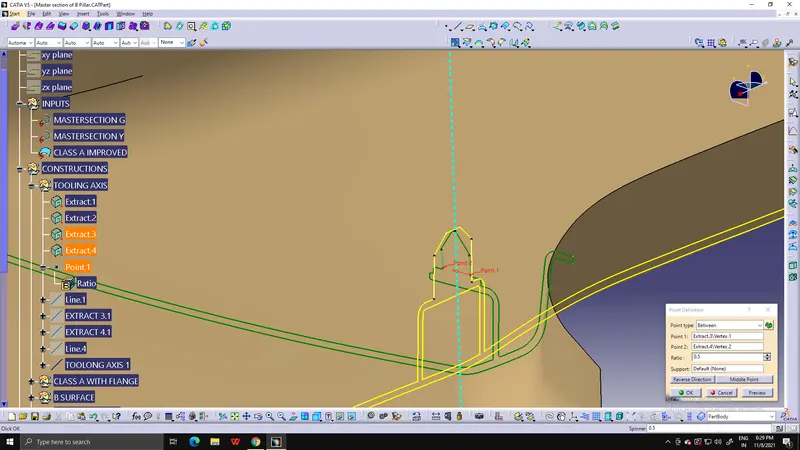

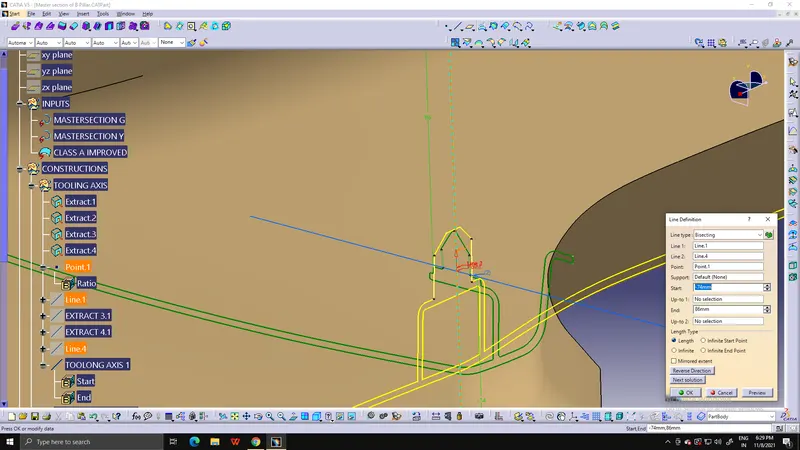

Creation Of Tooling Axis:

For the construction of tooling axis extract the parallel vertical lines from the master section and bisect them to get our Tooling Axis by generating a point in between them.

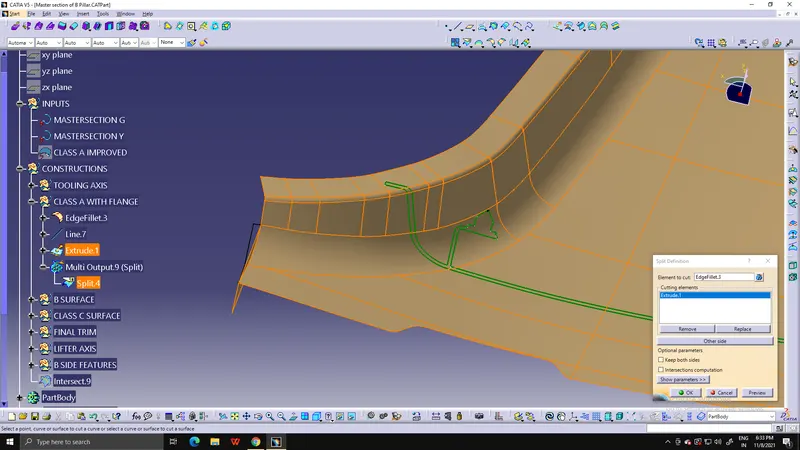

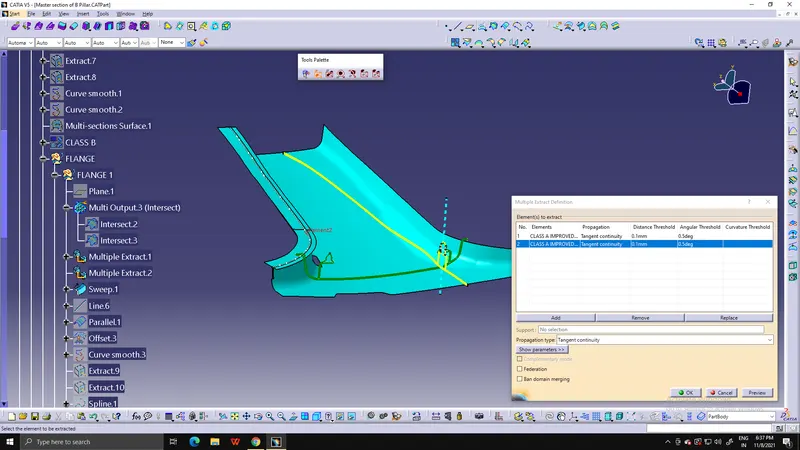

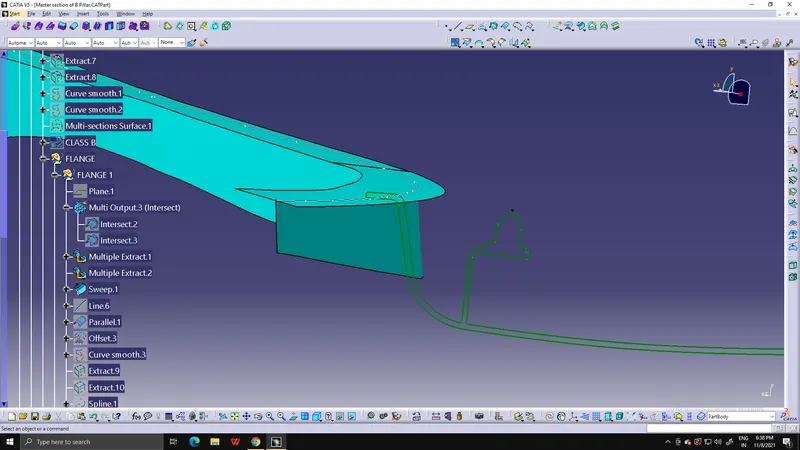

Creation Of Flange :

Create a sweep on master section to create flanges both side.

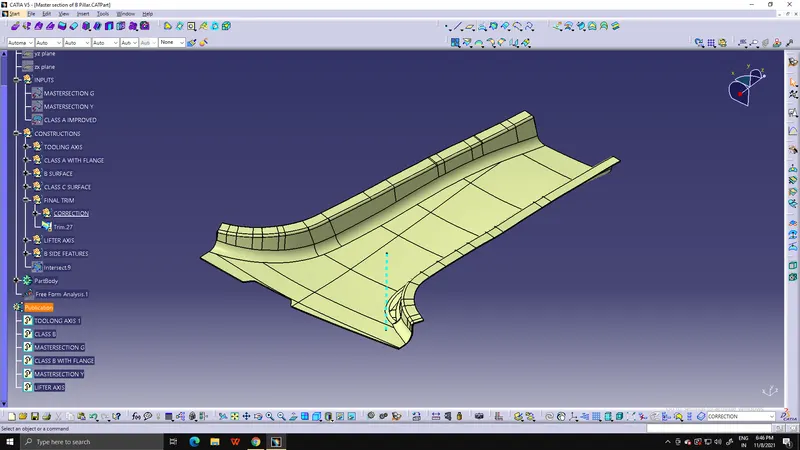

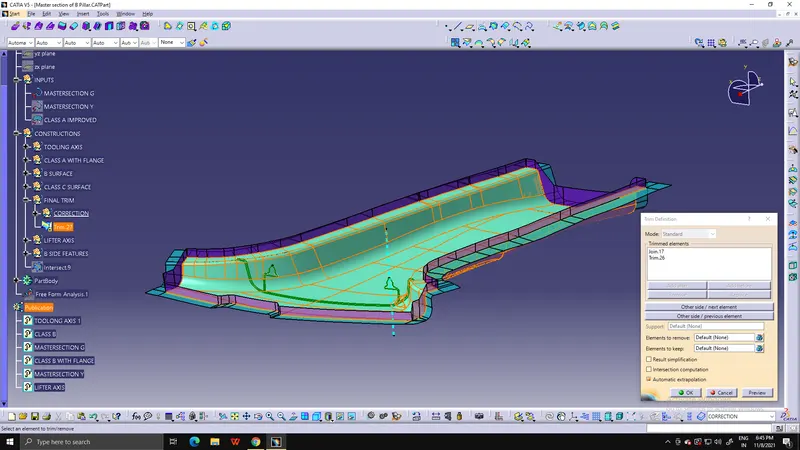

Correction In Class A Surface :

Trim the unwanted extended Class A surface.

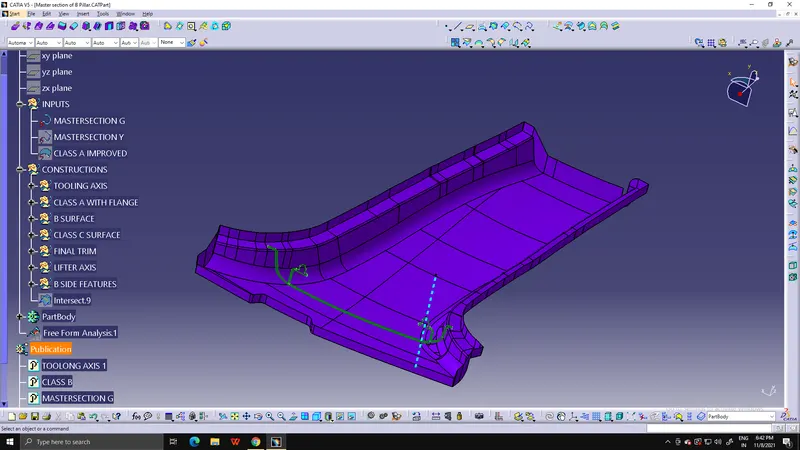

Creation Of Class C Surface :

For C surface sweep the edge of the Class A surface in the tooling axis direction at 3 degrees.

Now trim this surface with the B surface to get the required surface. Make this body solid in the Part Body using "Closed surface" command.

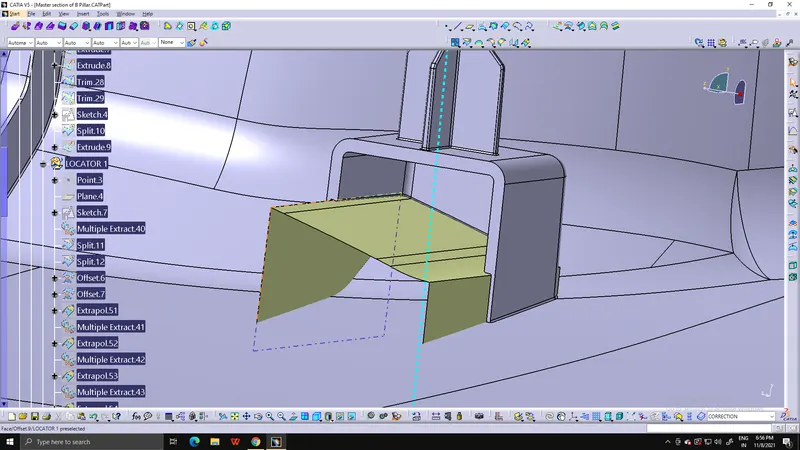

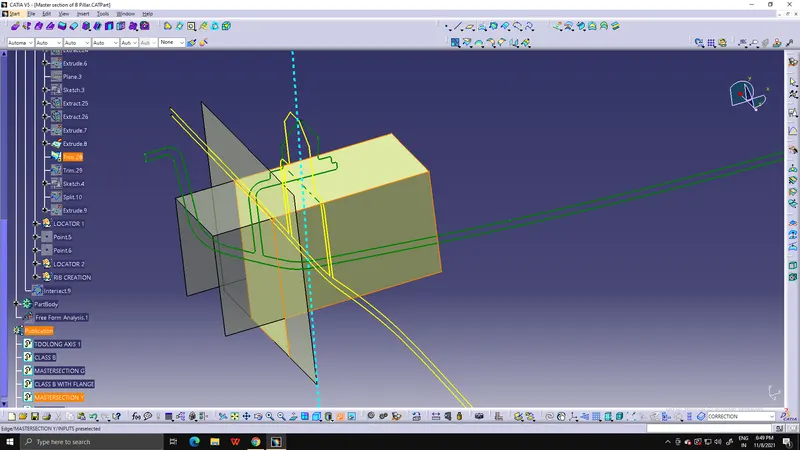

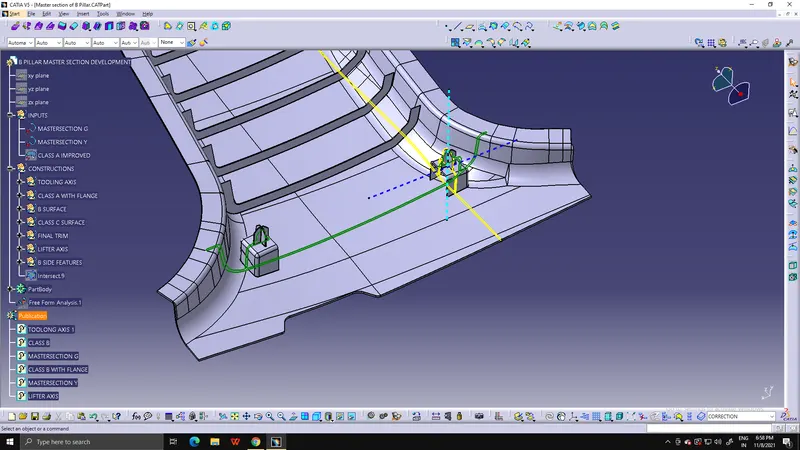

Creation Of Dog House & Locators :

To create Dog House we have to follow here Design Rules-

Wall thickness of bottom side should be 40% of part thickness as per desgn rule.

Split it with the part body.

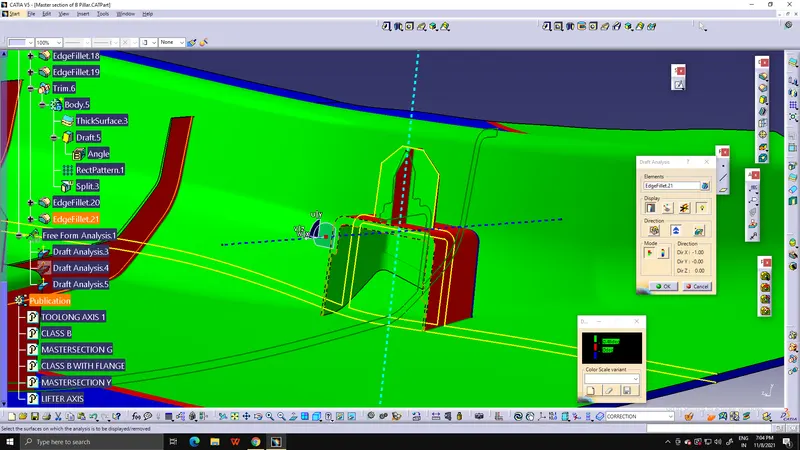

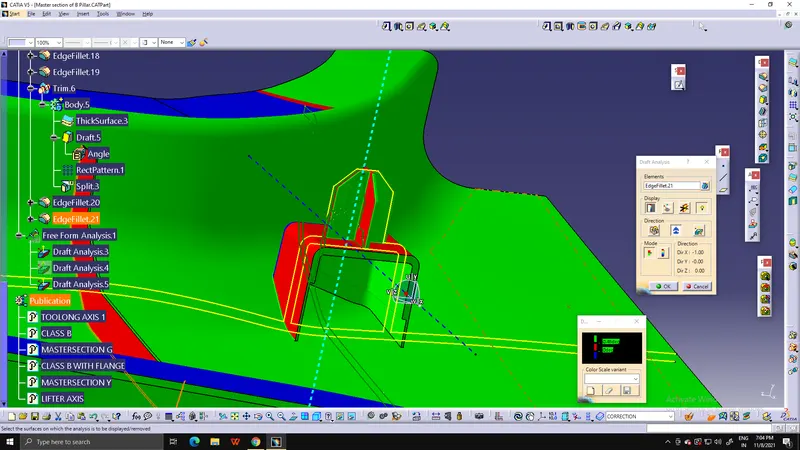

Draft Analysis Of Dog House & Locator :

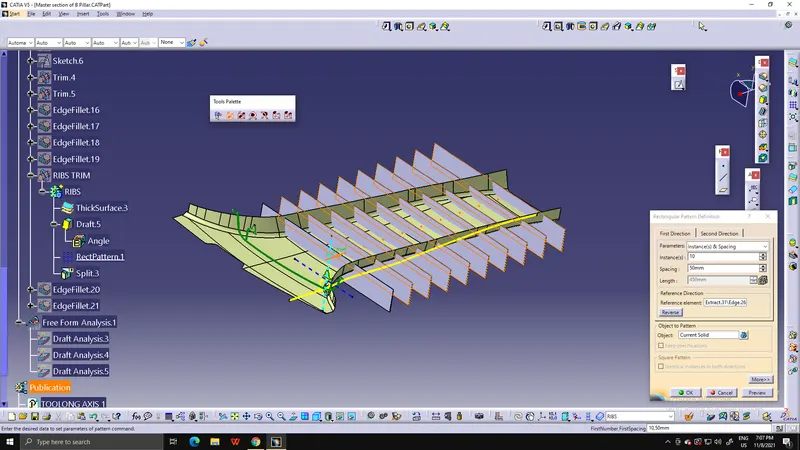

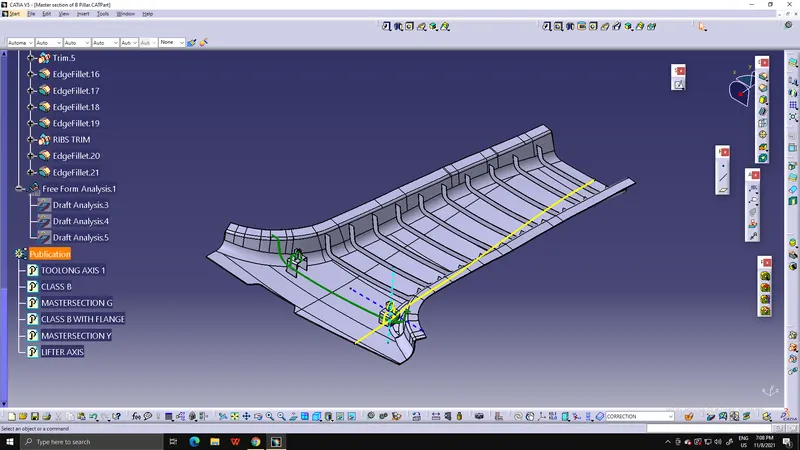

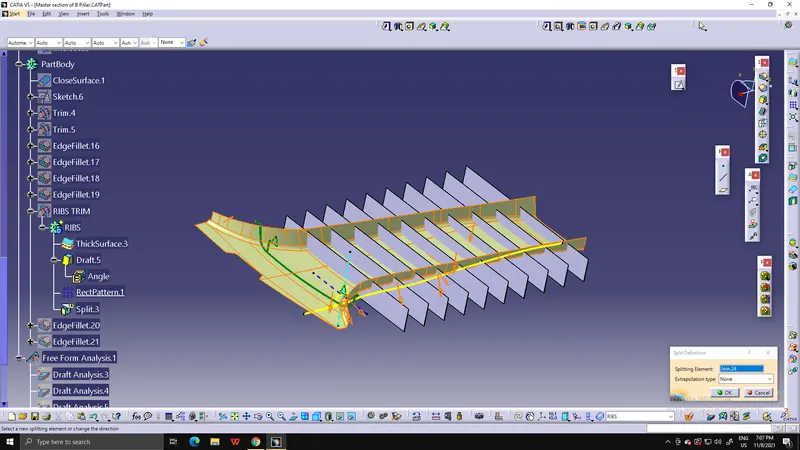

Creation Of Ribs:

Ribs are at the 50mm distance as told.

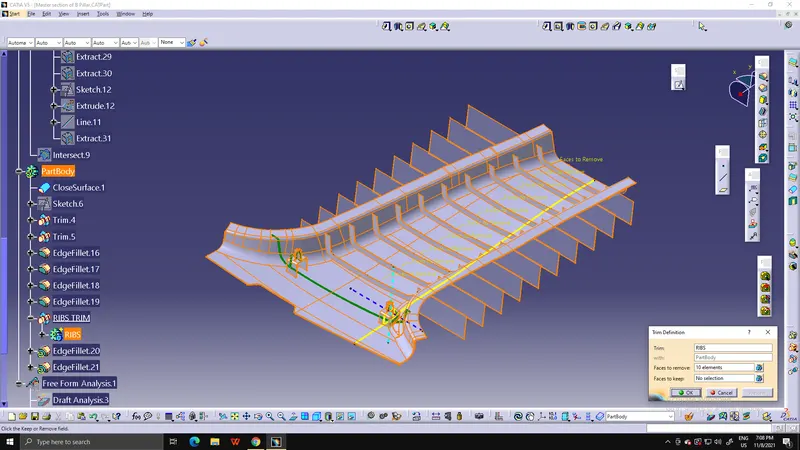

Now, Split those ribs with the offset class B.

Now Untrim that ribs with main body.

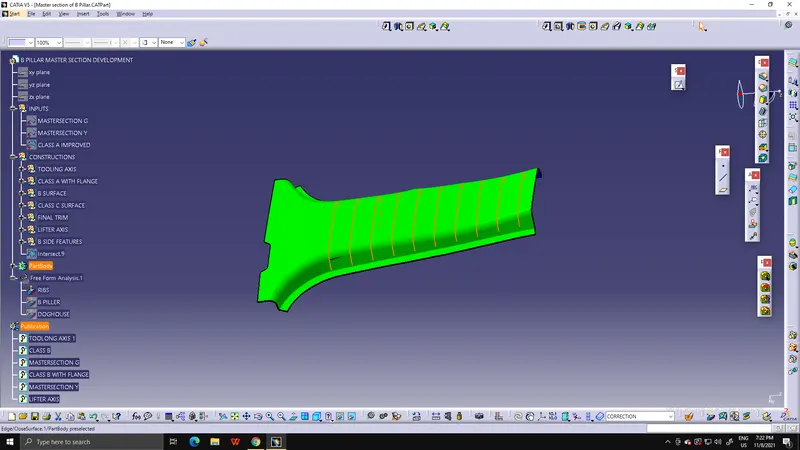

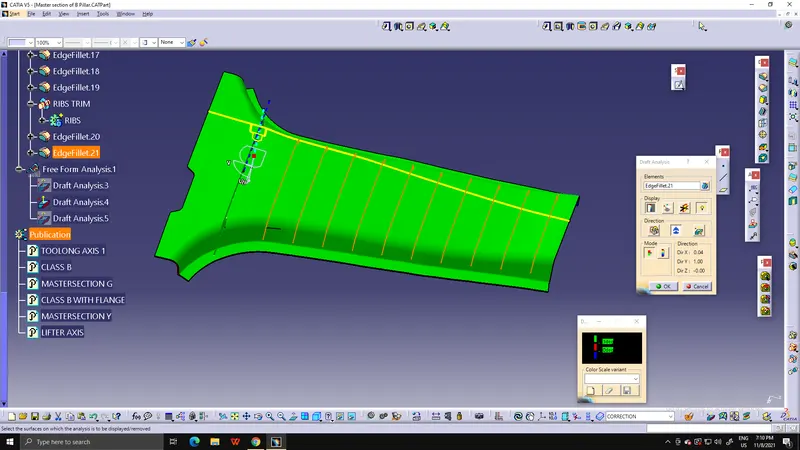

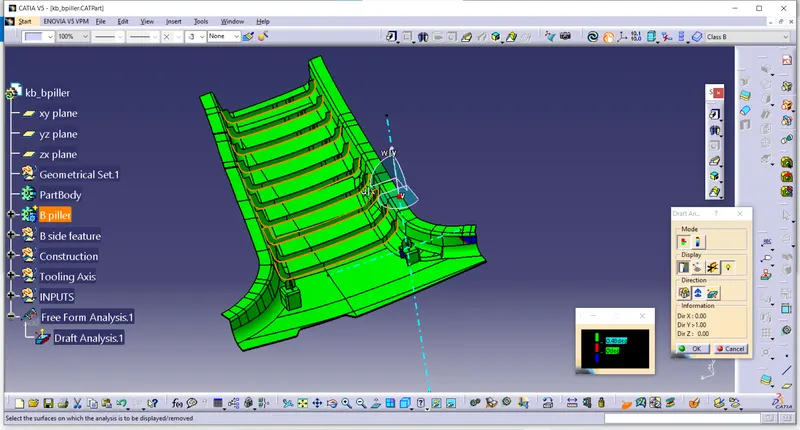

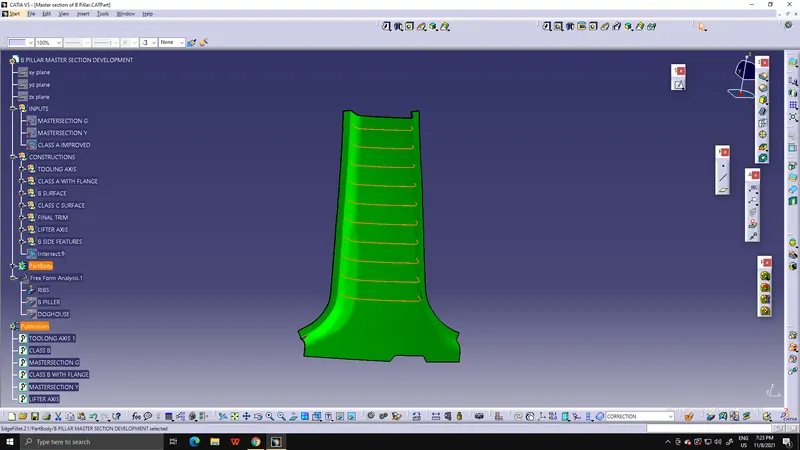

Draft Analysis On Main Body:

Draft Colour- GREEN 3 degree.

RED- 0 to 3 degree.

BLUE- below 0 degree.

Minimal draft for b side features like doghouse and rib is 0.5 degrees

DRAFT COLOUR- GREEN 0.5 degree

RED- 0 to 0.5 degree

BLUE- below 0

(Note- Class A surface have some issues so there are some problems in draft analysis.)

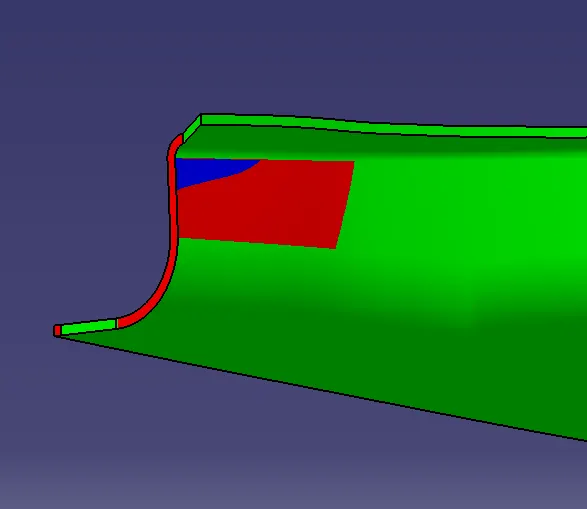

Defects In Class A Surface-

Different Views Of Component:

ISOMETRIC VIEW:

FRONT VIEW:

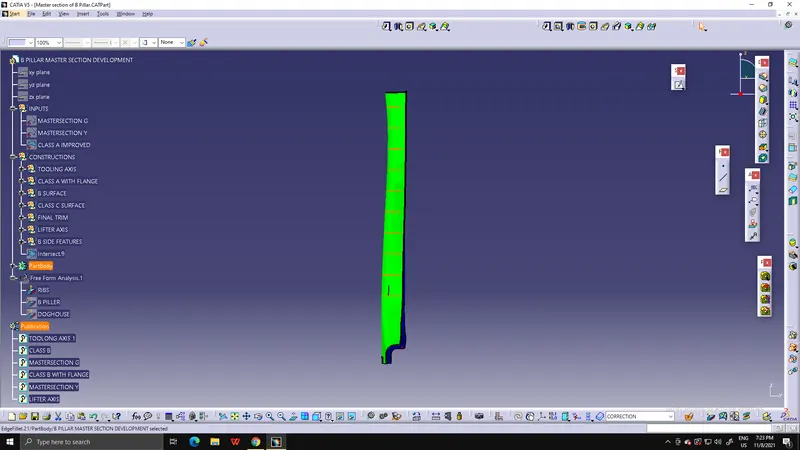

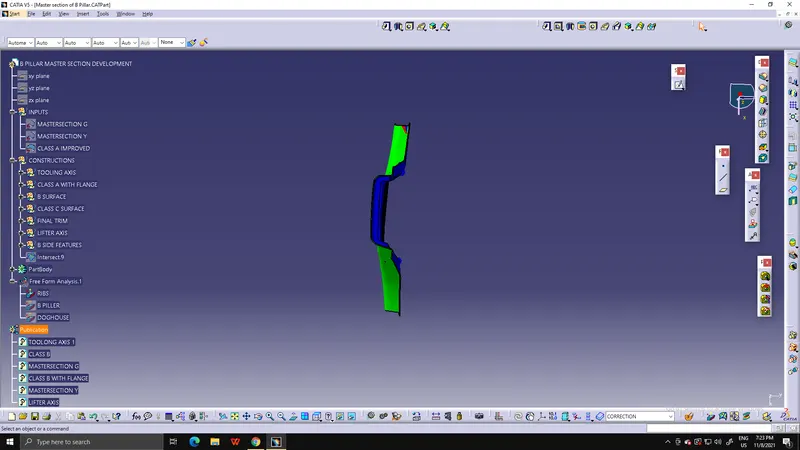

SIDE VIEW:

TOP VIEW:
